Description:

The WET ARRAY 5 has the following upgrades over our WET ARRAY 4:

• 2-Way design gives a much better frequency response

• Higher power: Tap goes up to 60w (the lower model goes to 48w)

• Stronger mounting bracket with a 4 way swivel adjustment

• This speaker is way better for music and it also sounds great for speeches and PA applications

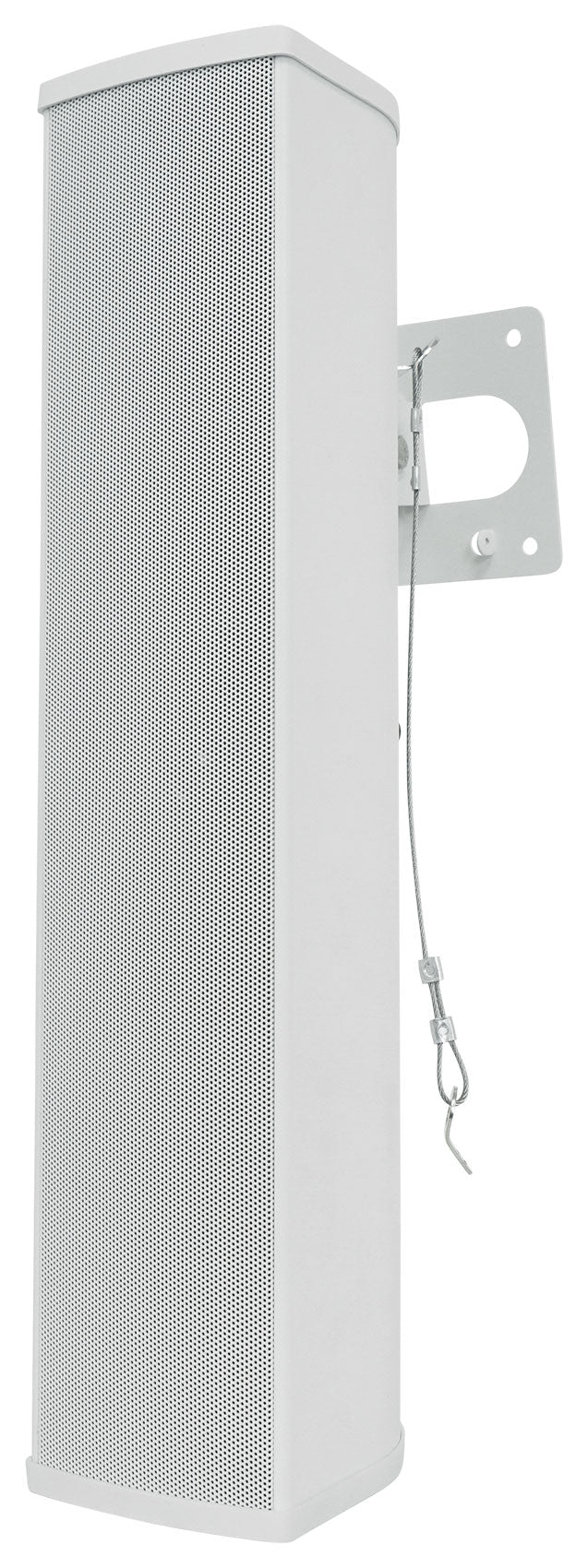

The Rockville WET ARRAY 5 is a 70V column line array wall mount speaker that is the perfect solution for bars, churches, auditoriums, and other commercial applications. It can be used both indoors and outdoors. The enclosure is high-grade aluminum which will never rust. This speaker is IP55 rated which means that it was tested with strong streams of water and it survived.

This speaker has a pleasant sound curve that is perfect for loud music or speeches. It goes extremely loud and the sound gets disbursed from (4) 3" midrange speakers as well as a tweeter. This 2-way design gives a much better frequency response than a 1-way design. It has a great throw for medium to large size rooms. The 70 volt tap switch allows you to select 60w, 30w, 15w, or 7.5w. If you use all 60 watts it is extremely loud. There is also an 8 ohm selection if you have an 8 ohm amp. The wall mount kit included is robust and includes a 4-way swivel angle adjustment so you can aim the speaker in the exact direction you want to point it. Installation is quick and easy and we include a how-to video making things simple for beginners or experts.

What is 70 volt ?

70 volt systems are the number one choice for applications where you want to install many speakers. With 70 volt there are a lot of advantages over 8-ohm systems. One of the main advantages is the simplicity of the wiring as well as how easy it is to match up speakers with the amplifier. For example, you can buy one 70V amplifier with 350 watts and you can install speakers that total close to 300 watts. It does not matter if it is 15 speakers that are 20 watts each or 50 speakers that are tapped at 5 watts each. You always want your 70 volt amp to have at least 15 or 20% more power than the combined watts your speakers are tapped at.

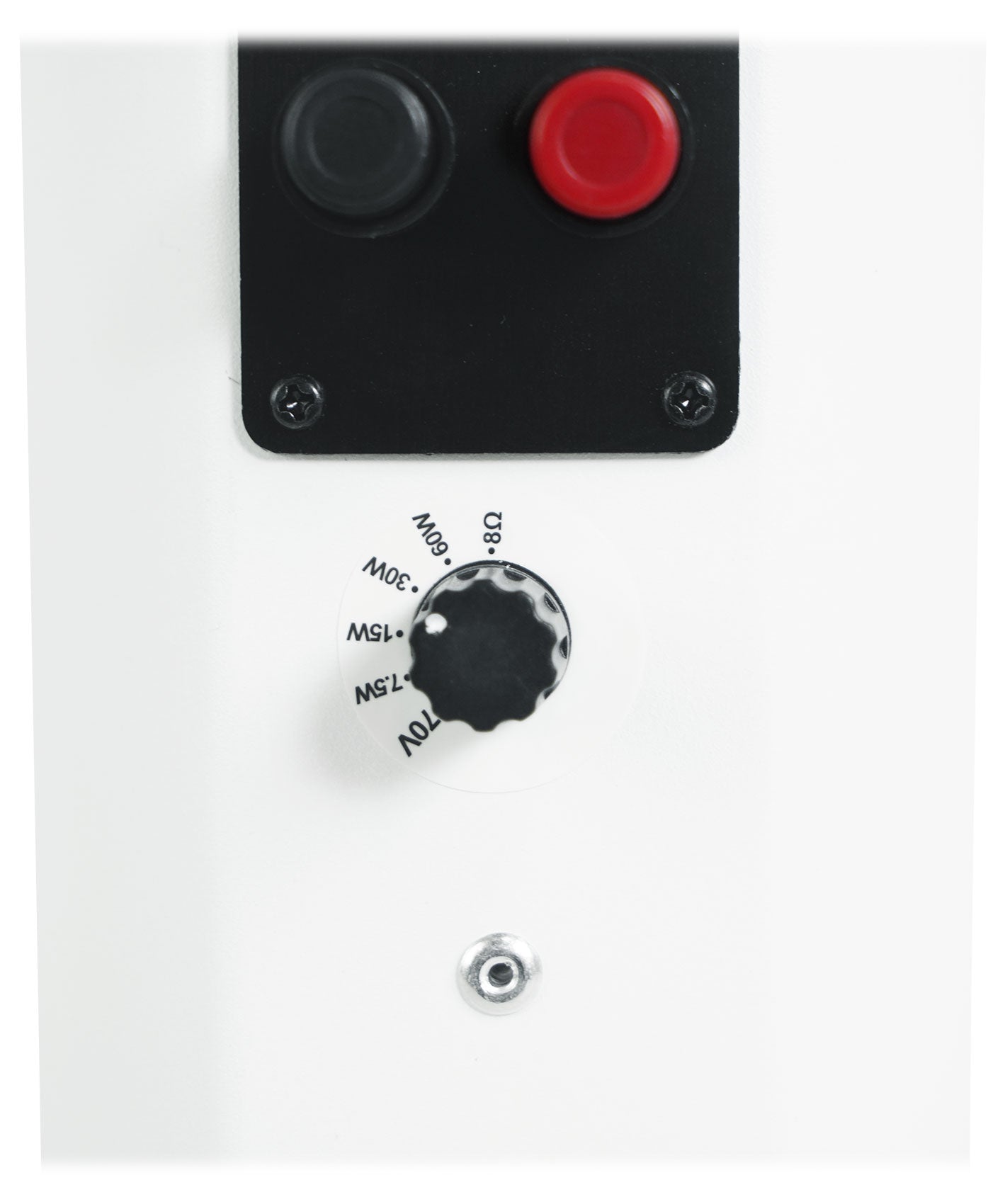

When we say the word tap, what we are referring to are the selectors these speakers have on them. For example, these speakers have selectable options of 7.5w, 15w, 30w, 60w. What this does is limit how many watts the built-in transformer on the speaker will allow the speaker to get from the amplifier. This gives you full customization over the sound for your space. In a restaurant for example you can tap your dining room speakers at 15 watts, the speakers by the bar area at 60 watts, and the ones in the hallway at 7.5 watts.

Another great feature with 70 volt is you can mix and match any 70 volt speakers whether they are ceiling speakers, wall mounted speakers, subwoofers, etc. 70 volt systems allow you to run very long lines of speaker wire without signal loss. This is ideal when running long speaker leads. The wiring is simple. You just wire all the positive terminals of the speakers to the positive 70 volt terminals of the amplifier. The negative terminals on the speaker simply get wired to the negative terminals on the amp. You do not have to worry about impedance. The power is constant.

Features:

• Rockville WET ARRAY 5 White Swivel Column Line Array 70V Commercial Pro Speaker

• Perfect for restaurants, churches, auditoriums, schools, bars, and other commercial applications

• Perfect for use indoors and outdoors

• 2-Way design with (4) 3" midrange drivers and a 20MM PEI tweeter gives a great frequency response and great sound quality

• Sounds great for voice and music

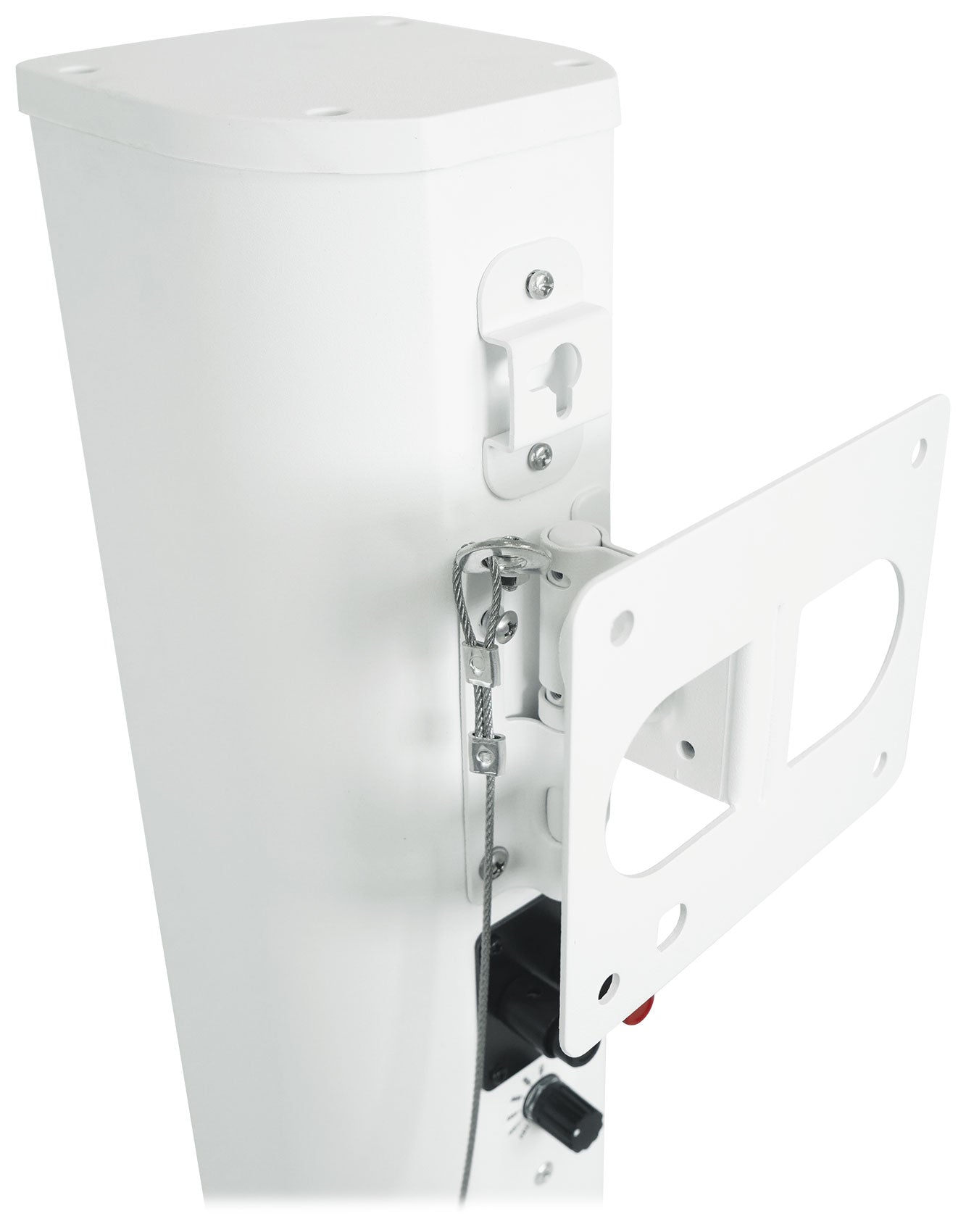

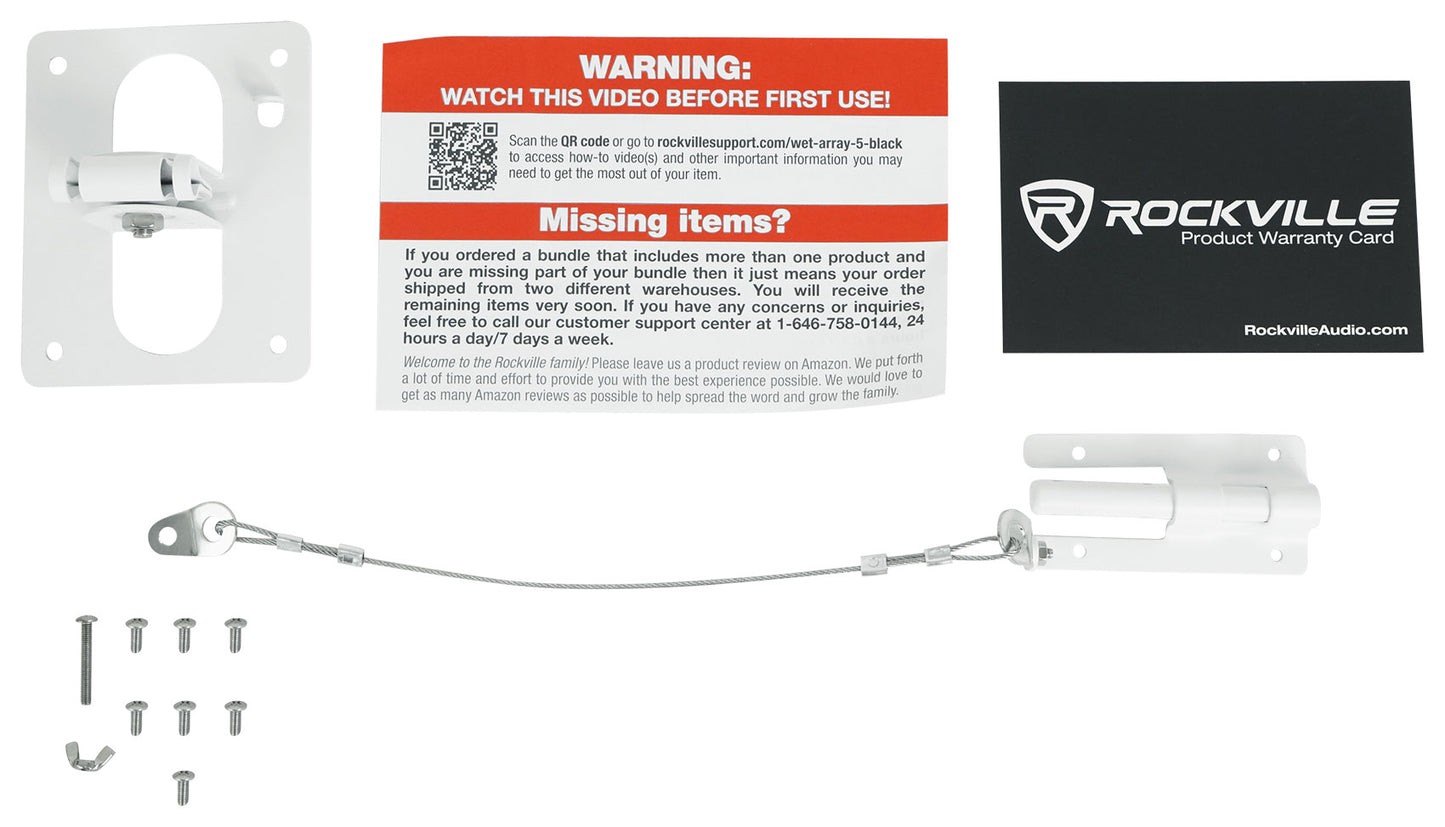

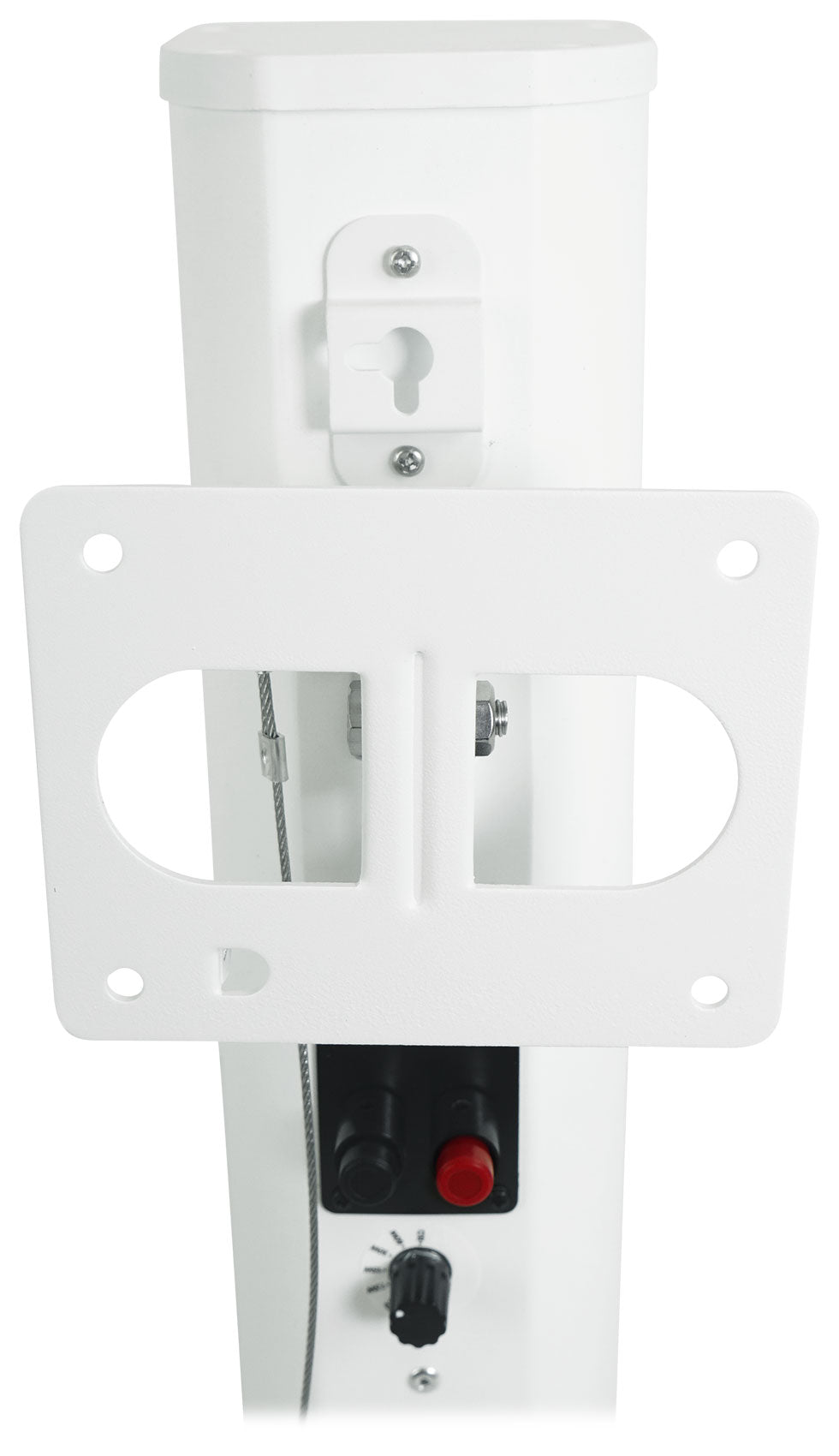

• Includes robust wall mount kit with 4 way swivel (up/down and left/right)

• 70 Volt Taps: 60w, 30w, 15w, 7.5w, 8OHMS

• 8 Ohm power handling: 85w

• Freq Response: 100Hz to 20kHz

• Thick aluminum enclosure is strong and weatherproof

• Aluminum grill is waterproof and rustproof

• IP55 waterproof rating

• All mounting hardware is waterproof and rustproof

• Sensitivity: 85dB

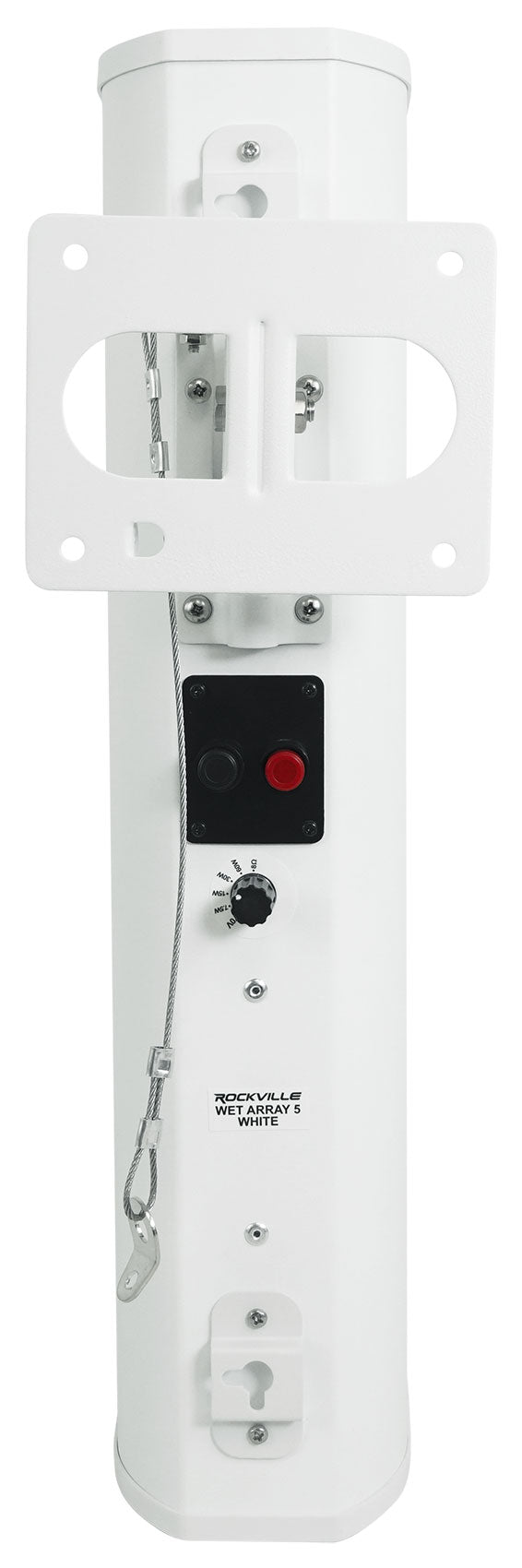

• Waterproof spring loaded terminals

• Built in transformer supports 70V installations

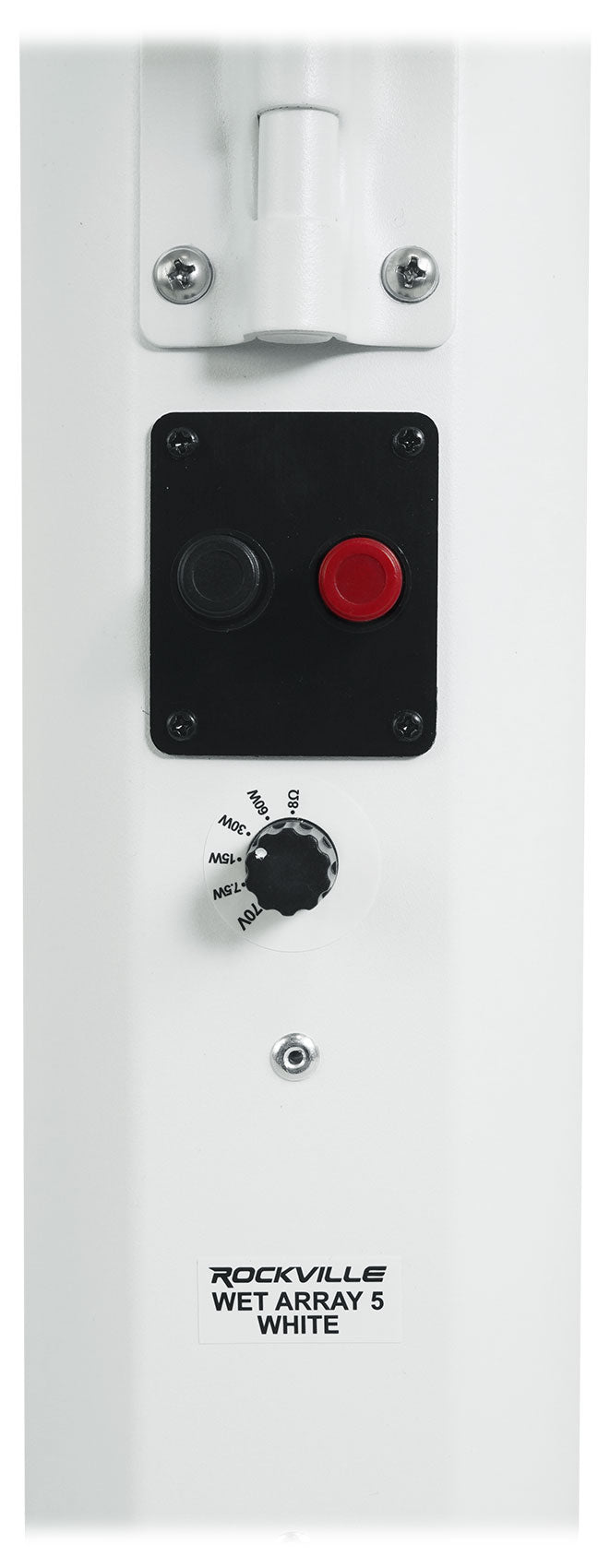

• Built in tap switch to easily select your 70V power

• Weight: 11 lbs

• Dimensions: 4.8" x 4.31" x 19.45"

• 70V Power Options: 60w, 30w, 15w, 7.5w

• 8 Ohm power handling: 85w
• Color: White
