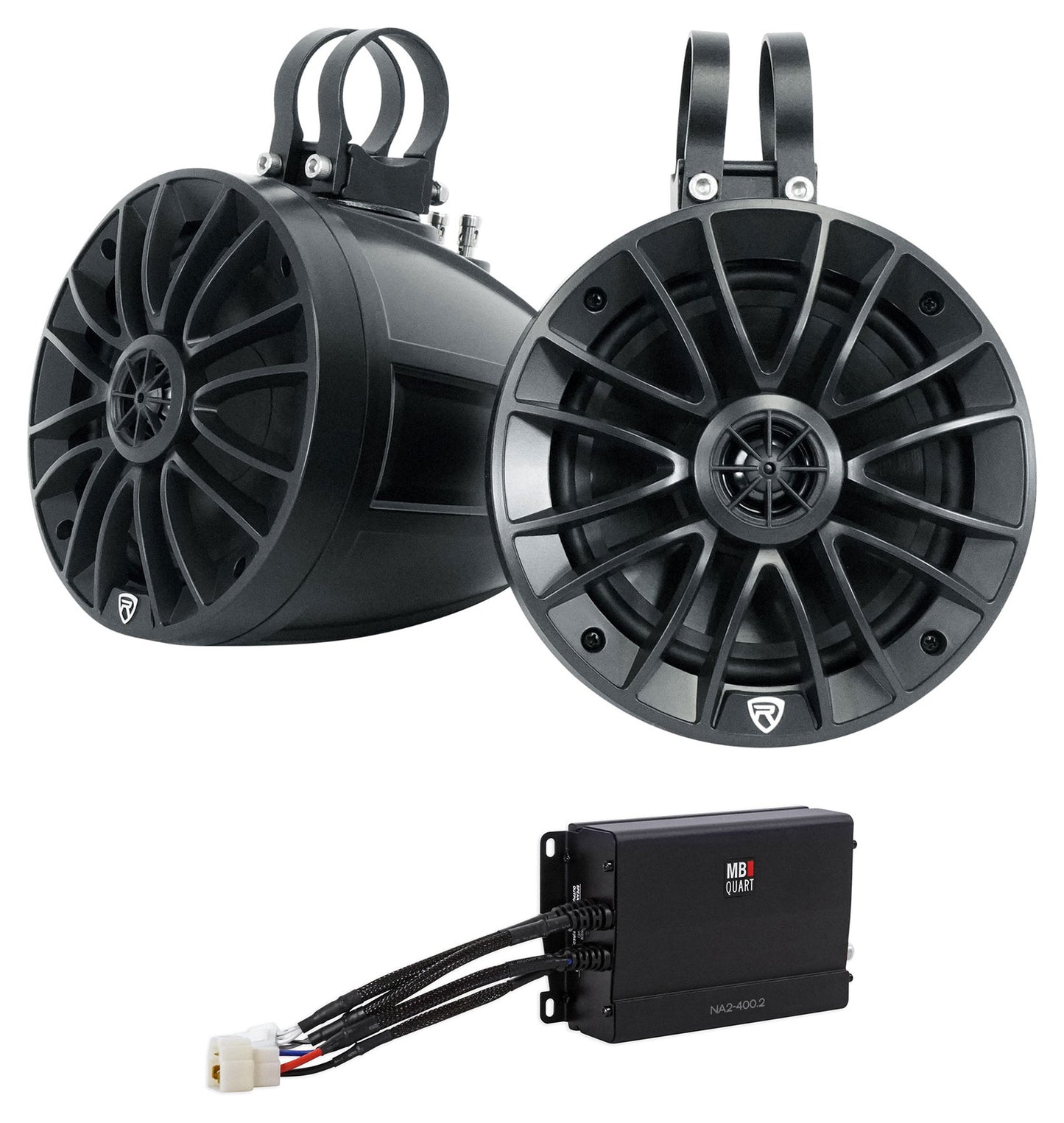

Package Includes:

• (1) Rockville UT65B UTV/ATV 6.5" Rollbar Wakeboard Marine Speakers/Swivel Mount/IPX6
• (1) MB QUART NA2-400.2 400w 2-Channel Amplifier Amp For Polaris/ATV/UTV/RZR/CART

---

How To Set Up Your UT65B:

UT65B PRODUCT VIDEO:

What's in the Box:

• 2 swivel mount roll bar / wakeboard speakers

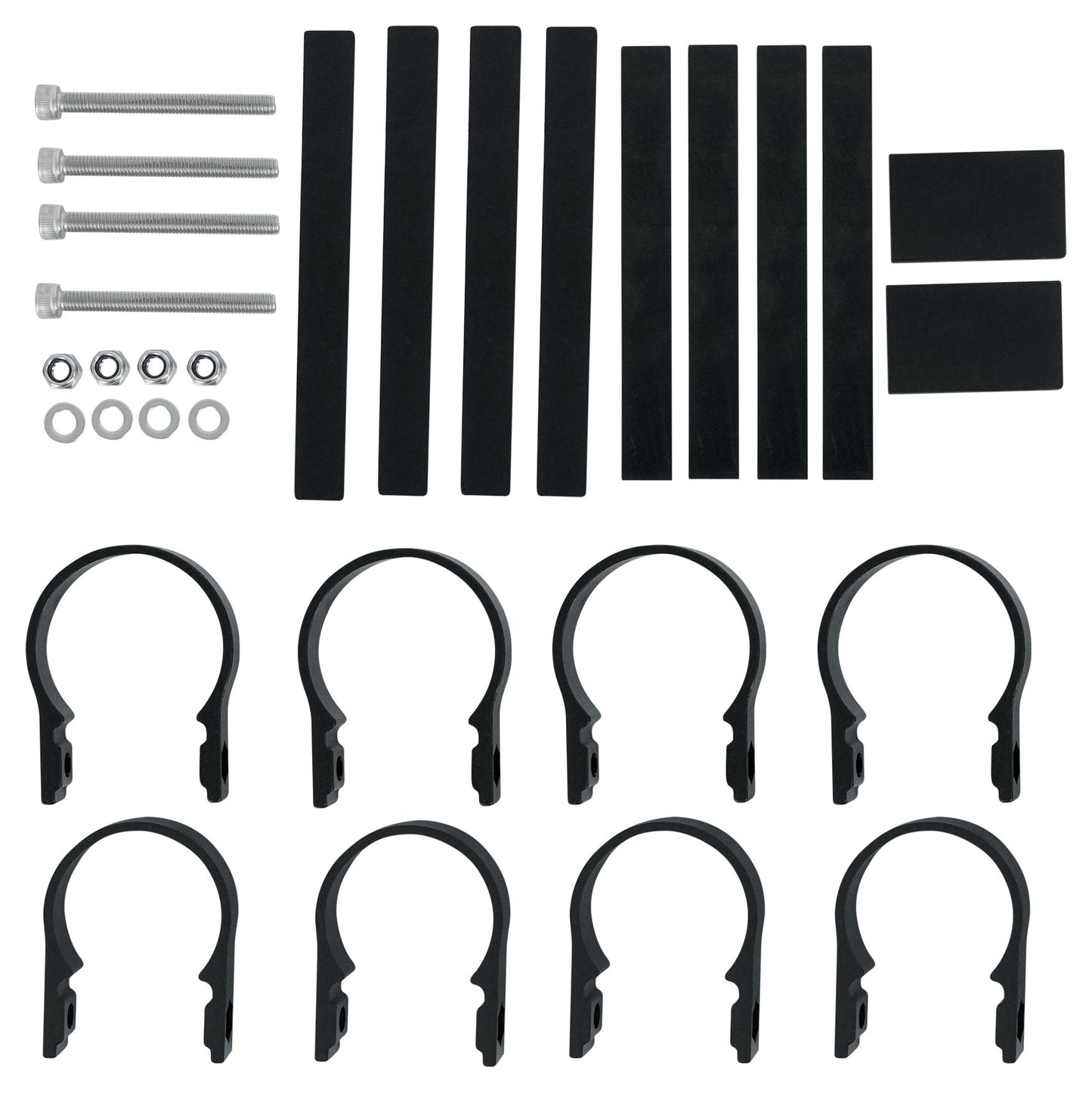

• Swivel Mounting brackets and mounting hardware to fit 1.5'' or 1.75" or 1.875" or 2" bars
• Installation hardware

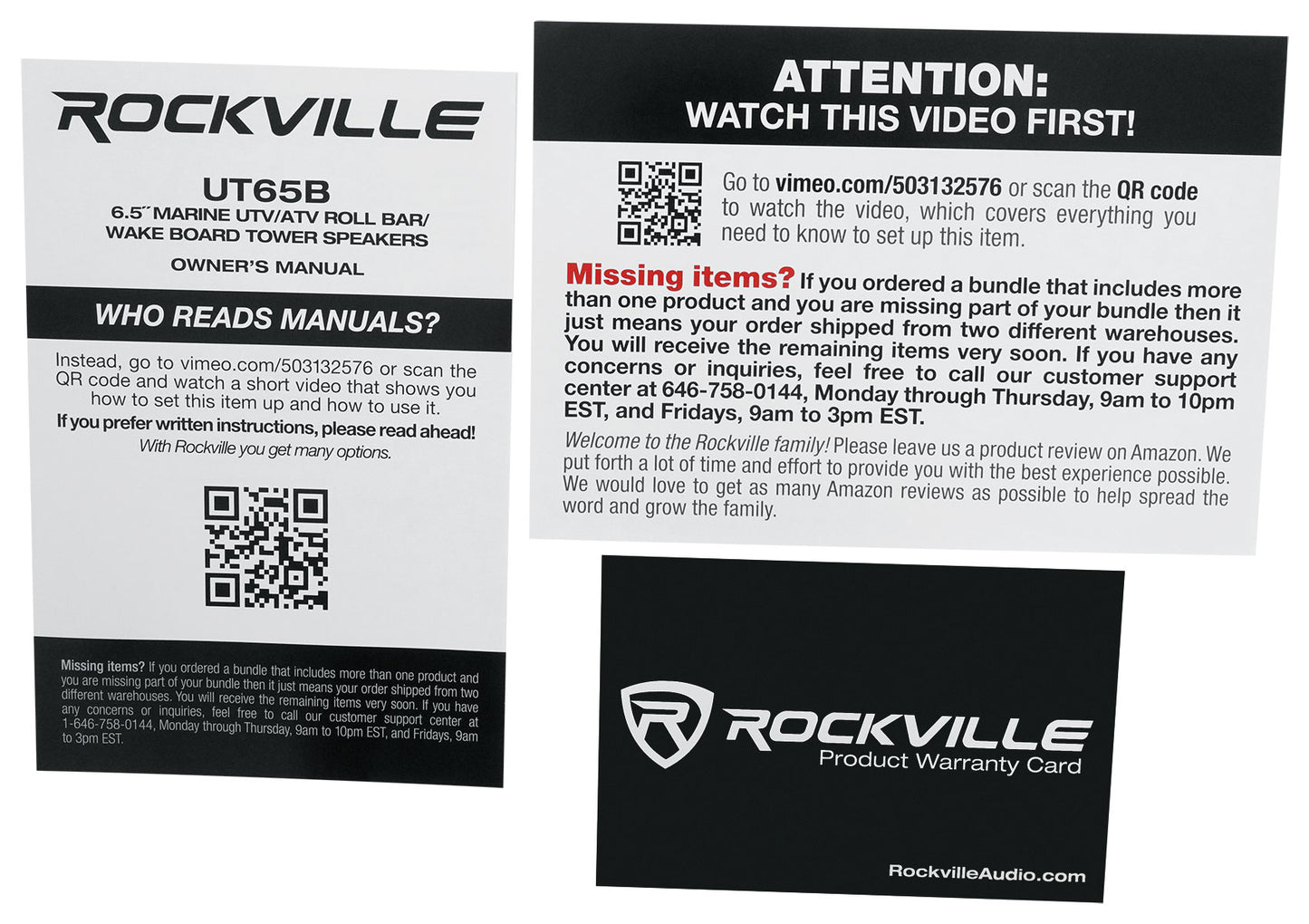

• Owner’s manual
• Warranty card

Features:

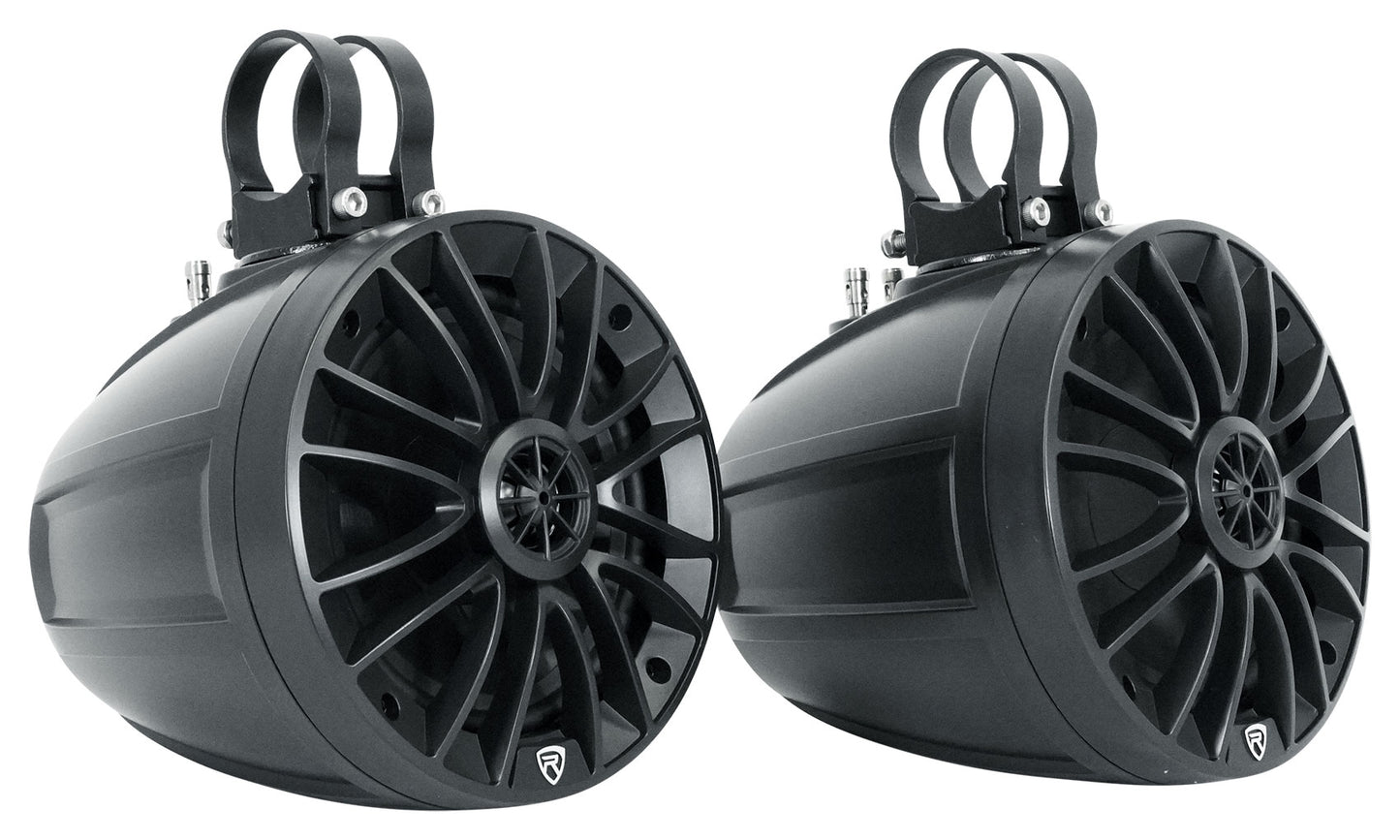

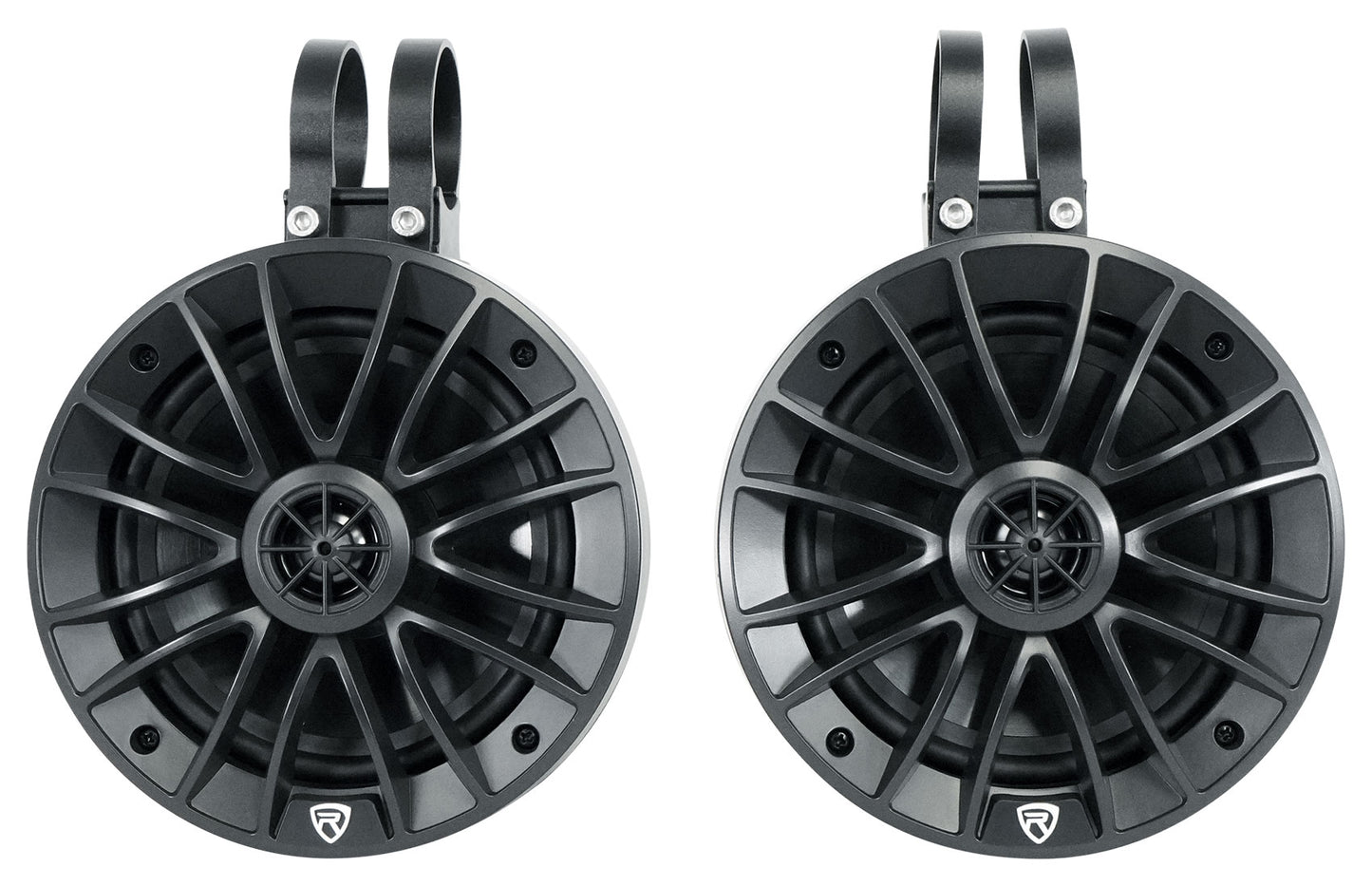

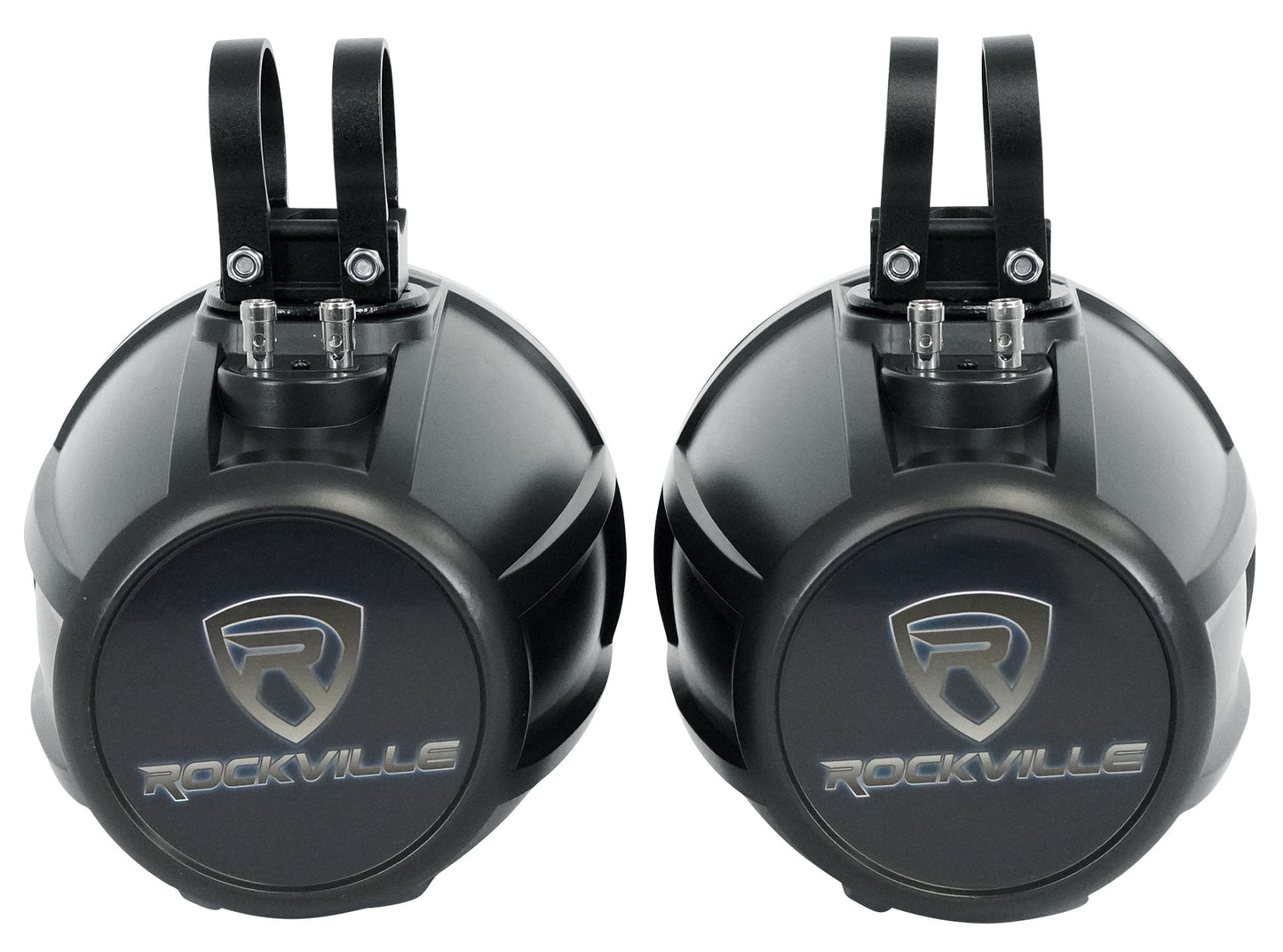

• Rockville UT65B Pair 6.5" Marine UTV/ATV Roll Bar / Wakeboard Tower Speakers
• Peak Power Handling: 400 Watts
• RMS Power Handling: 100 Watts
• Heavy Duty ABS enclosure
• IPX6 Water Resistance Rated
• Marine-grade components are protected from the outdoor elements

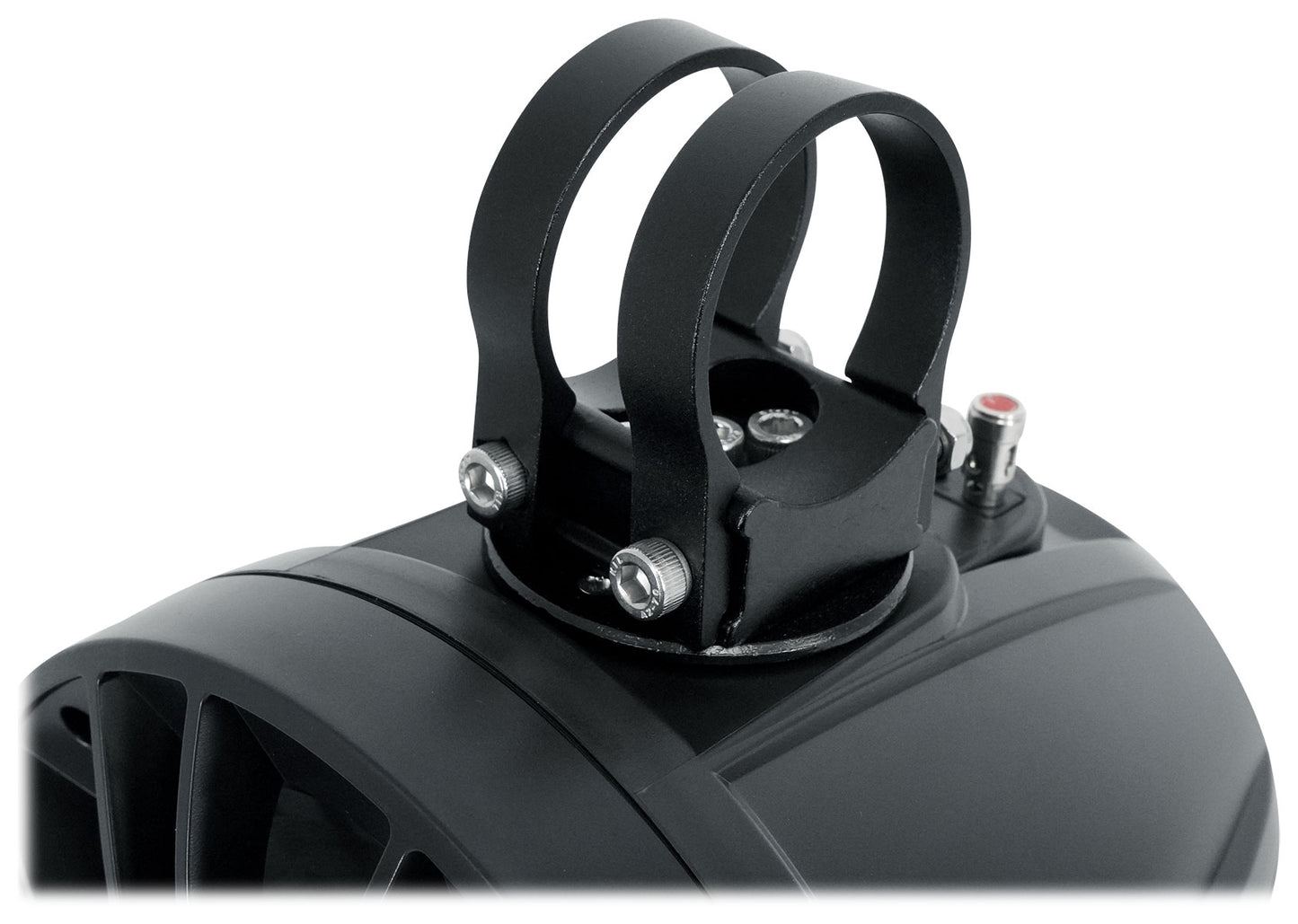

• Adjustable Aluminum Mounting Bracket is Strong and Sturdy
• Bracket Swivels 360 Degrees (Fixed swivel)
• Bracket supports any rollbar from 1.5" to 2" inches thick
• 6.5" Woofers with 11 oz Magnets and Oversized 1.25” Kapton Voice Coils
• 1" PEI Dome Tweeters with Neo magnets
• Fits wakeboard towers and roll bars ranging from 1.5” to 2” inches
• Shallow enclosure design is perfect for UTV, ATV, and marine applications
• Built-In Two-Way Crossover Network
• Fully Marinized Against Salt & Fresh Water Conditions
• Completely Resistant to Water, Rust, and UV Rays

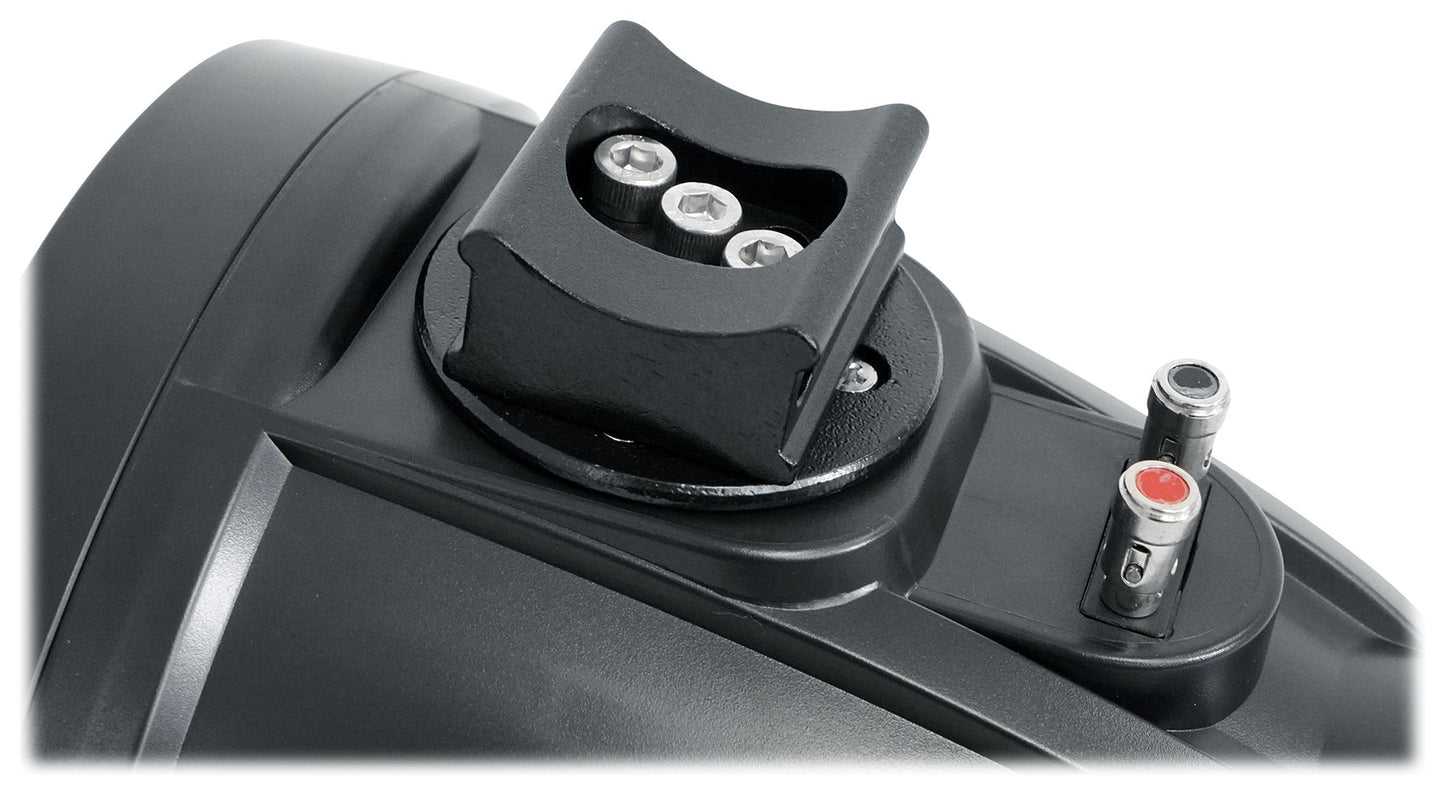

• Terminals Are Sealed internally with silicone making them resistant to water
• Polypropylene Mica Injected Cone with Butyl Rubber Surround
• Frequency Response: 60Hz – 20KHz
• SPL: 87dB @ 1w/1m
• Impedance: 4 Ohms
• Shockproof Design
• ABS Weather Resistant Grills and Hardware
• CE and RoHS Certified
• Color: Black
• Dimensions (H x W x D): 9.84" x 7.17" x7.32"

Owner's Manual ​​

---

Features:

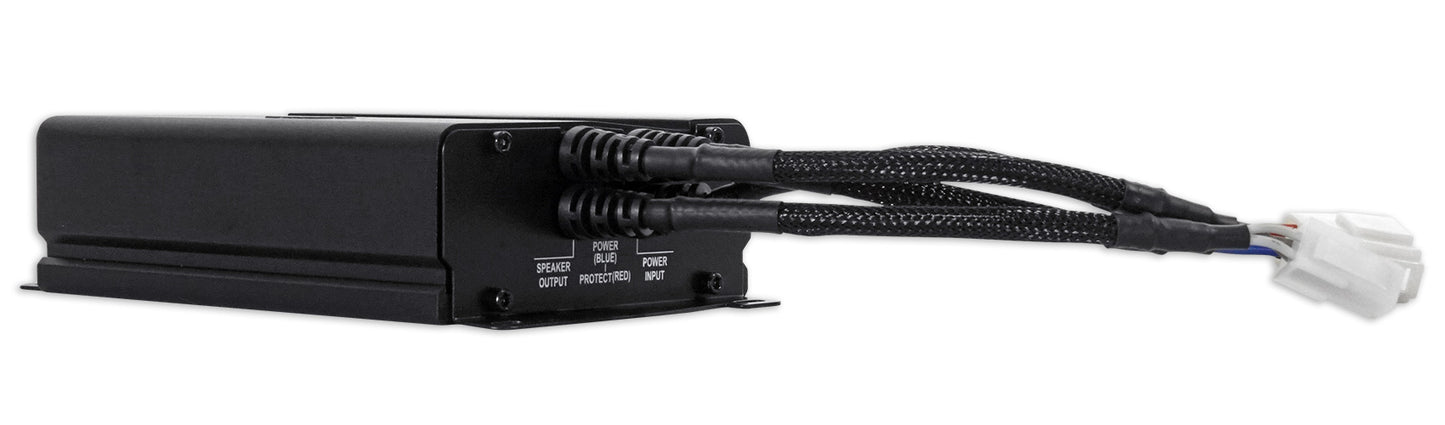

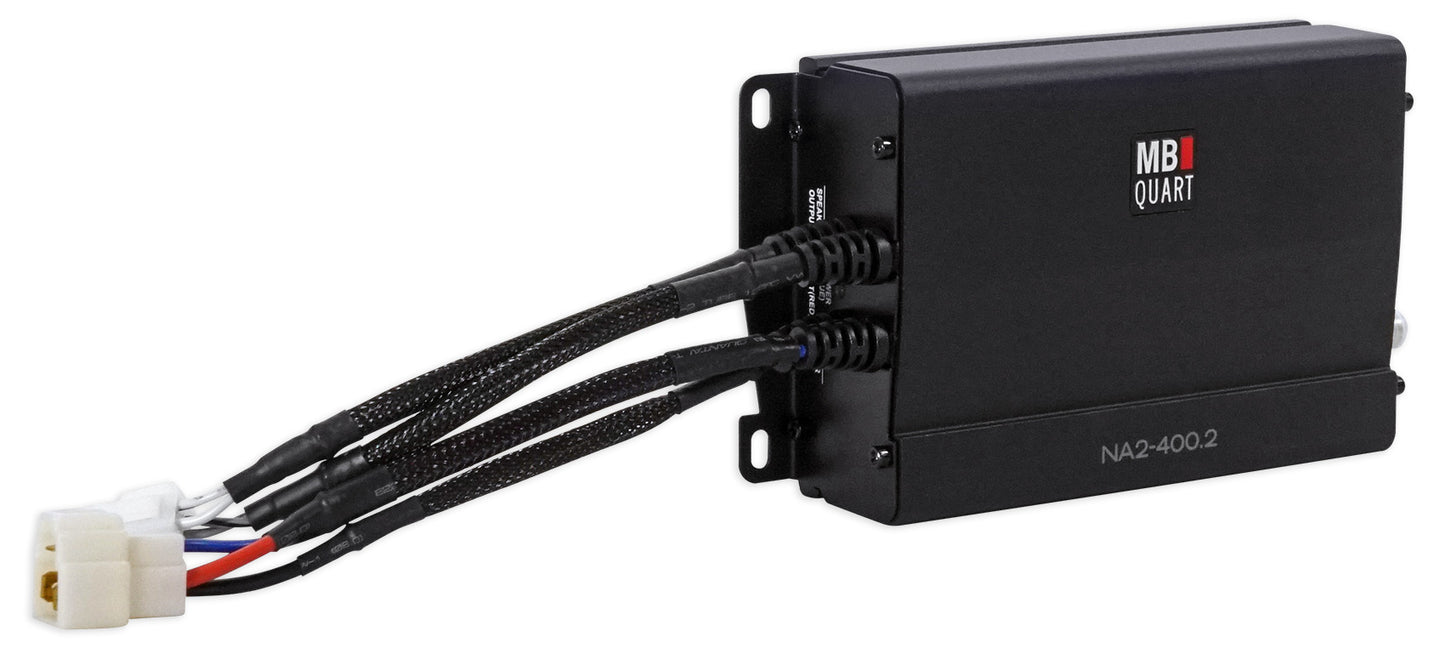

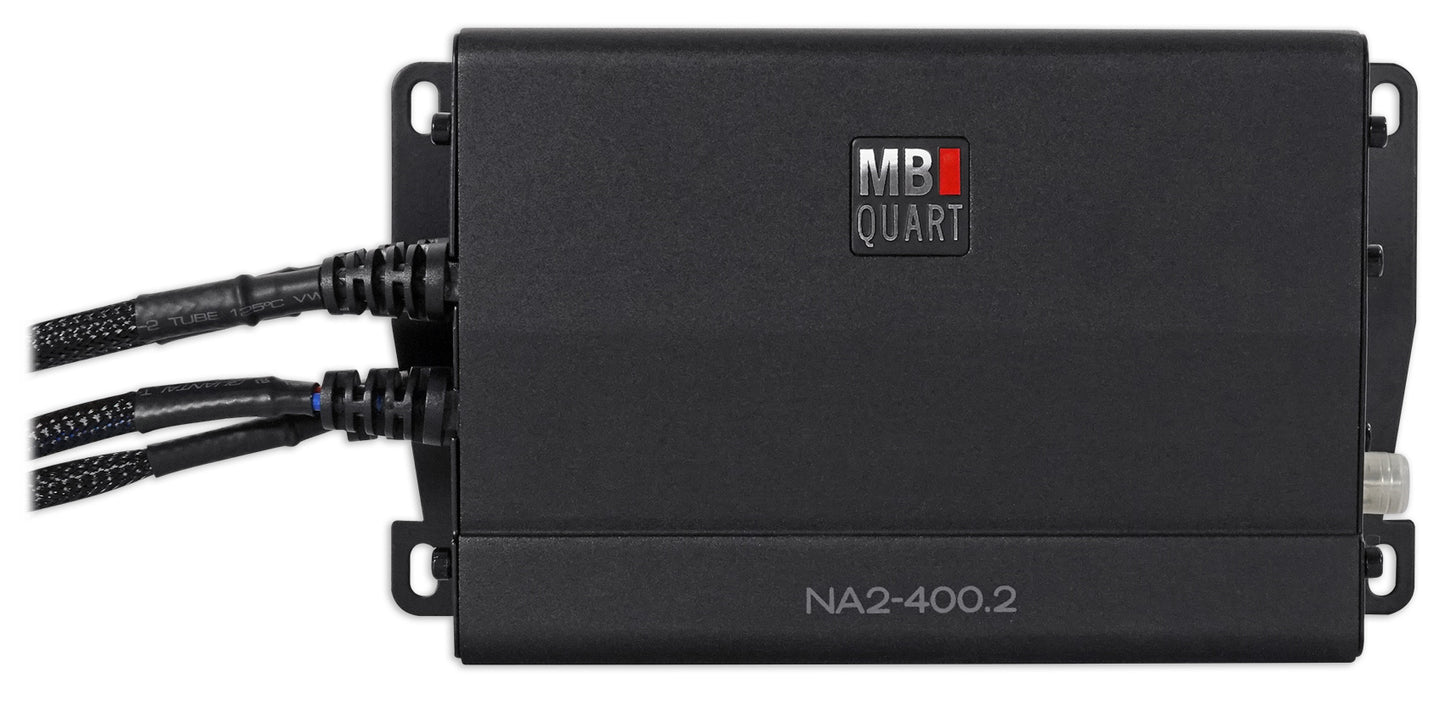

• MB QUART NA2 400.2 400w 2-Channel Amplifier Amp For Polaris/ATV/UTV/RZR/CART
• Marine Grade Protection: Yes - Amplifiers are ABYC & ASTM certified which defines that marine amplifiers must use conformal coated PC boards to resist corrosion from salt spray & moisture.
• Pre-Amp Circuitry: Q-Stasis Pre Amplifier Stage - The highly engineered Q-Stasis pre-amplifier stage reduces incoming noise from source units dramatically improving sound quality
• Inputs: 1 Pair, RCA Nickel-Plated - High temperature impact resistant with hex screw terminals that allow for secure connections and is erosion resistant
• Operation Mode: Two channel operation - Flexible installation allows this amplifier to run in two channel or bridged mono mode.

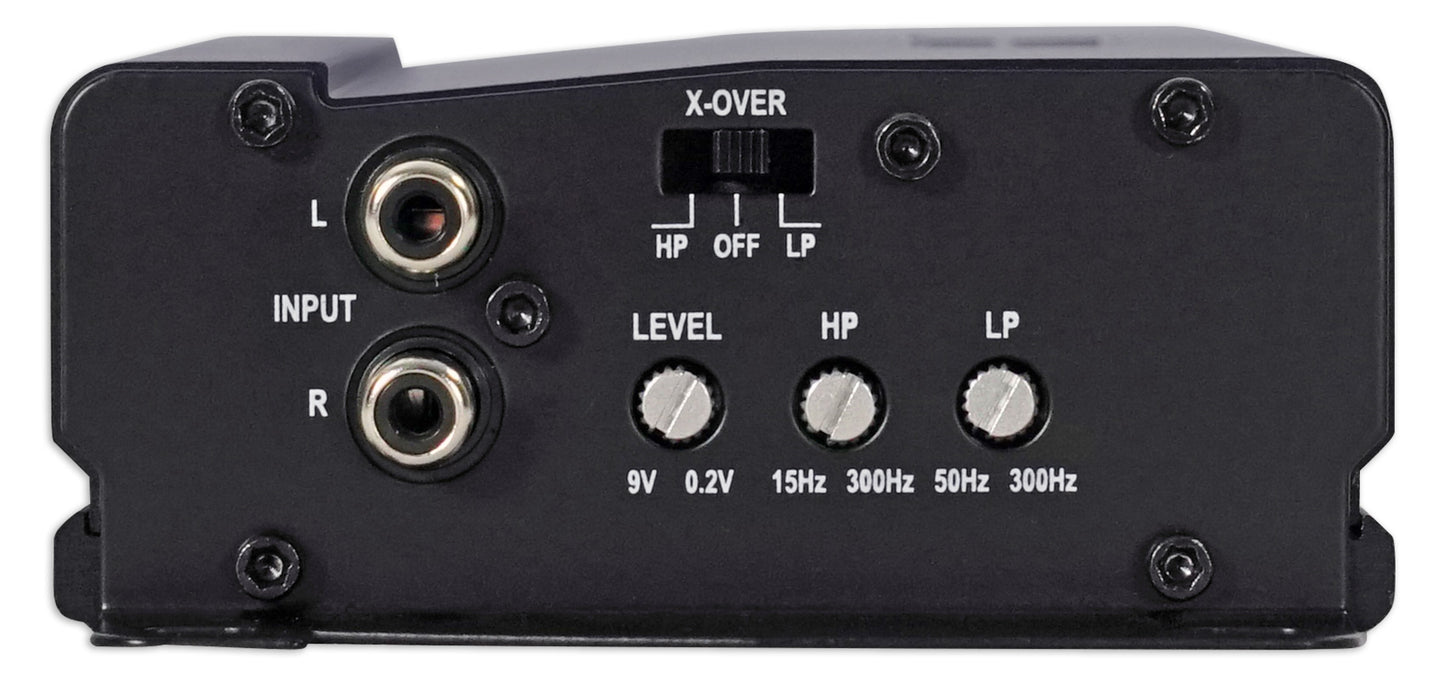

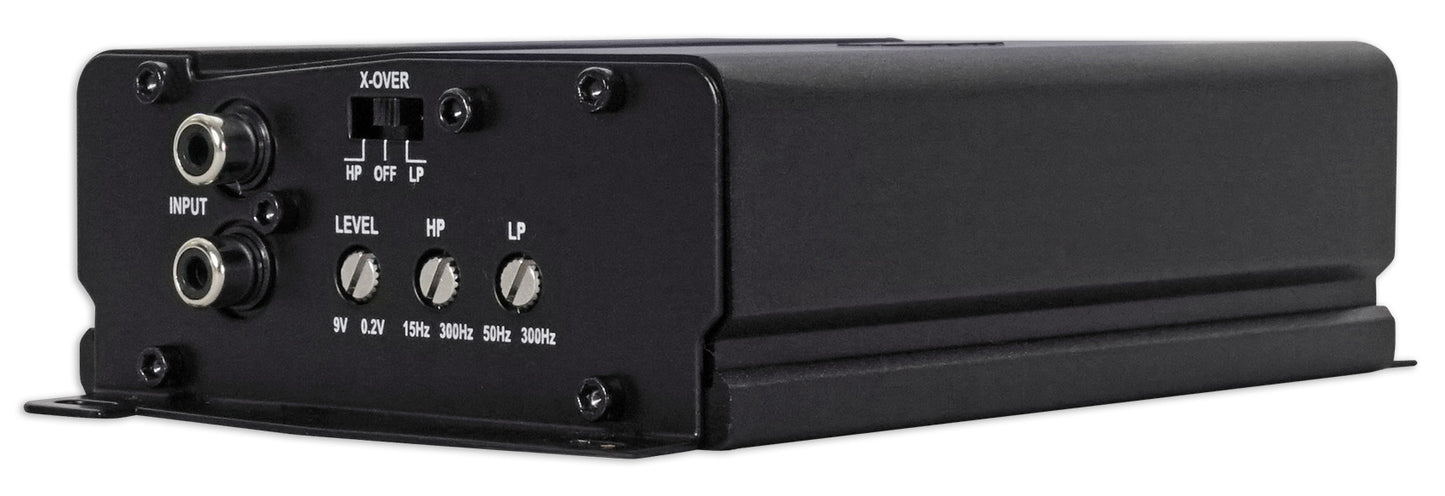

• Crossover / Signal Shaping: Switched FULL / LPF / HPF - Complete control of amplifier signal, essential when using two or more amplifiers
• Class / Topology: Full Range Class D - Highly efficient circuit topology which helps the amplifer develop a lot of power in a very small heatsink.
• Output Devices Technology: PWM MOSFET Power Supply - Stable power through the PC board with minimal heat generation
• Heat Sink: Aluminum - Quickly dissapates heat to allow the amplifer to run lower impedance for longer duration
• Power Supply: Simpatico Coil Design - The dual coil Pulse Width Modulated power supply keeps voltage constant through the Ultra-Fi output devices
• Output Connections: Quick Dissconect Wires, RCA Connections - Quickly remove amplifer when you are putting machine up for the winter of as a security precaution
• Connections Type: Gold-plated connections - Gold-plated power, ground, speaker and RCA corrosion resistant connections

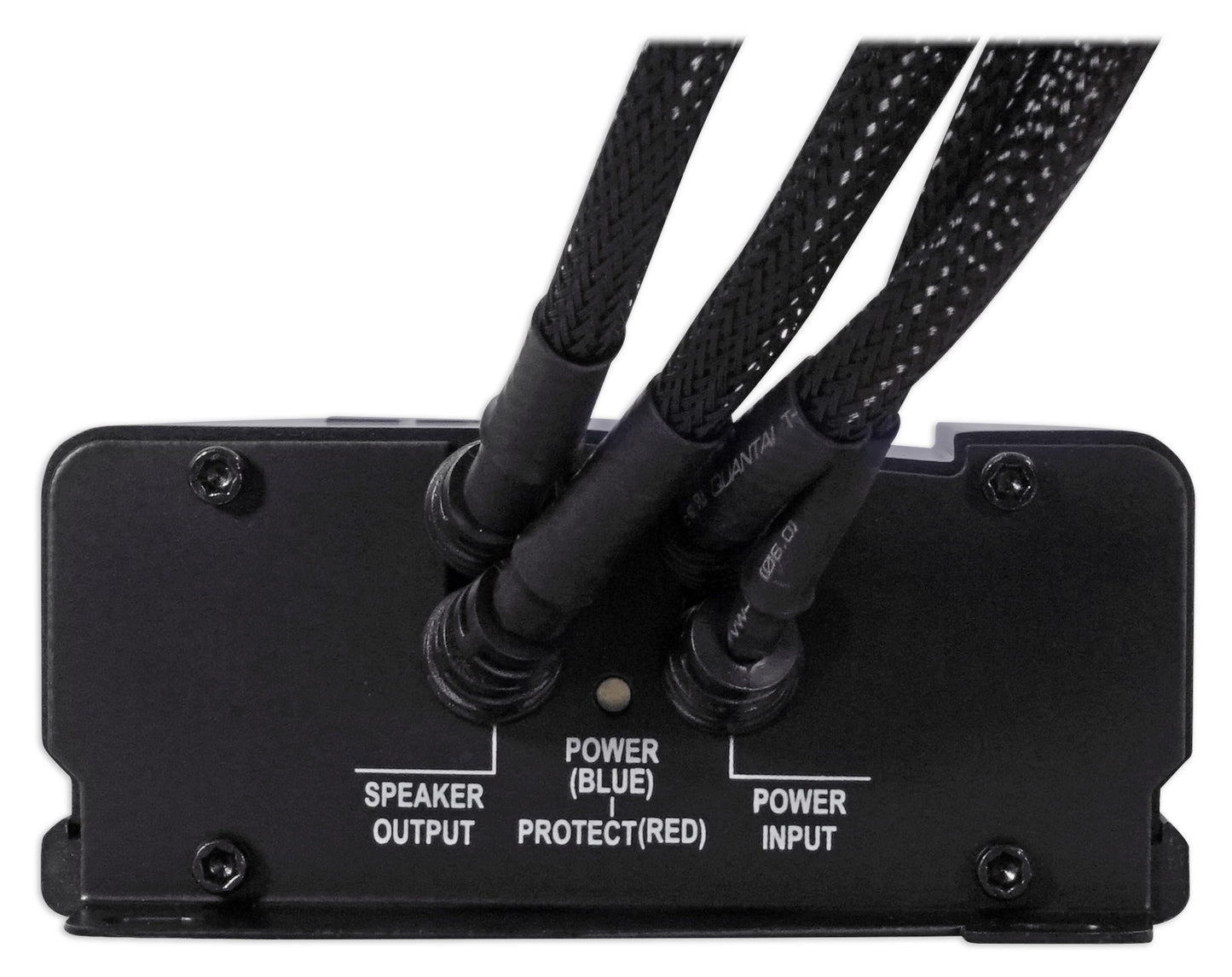

• Diagnostics: Three-stage protection circuits - Monitor thermal, overload, DC, and speaker short protection with lighted indicators on the amplifier end panel
• Marinized / Waterproof: Yes - Water resistant for durability in any environment

Specifications:

• Class: Full Range Class D
• Variable Voltage: 0.2V~9V
• Signal to Noise Ratio: >90dB
• Frequency Response: 20Hz-20kHz
• Crossover Type: Electronic 12dB Per Octave
• Low Pass Crossover: Switch Low Pass 300 Hz
• Bass Boost: 0-12dB@45Hz
• Subsonic Filter: 60Hz
• Power @ 2-Ohms: 2 x 200W
• Power @ 4-Ohms: 2 x 100W
• Total Channels: 2
• Audio Inputs: RCA
• Power Terminal 12v/GND: Molex 10 ga
• Speaker Terminal Wire Gauge: Molex Plug Connector
• Fusing: 1 x 30 Amps
• Certifications: Marine & Powersports
• Dimensions: 3.70 X 5.51 X 1.77 in (9.4 X 14.0 X 4.5 cm)
• Weight: 2.12 lbs (0.96 kg)
