Rockville SK512 PACKAGE 12" 1400w Loaded K5 Car Subwoofer Enclosure+DB11 Amp

SKU:
SK512 PACKAGE
$390.00 $189.95
(You save $200.05)
Enter your email address to be notified when this item is back in stock.
Condition:
New
Custom_Condition:
BRAND NEW IN ORIGINAL PACKAGING
Bundle:
No
KITCOMPONENTS:
9282

Warranty Information:

1 YEAR

New orders ship within 1 business day

Call for Expert Advice
Call now: 1-646-758-0144

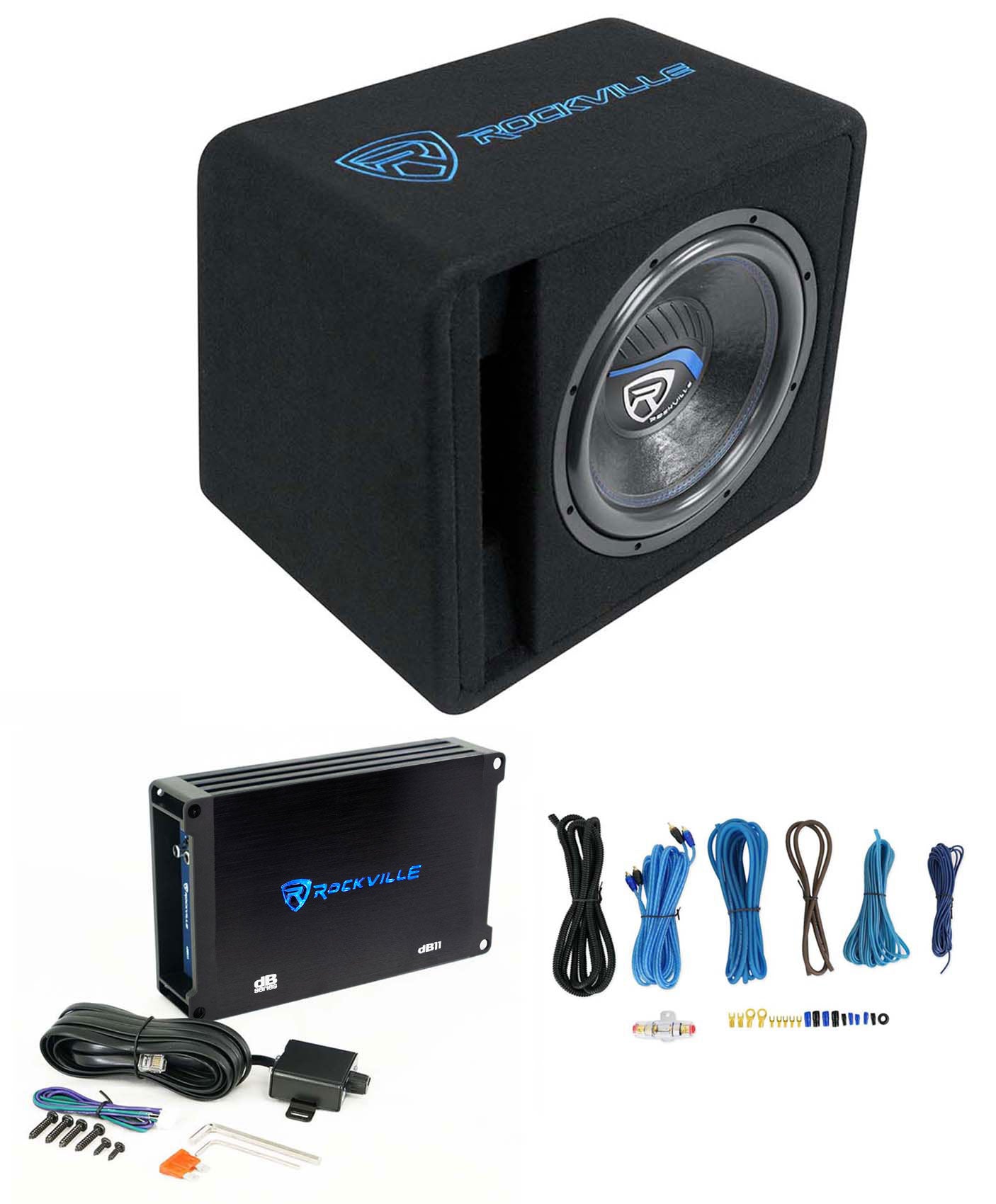

Items included in this bundle

Video of K5 Series UPDATED:

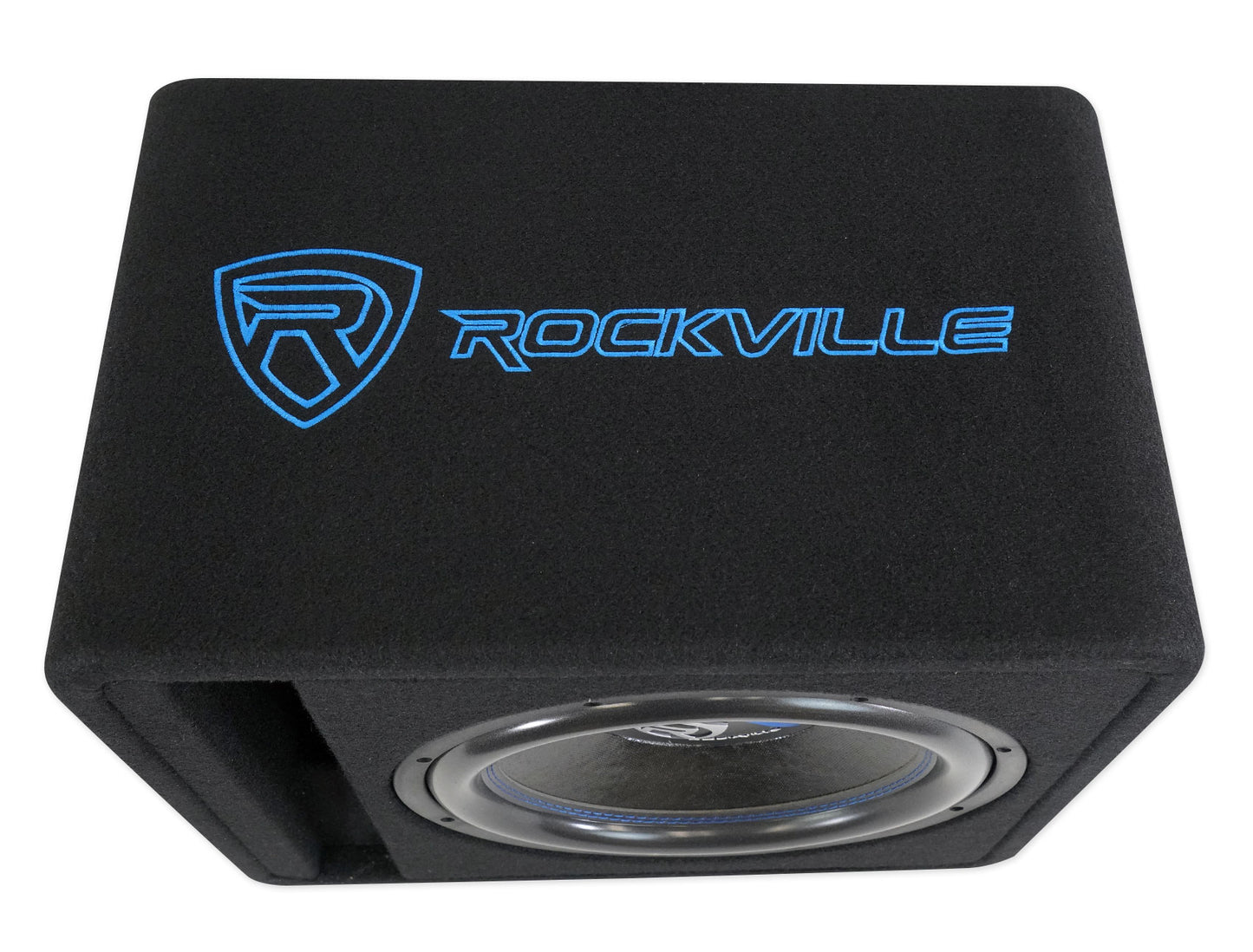

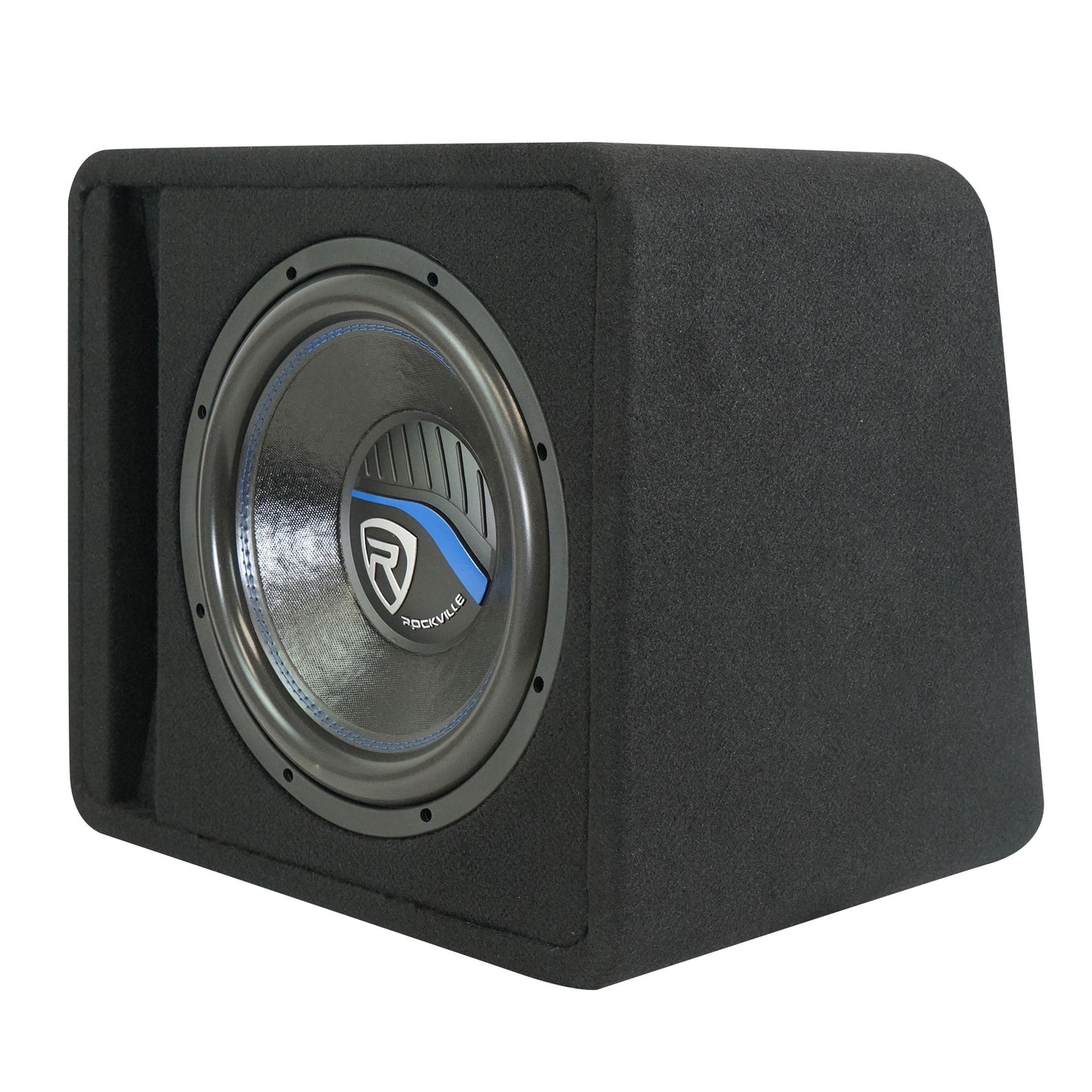

Loaded Sub Enclosure Features:

  • Rockville Single 12" K5 1400w Car Subwoofer Pre-loaded In Vented Sub Enclosure
  • Peak Power Handling: 1400 Watts
  • Program Power Handling: 700 Watts
  • CEA Rated RMS Power Handling: 350 Watts
  • Final Impedance: 4 Ohm
  • ¾” MDF enclosure
  • Bonded stapled and braced
  • Computer designed vents
  • Angled at 15 % for perfect bass alignment
  • High quality aviation grade tweed carpet
  • Satin Nickel speaker wire push terminals
  • Enclosure air space is 1.52 Cu Ft per sub
  • Vent dimensions (inches): 2.25" x 7" x 8.5"
  • Tuning frequency of enclosure: 35 Hz
  • 2"  4-Layer Black Aluminum Voice Coils Wound with OFC (100% Copper) Wire
  • The wire we use to wind the voice coil is imported from Japan which is way better quality than the standard China wire
  • 50 Oz High Quality Magnet
  • Cast Iron  Basket With Black Sanded Finish
  • Fiber Reinforced Ultra Stiff Black Non-Pressed Paper Cone – This cone is very efficient which makes the speaker sound louder even without requiring a lot of power to push it
  • Thick Foam Surround Provides Incredible Sound Quality With Minimal Distortion
  • Blue Stitching Cone Reinforcement Ensures Long Life
  • Polypropylene Dustcap
  • Gold-Plated spring loaded push terminals
  • Impedance: Single 4-Ohm Voice Coils
  • Vented Hole on T-yoke Enhances Heat Dissipation
  • Mounting Gasket with Rockville branding Makes it Easy To Mount the Subwoofer Air-Tight
  • High BL Magnetic Motor Gap
  • High grade black glue that handles extremely high temperatures which allows our woofer to handle even more power
  • Cutout Diameter: 11.02” inches
  • Mounting Depth: 5.03” inches
  • Frequency Response: 25 Hz - 1.5K kHz
  • 6mm T-Yoke + 6mm Washer
  • Sensitivity: 88dB
  • Weight: 10.1 Lbs.
  • Loaded enclosure weight: 41.5 Lbs.
  • Loaded enclosure dimensions (inches): 18.25” x 14.25” x 16.25”

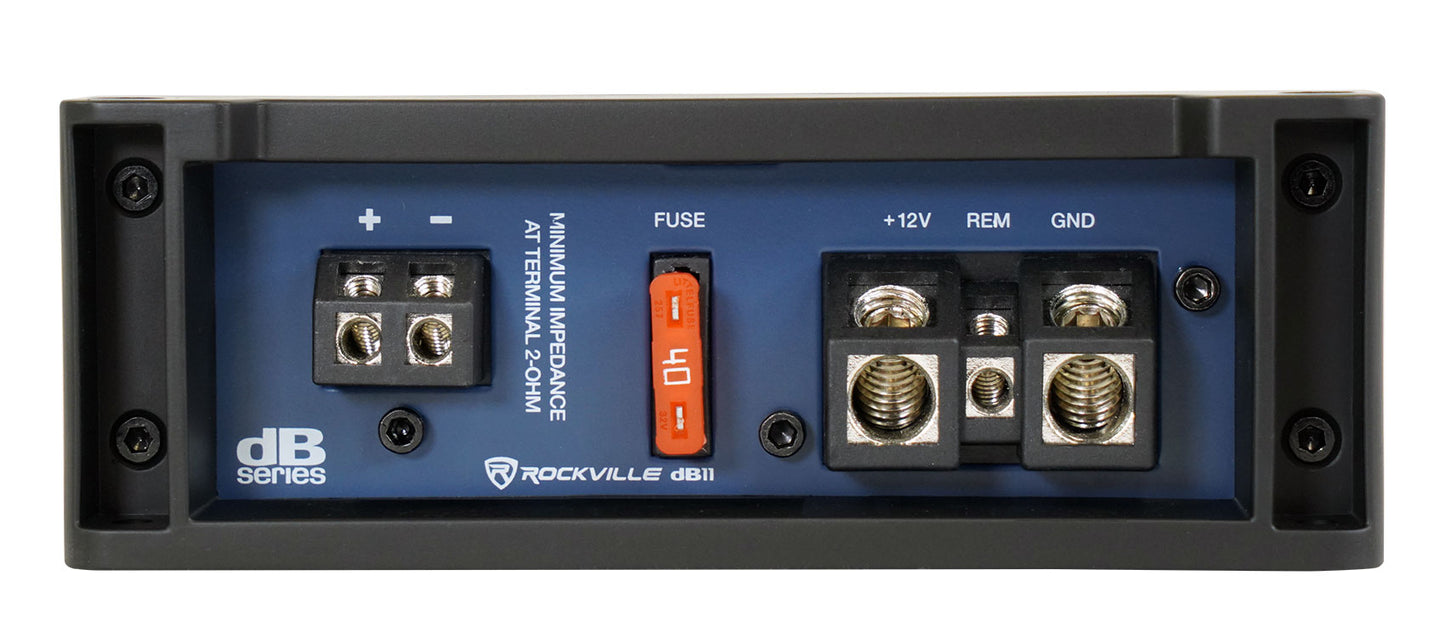

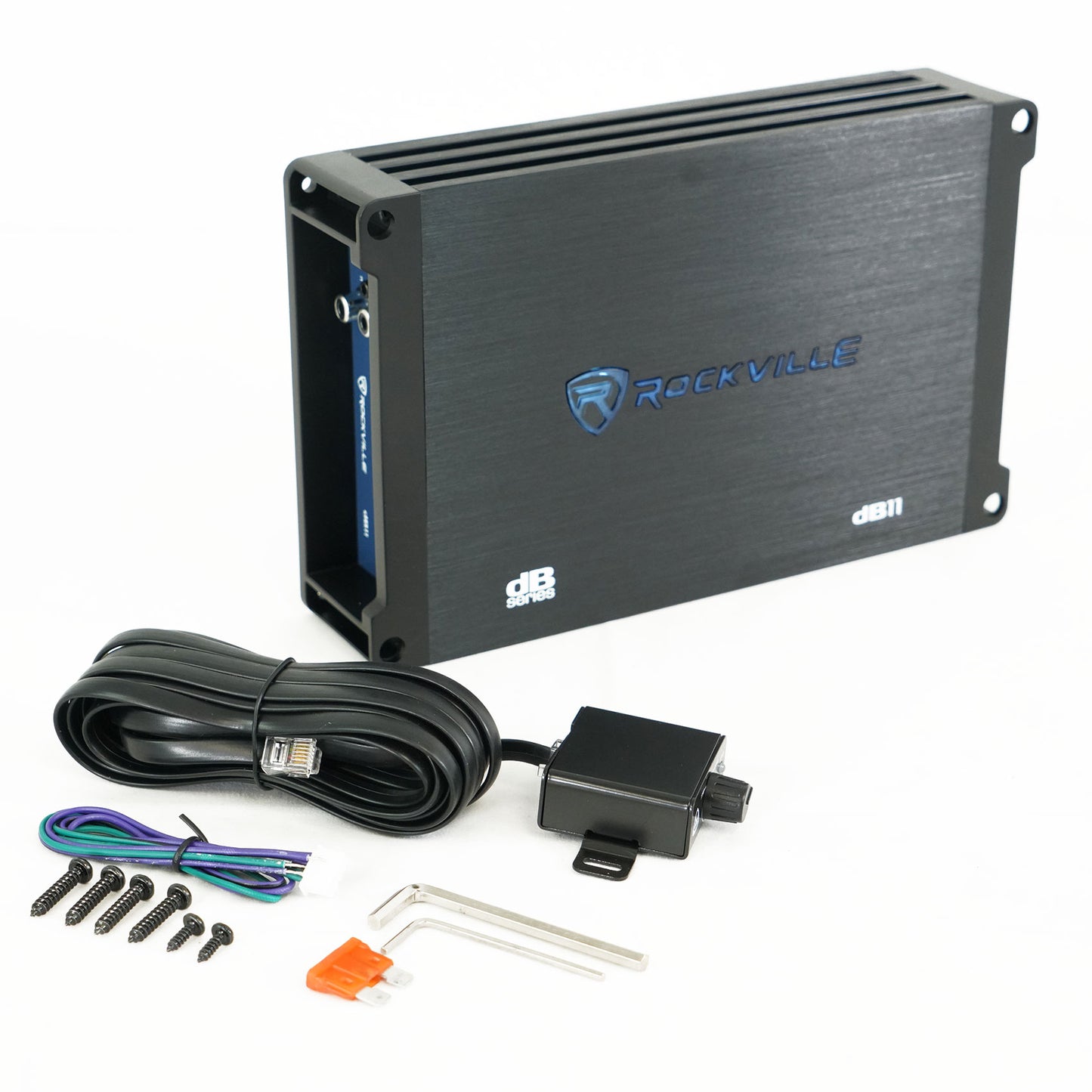

Features of Amplifier:

  • Rockville dB11 1400w/700w RMS 2-Ohm Class-D Mono Car Amplifier and Bass Remote
  • CEA Compliant Power Ratings (Rated at less than 1% distortion) (Use these CEA ratings when matching and comparing with other CEA compliant brands such as Kicker, Rockford Fosgate, etc.)
    - 2 Ohm: 350 Watts x 1 Channel <1% THD+N
    - 4 Ohm: 220 Watts x 1 Channel <1% THD+N
  • Peak Power Rating: (The amount of power the amplifier can produce for a split second at the loudest part of a song)
    - 2 Ohm: 1400 Watts x 1 Channel
    - 4 Ohm: 880 Watts x 1 Channel
  • High-Speed MOSFET Power Supply
  • Optical Coupler Class “D” Technology
  • Fully Adjustable 12dB / Octave Crossover with Differential Circuitry
  • Low Pass Filter: 50Hz - 250Hz
  • Subsonic Filter: 15Hz - 55Hz
  • Phase Control
  • Full IC-Controlled Protection Circuitry
  • Fully Adjustable 12dB Bass Equalizer
  • Mute and Delay Soft Start System
  • Status Mode LED Indicator
  • Minimum THD at Rated Power: <0.1%
  • S / N Ratio: >90dB
  • Under Voltage Protection at 10V
  • Over Voltage Protection at 16V
  • Frequency Response: 15Hz - 250 Hz

Features of wire kit:

  • Rockville RWK81 8 Gauge 2 Channel Car Amplifier Wiring Installation Kit
  • (1)  17 High Grade Twisted Pair of 100% Copper RCA Cable
  • 17 8 Gauge Translucent Blue SuperFlex Power Cables
  • 17 18 Gauge Blue Remote Cable
  • 17 16 Gauge Clear Speaker Wire
  • 3 8 Gauge SuperFlex Ground Wire
  • Gold Plated AGU Heat Resistant Fuse Holder
  • 60 Amp AGU Gold Plated Fuse
  • 7 Split Tube Loom
  • Accessories Included: Wire Ties, Ring Terminals, Butt Connectors, Spades, and Grommets
  • Soft abrasion proof insulating jacket allows for 100% improved flexibility
  • PVC outer jacket can with-stand an extreme temperature range of -40 to 220 degrees F

1 YEAR
  • UPC:
  • 819216024898
