Video of RXM-F3:
Over the years, the technology used to create audio amplifiers has grown by leaps and bounds. We consider it our mission to use our expertise in developing the latest technologies and to bring you the absolute best sounding amplifiers on the market at a reasonable price. From its clean, sleek design to its high-quality components, you will be amazed at the quality and power that these new Phenom amps offer.

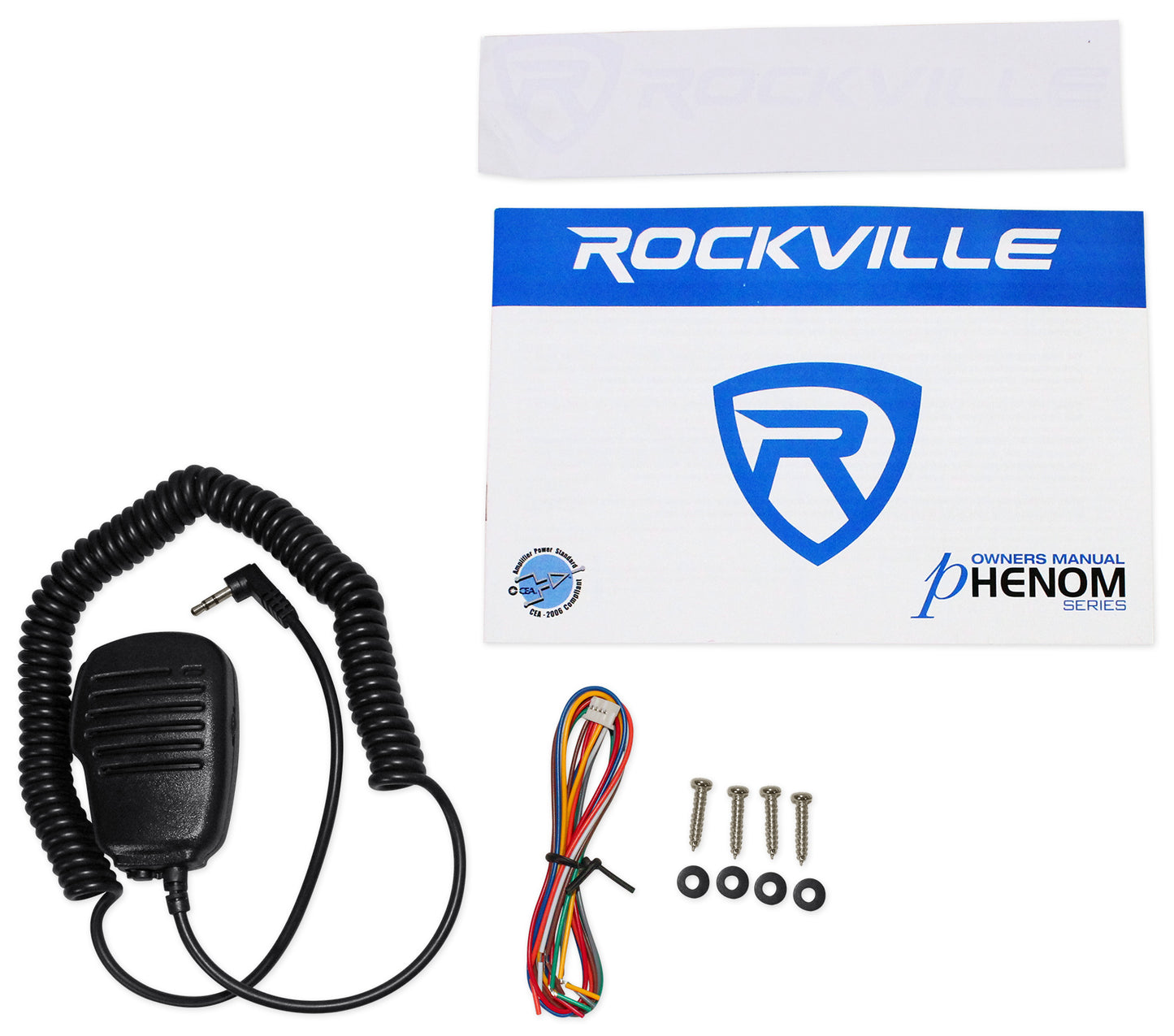

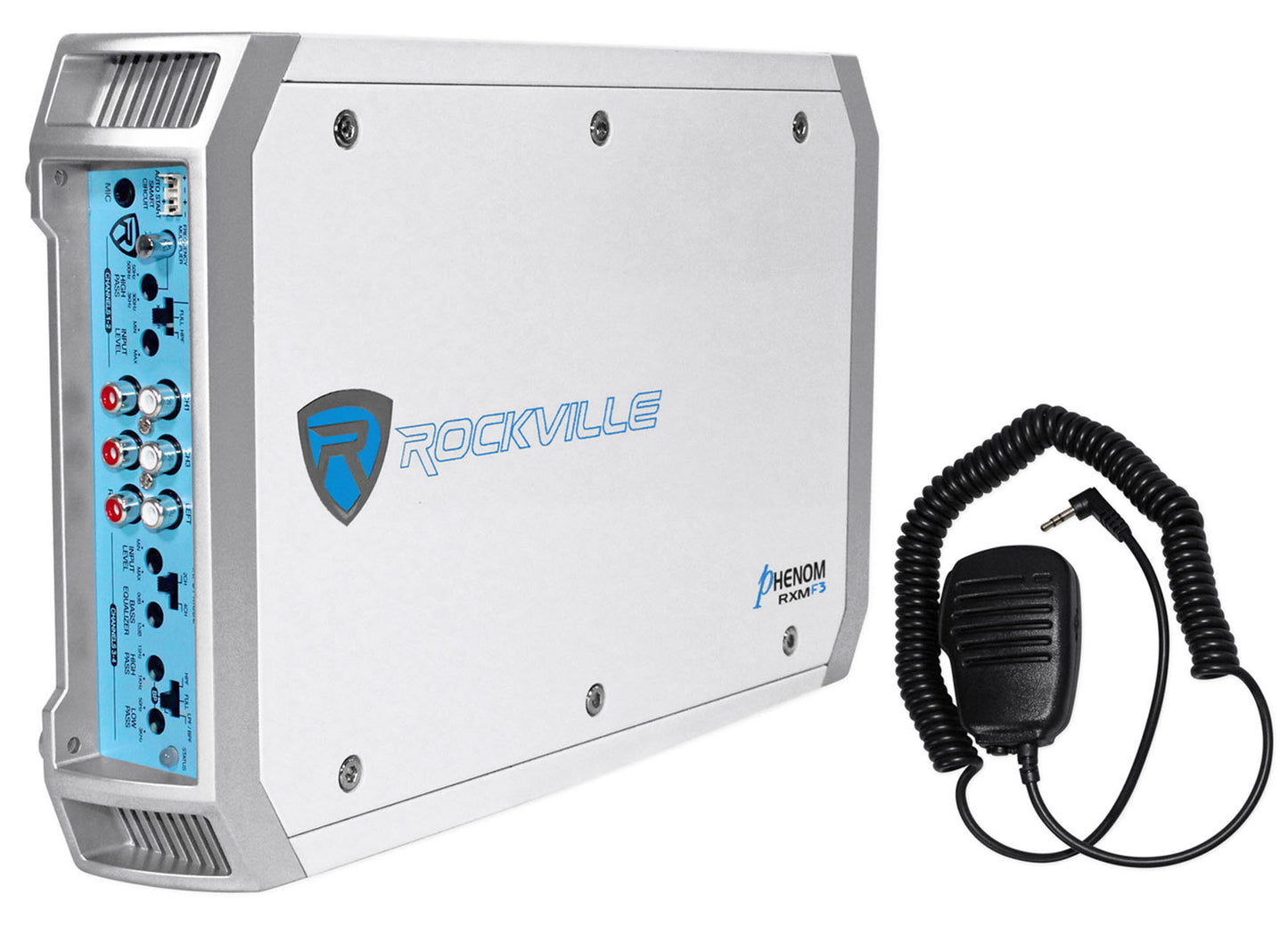

Before we talk about the actual amplifier, I wanted to point out that we included a microphone. Most brands do not do this. We wanted to provide you guys with the best sounding marine amplifier of course. But we also wanted to give you the ability to have a microphone so you can use all the power of the system to communicate when out on the water. This will give you many new applications of what you can use your marine system for. We included a special circuitry in the amplifier that when you talk through the microphone the music will get lower and when you are done talking the music will go back to normal volume.
The RXM-F3 is a 4 channel amplifier with 1,600 Watts peak output and 65 Watts Dyno Certified RMS power @4 Ohms and 1% THD+N. You can also bridge the amplifier and get 2 x 200 Watts RMS @ 4Ohms. The Dyno Certified RMS Power Ratings is 65 x 4 @ 4 Ohms and 95 x 4 @ 2 ohms<1% THD. Here at Rockville we offer the best value in car audio. We therefore want to make it easy for you to compare our products to any brands on the market. The peak rating can be used to compare with brands who use peak ratings such as Boss and Power Acoustik while the Dyno Certified RMS rating can be used to compare with top brands such as Kicker, Rockford, Alpine, etc.
The RXM-F3 has a conformal coating on its PCB (printed circuit board) in order to protect against moisture, dust, chemicals, and temperature extremes. This coating protects the amplifier from the elements of the ocean. If water gets sprayed on the amplifier you will not have to worry. The exterior screws are made of stainless steel to better withstand the elements. This amplifier is fully marine-rated from start to finish.
One of the tricks to determine the real power of an amplifier is to multiply the fuse rating by 10 to determine the true RMS power. This formula almost always works within 20%. RXM-F3 features three 20 Amp Maxi fuses. Compare this to other amps on the market with similar fuse ratings and you'll see that with the RXM-F3 you are getting your money's worth and then some.
This unit also features a high speed MOSFET power supply, studio-grade bipolar output stage transistors and ELNA brand audiophile capacitors. It has a fully adjustable 12dB/Octave cross over with differential circuitry. High Level inputs, also referred to as Speaker Level inputs, allow you to install the amplifier into your vehicle even if you do not have any preamp outputs available. This amplifier is completely universal. It can be installed to any marine system.
Other features include Auto-Start Smart turn-on (This function senses when there is a signal from the head unit and automatically turns on the amplifier hence no need to run a Remote Turn-On wire), a fully adjustable 12dB bass equalizer, 2 ch/ 4 ch input mode switch, mute and delay soft start technology, and a crossover band-pass control. The RXM-F3 is protected by a full IC controlled circuit and has professional peak limiter circuitry guaranteeing distortion free musical playback at all levels.
The circuitry of this amplifier is a class A/B circuitry. Class A/B is known to have amazing sound quality. Pro audio amps usually all are class A/B. Class A/B however is not known for its efficiency. To make this amplifier more efficient we simulated a class "G" amplifier. Class G is technology that switches the rail voltage depending on how much power is being used. We have similar technology built into these class A/B amplifiers which make these about 65-70% efficiency which is just amazing for a class A/B amplifier.
We are so confident that you will be extremely satisfied with this amplifier that we are giving every customer a 90 day money back guarantee. So purchase the amplifier and try it for 90 days. If you are not happy, we will call tag it and cover return shipping costs and refund you all your money back. (Amp must be complete with accessories and original box please).
- Rockville RXM-F3 1600w/260w Dyno-Certified RMS 4-Channel Marine Amplifier
- Dyno Certified RMS Power Ratings: (Certified Dyno Test / Less than 1 % THD) (Use these ratings when comparing with top brands such as Kicker, Rockford Fosgate, etc)
.....65 Watts RMS x 4 Channel @4 Ohms and 1% THD+N
.....85 Watts x 4 @ 2 Ohms < 1% THD
.....2 x 200 Watts bridged @ 4 Ohms < 1% THD
- Peak: (Use these ratings when comparing with the top budget brands such as Boss, Power Acoustik, etc)
.....1600 Watts (2 x 800 @ 2 Ohms or 1 x 1600 @ 4 Ohms)
- High-Speed MOSFET Power Supply
- Studio-Grade Bipolar Output Stage Transistors

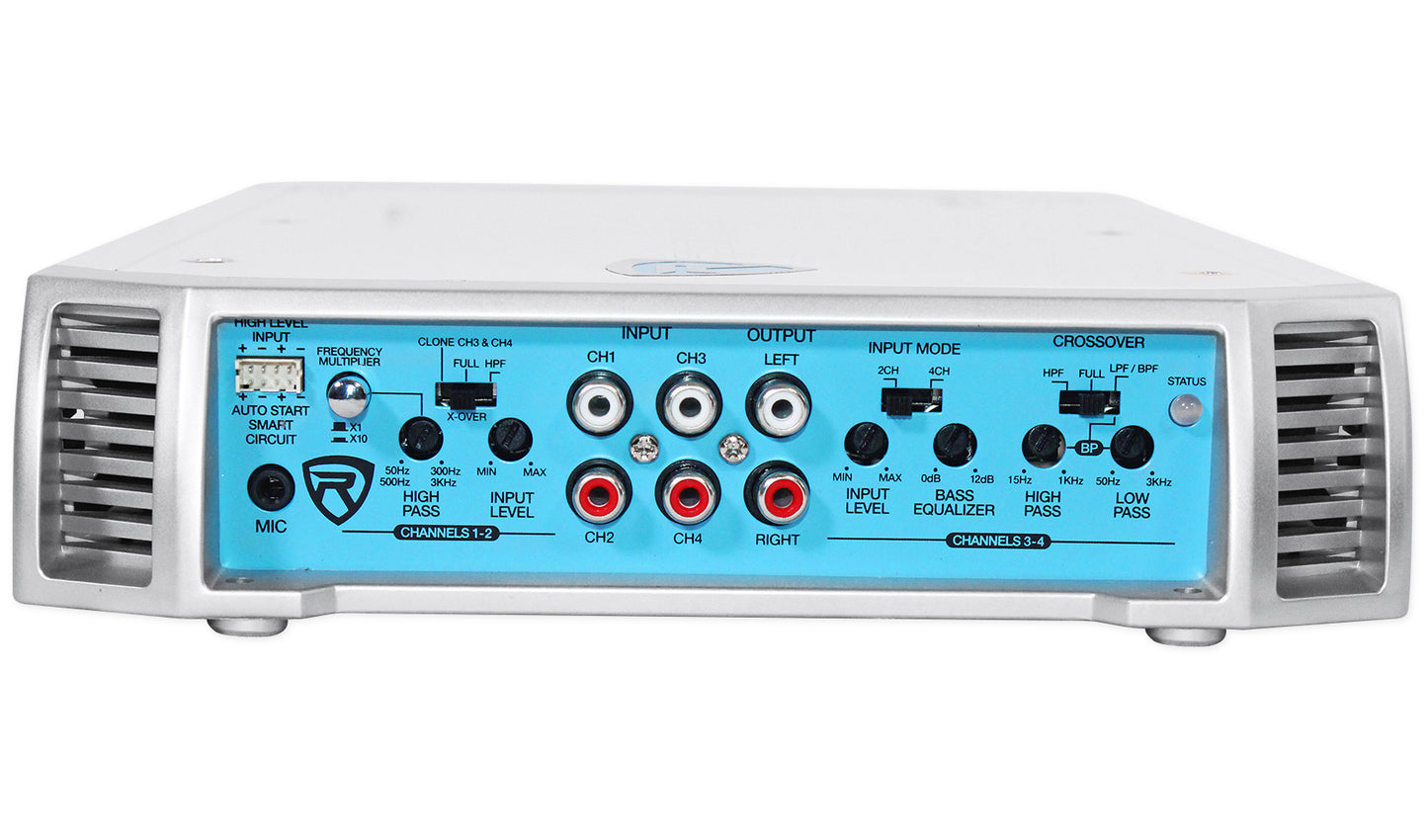

- Fully Adjustable 12dB / Octave Crossover with Differential Circuitry
- CH3 & CH4 Low Pass 50Hz - 3KHz
- CH3 & CH4 High Pass 15Hz - 1KHz
- CH1 & CH2 High Pass 50Hz - 300Hz, 500Hz - 3Khz (x10)
- Crossover Band-Pass Control
- Fully Adjustable 12dB Bass Equalizer
- 2 Ohm Stable Stereo
- 4 Ohm Mono Bridgeable
- 3 Channel Mixed-Mono Capable
- Full IC-Controlled Protection Circuitry
- Mute and Delay Soft Start System
- High Level Input with Smart Auto Turn-On
- Full IC-Controlled Protection Circuitry
- 2 CH / 4 CH Input Mode Switch
- RCA Preamp Line Output
- ELNA Brand Audiophile Capacitors
- 8 Volt Preamp Circuitry
- Status Mode LED Indicator
- Minimum THD at Rated Power: <0.05%
- Frequency Response: 10Hz - 40KHz
- Sensitivity: 100dB @ 1w / 1m
- Damping Factor: > 200 @ 100Hz

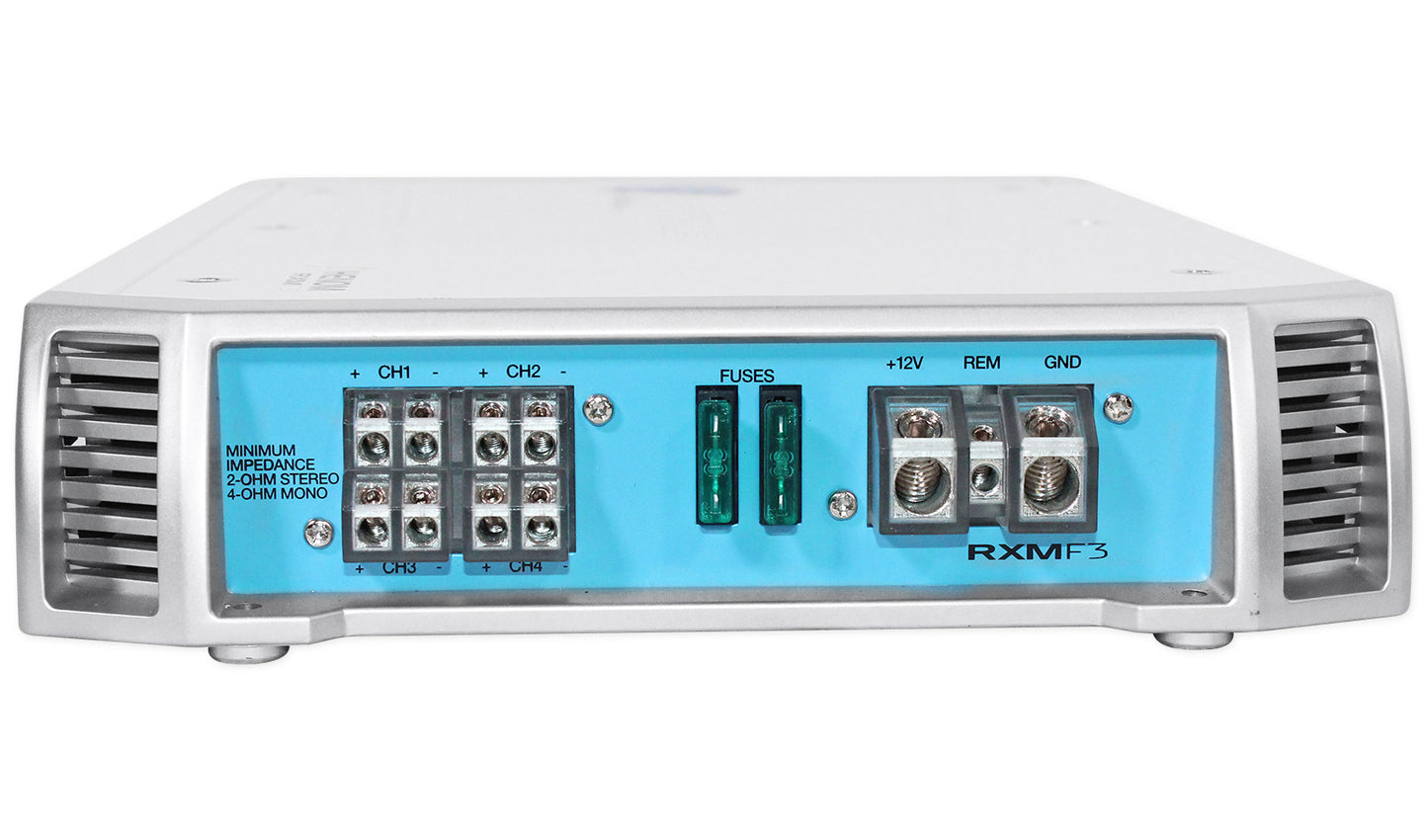

- Three 20 Amp Maxi Fuses
- Dimensions: ( W x H x L ) 8.6" x 2" x 13.7"
