Description:

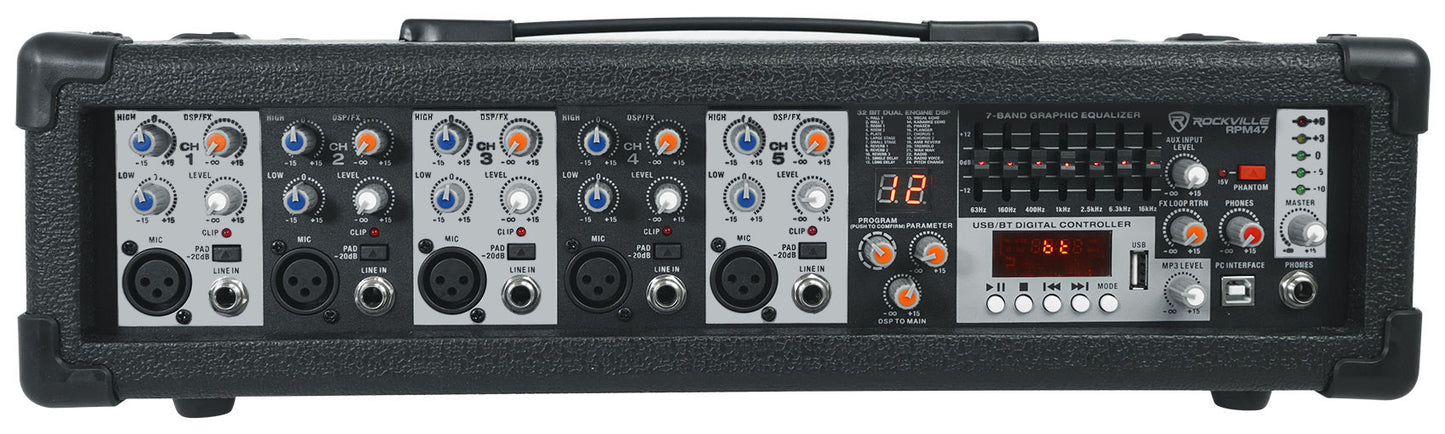

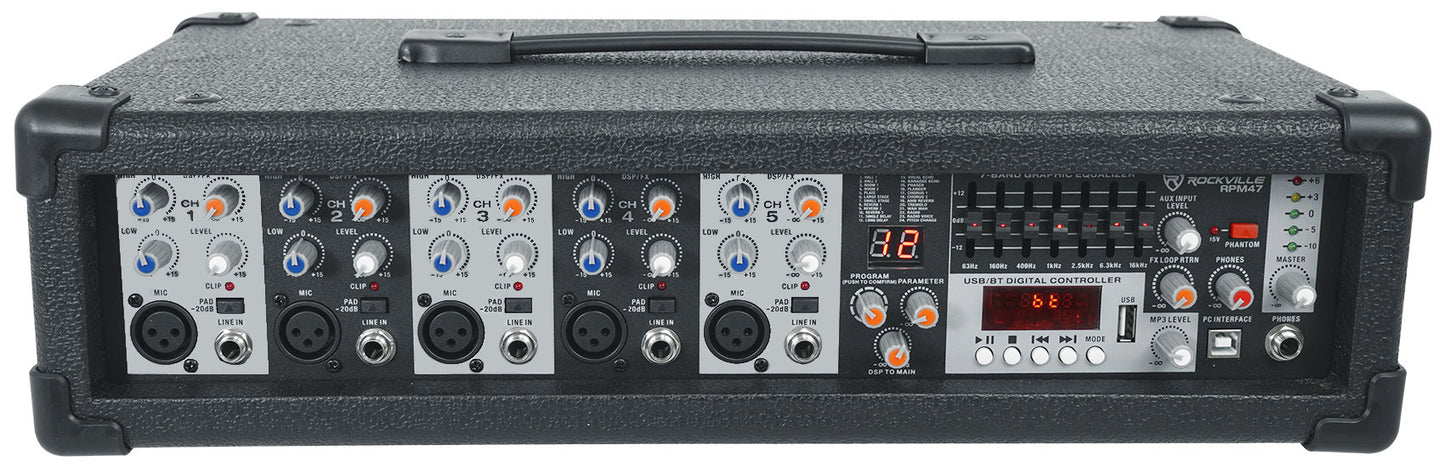

The Rockville RPM47 is a 5 channel wood cabinet powered mixer with Bluetooth and USB interface. This mixer has a built in amplifier that is perfect for (2) PA speakers or karaoke speakers. It has a line output so you can easily add powered subs, or additional amps, or powered speakers, or monitors to your set-up.

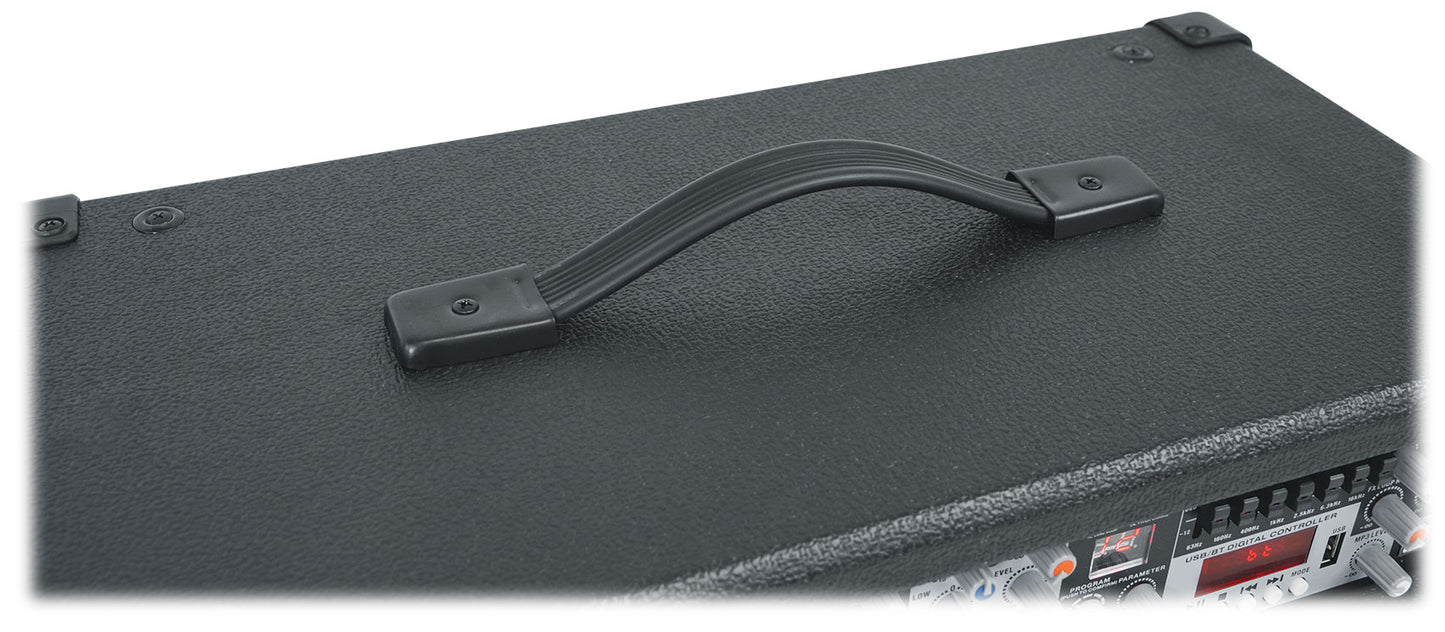

This powered mixer is rugged and tough! It is enclosed in a high quality wooden enclosure which can take a real beating! This model has 5 channels making it versatile enough for most bands.

Compared with our popular RPM45; the RPM47 model has the following upgrades:
      1. 5 channels instead of 4
      2. We added Bluetooth
      3. We added a USB interface allowing you to play back music from your computer or record to your DAW
      4. We added a 7 band master equalizer to fine tune your main mix
      5. We added a really nice effects engine with 24 great sounding effects.

Features:

• Rockville RPM47 1800w Powered 5 Channel Mixer with Bluetooth, USB Interface, Digital Effects, and 7 band Master EQ

• If you count the MP3 channel and aux channel, this is technically a 7 channel mixer

• RMS Power Output:
  .....225w x 2 @ 8 Ohm (Parallel mono)

• Program Power Output:
  .....450w x 2 @ 8 Ohm (Parallel mono)

• Peak Power Output:
  .....900w x 2 @ 8 Ohm (Parallel mono)

• Individual Volume, Bass, Treble, and FX volume controls on each channel

• Each of the 5 channels has an 20dB pad button

• 24 DSP digital effect module with FX knob on each channel

• Bluetooth playback with 35 foot range

• USB Input to play thumb drives

• USB Interface for playback from your computer or to record your performance in your DAW

• 7 Band master equalizer

• USB/BT Volume control

• AUX volume control

• Master volume control

• FX Return level

• (5) balanced XLR inputs

• (5) 1/4” TRS inputs

• 1 RCA L/R AUX input with volume control

• 1 RCA L/R Rec output

• Headphone output with volume control,

• 1/4” Effect send and return

• 8-ohm dual 1/4” speaker outputs

• +15V phantom power

• Fan Vent Cooling System

• Dimensions: 5.75” x 19.44” x 9.5”

• 120V power supply

• Weight: 18Lbs.


Effects List:

• Hall 1

• Hall 2

• Room 1

• Room 2

• Plate

• Large stage

• Small stage

• Reverb 1

• Reverb 2

• Reverb 3

• Single Delay

• Long Delay

• Vocal Echo

• Karaoke Echo

• Phaser

• Flanger

• Chorus 1

• Chorus 2

• AMB Reverb

• Tremolo

• Wah Wah

• Radio

• Radio voice

• Pitch change
