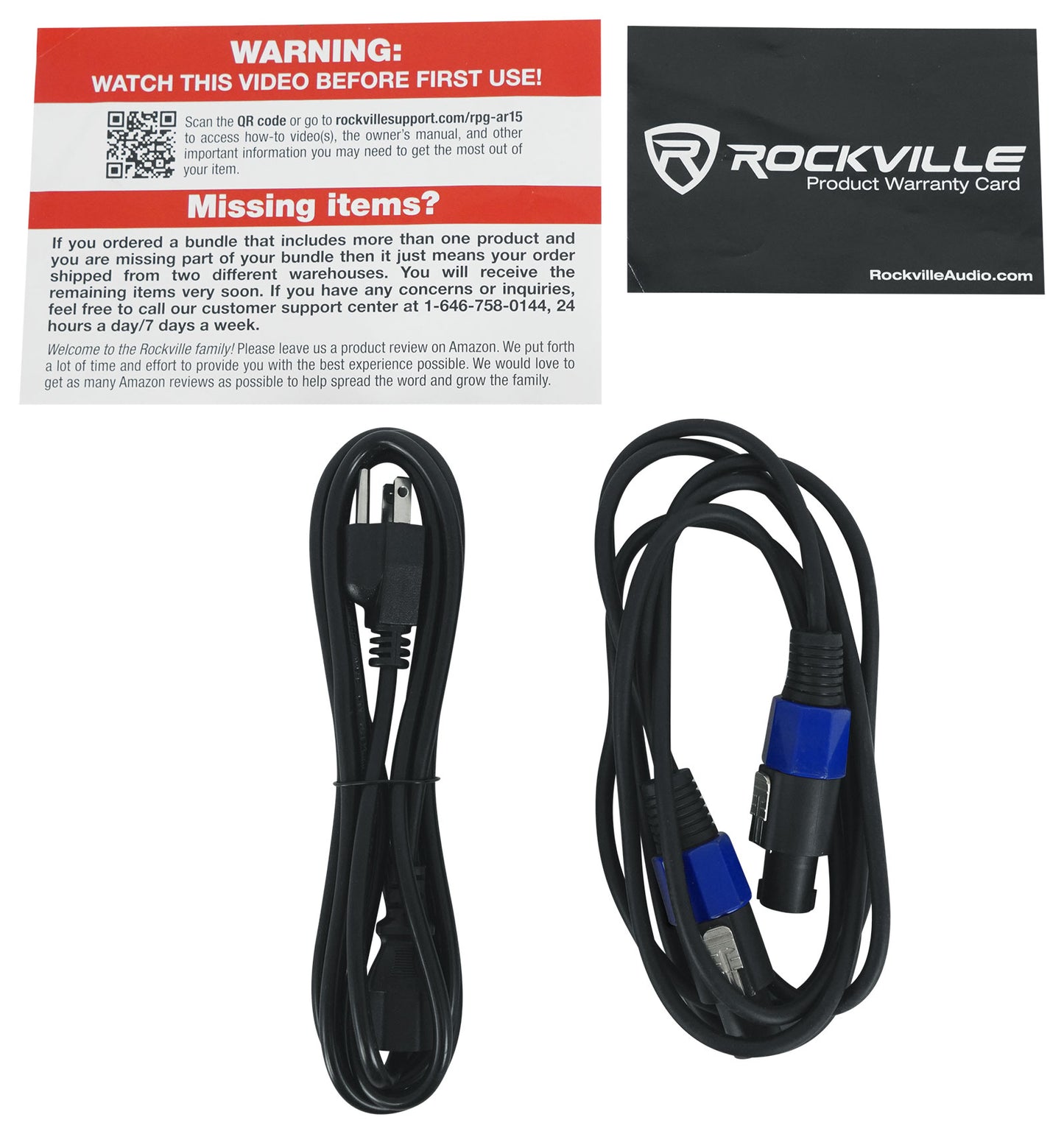

Includes:

• Array Speaker
• Powered Subwoofer

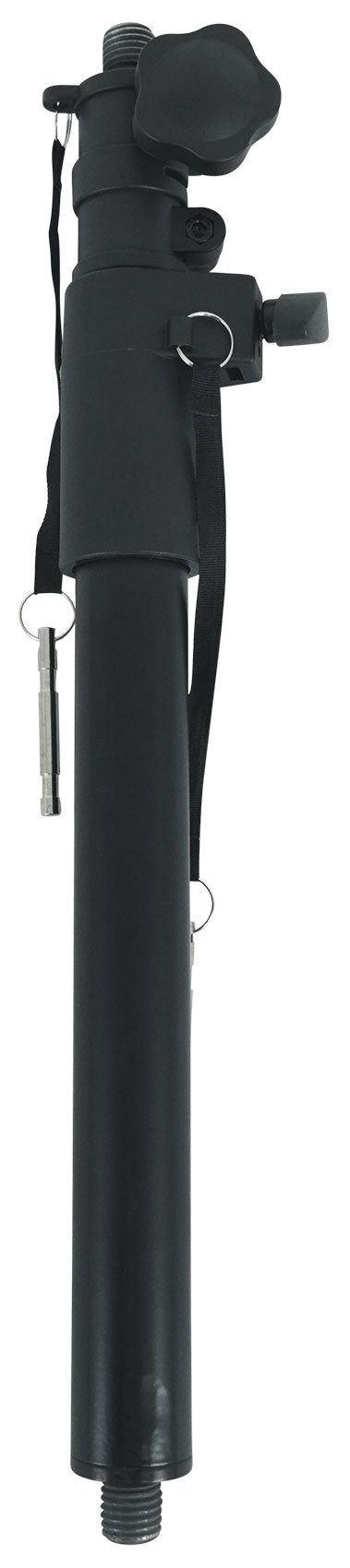

• Pole Connector Stand
• 5 ft. power cable
• 8 ft Speakon cable to connect the subwoofer to the speaker
• Owners manual
• Warranty card

Description:

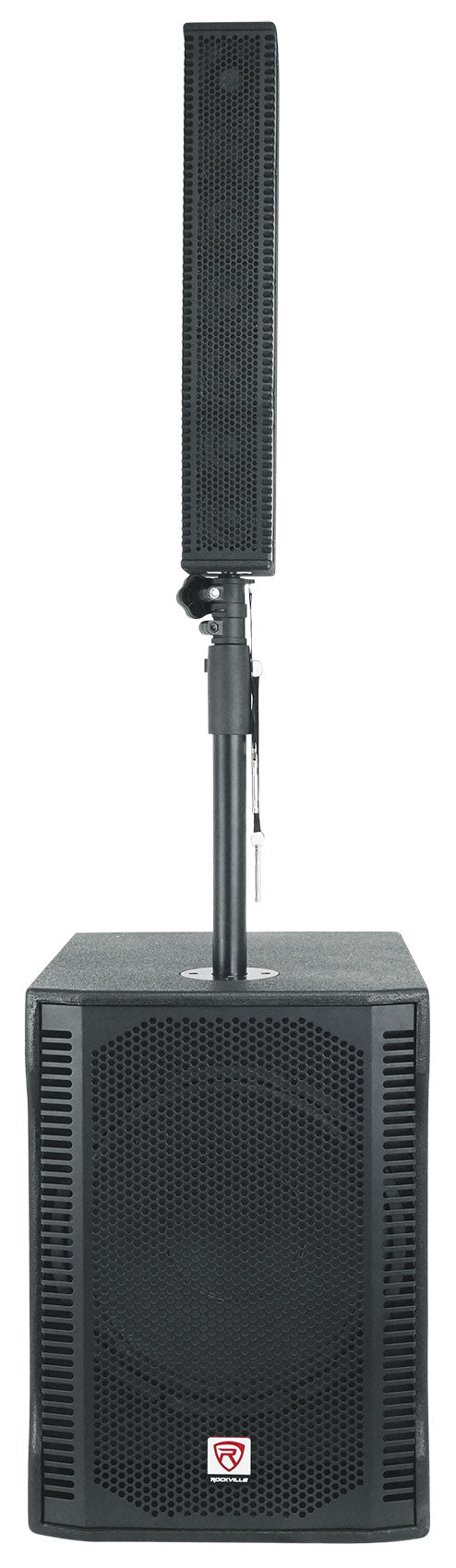

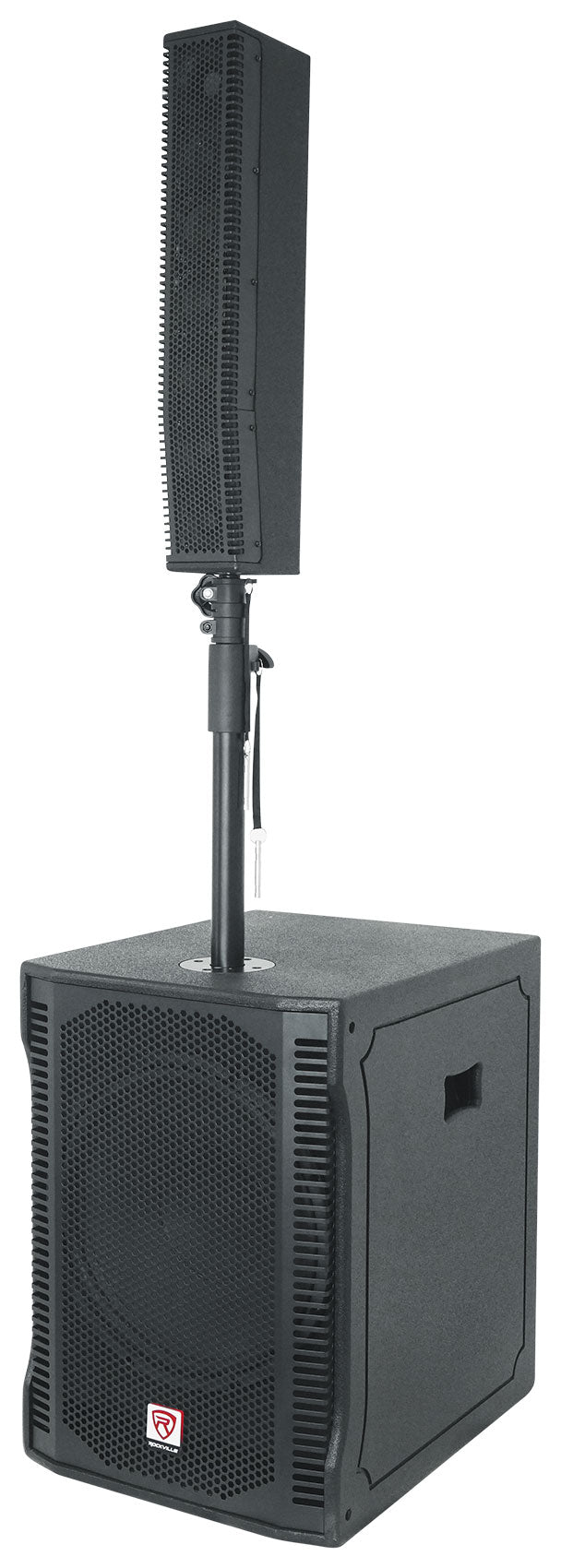

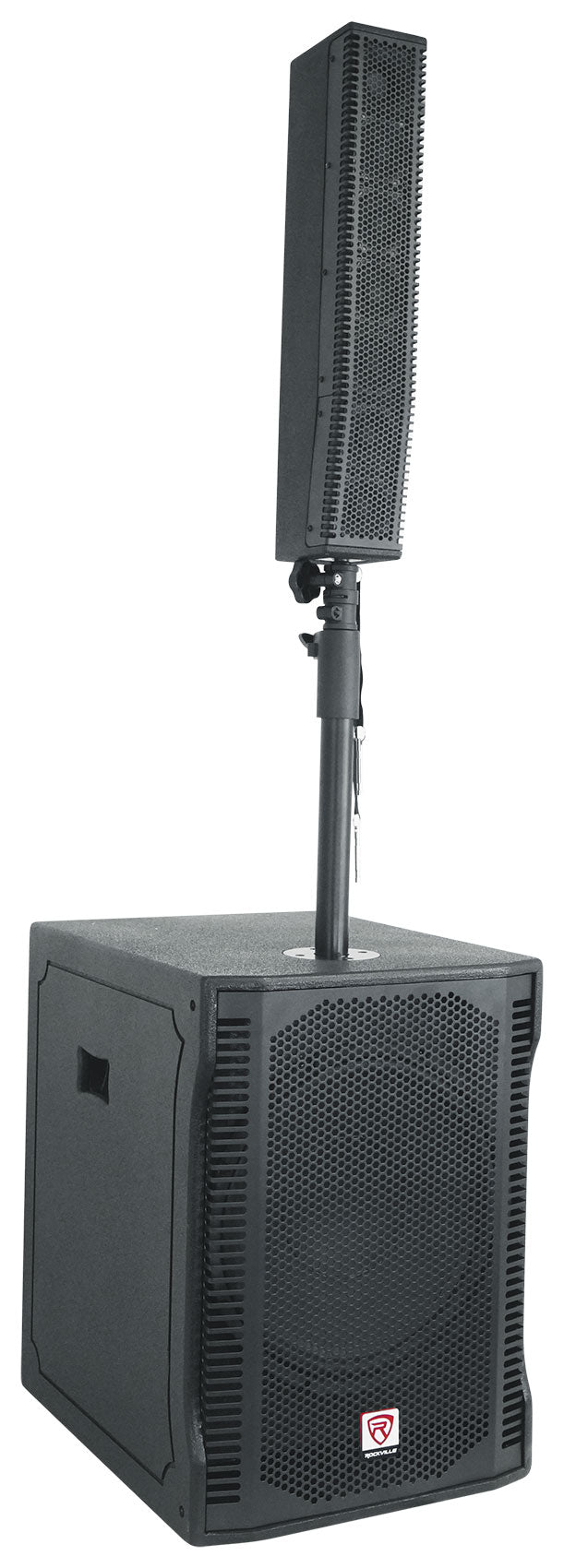

Complete System With Sub

The RPG-AR15 by Rockville is a complete solution for DJ’s, musicians, and venues. This system includes a powered 15” subwoofer along with a line array with (6) 2.5” mid drivers, and a 1” high frequency tweeter. This 3-way system gives you a full frequency range with boomy bass and balanced highs/mids. It is more convenient then carrying pa speakers and subwoofers!

Big power and plywood enclosures

It is extremely important when buying a system like this that it has enough power for most venues so you can get the most out of your system. For this reason, we built this with a 750w RMS amplifier that drives the speaker with enough power to give you that chest-pounding bass you want along with enough high frequencies to fill a huge room. We use a high grade plywood enclosure that produces crystal clear sound. Our enclosure cost a lot more than standard ABS or MDF material our competitors use. Plywood is the gold standard for high-end pro audio.

Portability combined with performance

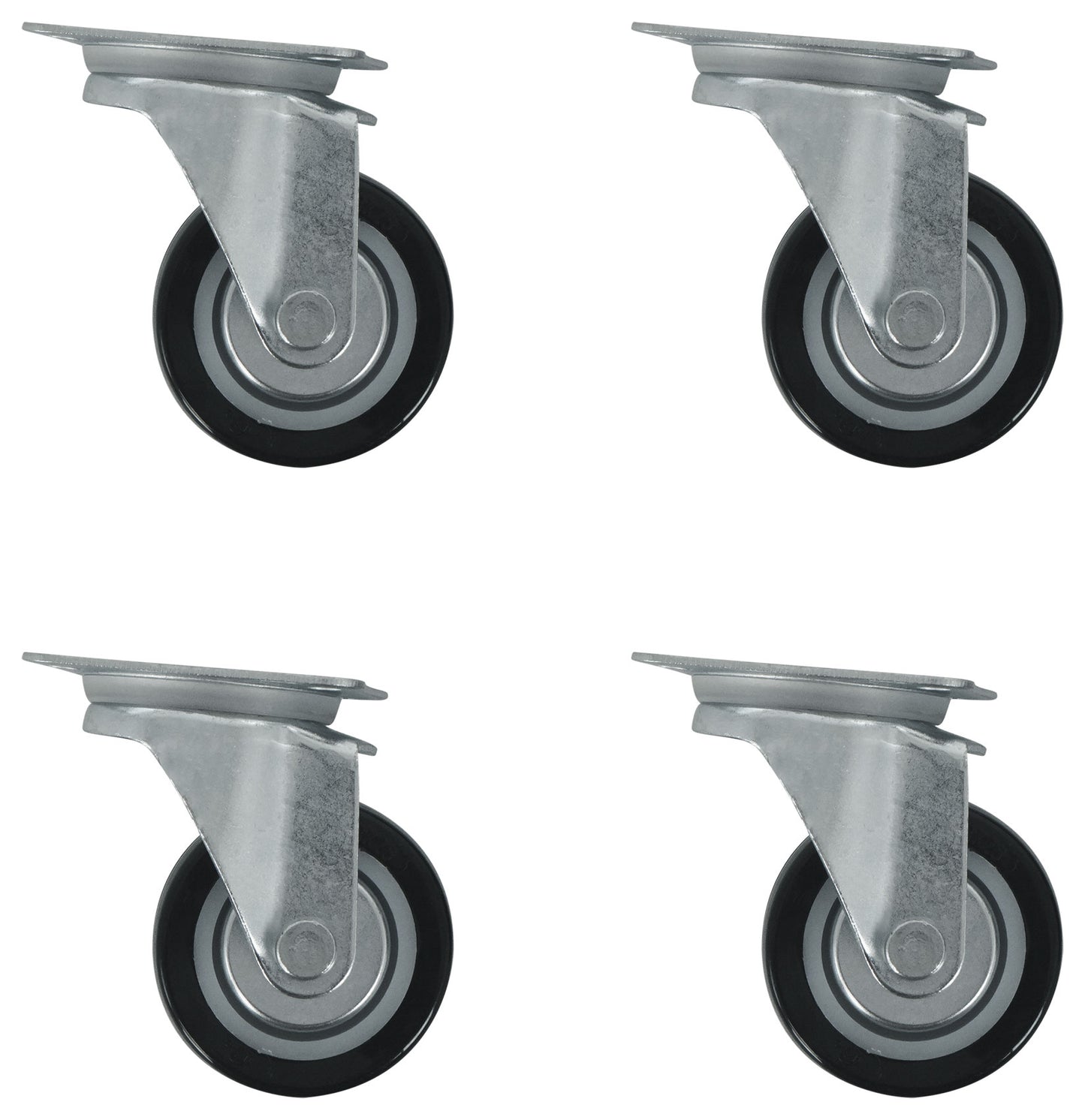

We had the DJ and the traveling musician in mind when developing this item. The subwoofer is heavy enough to give you deep bass but it is not overly heavy since we use a class “D” amplifier and a Plywood enclosure. To make traveling easier we put wheels on the side of the sub! When you are using the sub, it will sit on the floor as usual. When you are traveling to or from your gig you just put the sub on its side and roll it on the side-mounted caster wheels. It also has built in carry handles.

Bluetooth you can trust!

Our Bluetooth chip has a 40 foot range and it has clean and reliable performance. We have a wireless stereo linking option so you can link 2 of these systems together wirelessly through Bluetooth.

Built-in limiter

The built in limiter fully protects the speaker from distortion at any volume level. This means you can play the speaker at full volume without worrying about the amp or speaker getting damaged. The limiter detects distortion frequencies allowing you to pound the speaker for as long as you wish without having to worry about damage or distortion sounds.

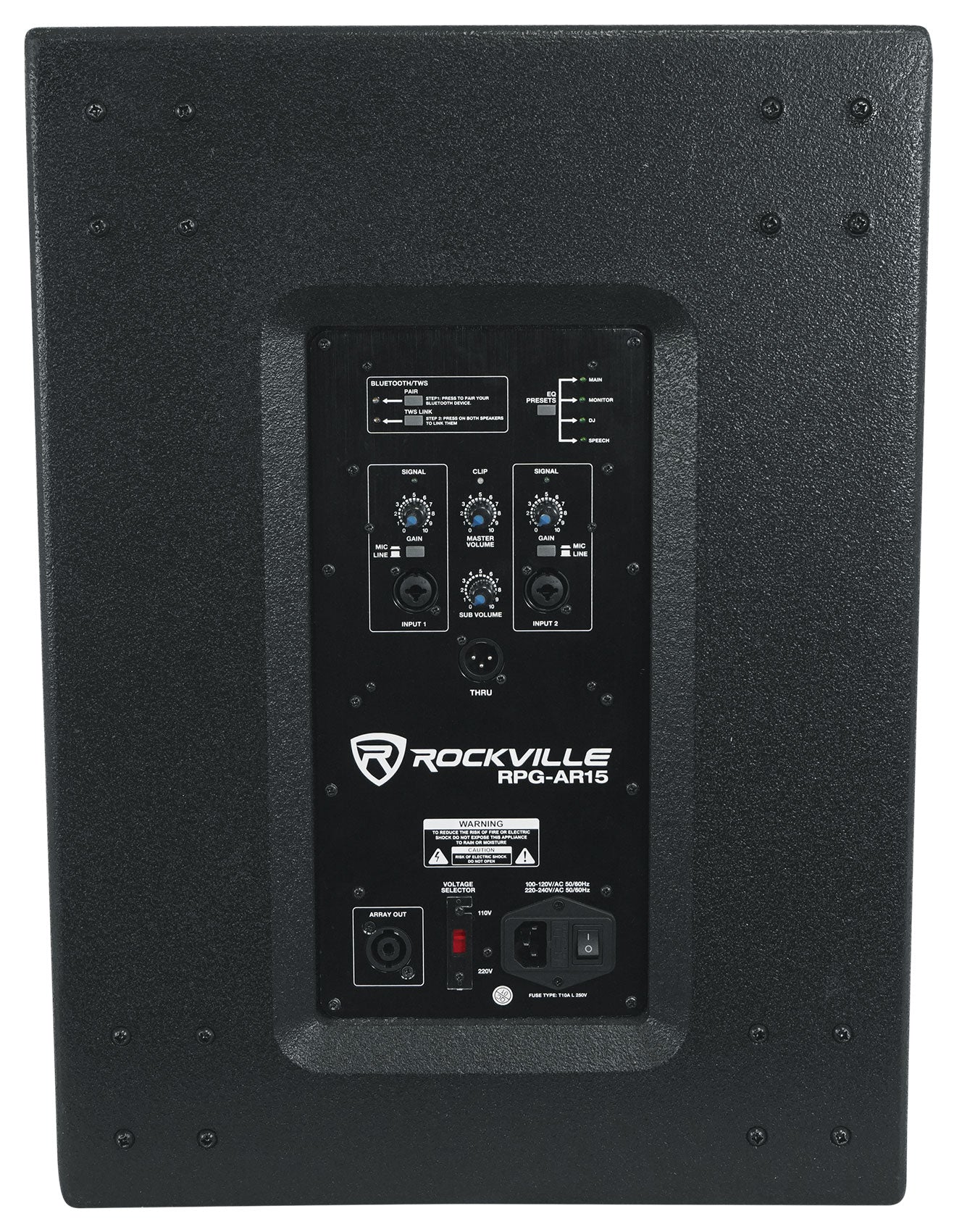

Inputs / Outputs

Our mixer section has 2 channels each with combo jacks that have selectable Mic/Line level inputs. Our pre-amps are top quality with ultra-low noise.

There is also an XLR line output for linking additional speakers, subwoofers or amps. The rear of the speaker also has power, signal, and limit LED indicators. Our mixer also gives you 4 DSP modes to give you the sound curve you want weather you are a DJ or musician and weather you are Indoor or outdoor.

Features:

• Rockville RPG-AR15 Full DJ System with 15” Powered Subwoofer + Line Array Speaker
• 3,000 Watts Peak / 750 Watts RMS System Power

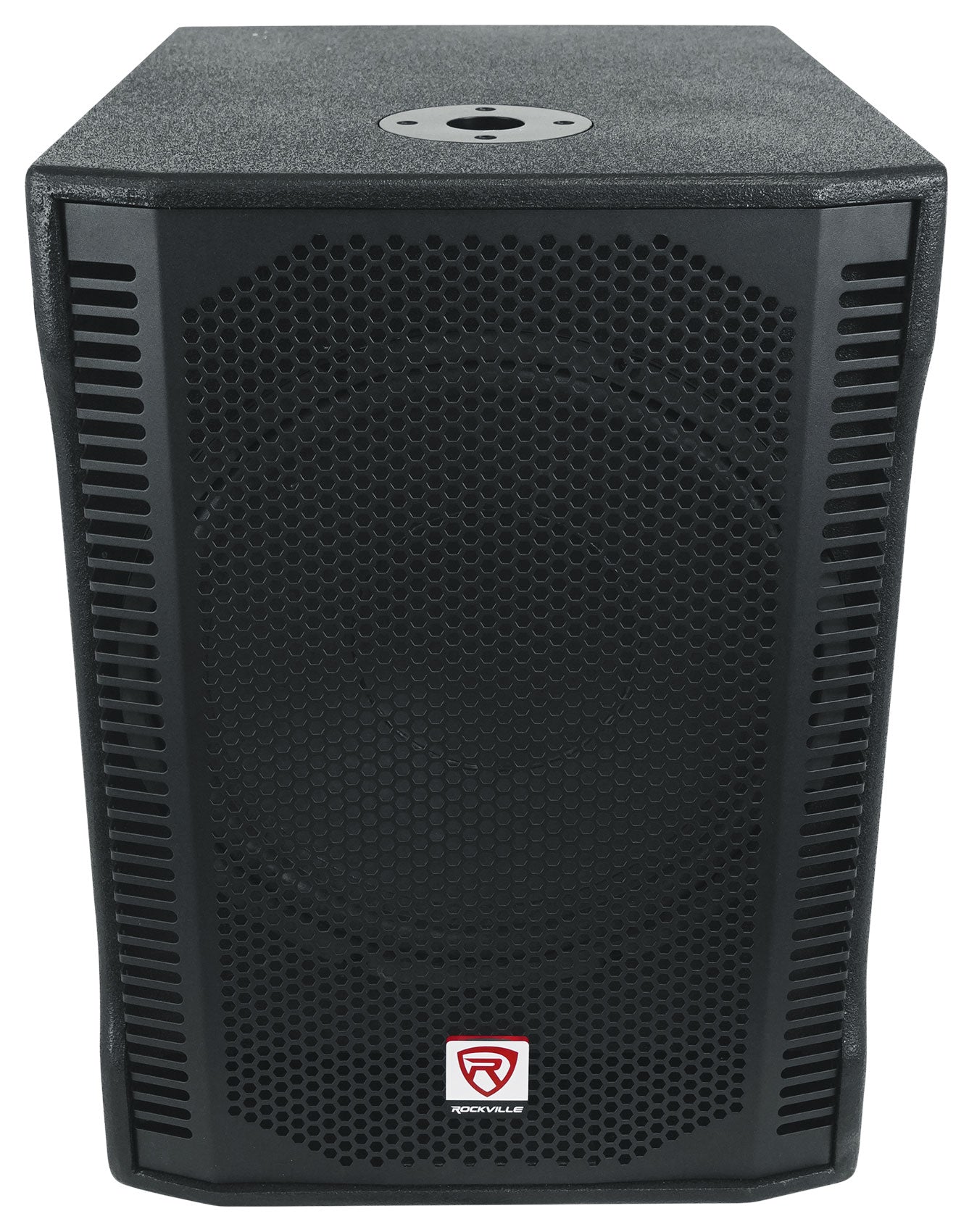

• High power long-throw 15'' woofer with 3" OFC copper voice coil and 80 Oz magnet

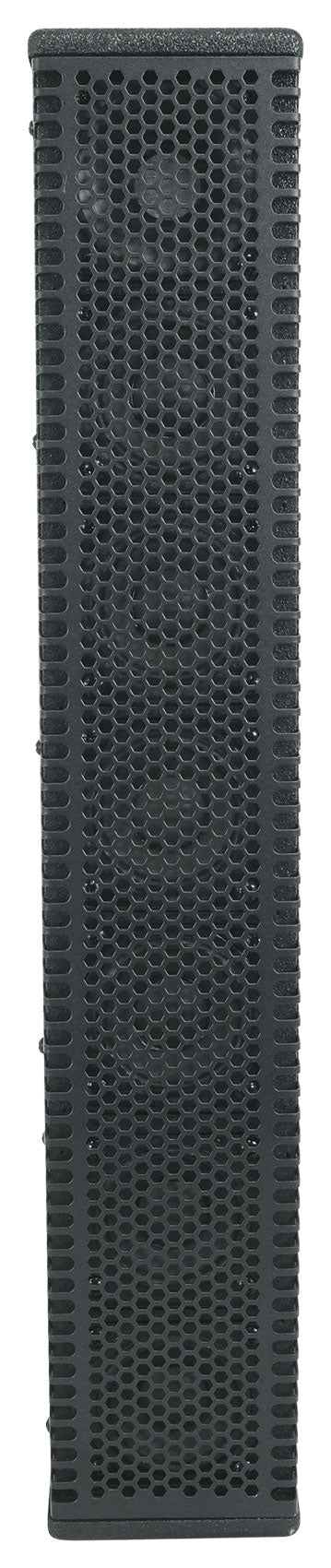

• Line array has (6) 2.5” mid drivers, and a 1” high frequency tweeter
• Subwoofer has wheels on the side so its on the floor when in use and rolls on its side for transport
• 3-Way system has dedicated drivers for low, mids, and highs for a balanced sound curve
• Neo magnets on the tweeters/mids
• (2) XLR/1/4” Combo jack line inputs
• (2) XLR line outputs
• Frequency Response: 25Hz-20KHz
• Amazing quality in a more portable package when compared with having to use a subwoofer and a PA speaker
• Class D amplifier technology: high power, transparent sonic performance and light weight
• Custom engineered limiter allows the speaker to play at extremely high volumes while limiting the undesirable frequencies
• 4 DSP sound modes (main, monitor, DJ, speech)
• Built-in reliable Pro Bluetooth with 40 foot range and no distortion
• Wireless Linking technology allows you to link 2 speakers wirelessly in stereo
• 2 Channel mixer built in with ultra-low noise Mic / Line inputs via XLR & 1/4-inch combo jacks with volume control
• Balanced line output via XLR for linking additional speaker systems or for adding a subwoofer
• Clip/limit LED indicator makes it easy to set your levels
• Power and signal LED indicators
• Ergonomically shaped handle for easy carrying and setup
• Full grill on subwoofer an array
• Enclosure is made of plywood
• Sound dispersion at 10dB: H90° x V120°
• 110 / 220 volt switchable power supply with external user serviceable fusing
• Dimensions of Subwoofer: 16.5" x 23.2" x 20.67" (Inches; L x W x H)
• Weight of Subwoofer: 54.2 LBS
• Dimensions of Array: 4.1” x 6.1” x 22.6” (Inches; L x W x H)
• Weight of Array: 8.8 Lbs.
