Rockville RPA16 10,000 Watt 2 Channel Power Amplifier Pro/DJ Amp+Speakon Cables

SKU:
RPA16+(2) RCSS1425
$738.98 $439.95
(You save $299.03)
Enter your email address to be notified when this item is back in stock.
Condition:
New
Bundle:
Yes
SHADOWPARENT:
SHADOWS:
KITPARENTS:
KITCOMPONENTS:
681, 37870
Custom_Condition:
BRAND NEW IN ORIGINAL PACKAGING

Warranty Information:

1 YEAR

New orders ship within 1 business day

Call for Expert Advice
Call now: 1-646-758-0144

Items included in this bundle

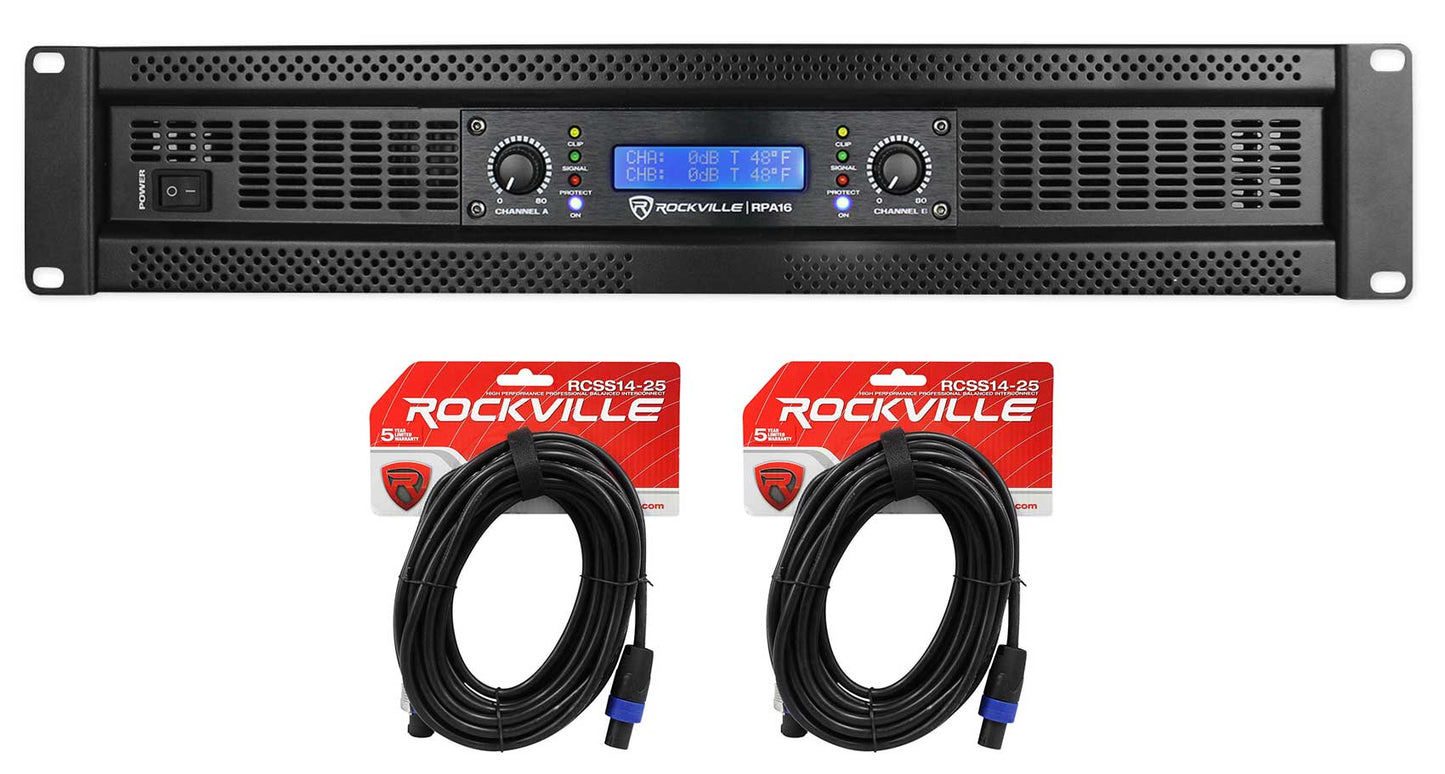

Package Includes:
  • (1) Rockville RPA16 10000 Watt Peak / 3000w RMS 2 Channel Power Amplifier Pro/DJ Amp
  • (2) Rockvile RCSS1425 25' 14 AWG Speakon to Speakon Speaker Cable 100% Copper

How to Set Up Your RPA12, RPA14, and RPA16:

Video of RPA16:

Power Ratings:

  • RMS Power Output:
  • Stereo 8 Ohm: 2 x 1,000W
  • Stereo 4 Ohm: 2 x 1,500W
  • Bridged 8 Ohm: 1 x 3000W
  • Peak Power Output:
  • Stereo 4 Ohm: 2 x 5,000W Max
  • Bridged 8 Ohm: 1 x 10,000W Max

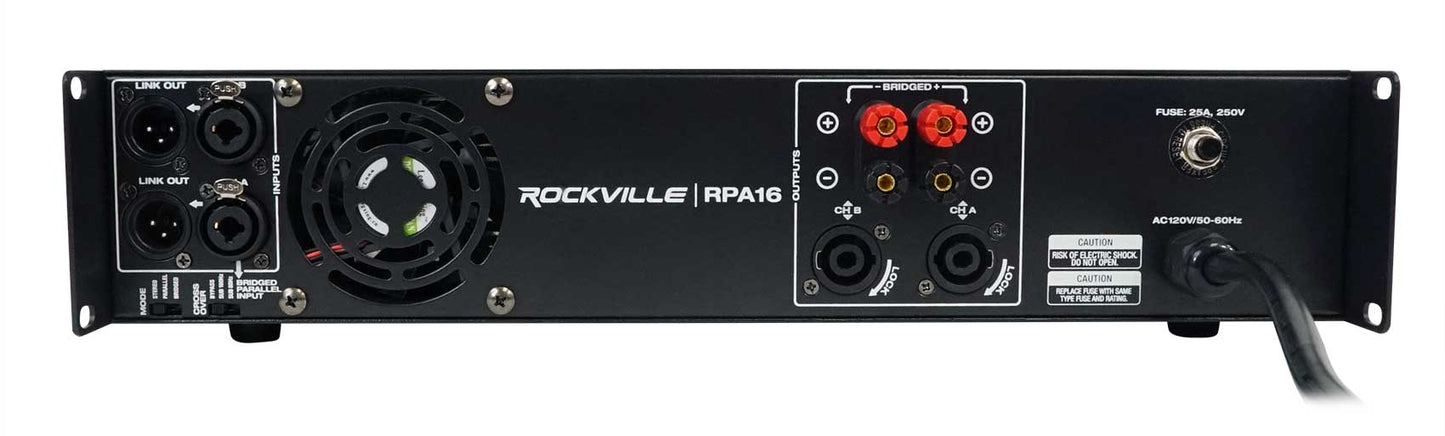

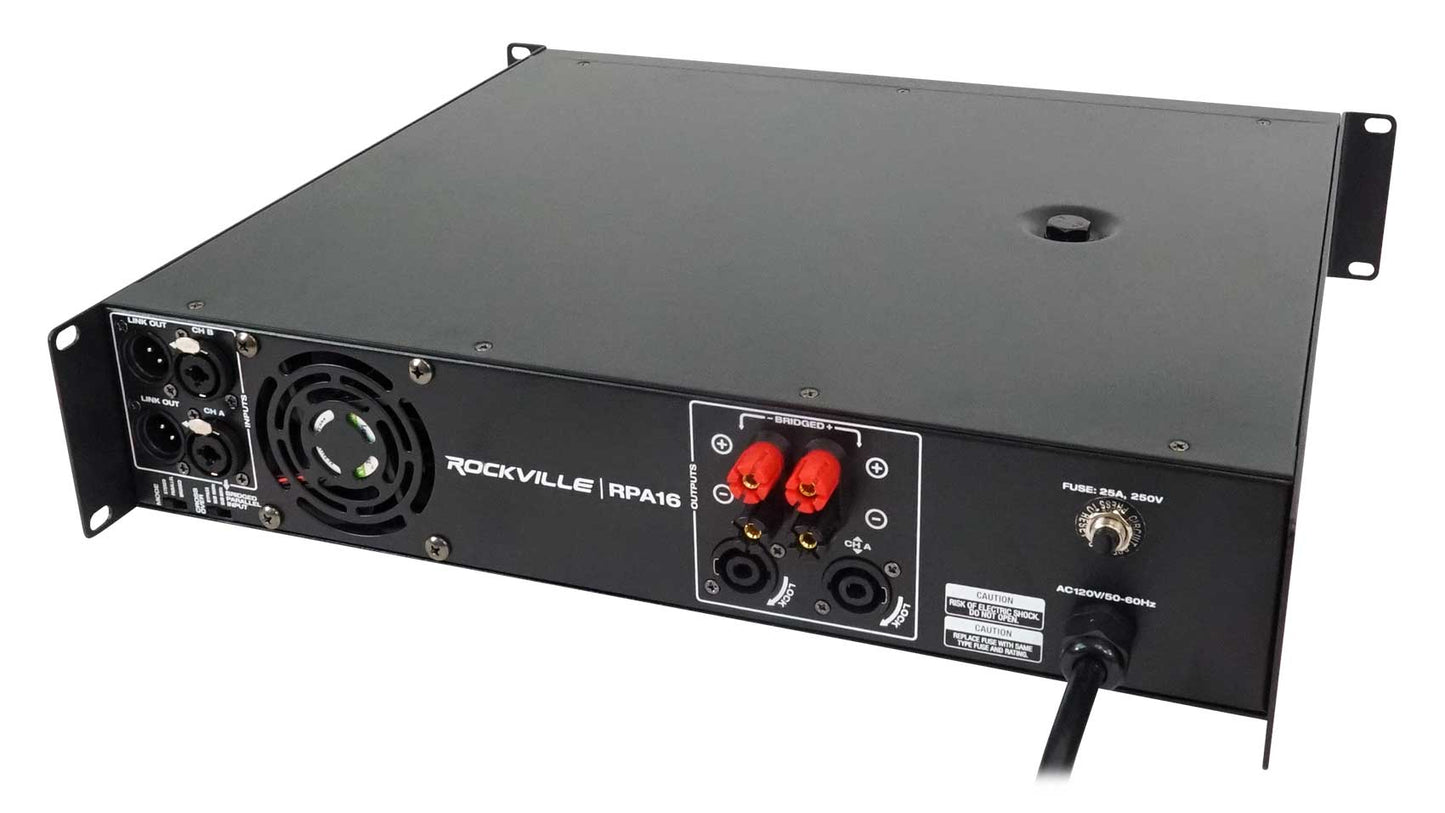

​​Terminals:

  • Input Terminals:
  • Combo jack (XLR and ¼”) A & B inputs
  • Output Terminals:
  • Banana binding post speaker output
  • Speak on output
  • XLR output to connect another amplifier or powered sub

​Features of RPA16:

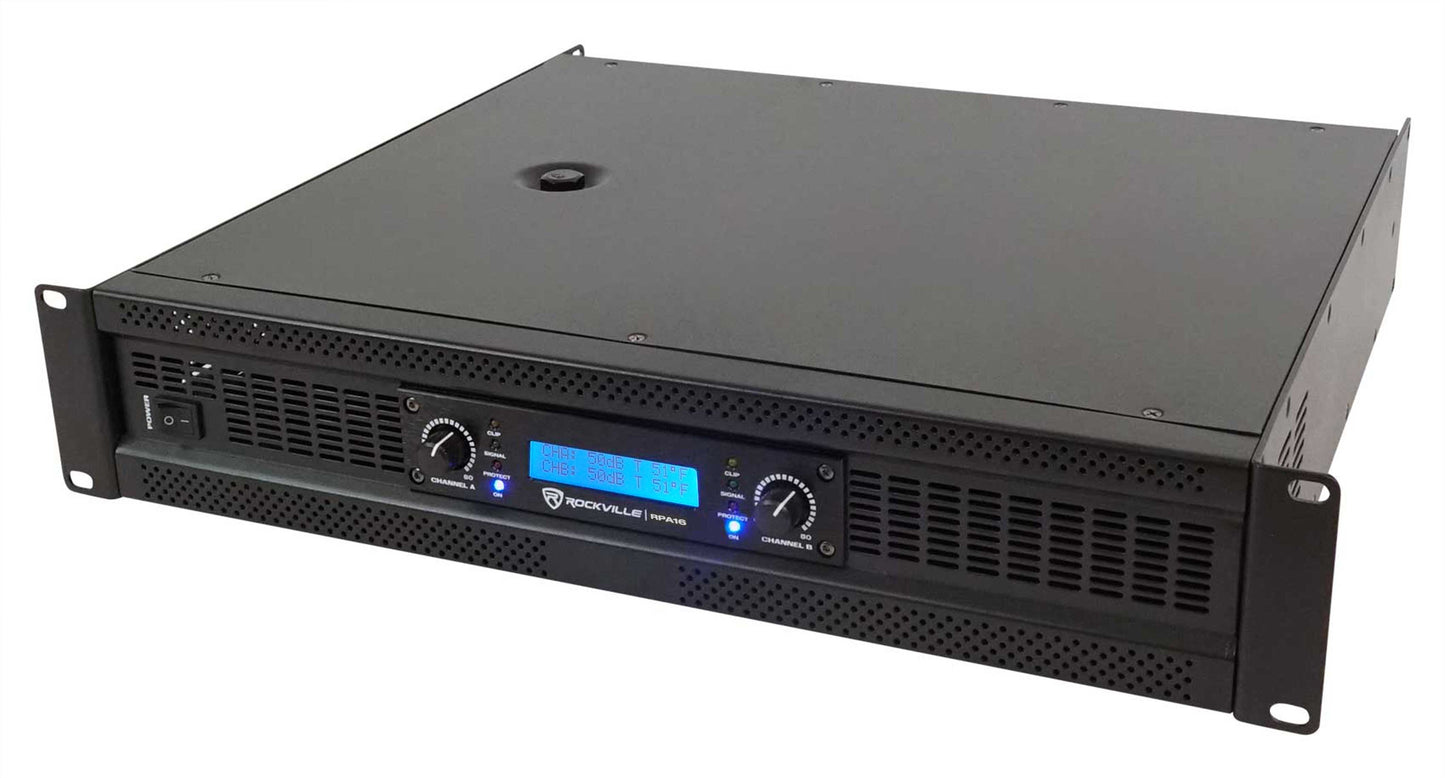

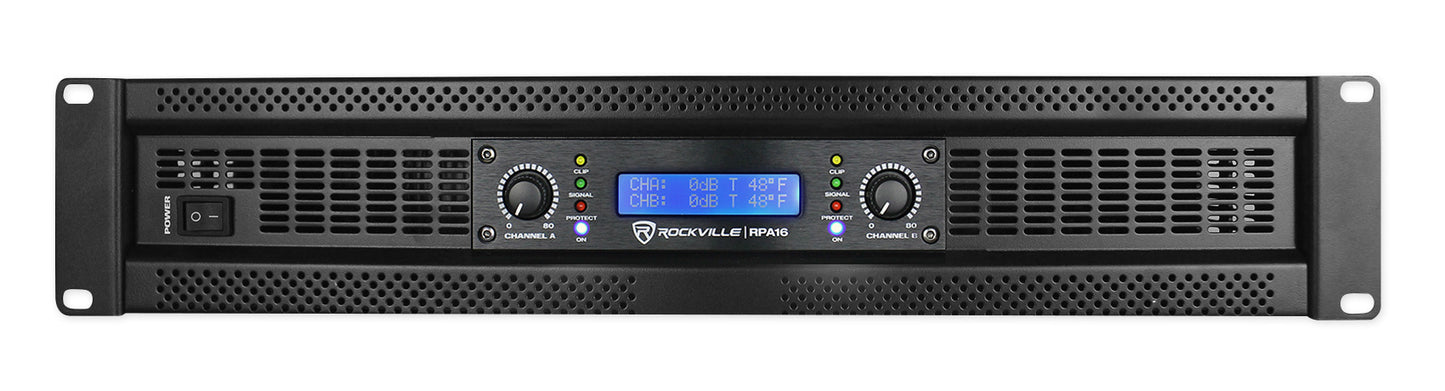

  • Rockville RPA16 10,000 Watt Peak 2 Channel Professional/DJ Rack Mount Amplifier

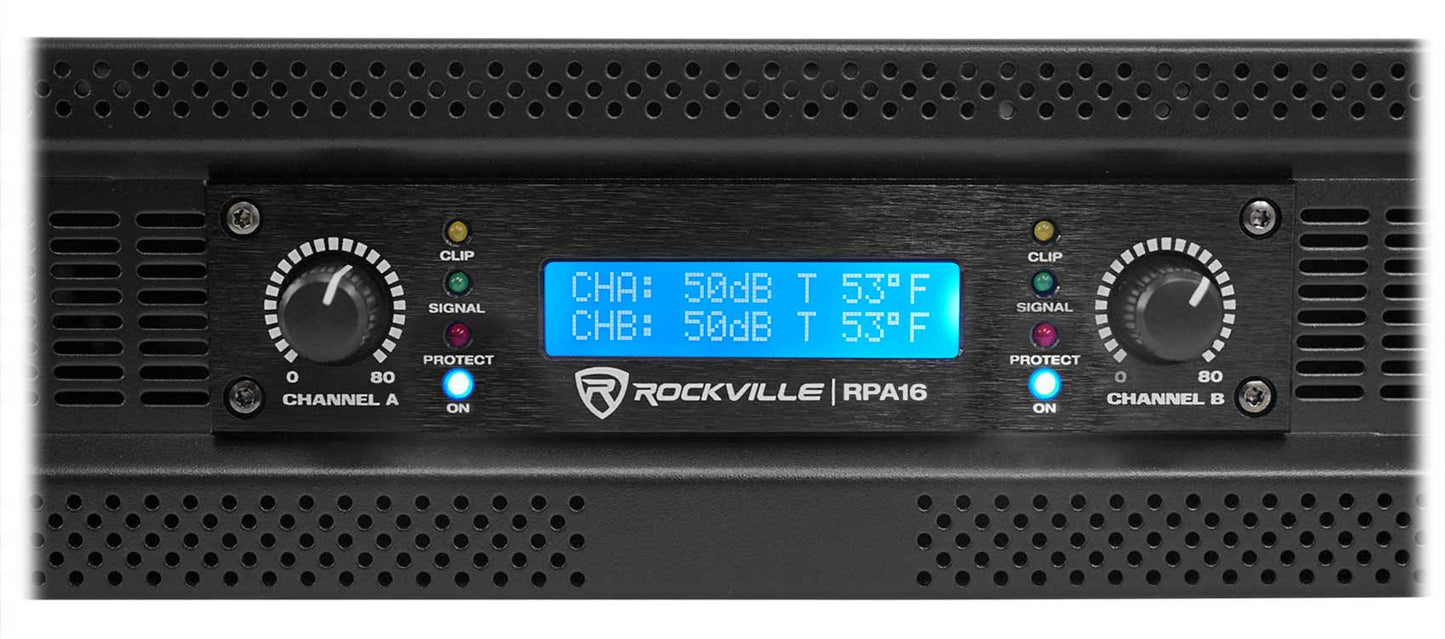

  • LCD displays volume in dB per channel and operating temperature
  • 2U rack space
  • Built in limiter protects your speakers from distortion and clipping
  • Bridged mode allows you to combine both channels power into one channel for use with a subwoofer
  • Stereo mode is perfect for (2) speakers or (4) speakers in a left and right configuration
  • Parallel mode gives you dual mono output signal which is perfect for monitor use when you want all sounds coming out of each speaker instead of a left/right configuration
  • Built in crossover switch (bypass, 80 Hz, 160 Hz) allows amp to be used with full range PA speakers, or Subwoofer(s)
  • Channel A & B Clipping Led Indicators
  • Channel A & B Separate Level Controls
  • Power, signal, clipping, and protection LED indicators on front of amp
  • Heavy duty rack mount ears with handles
  • Built-in variable high velocity quiet cooling fans
  • Maximum headroom for 4-ohm and 8-ohm Speakers
  • Level controls for precise setting and matching of sensitivity
  • Computer controlled IC protection circuitry against speaker short circuit, thermal over load, DC over load
  • User serviceable fuse (25A, 250V)
  • Frequency Response (bandwidth @ 2Vrms out, @ -3.0dB) 10 Hz – 30 Khz
  • THD + Noise @ 1Khz full power: <0.04%
  • Input Impedance: 10K Ohm Balanced
  • Input signal voltage: 660mV – 1.5V
  • Input sensitivity: 0.7v
  • Damping factor: ( 100Hz, 10w, 4 ohms): 36.5
  • Damping factor: (1Khz @ 8 ohm): >400:1
  • Effective damping factor (100Hz, 10w, 4 Ohms) 1.08
  • Output impedance at speaker terminals: 0.10975 Ohms
  • Frequency Response vs THD+N (worst case, across normal bandwidth 1W) 0.6%
  • Signal to Noise Ratio: > 100dB
  • IMD 60Hz & 1kHz, 4:1: <0.04%
  • SLEW RATE (input filter limited) : 40v/uS
  • Power Requirements: 120V / 50-60Hz
  • Weight: 40.8 lbs
  • Dimensions: 19.09 x 16.93 x 3.35 inch

Owner's Manual​​​


Authorized Rockville Dealer

Video of RCSS1425:

Description:

All Rockville pro audio cables are made with 100% copper which boosts the efficiency of the cable. There is nothing better than 100% copper. Most of the cheaper cables on the market do not use 100% copper, instead they make their cables with CCA (Copper Clad Aluminum). CCA cables do not perform on the level that 100% copper cables perform at. CCA will not conduct signals efficiently. A 12 gauge CCA cable will not even perform as well as a 14 gauge 100% pure copper cable, which will in turn, affect the performance and longevity of your equipment. If you find cables on the market that do not mention the copper content, there is a good chance that they are selling you a cheaper cable that is CCA and not 100% copper. Rockville pays an inspection company to oversee the manufacturing of the product to ensure that we provide a 100% Oxygen Free Copper Cable (OFC). Our OFC cables are less prone to oxidation, and will provide maximum signal transfer.

The other important factor of a cable is the shielding. Most of the good brands on the market have about 85% shielding coverage, so we decided to take our shielding a step further. Rockville cables are shielded with a tight copper mesh, covering 90% of the cable! The high percentage of coverage increases the ability to absorb the Electromagnetic Interference (EMI) and Radio Frequency Interference (RFI) that suppresses signal and degrades the performance of equipment. Rockville Cable’s copper shielding provides great flexibility, maintains a durable structural integrity, while decreasing signal interference ensuring enhanced signal clarity with every use.

Features:

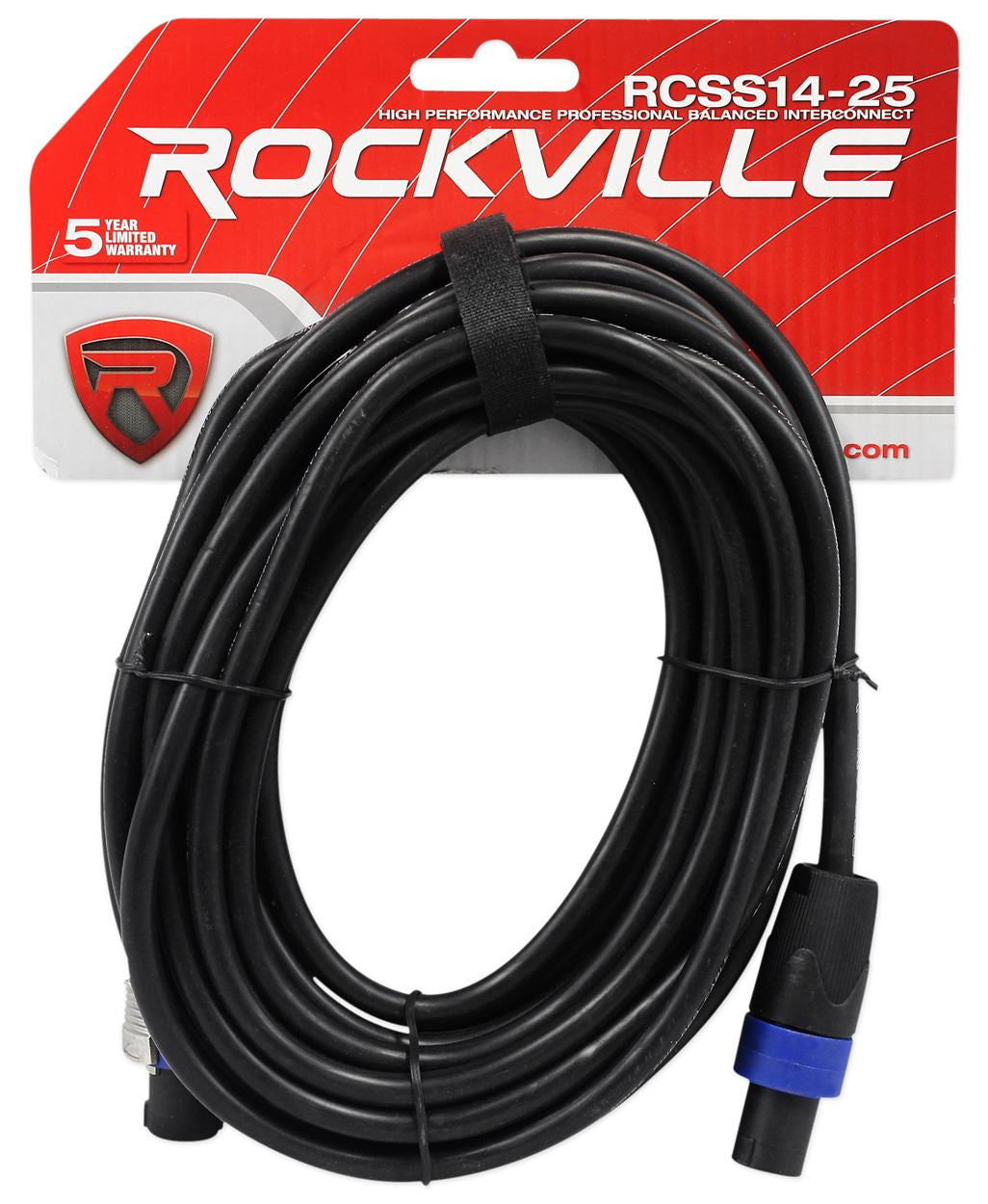

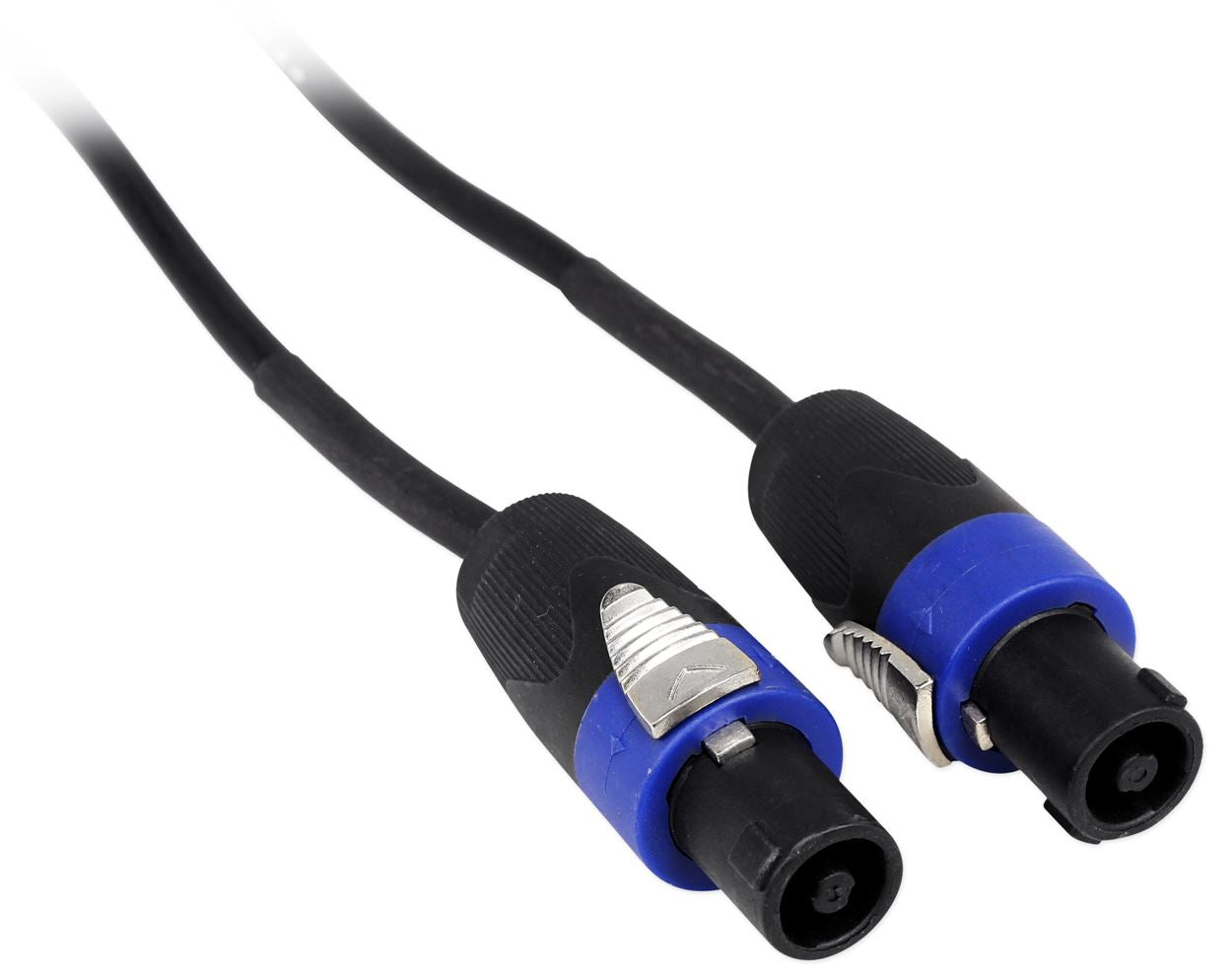

  • Rockville RCSS14-25 14 AWG 2-Conductor SpeakON to SpeakON Pro Speaker Cable
  • 100% Copper Conductors for Lower Resistance
  • Black PVC Jacket for Both Durability and Flexibility
  • Intended for High-Current Applications Only, Not Line-Level Signals
  • Length: 25 Ft
  • Gauge: 14
1 YEAR
  • UPC:
  • 613817189068
