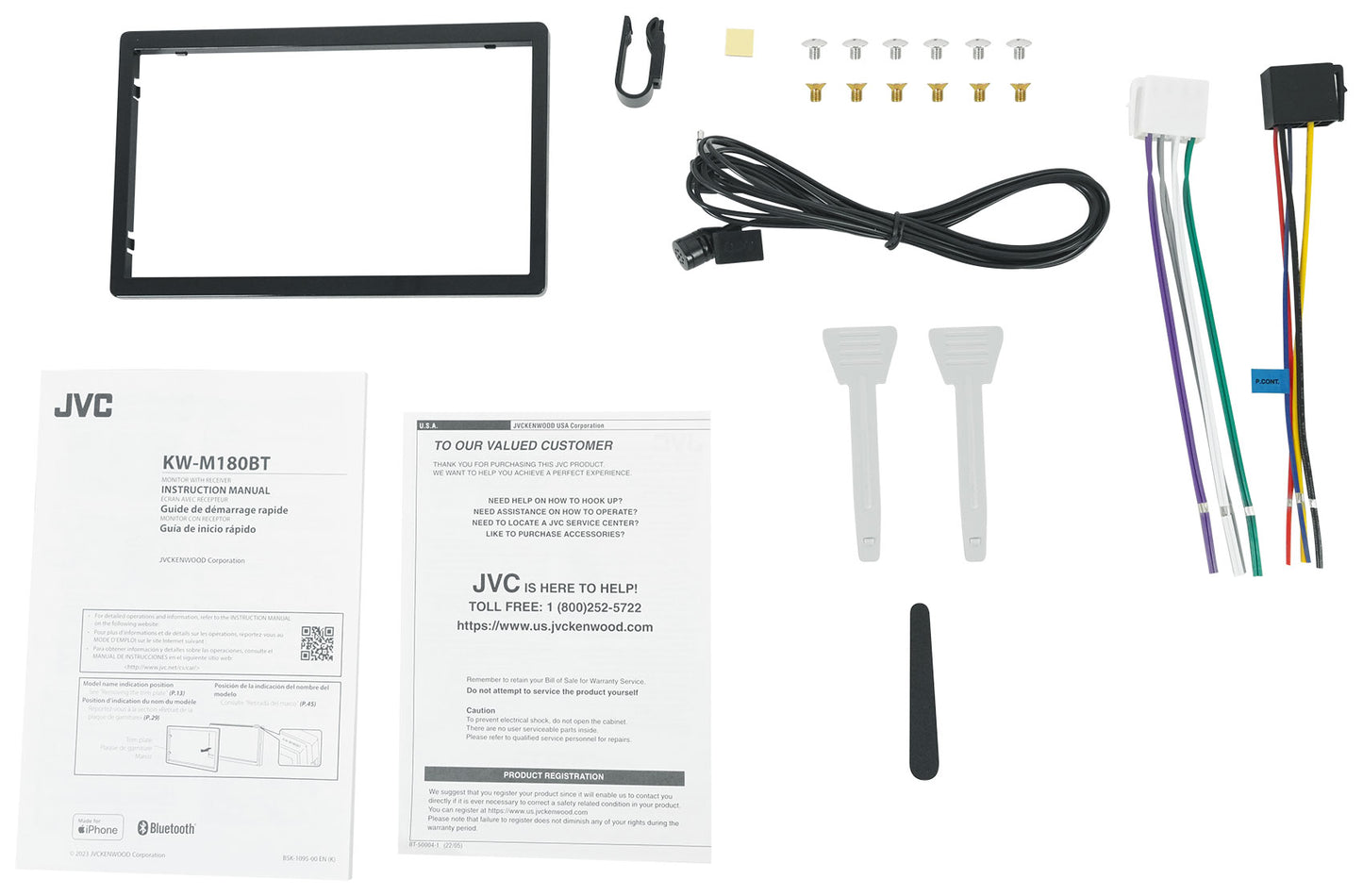

Package Includes:

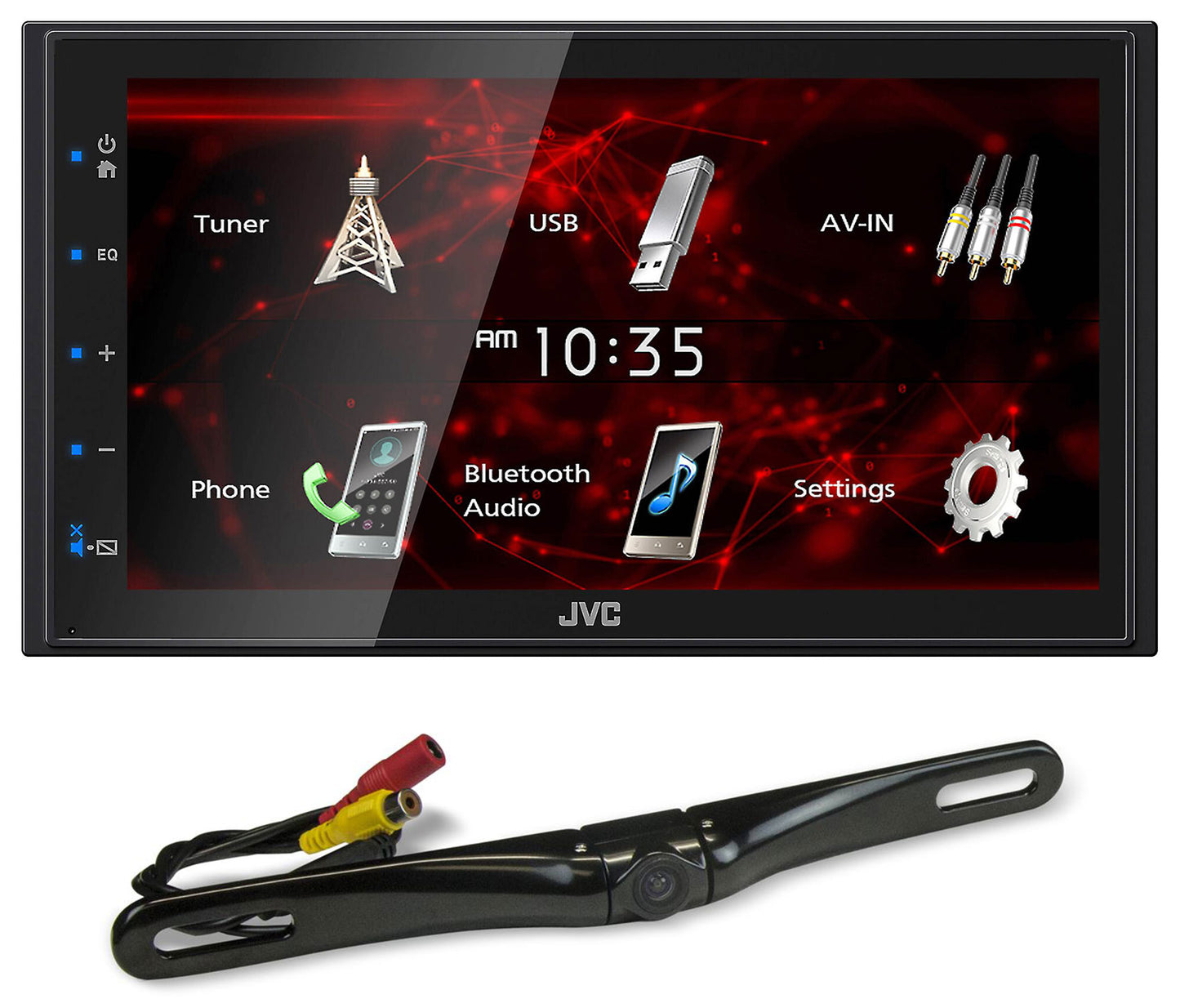

• (1) JVC KW-M180BT 6.8" Car Monitor iPhone Android Bluetooth Receiver USB/3 Pre-Outs

• (1) Rockville RBC5B Black Metal Car License Plate Camera+Night Vision+Distance Lines


---

Description:

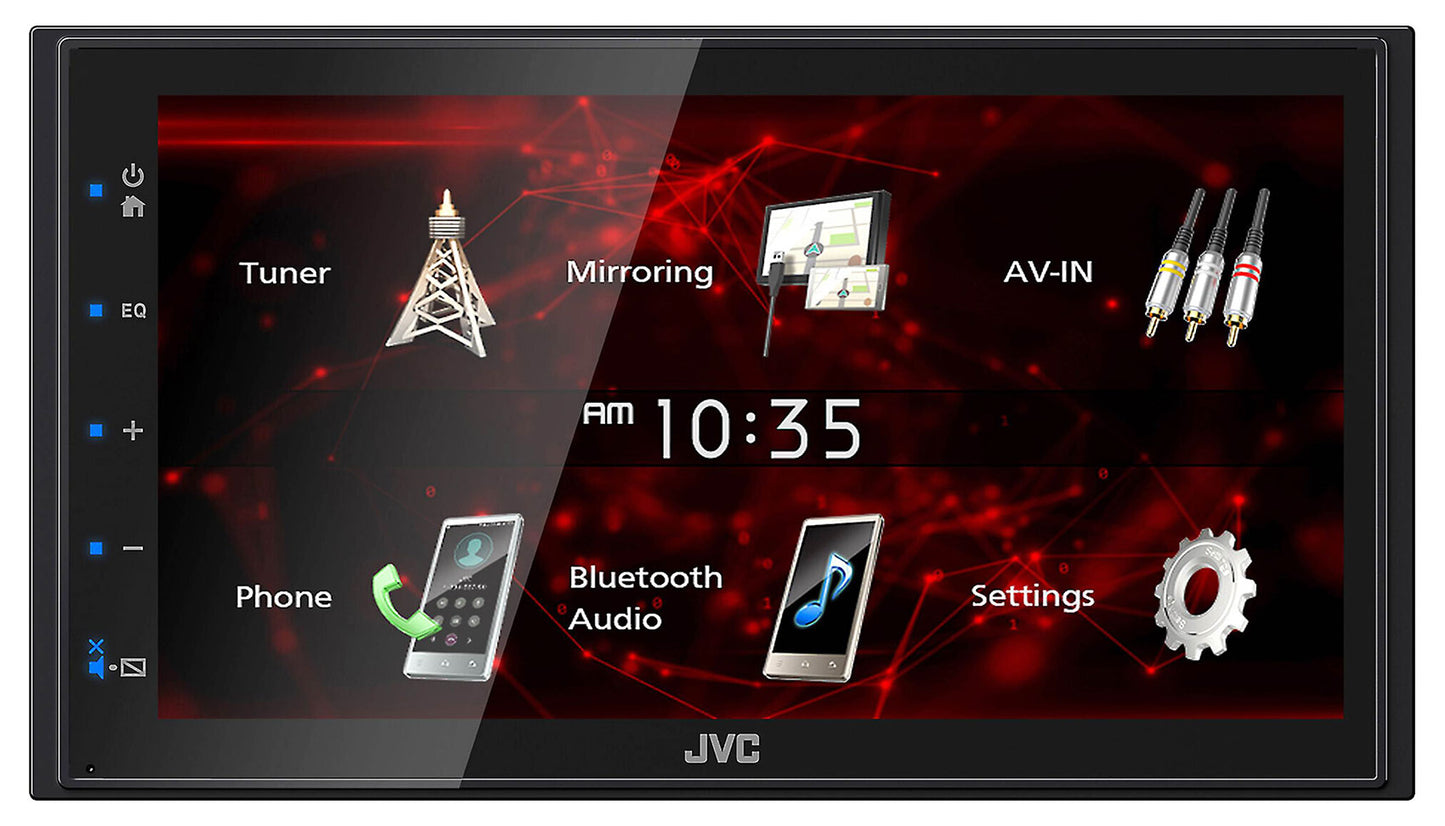

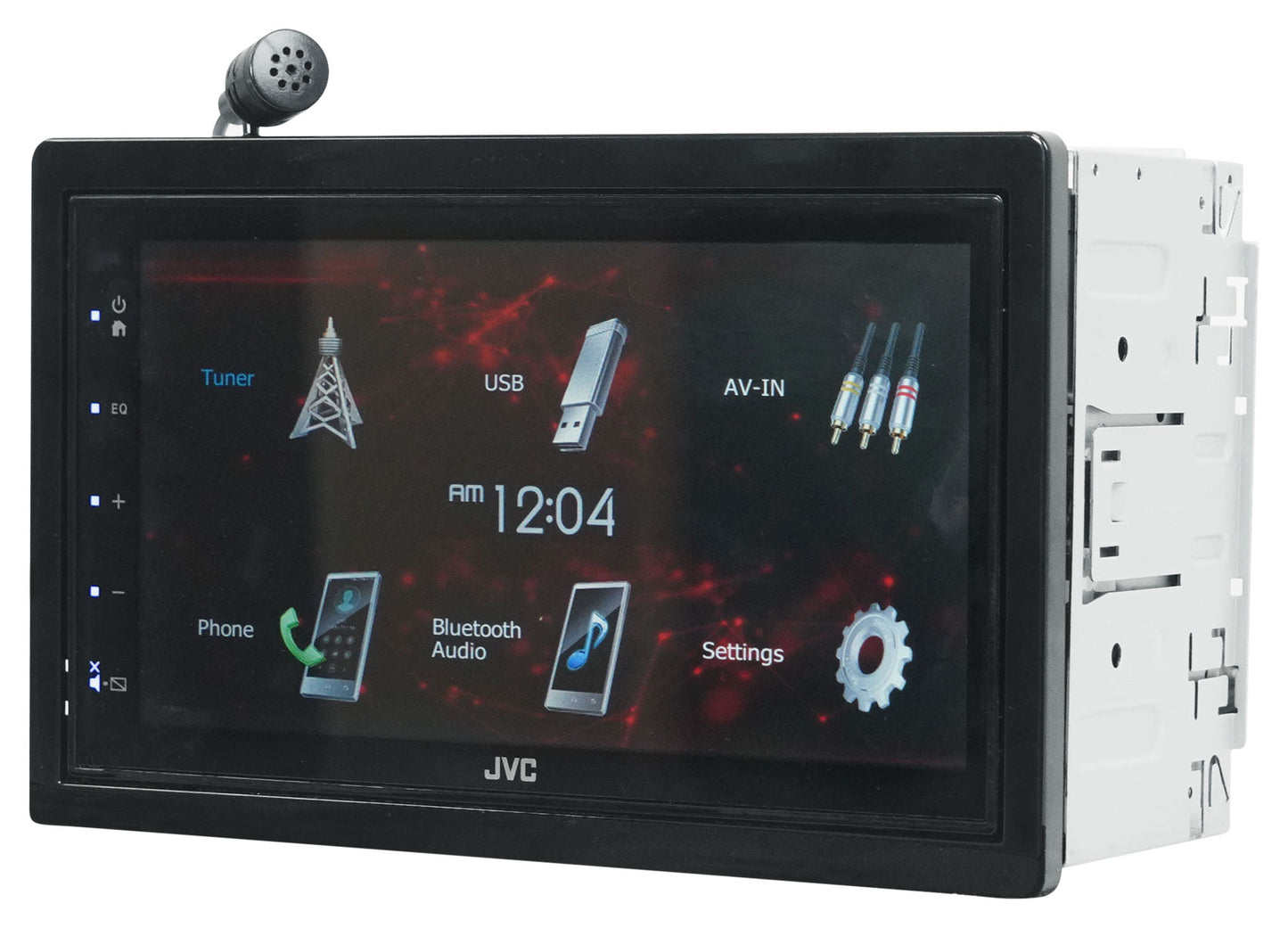

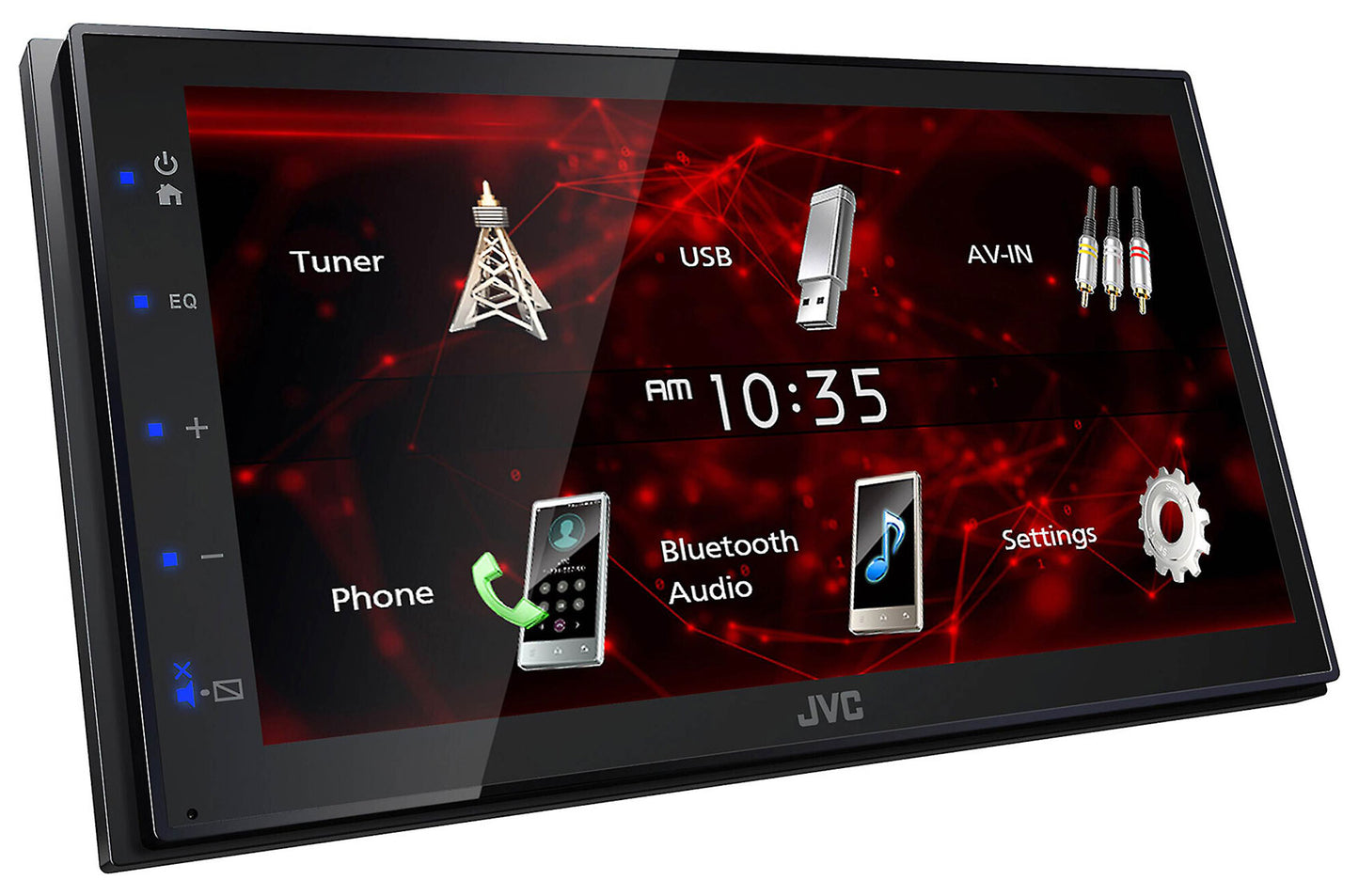

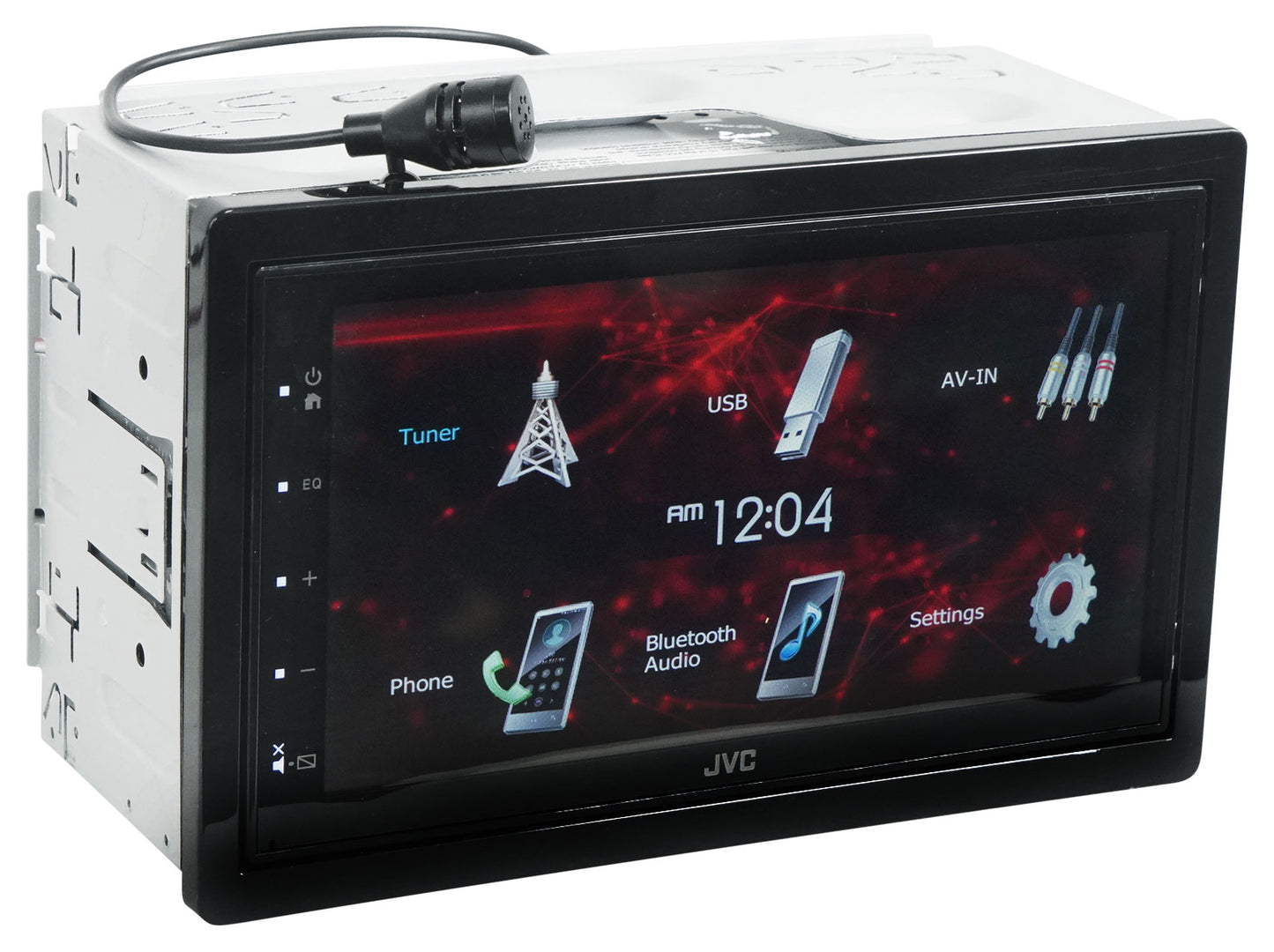

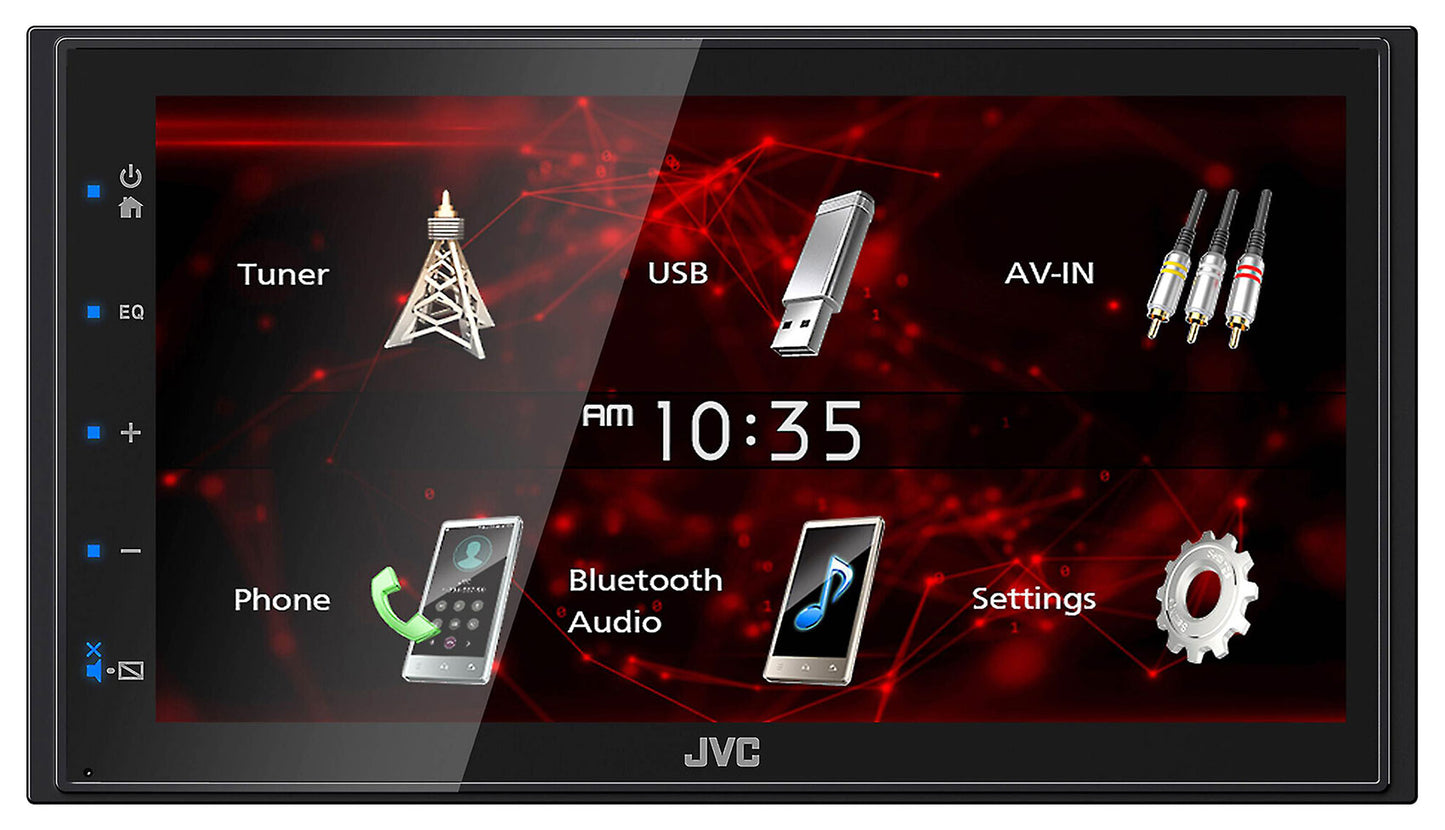

Digital Media Receiver featuring 6.8" WVGA Capacitive Monitor / USB Mirroring for Android / Bluetooth / 13-Band EQ / Short Chassis / Fast Bootup

Smartphone Integration

USB Mirroring for Android
Seamlessly display your Android phone on the JVC screen via USB. Touch control is supported from both screen and smartphone

How to USE
Step-1 : Simply download the free Mirroring for JVC app
Step-2 : Connect your smartphone via Bluetooth and USB

Bluetooth Wireless Technology

Bluetooth Voice Recognition
Improved Sound Quality with HFP 1.6 Wideband Speech: Improved sound quality thanks to HD Voice contributes to a higher level of voice recognition accuracy.

Bluetooth AVRCP1.5 for Versatile Song Selection
In addition to repeat and random playback of music files, you can also easily search for songs using the browsing function. Just look for and choose the song you want to hear from the folder name and song name lists.

Sound Optimization

Time Alignment
By selecting the speaker type and the distance to the center of the listening position, the receiver will automatically adjust the timing of the sound output from each of the speakers so that the sound from each of the speakers will arrive exactly at the same time to the listening position.

13-Band Equalizer
Use the 13-Band Equalizer to manually adjust the sound to your taste.

General

Fast Bootup
Thanks to the new fast bootup feature, the Receiver is ready to use shortly after powering on.

Capacitive Touchscreen
Capacitive touch screen has high clarity and allows for easier functioning with lighter contact and greater accuracy.

Various Formats Compatible
Supports a variety of file formats for audio and video playback.
Audio Format: MP3/WMA, AAC, WAV, FLAC
Video Format: MPEG 1/2, MPEG-4, H.264, MKV

Short Chassis
The reduced depth of the chassis contributes to a weight reduction and facilitates easier installation.

Rear View Camera Ready
The Rear View Camera input allows you to connect an optional rear view camera (sold separately).
Rear view cameras allow you to safely back up your vehicle, monitor towing, and more.

Waterproof design
1/4" color CMOS sensor with effective 380,000 pixels
Flexible mounting bracket included
Camera dimensions (W x H x D): 23.4mm x 23.4mm x 23.9mm
Weight: 21g (Camera only)

Steering Wheel Remote Control Ready
Factory steering wheel control functions can be retained with a third-party adapter (sold separately).

Remote Control (Optional)
Remote control (RM-RK258) is optionally available.

Specifications:

Monitor

• Screen Size: 6.8"Wide VGA

• Touch Panel: Capacitive

• Key Illumination Color: Blue

• Dimmer: Yes

• Multilingual Display: Yes[2]


Media Playback

• MP3 Compatible with Tag: USB

• WMA Compatible with Tag: USB

• WAV Compatible with Tag: USB

• AAC Compatible with Tag: USB

• FLAC Compatible with Tag: USB

• H.264 Compatible: USB

• MPEG 1/2 Compatible: USB

• MPEG 4 Compatible: USB

• MKV Compatible: USB


Bluetooth Control

• Built-in Bluetooth[1]: Yes (Wired-Mic included)

• Hands Free Call: Yes (HFP1.6 Wideband Speech)

• Audio Streaming & Control (A2DP, AVRCP): Yes

• Supported Audio Formats: AAC / SBC

• Voice Dialing (voice recognition compatible mobile phone required): Yes

• Phone Book Access Profile (PBAP): Yes


Android Control

• Mirroring for Android: Yes (via USB)

• Android Music Playback: Yes (via Bluetooth(R))


iPod/iPhone Control

• iPhone Music Playback: Yes (via USB or Bluetooth(R))


USB

• USB Port: x 1 (High speed)

• Position: Rear

• USB Power Supply: Yes (1.5A)


Radio Tuner

• Radio Broadcast Data System (RBDS): Yes

• Preset Stations: 30 (6ch x 5band)

• Auto Memory Entry: Yes


FM

• Frequency Range: 87.9-107.9MHz


AM

• Frequency Range: 530-1,700kHz


Audio

• Maximum Power Output (Front & Rear): 45W x 4

• EQ: Yes (13-Band Graphic EQ)

• Preset EQ: Yes (7Preset + 3user)

• Bass Boost: Yes

• High-Pass Filter/Low-Pass Filter: Yes/Yes

• Time Alignment: Yes


Inputs and Outputs

• AV Input: RCA x 1

• Video Out: RCA x 1

• Rear view camera Input: Yes

• Line Output Terminals: 3 Pairs (Front (L/ R), Rear (L/ R), Sub.W (Mono) x1)

• Pre-output Level/Impedance: 2V / 10k ohms

• Subwoofer Output with Level/Frequency Control: Yes


General

• Face Type: Fixed

• Short Chassis: Yes (75mm)

• Wireless Remote Control: Ready (RM-RK258 required)

• Steering Remote Control Ready: Yes

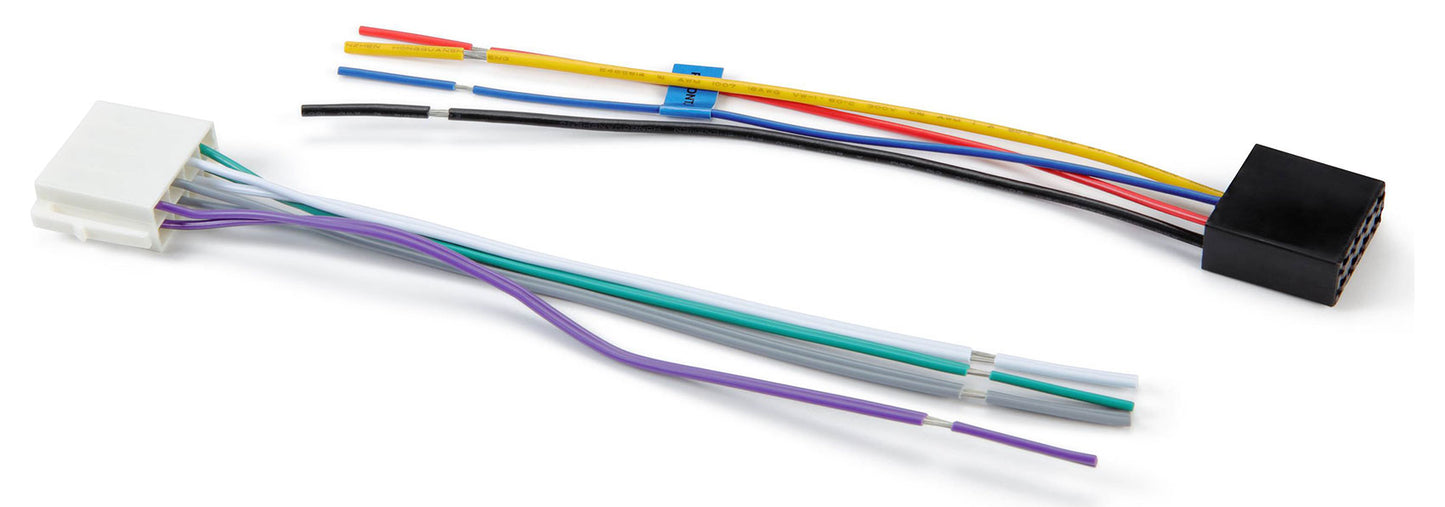

• ISO Connector: Yes

• Available functions depend on mobile phone.

• Multilingual (English / Spanish / French)

---

Video of RBC5B:

Features:

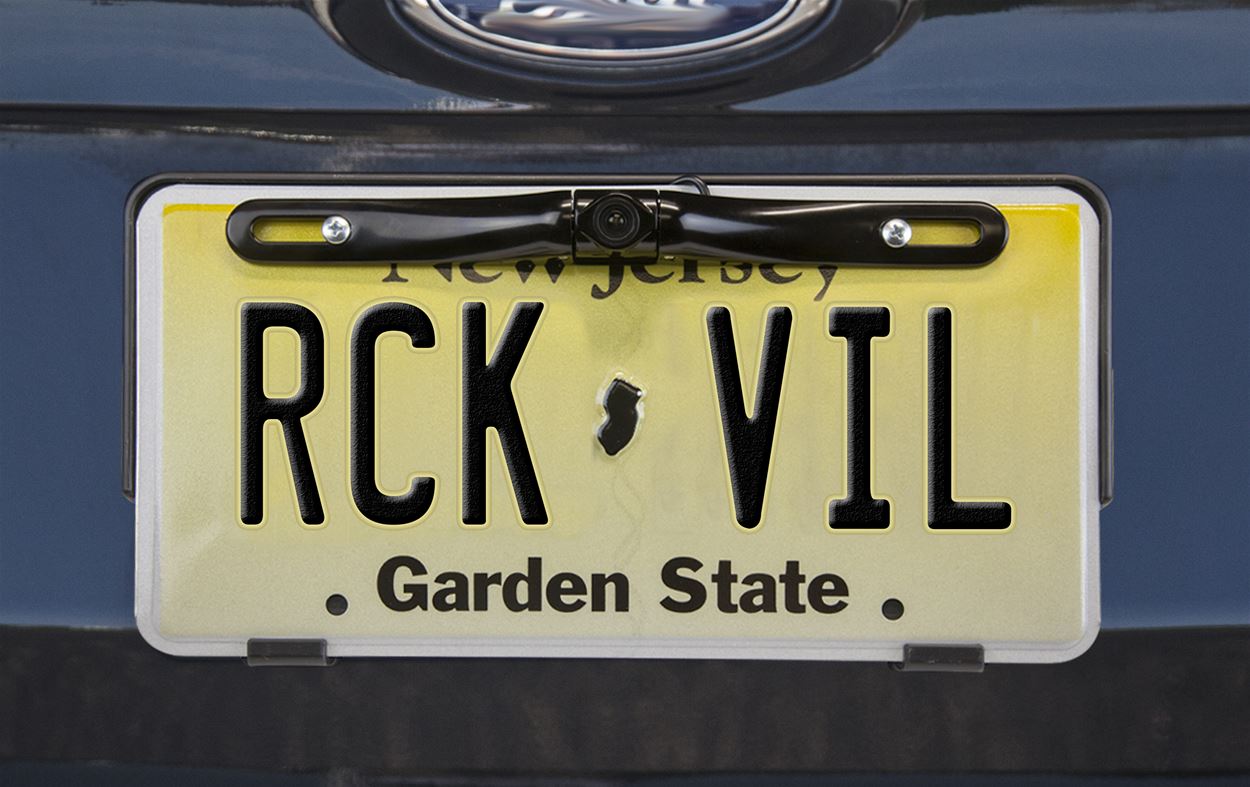

• Rockville RBC5B (Black Chrome) Adjustable Angle Rearview Back-up Camera, Universal License Plate Mount
• Night Vision: PC6070 Image Sensor
• Waterproof & Fog Resistant
• Easy Installation
• Auto Turn-on
• 420 TV Lines
• 648H x 488V
• Low Light Sensitivity: 0.01 LUX
• 170° Wide View Angle
• True Color Reproduction
• Automatic White Balance
• Universal License Plate Mount
• Guidance Distance Grid

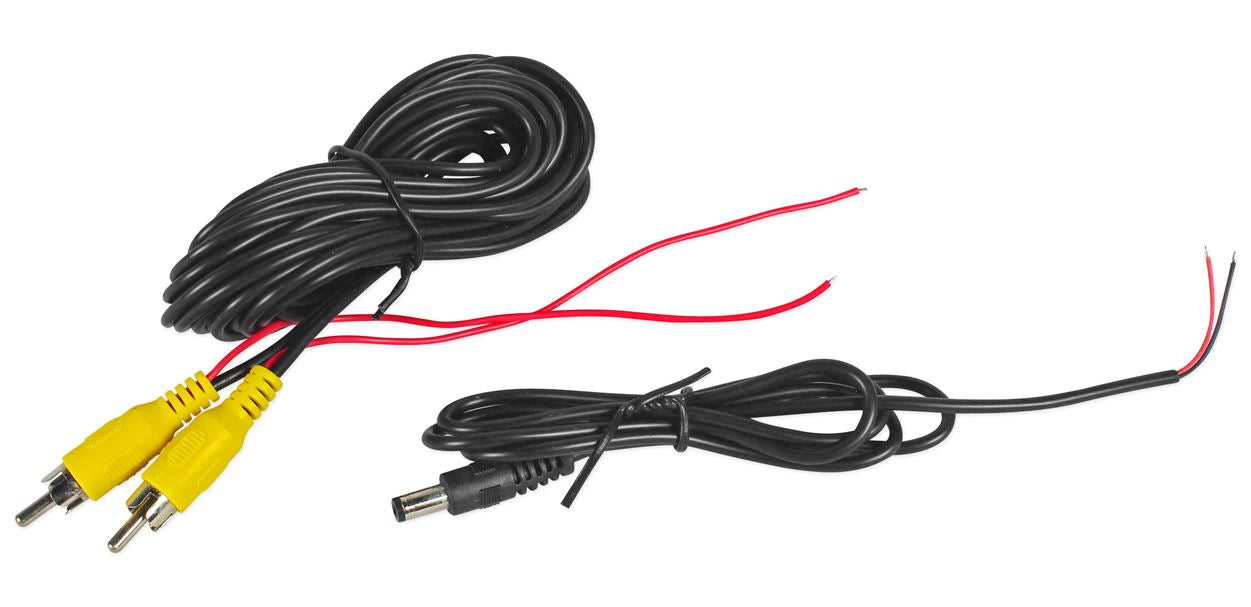

• Includes: DC Power Cable, RCA Video Control Cable, Mounting Screws
