Package Includes:

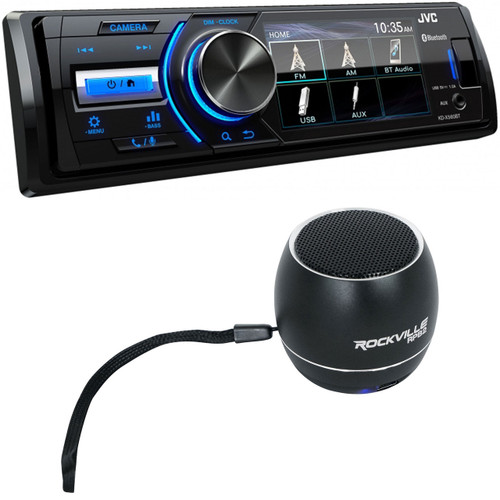

• (1) JVC KD-X560BT Digital Media Marine Bluetooth Receiver iPhone/Android/USB/AUX
• (1) Rockville RPB2-BLACK Handheld Wireless Portable Bluetooth Speaker Great Sound

---

Description:

Digital Media Receiver featuring Bluetooth / USB / 3" Color Display / Conformal Coated PCB / Camrea-Input / 13-Band EQ.

Conformal Coating

A conformal coating is a protective chemical coating to safeguard electronic circuits from harsh environments that may contain moisture or chemical contaminants. It provides a barrier to airborne contaminants from the operating environment, such as salt-spray, thus preventing corrosion.

Rear View Camera Input Support

KD-X560BT is equipped with a rear view camera input. With an optional camera connected, you have increased safety while driving UTVs or marine vessels. With the independent "CAMERA" key, you can always check the backward situation whenever the key is pressed.

Short Body

The reduced depth of the chassis contributes to a weight reduction and facilitates easier installation.

Wired Remote Control (Optional)

IPX7 Waterproof wired remote control (RM-RK62M) is optionally available.

Specifications:

Monitor

• Screen Size: 3.0" 16:9 QVGA
• Key Illumination: Color Blue
• Dimmer: (1/2/Off)
• Multilingual Display: [2]

Media Playback

• MP3 Compatible with Tag
• WMA Compatible with Tag
• WAV Compatible with Tag ( Up to 96kHz/24bit )
• AAC Compatible with Tag
• FLAC Compatible with Tag (Up to 96kHz/24bit )
• H.264 Compatible
• MPEG 1/2 Compatible
• MPEG 4 Compatible
• AVI/MKV Compatible
• JPEG File Playback
• PNG File Playback
• BMP File Playback

Bluetooth Control

• Built-in Bluetooth[1]: (Version 3.0, Wired-Mic included)
• Hands Free Call: (HFP1.5 Wideband Speech)
• Audio Streaming & Control: (A2DP, AVRCP)
• Phone Book Access Profile: (PBAP)

Android Control

• Android Music Playback: (via Bluetooth(R))

iPod/iPhone Control

• iPod/iPhone Music Playback: (via USB or Bluetooth(R))

USB

• USB Port x 1 (High speed)
• Position Front
• USB Power Supply (1.0A)

Radio Tuner

• Radio Broadcast Data System (RBDS)
• Preset Stations 30 (FM:15,:AM:15)

FM

• Frequency Range 87.9 - 107.9MHz

Audio

• Maximum Power Output (Front & Rear) 45W x 4
• Full Bandwidth Power (Front & Rear) 16W x 4
• EQ (13-Band Graphic EQ)
• Preset EQ (9-Preset)
• Bass Boost
• High-Pass Filter/Low-Pass Filter /

Inputs and Outputs

• Front AUX Input
• Rear view camera Input
• Line Output Terminals 3 Pairs (Front + Rear + Subwoofer)
• Pre-output Level/Impedance 2.0V / 10k ohms

General

• Wireless Remote Control Ready (RM-RK258 required)
• Steering Remote Control Ready
• ISO Connector
• Dimensions (W x H x D)
• Installation Size: 7-3/16" x 2-1/16" x 4-5/8" (182 x 52 x 117 mm)
• Weight: 1.65 lbs. (0.75kg)
• Unit weight in individual package: 2.45 lbs. (1.11kg)

[1] Available functions depend on mobile phone.
[2] English / Spanish / French / German / Italian / Dutch / Russian / Portuguese / Polish / Czech / Hungarian / Finland

---

All About Your RPB2 Speaker:

How To Set Up Your RPB2 & RPB3 Speakers:

Features:

• Rockville RPB2-BLACK Handheld Portable Bluetooth Speaker
• Mini Speaker with great frequency range and balanced sound
• TWS - True wireless stereo to link 2 speakers wirelessly
• Built out of high quality aluminum
• Bluetooth Version 5.0
• Hands Free phone calls using the built in microphone
• Built-in SD Card Slot
• On android phones, you can use the speaker as a selfie remote
• Input Voltage: DC 5V 1A
• Li-Polymer Battery: 300 mAh
• Driver: 40mm, 4O 3W
• Net Weight: 95 g
• Sound Output: 5 W
• Bluetooth Range: 25 Feet
• Frequency Response: 120 HZ - 20 KHZ
• Charging Time: 30 - 40 minutes
• 25% Volume Battery Life: 5 hours
• 50% Volume Battery Life: 3.5 hours
• Max Volume Battery Life: 2 hours
• Color: Black
