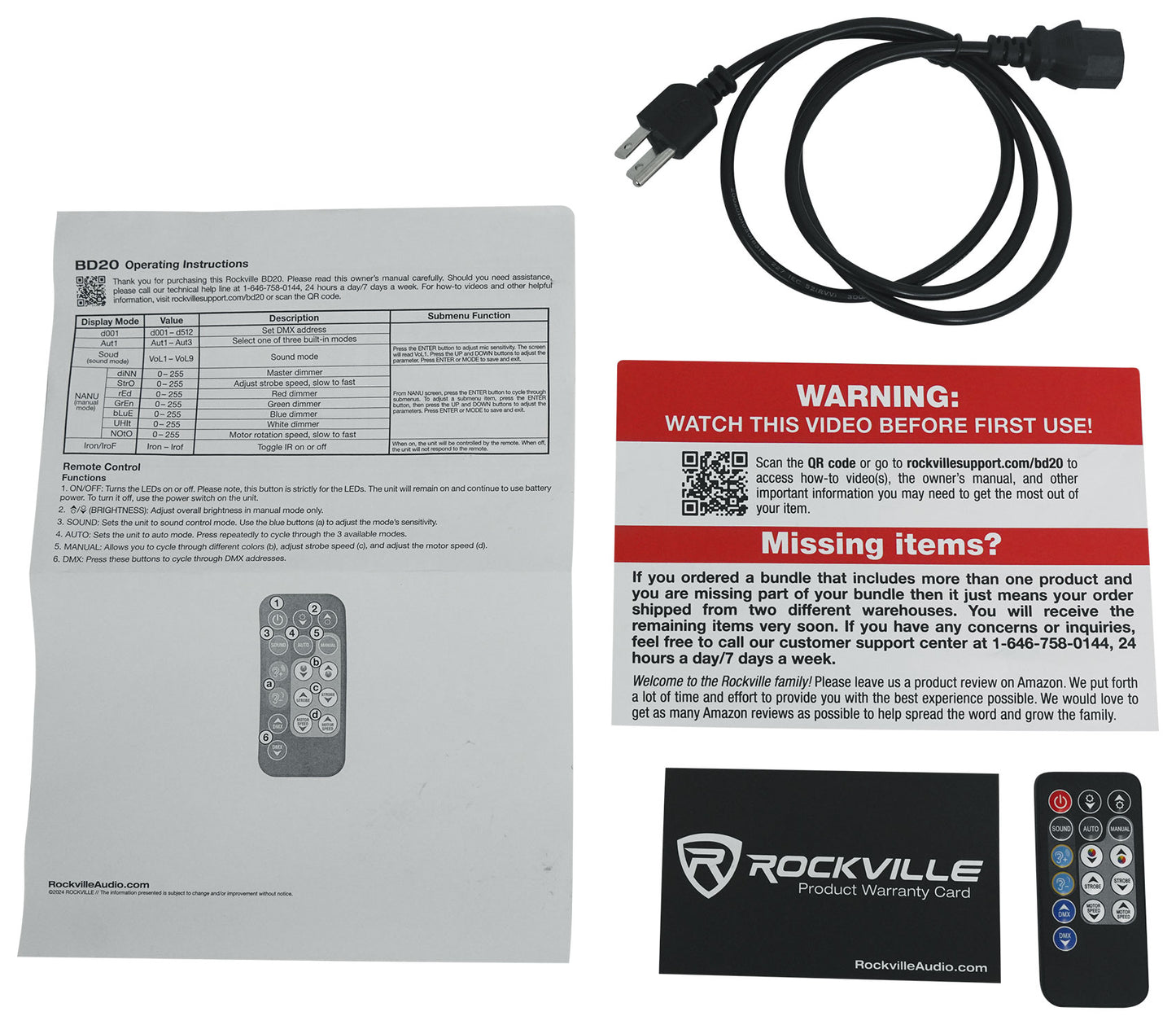

What’s In The Box:

• Light

• IR Remote

• Metal Bracket

• Adapter

• Training Video and Warranty Card


Description:

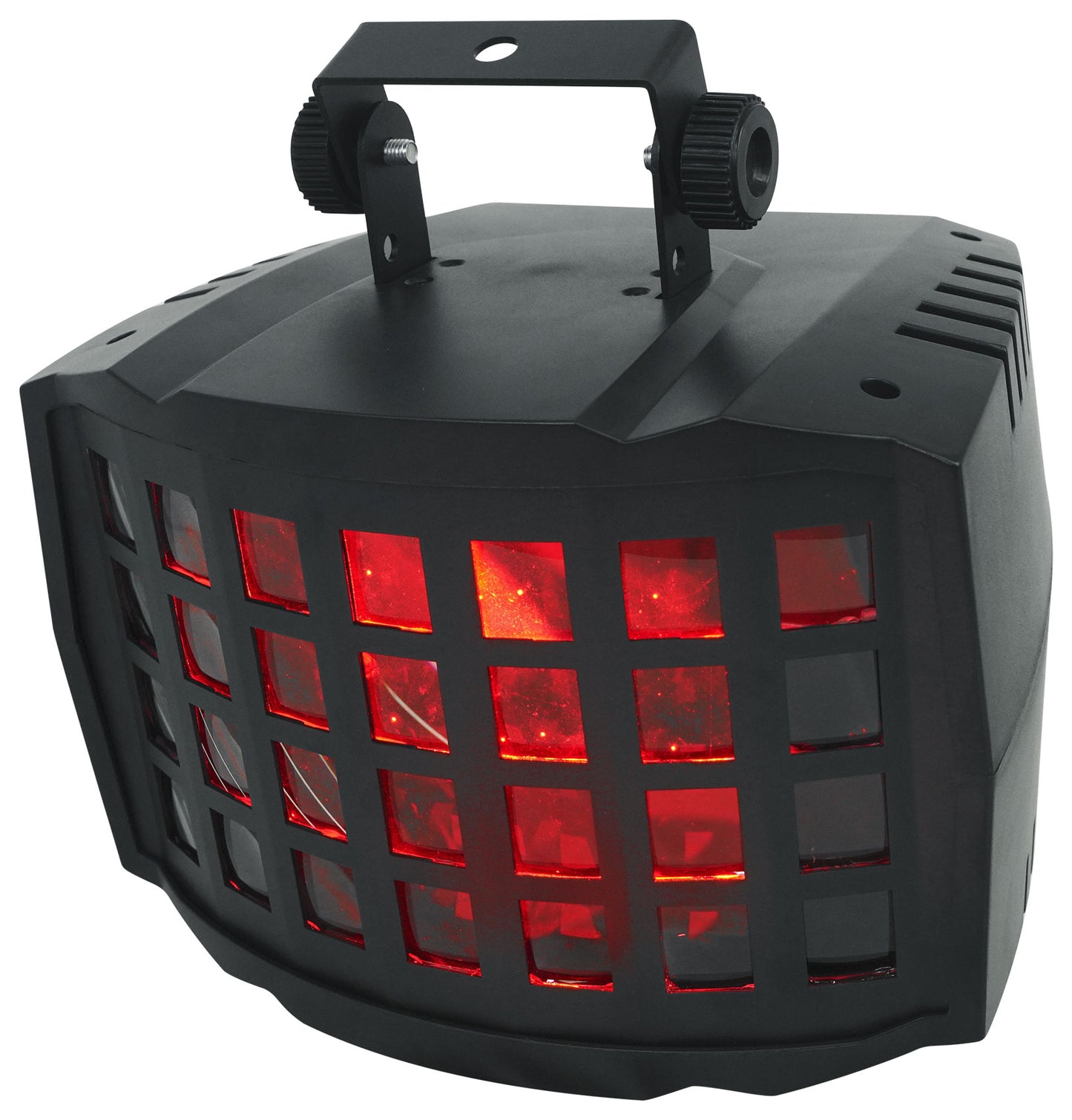

The BD20 by Rockville is a very bright Derby light that is completely wireless. It is perfect for DJs, house parties, and musicians. This light can be the centerpiece for your dance floor.

It is extremely convenient because it is rechargeable and has wireless DMX. It is also super easy to operate with just the remote.

If you like to have full control over the light, you can connect it wired or wirelessly to your DMX controller and control the strobe speed, brightness, color (RGBW), and motor speed. You can also just use the remote and control the light manually. You also have access to auto modes and sound-activated modes from the remote or from the menu on the unit. Another great feature we added is the ability to set up multiple units wirelessly in a master/slave configuration. This means that you can set the master light on auto mode or on sound mode and then your “slave” units will copy the master light.

The build quality is great. The housing is made of high-quality plastic and metal front plate, metal back plate, and metal hanging bracket.

Applications:

• DJ Events (Perfect for dance floors)

• Home or backyard party lights

• Bars and restaurants

• Venues

• School plays and other events


Features:

• Rockville BD20 Battery Powered DJ Party Dance Floor Derby Light w Wireless DMX

• Rechargeable Battery lasts 7-8 Hours per charge

• Charges in 3 Hours

• Built-In wireless DMX controls

• Wired DMX input and output

• Master/slave mode allows you to link multiple lights wirelessly or wired

• Light source: 2 x 12W RGBW LED’s (bright and vibrant)

• IR remote with 15-foot range (line of site)

• 3 Auto modes

• Sound mode with adjustable mic sensitivity

• Strobe mode with adjustable color and speed

• Manual mode with adjustable motor speed, strobe speed, color, and dimmer

• Combo colors with single, dual, triple, or 4 simultaneous colors

• Built-in 5000mAh 11.1V lithium-ion rechargeable battery

• Battery life indicator

• Battery overcharge protection

• Housing is made of high quality plastic with a metal front plate, and metal back plate, and metal hanging bracket

• Charging indicator

• IEC input for power and charging

• IEC output allows you to plug a second light into this one

• Hanging bracket allows you to truss mount the light

• Power consumption: 25W

• Replaceable batteries

• 110/220V switchable for use in any country

• Unit dimensions: (L x W x H) 9" x 7.5" x 11" inches

• Unit weight: 7.1 lbs.

• Color: Black
