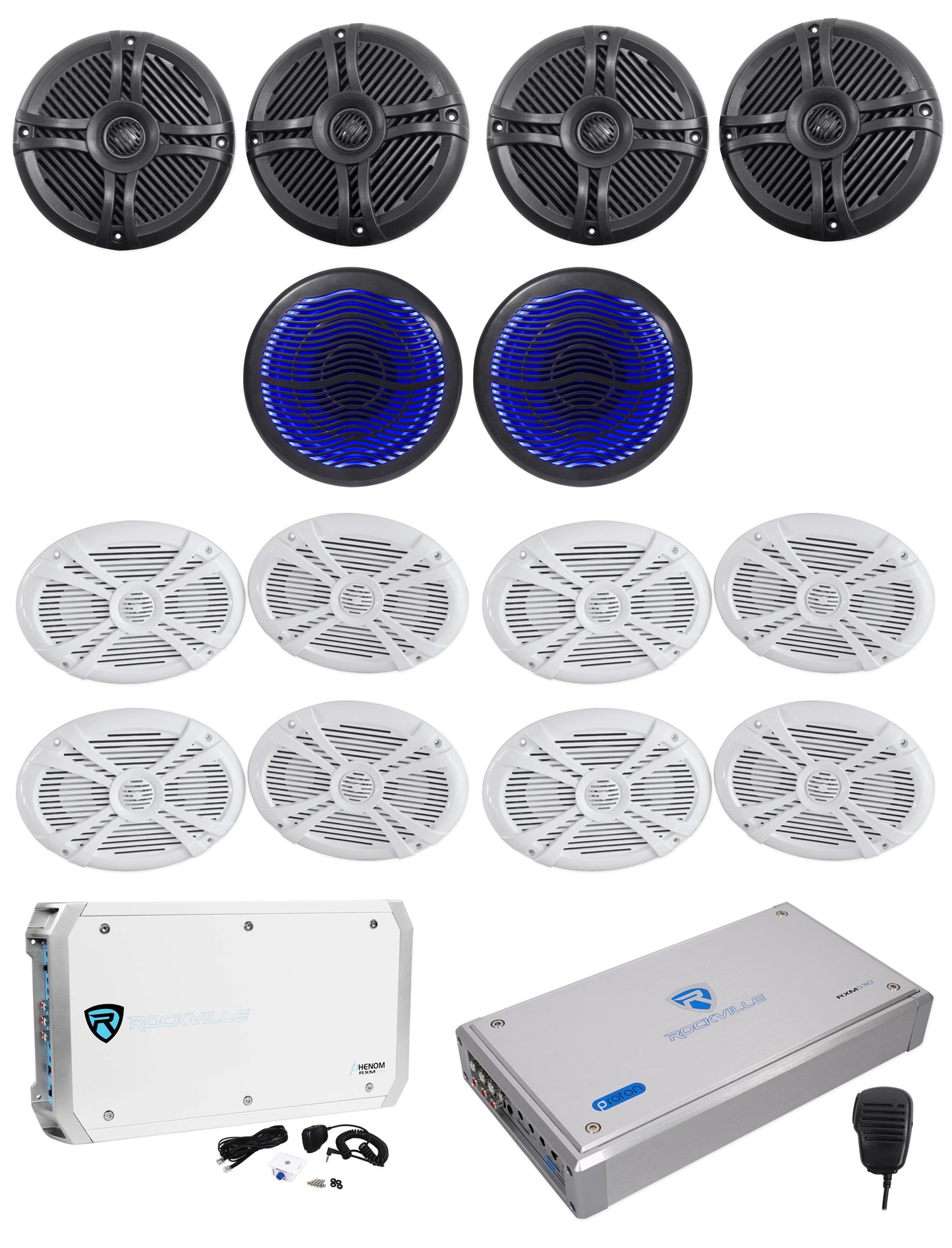

- (2) Pairs of Rockville RMSTS65B 6.5" 800w Waterproof Marine Boat Speakers 2-Way Black
- (4) Pairs of Rockville RMSTS69W 6x9 1000w Waterproof Marine Boat Speakers 2-Way White
- (2) Rockville MS10LB 10" Marine Free Air Subwoofer with LED (Black)

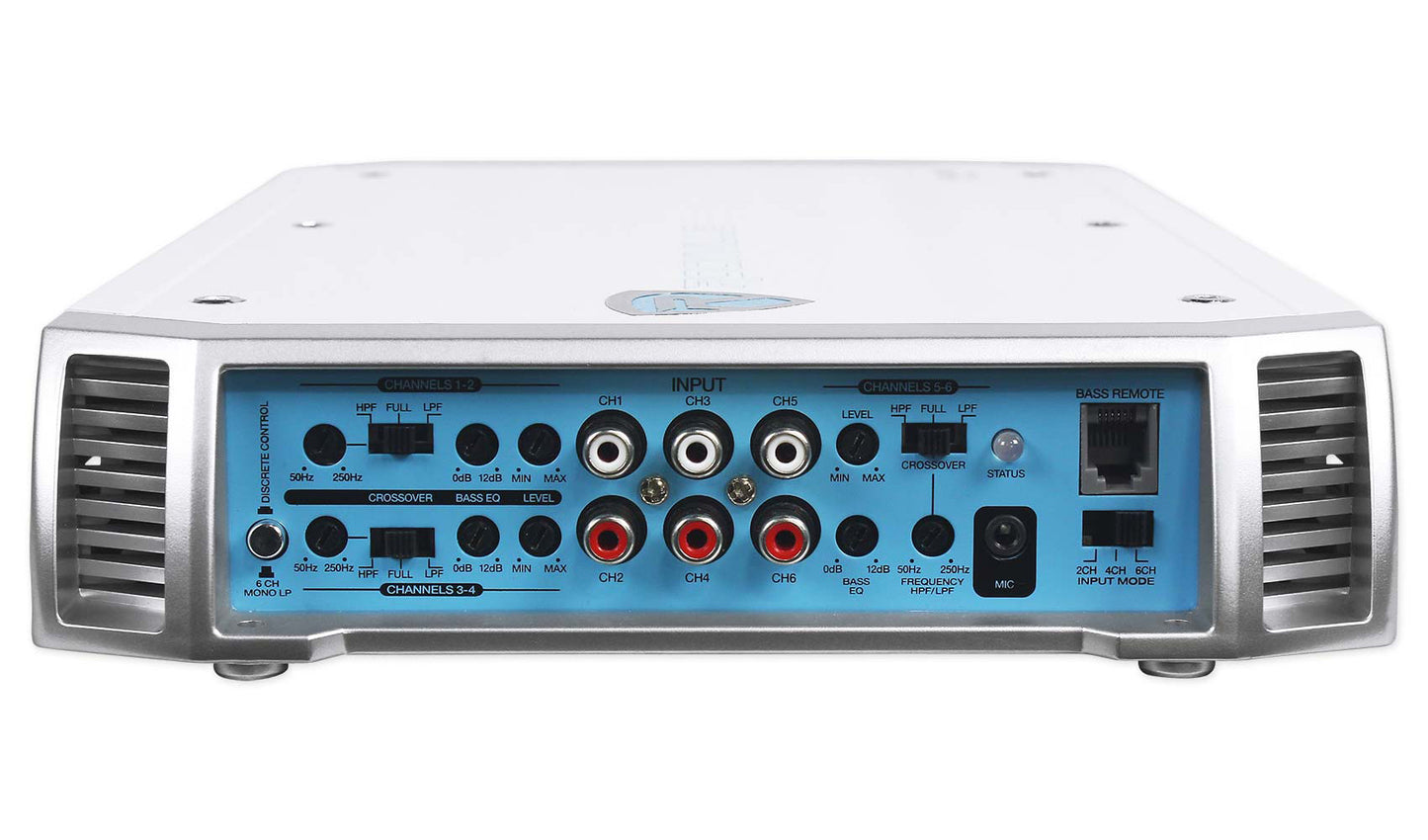

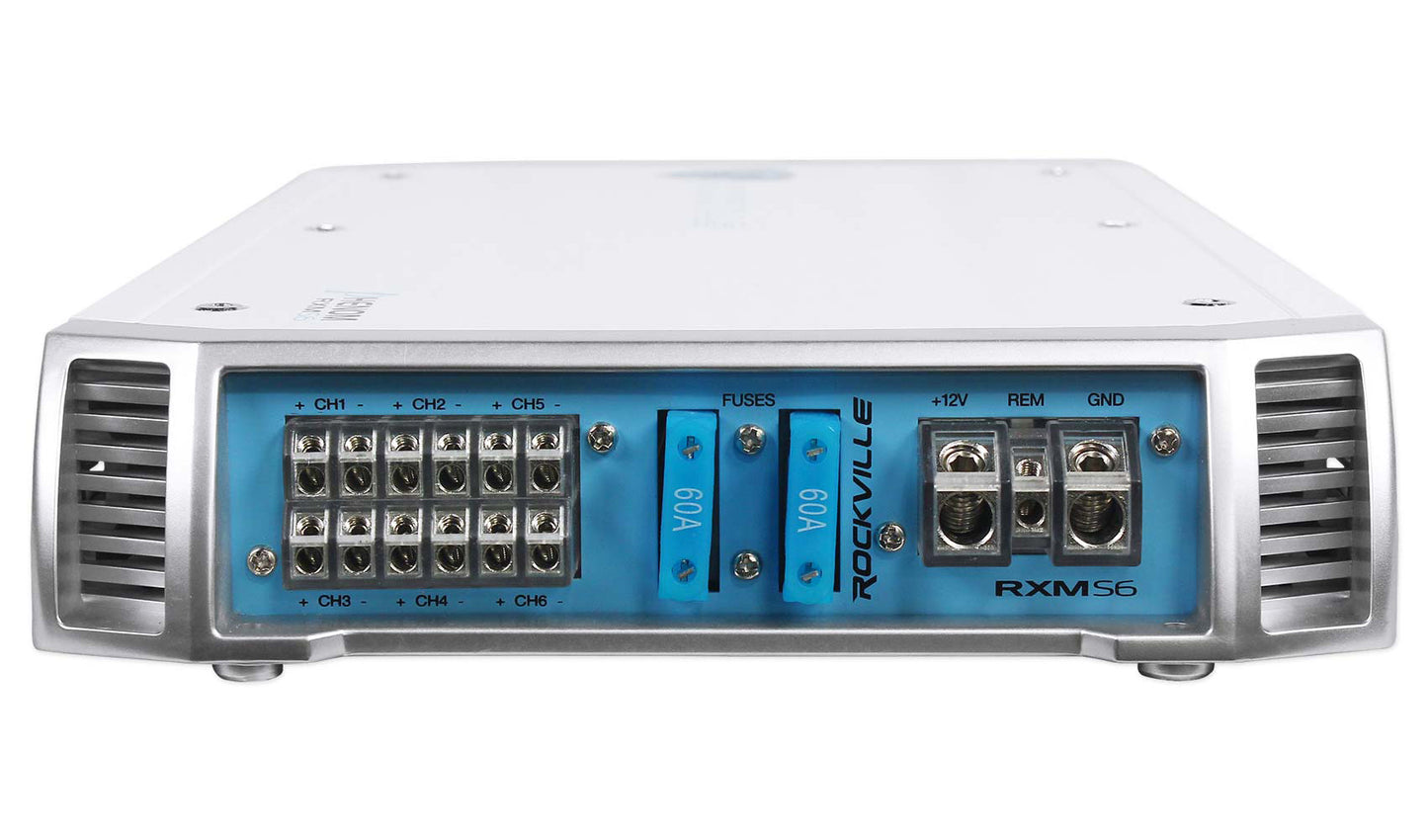

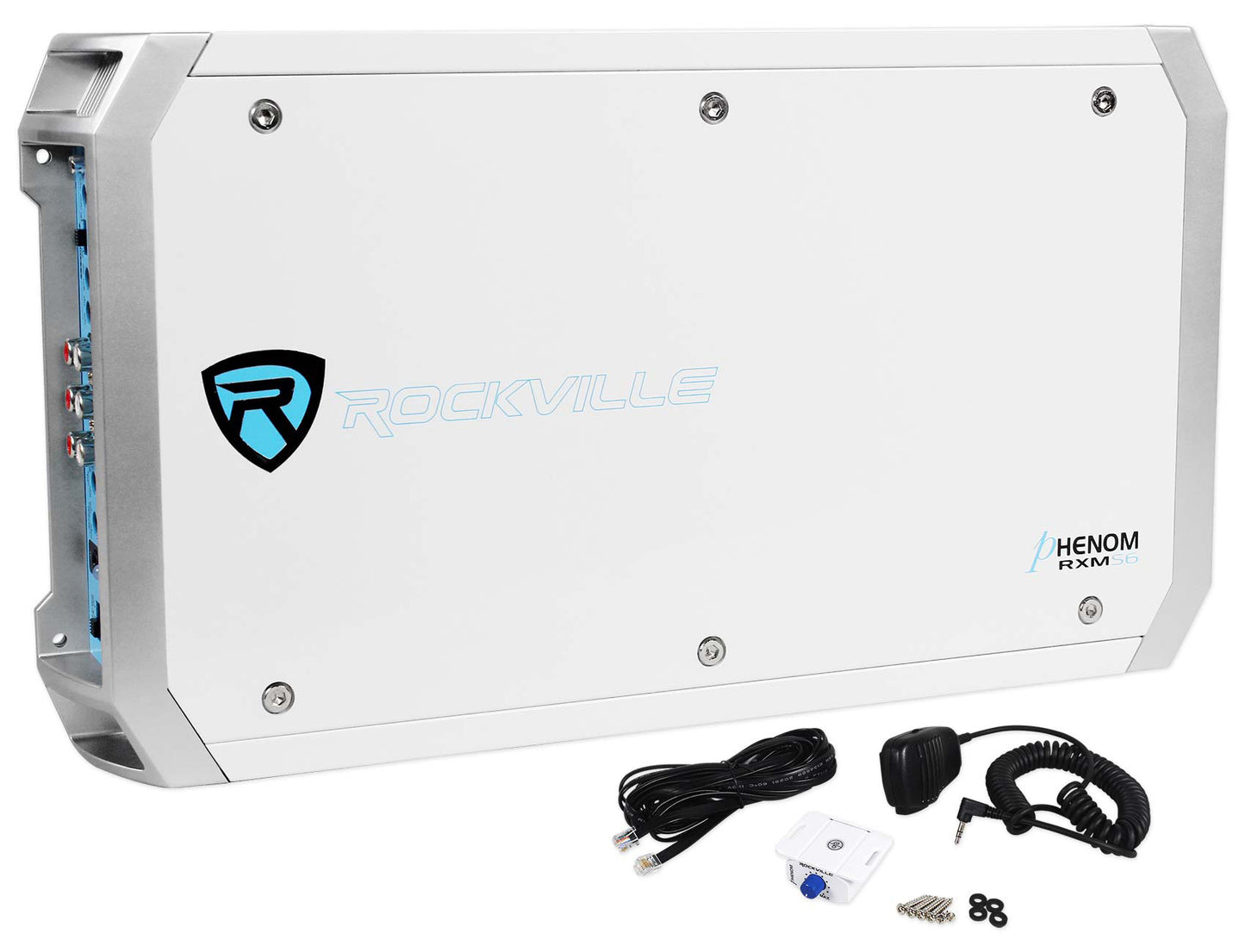

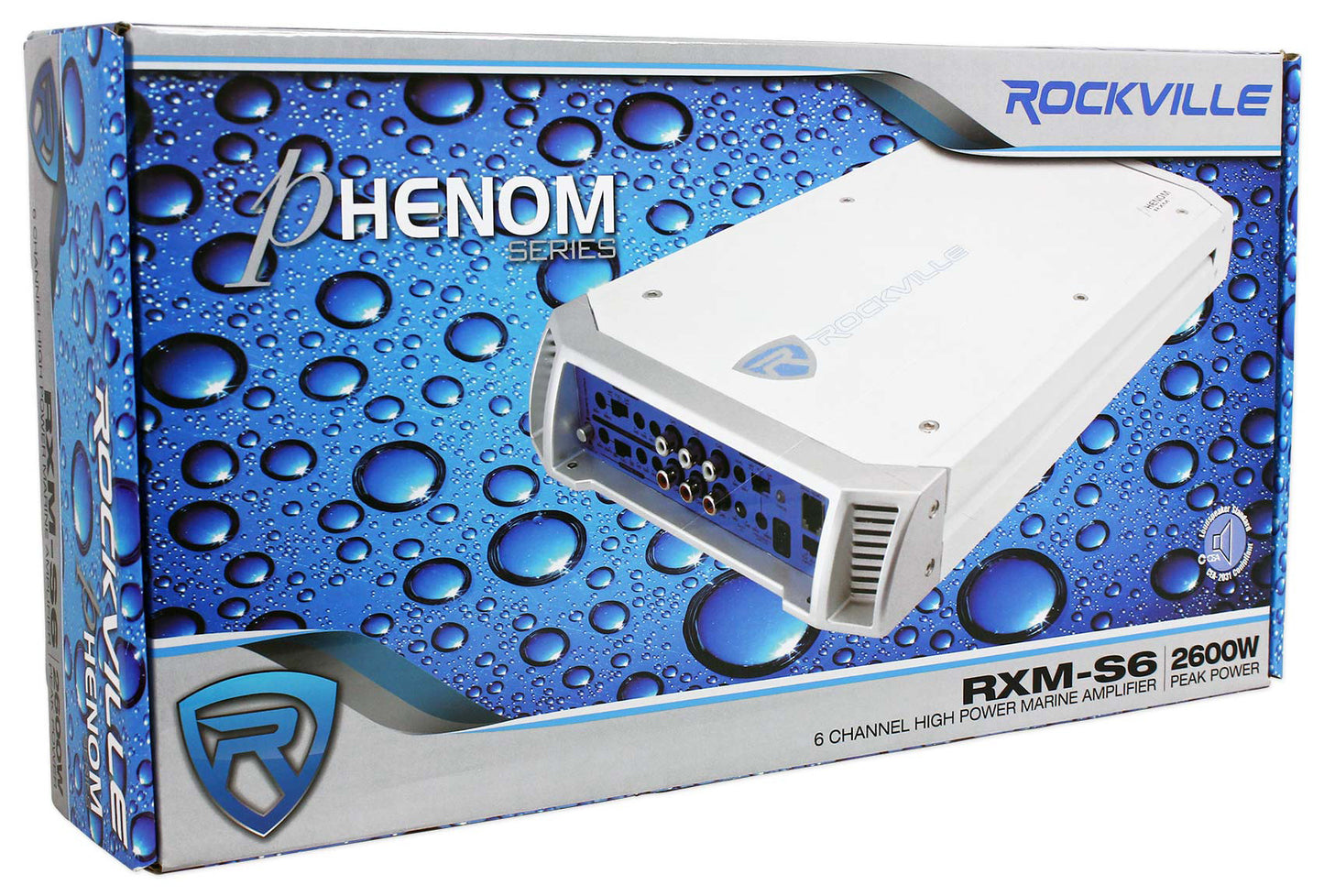

- (1) Rockville RXM-S6 Marine/Boat 6 Channel Amplifier 2600 Watt Peak / 660w Dyno-Certified RMS With Status Mode LED Indicator
- (1) Rockville RXM-S30 2400 Watt / 600w Dyno-Certified RMS 4 Channel Proton Micro Marine Car Amplifier
Video of RMSTS65B:

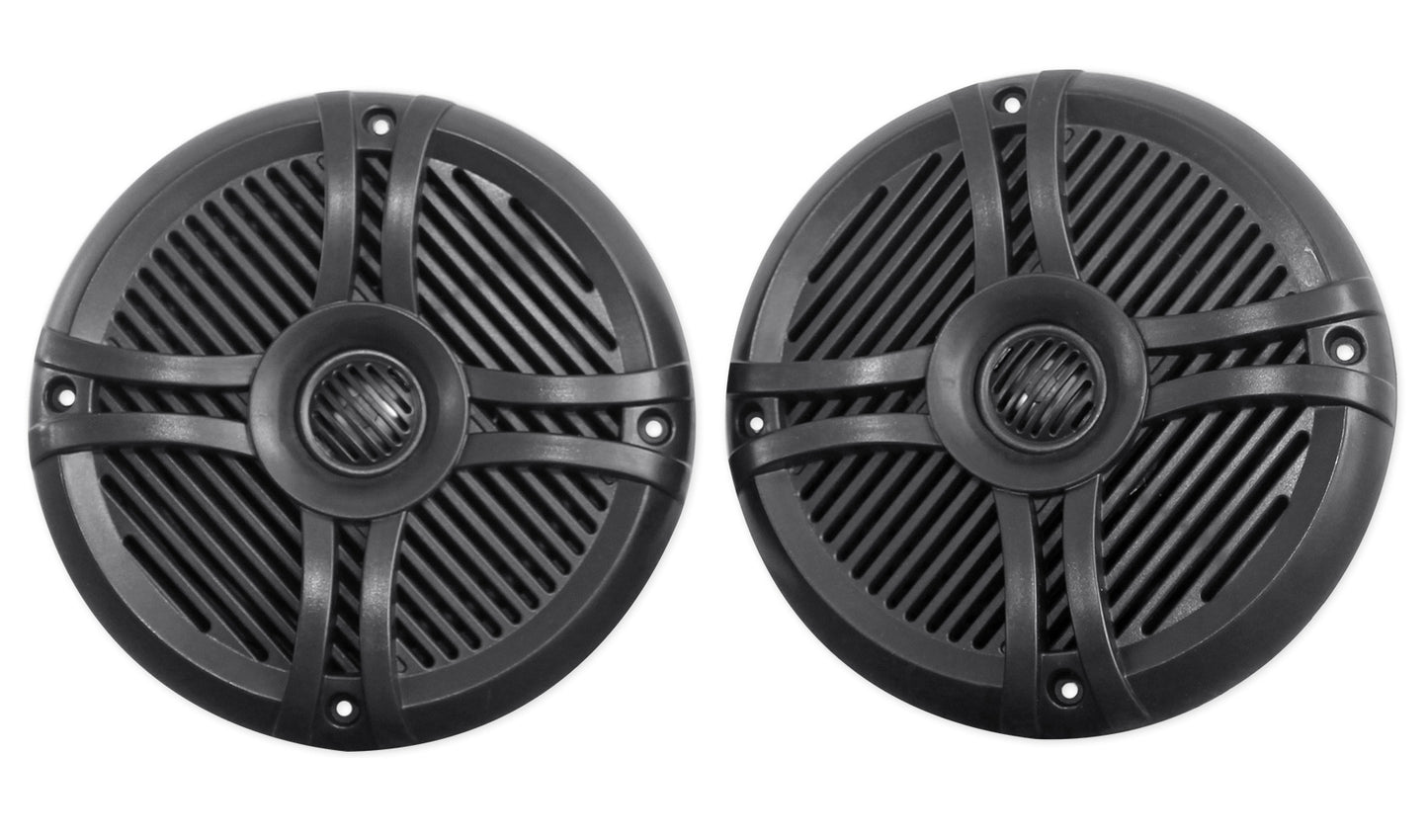

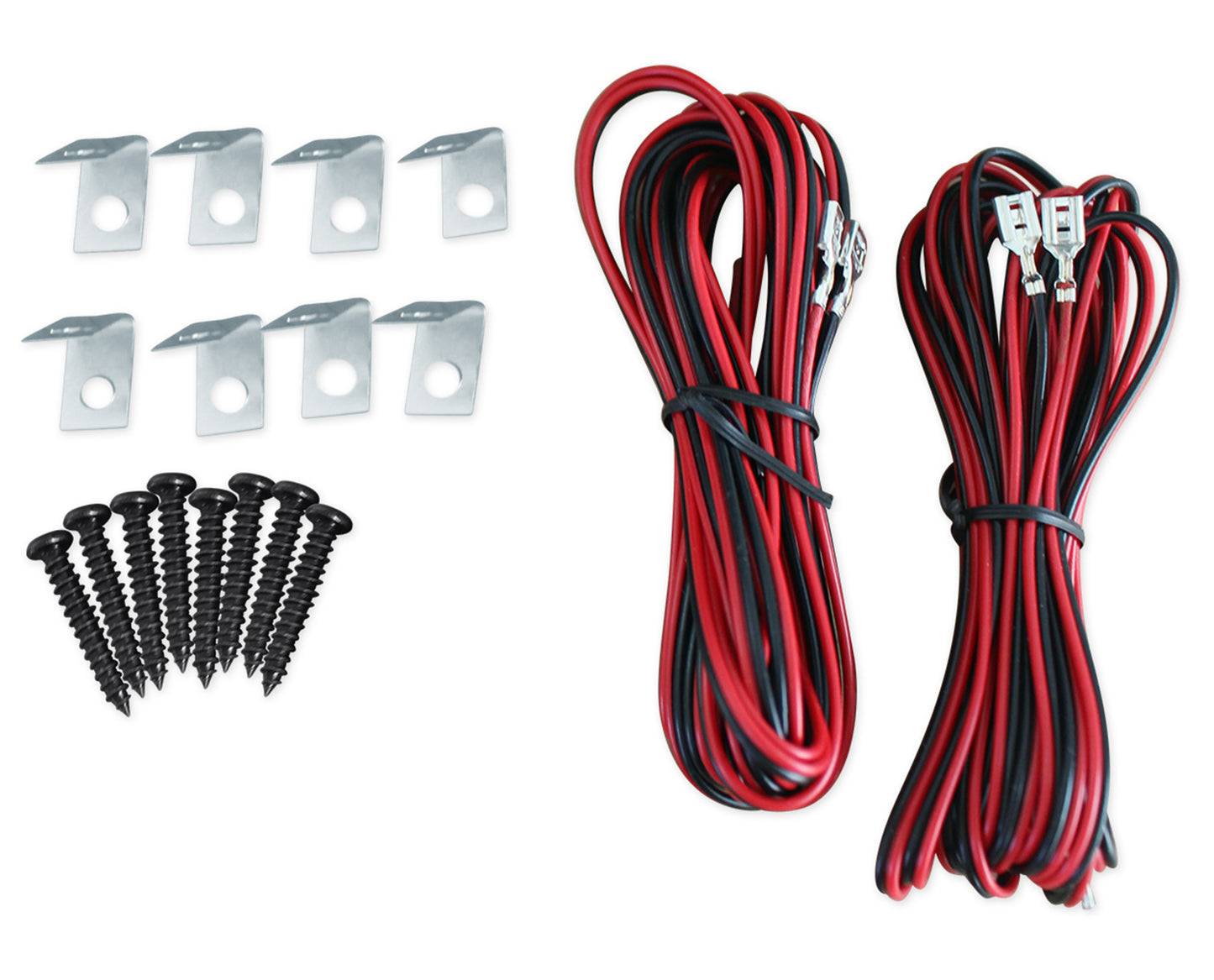

What's Included:

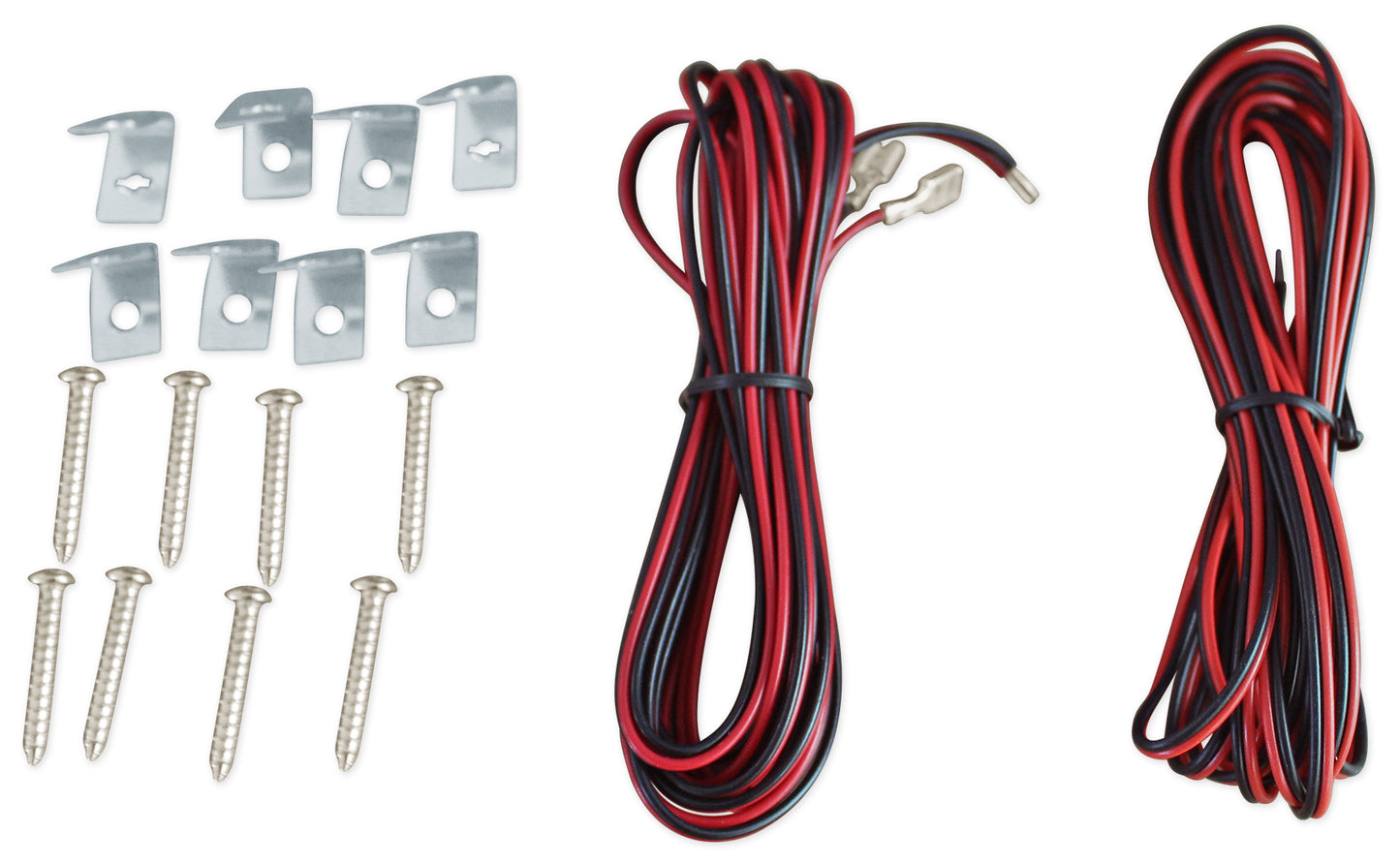

- Pair of 6.5" marine speakers
- 16.4 feet of Speaker Wire
- Mounting Screws

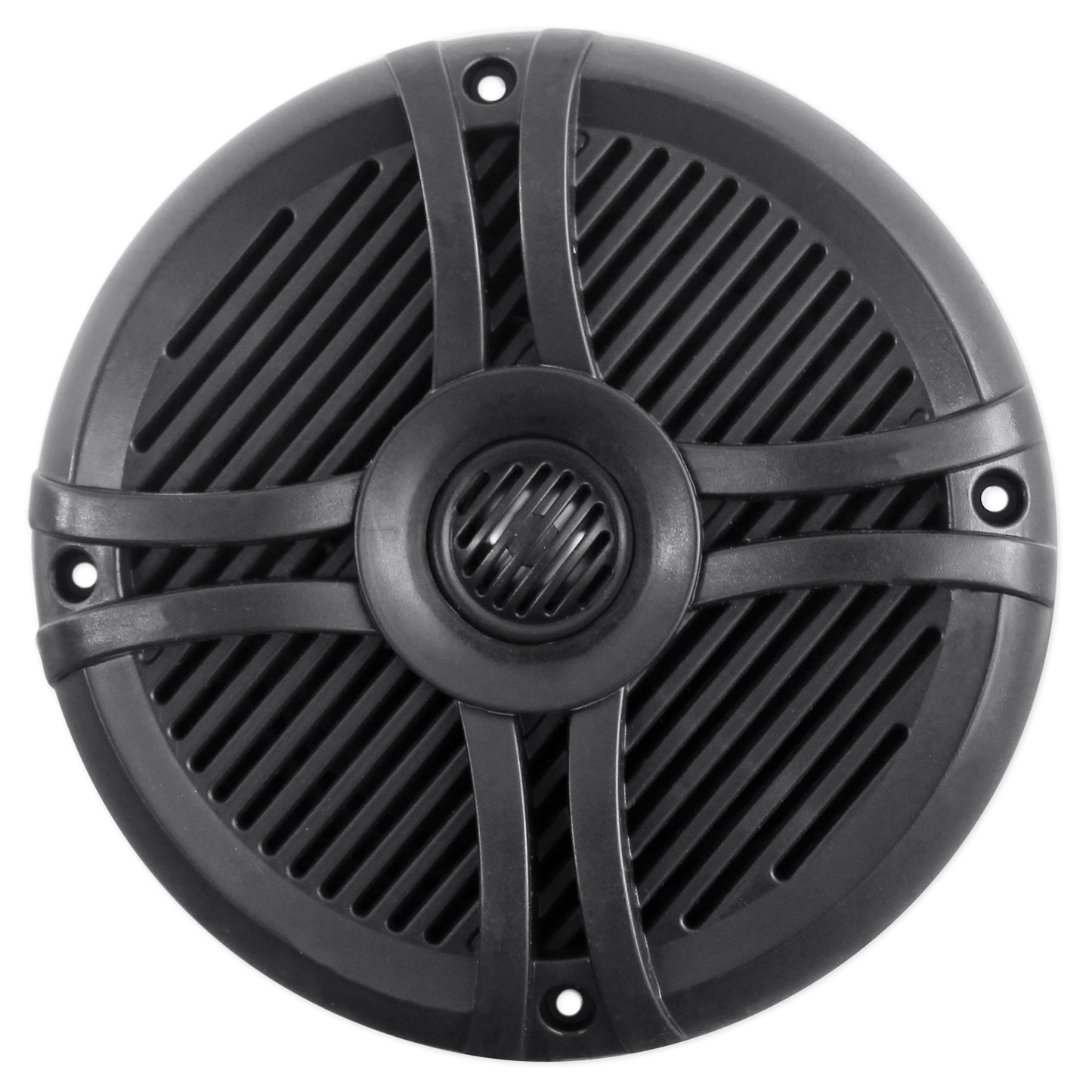

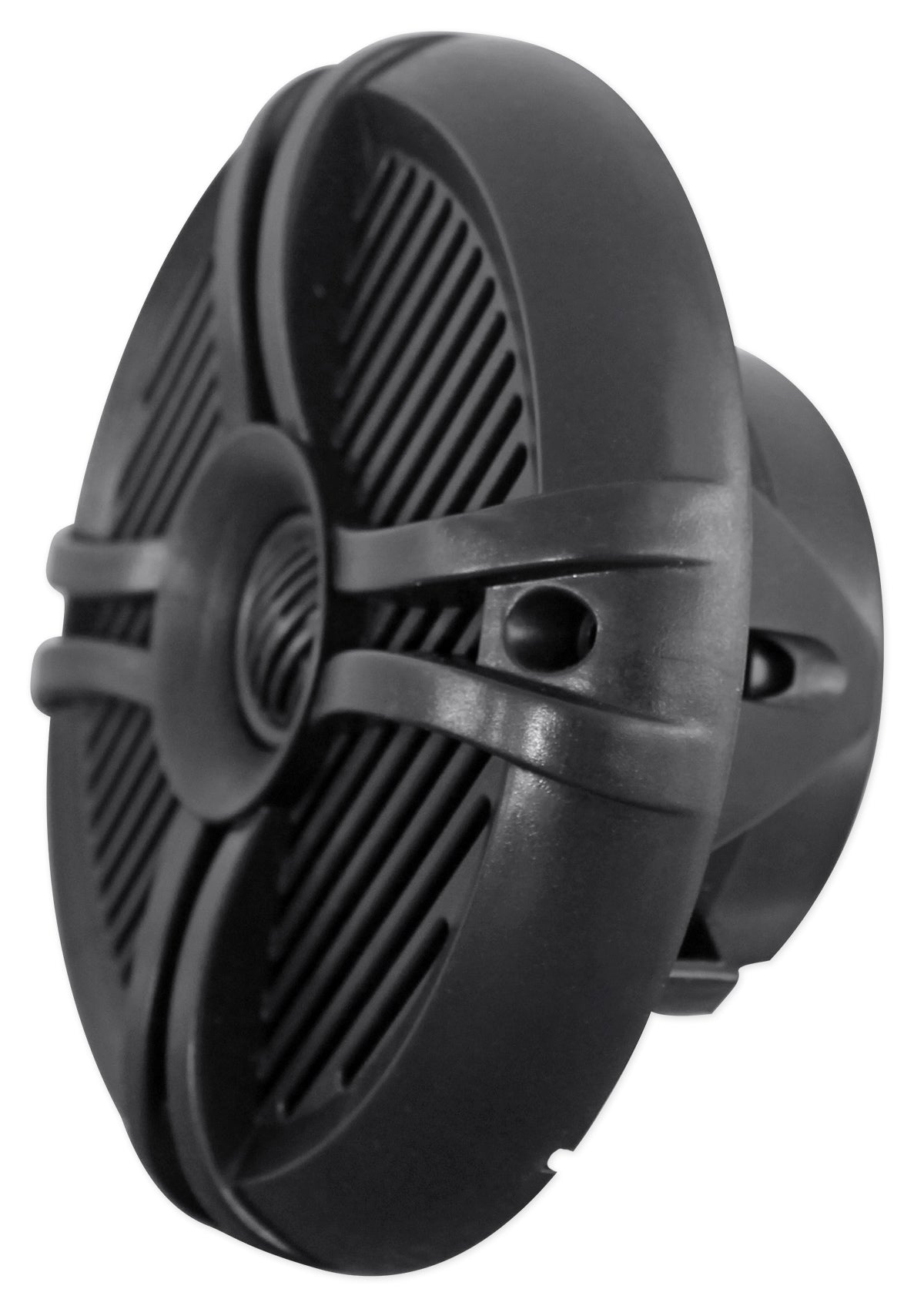

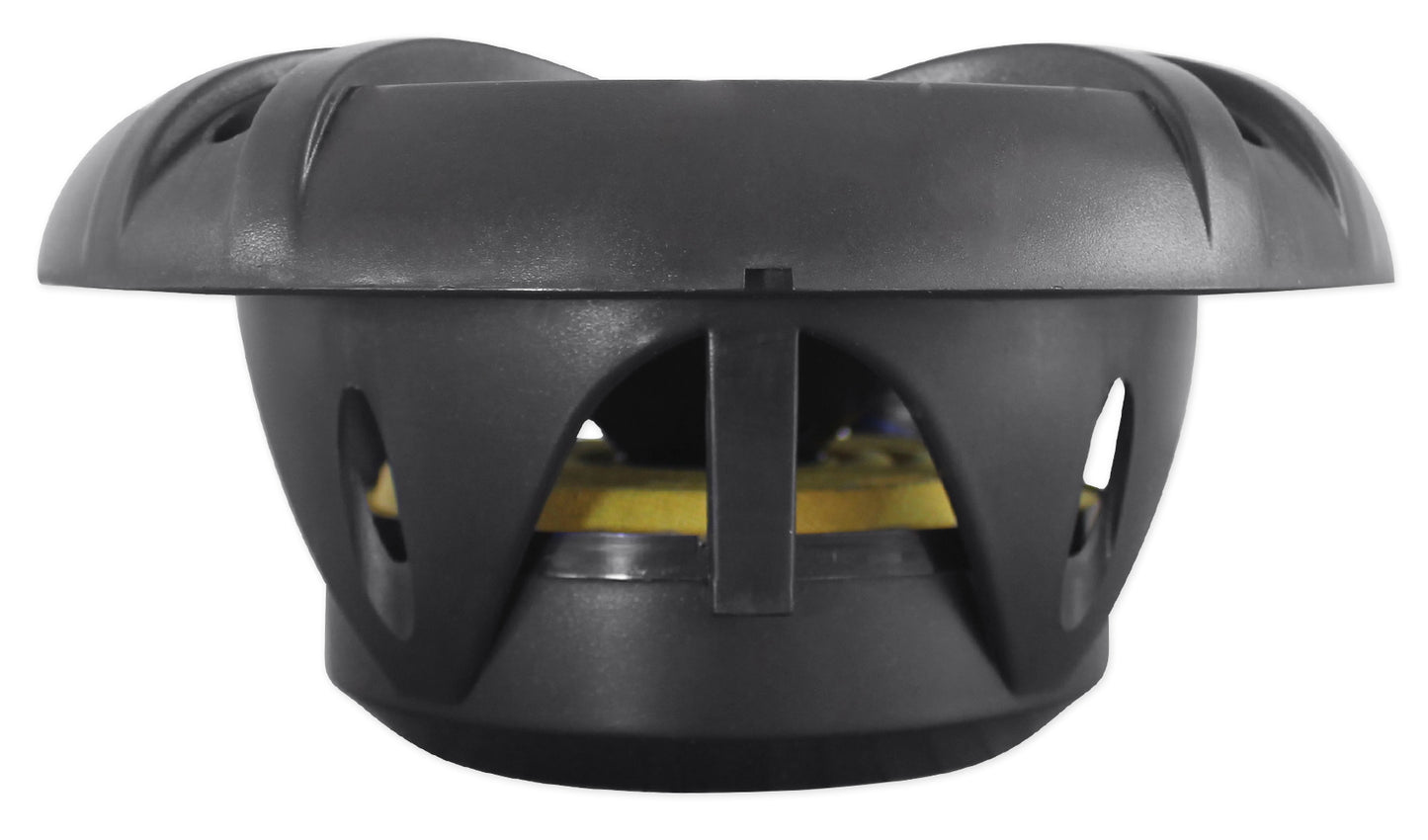

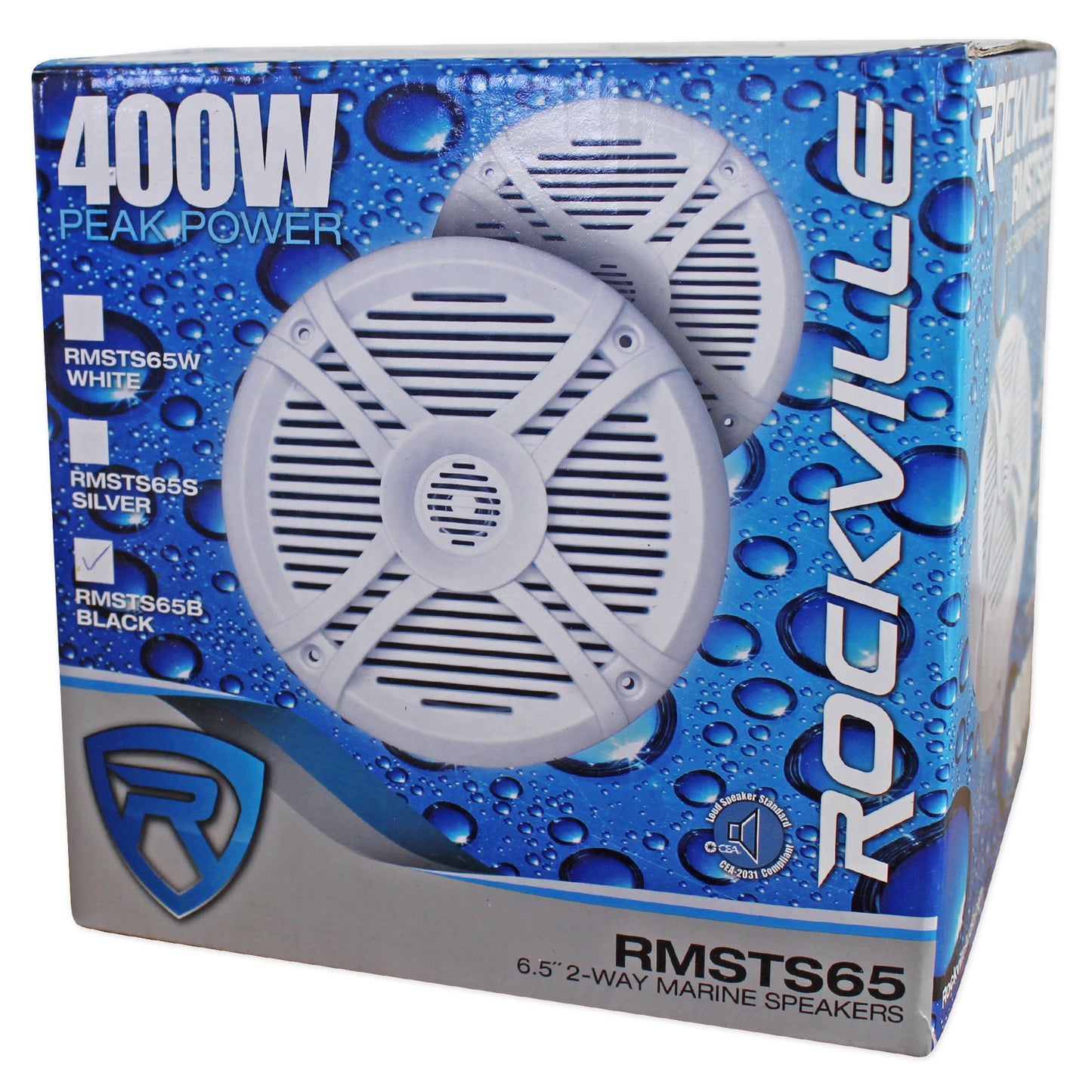

The RMST series of marine speakers by Rockville is our step up series that offers a 1" titanium tweeter as well as more power handling! They have a larger magnet and can handle 100 watts RMS & 400 watts peak! If you are using an external amplifier we recommend this series.
These speakers are completely waterproof and protected from the elements! They are UV treated and have a special waterproof coating to prevent water damage. Also these speakers come with a 1 year warranty to give you the peace of mind you deserve when purchasing from Rockville!
Rockville engineers care about quality and sound more than anything else. The RMST65 was designed in a molded ABS plastic basket. The polypropylene cone is reliable and sounds great. This material is used on most of the top speakers on the market. We use rubber surrounds on these to eliminate unwanted distortion. In addition rubber is a very waterproof material. The 1" titanium tweeter puts out incredible sounding highs. The low end bass and mids of these speakers really makes them stand out.
The RMST65 6.5" marine speakers were engineered to deliver amazing power and sound quality in the outdoors; be it saltwater, freshwater or any other harsh environments. These speakers can withstand tons of abuse and can handle 400 watts peak and 100 watts RMS each. These Rockville speakers comply with the CEA 2031 Loud Speaker Standard. This same rating standard is used by the highest end marine brands in the industry. CEA compliant means you can rest assured that the ratings are 100% legitimate. (We compared these against other brands and although some of these other brands stated higher wattage, the Rockville RMST65 speakers were able to handle more than double the power!)
Using only true marine grade components and materials, the Rockville RMST65 speakers are fully marinized against salt & fresh water conditions. They will not get damaged by fresh water, salt water, or moisture. There is also an additional waterproof and UV resistant coating to completely protect the speakers.
These speakers come with everything you need for installation including pre mounted grills and mounting hardware.
Features:

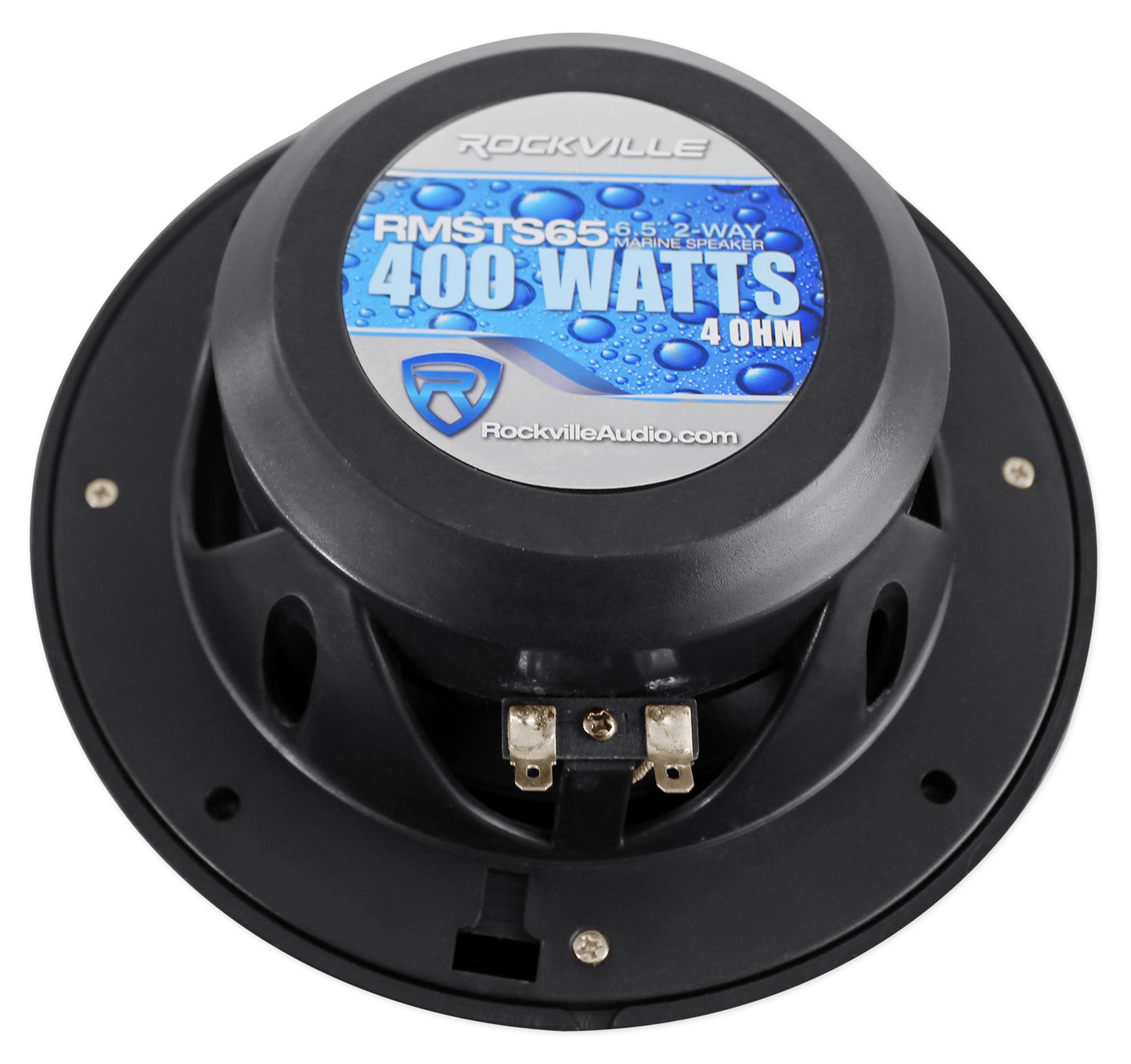

- Rockville RMST65B 6.5” 2-Way 800 Watt Marine Boat Speakers in Black (Pair)
- CEA Compliant Power Ratings
- Power Rating: 400 Watts Peak /100 Watts RMS Per Speaker
- System Power: 800 Watts Combined
- 6.5“ 2-Way Speaker System
- Fully Marinized Against Salt & Fresh Water Conditions
- Completely Waterproof and rustproof

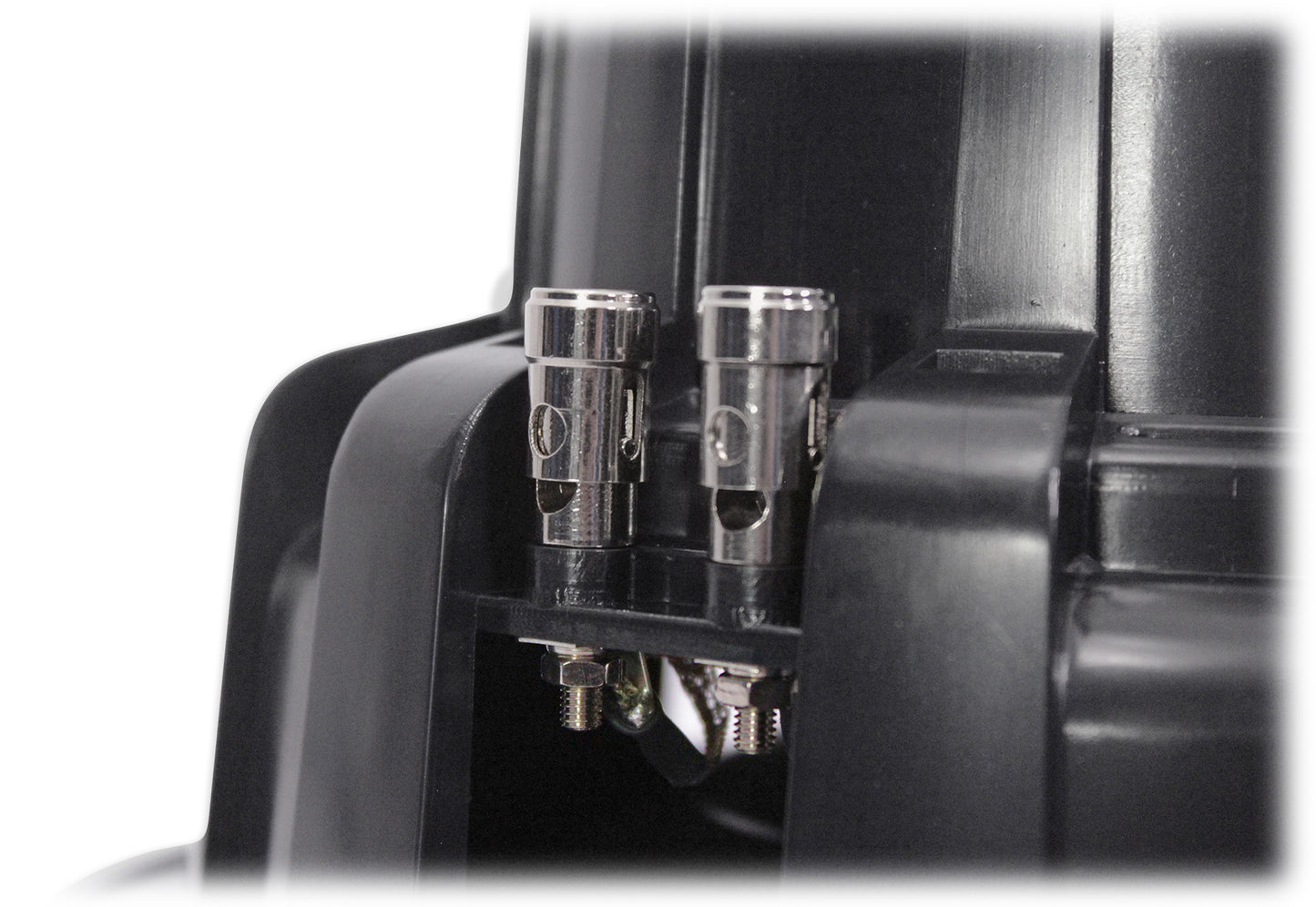

- Stainless Steel Terminals
- Molded ABS plastic basket
- Polypropylene Mica Injected Cone
- Rubber Surround
- High quality ferrite magnet
- 1” inch Titanium Tweeter
- Oversized 1” CCAW Kapton Voice Coil
- Large Magnet and Motor Structure
- Pre-installed mounting screws included
- Perfect for both marine, outdoor, and car use
- Impedance: 4 Ohms
- Frequency Response: 55Hz - 20KHz
- Sound Pressure Level: 91dB @ 1w/1m
- Total Diameter: 7.56”
- Cutout Diameter: 5.43”
- Total Height: 3.86”
- Mounting Depth: 2.56”
Video of RMSTS69:
Description:

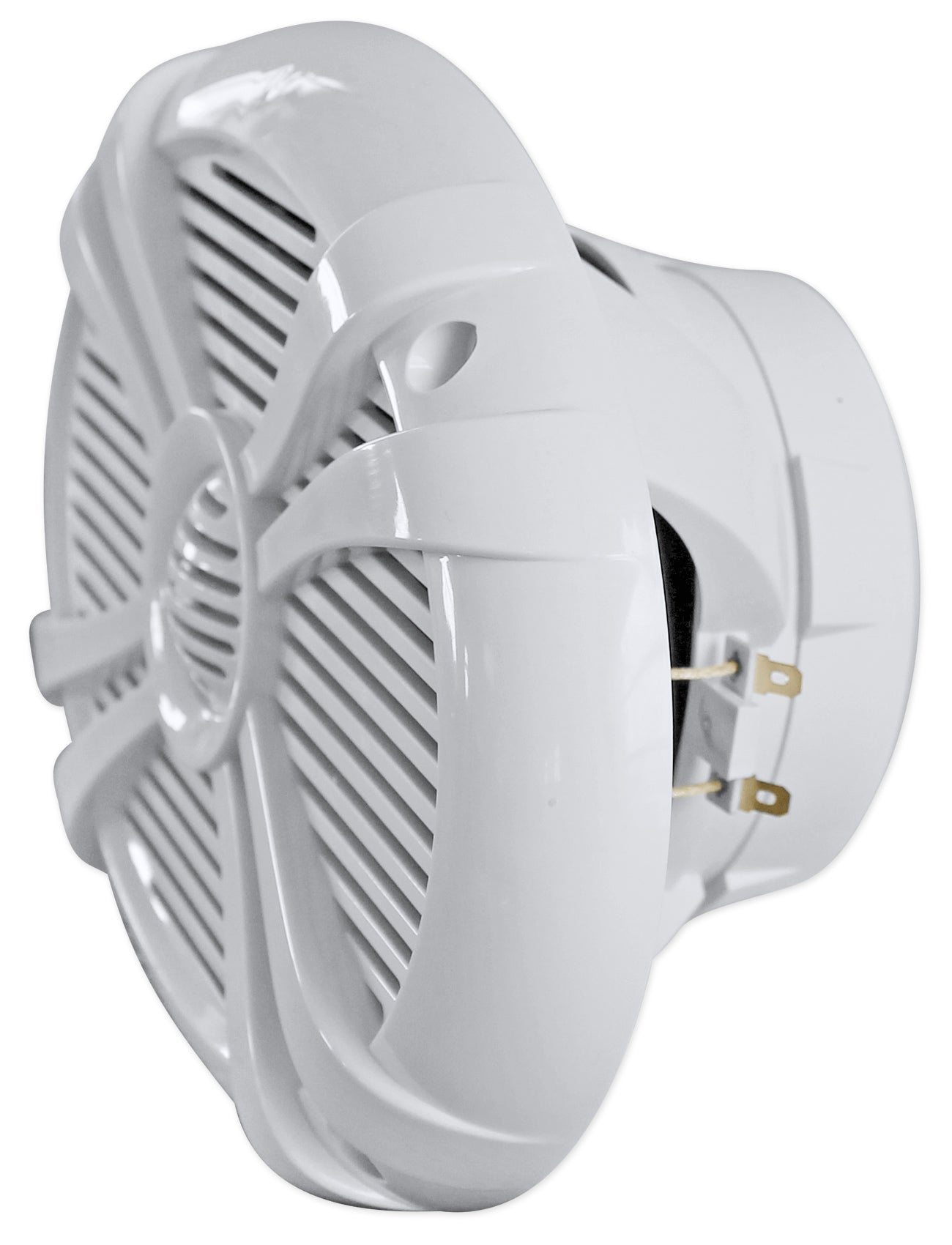

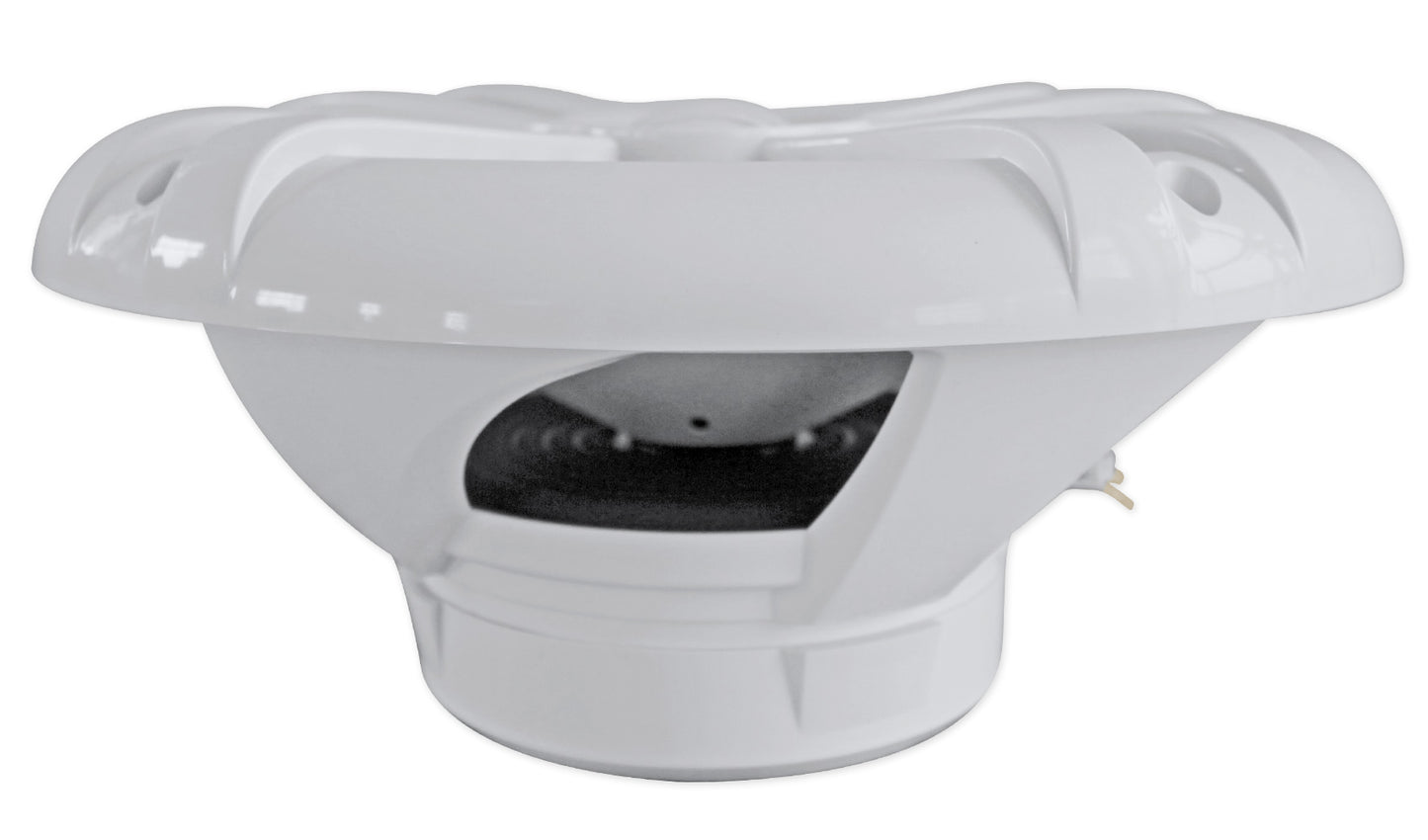

The RMST series of marine speakers by Rockville is our step up series that offers a 1" titanium tweeter as well as more power handling! This 6x9 model can handle They have a larger magnet and can handle 125 watts RMS & 500 watts peak each speaker! If you are using an external amplifier we recommend this series because they can handle a lot of power!
These speakers are completely waterproof and protected from the elements! They are UV treated and have a special waterproof coating to prevent water damage. Also these speakers come with a 1 year warranty to give you the peace of mind you deserve when purchasing from Rockville!
Rockville engineers care about quality and sound more than anything else. The RMST69 was designed in a molded ABS plastic basket. The polypropylene cone is reliable and sounds great. This material is used on most of the top speakers on the market. We use rubber surrounds on these to eliminate unwanted distortion. In addition rubber is a very waterproof material. The 1" titanium tweeter puts out incredible sounding highs. The low end bass and mids of these speakers really makes them stand out.
The RMST69 6x9" marine speakers were engineered to deliver amazing power and sound quality in the outdoors; be it saltwater, freshwater or any other harsh environments. These speakers can withstand tons of abuse and can handle 500 watts peak and 125 watts RMS each. These Rockville speakers comply with the CEA 2031 Loud Speaker Standard. This same rating standard is used by the highest end marine brands in the industry. CEA compliant means you can rest assured that the ratings are 100% legitimate. (We compared these against other brands and although some of these other brands stated higher wattage, the Rockville RMST69 speakers were able to handle more than double the power!)
Using only true marine grade components and materials, the Rockville RMST69 speakers are fully marinized against salt & fresh water conditions. They will not get damaged by fresh water, salt water, or moisture. There is also an additional waterproof and UV resistant coating to completely protect the speakers.
These speakers come with everything you need for installation including pre mounted grills and mounting hardware.

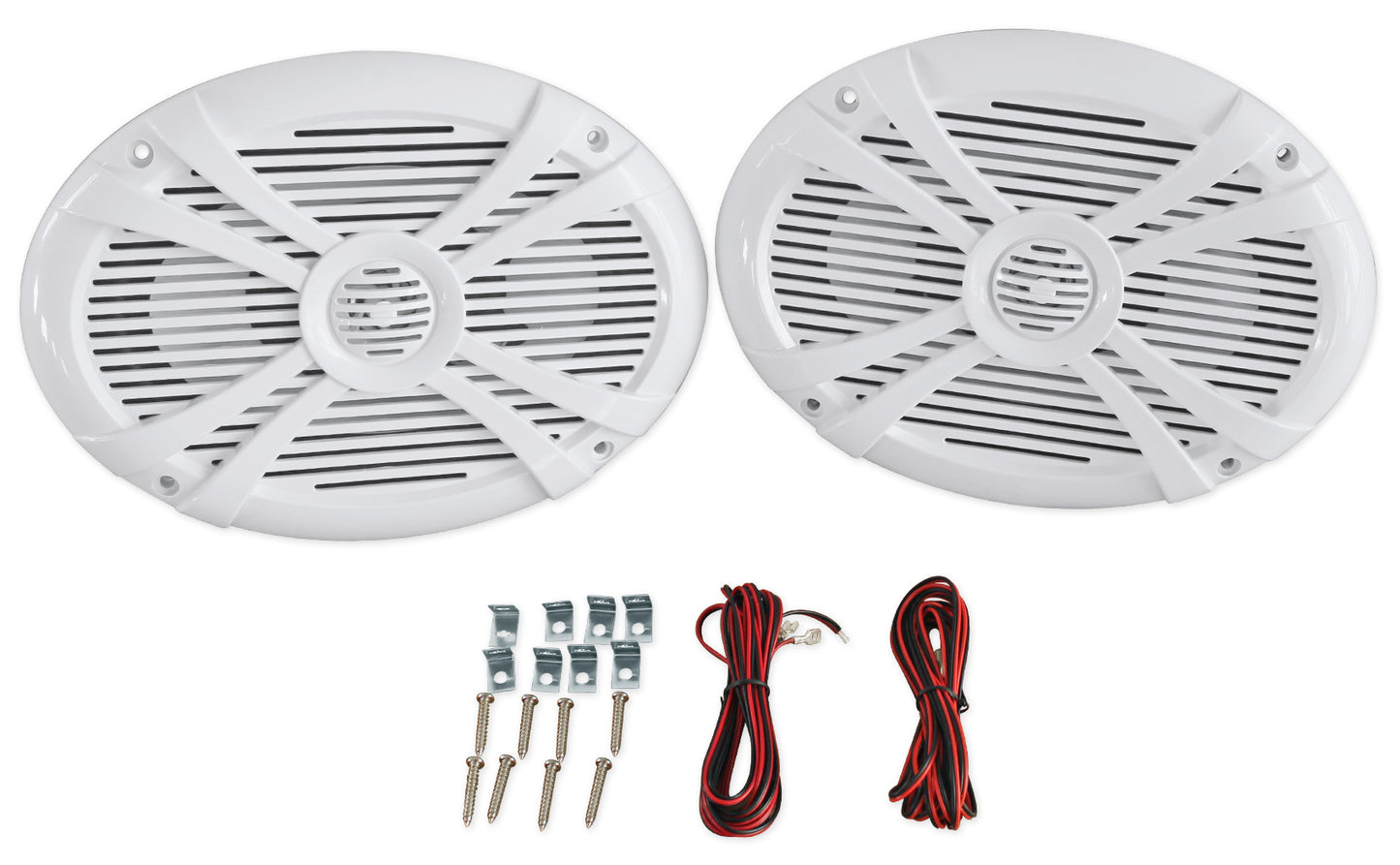

What's Included:
- Pair of 6x9" marine speakers
- 16.4 feet of Speaker Wire
- Mounting Screws
Speaker Features:
- Rockville RMST69 6x9” 2-Way 500 Watt Marine Boat Speakers White
- CEA Compliant Power Ratings
- Power Rating: 500 Watts Peak /125 Watts RMS Per Speaker
- System Power: 1,000 Watts Combined
- 6x9“ 2-Way Speaker System
- Fully Marinized Against Salt & Fresh Water Conditions
- Completely Waterproof and rustproof
- Stainless Steel Terminals
- Molded ABS plastic basket
- Polypropylene Mica Injected Cone
- Rubber Surround
- High quality ferrite magnet
- 1” inch Titanium Tweeter
- Oversized 1.2” CCAW Kapton Voice Coil
- Large 20 Oz Magnet
- Pre-installed mounting screws included
- Perfect for both marine, outdoor, and car use
- Impedance: 4 Ohms
- Frequency Response: 40Hz - 20KHz
- Sound Pressure Level: 91dB @ 1w/1m
- Total Diameter: 7.8” x 10.55”
- Cutout Diameter: 6.06” x 8.98”
- Total Height: 4.45”
- Mounting Depth: 3.43”
About Rockville Quality Control Procedures:
The Rockville brand stands for Quality, Innovation and Value. All Rockville products go through the most rigorous quality control standards in the industry. Products go through months of extensive testing before they reach your hands. All user functions are tested and all internal components are tested for quality. Rockville makes products that are virtually un-breakable! Rockville is one of the only brands in its class to test every concept model for weeks or months before starting production. Once production begins, Rockville sends product engineers to their factory to quality control every line of production. During production every product is tested and on top of that Rockville goes the extra mile and has their high level product engineers do an additional quality control. They test a certain percentage of all products from the production line a second time to ensure that the quality meets their vigorous standards, and to make sure that there is never a batch of products with even a slight problem. All Rockville products are backed with a hassle free warranty.
Video of MS10LB:

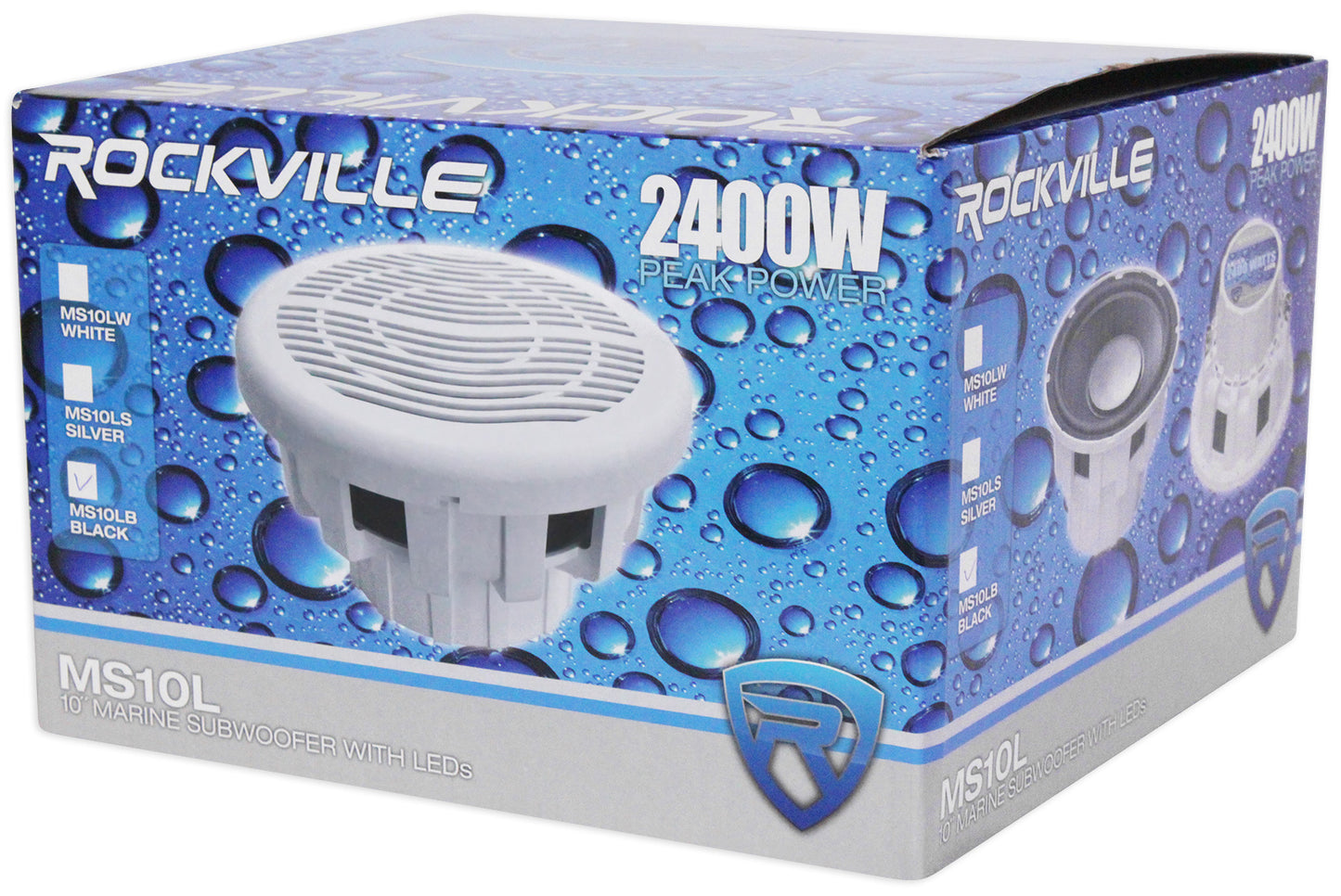

Unboxing Video of MS10LB:
Description:

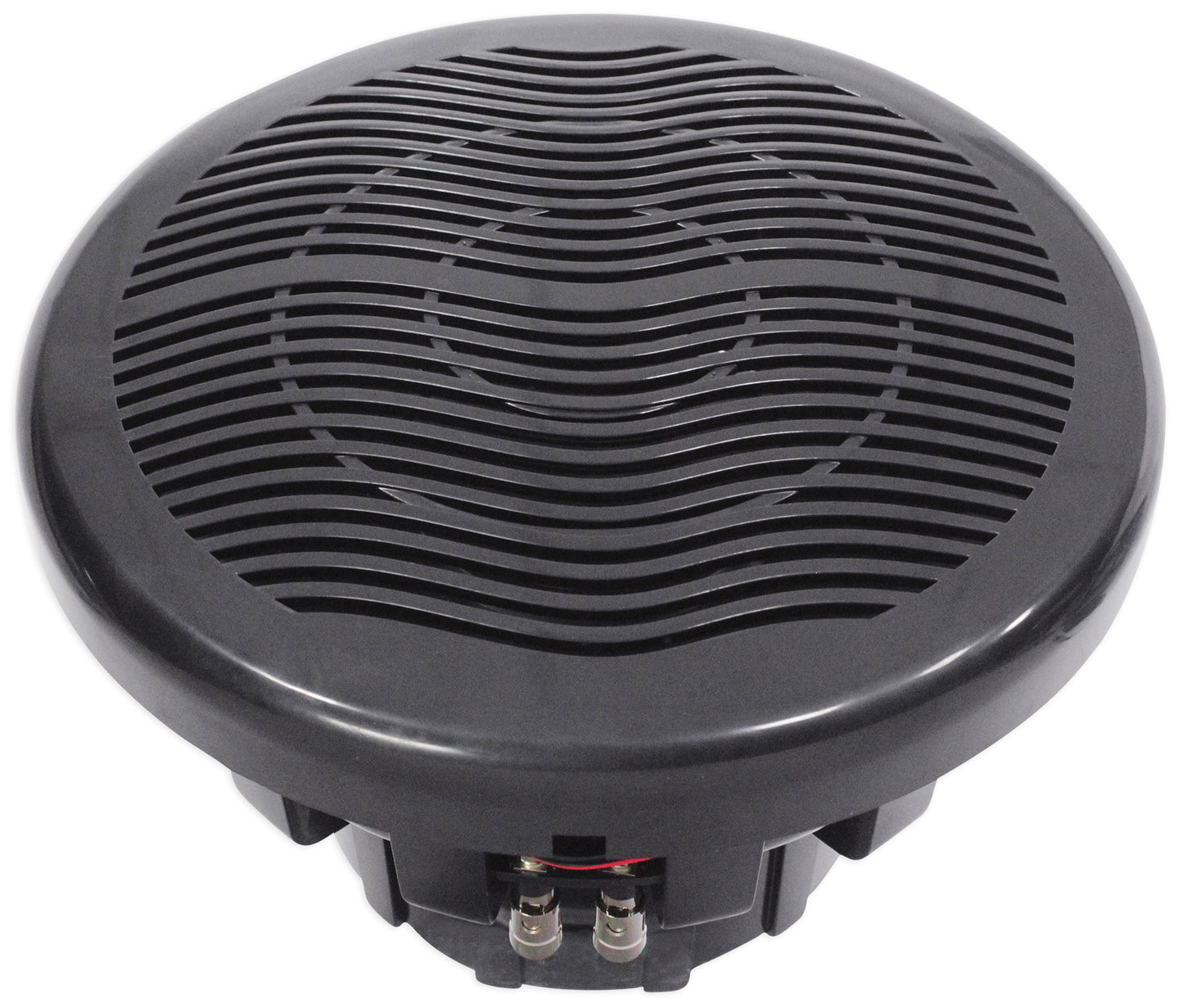

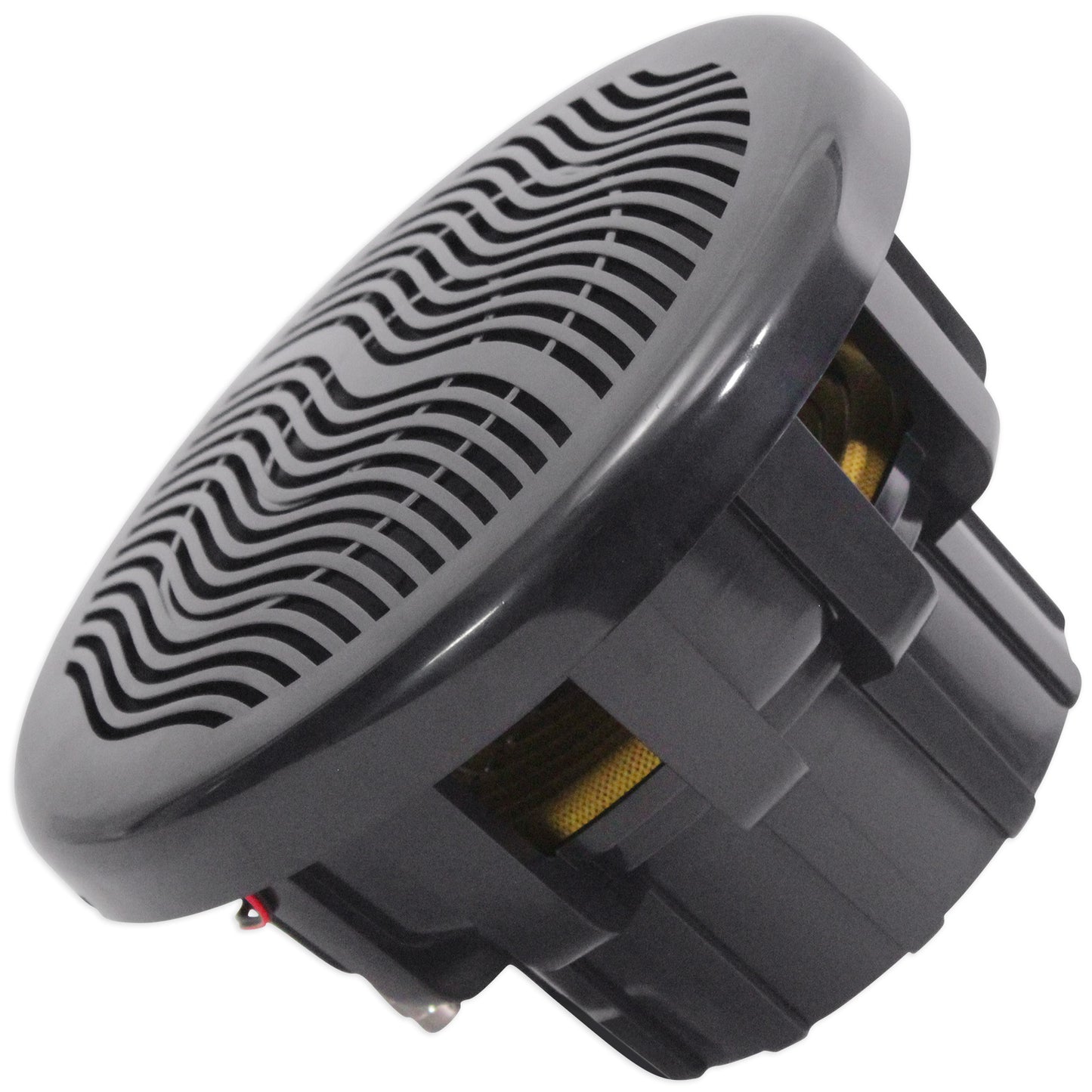

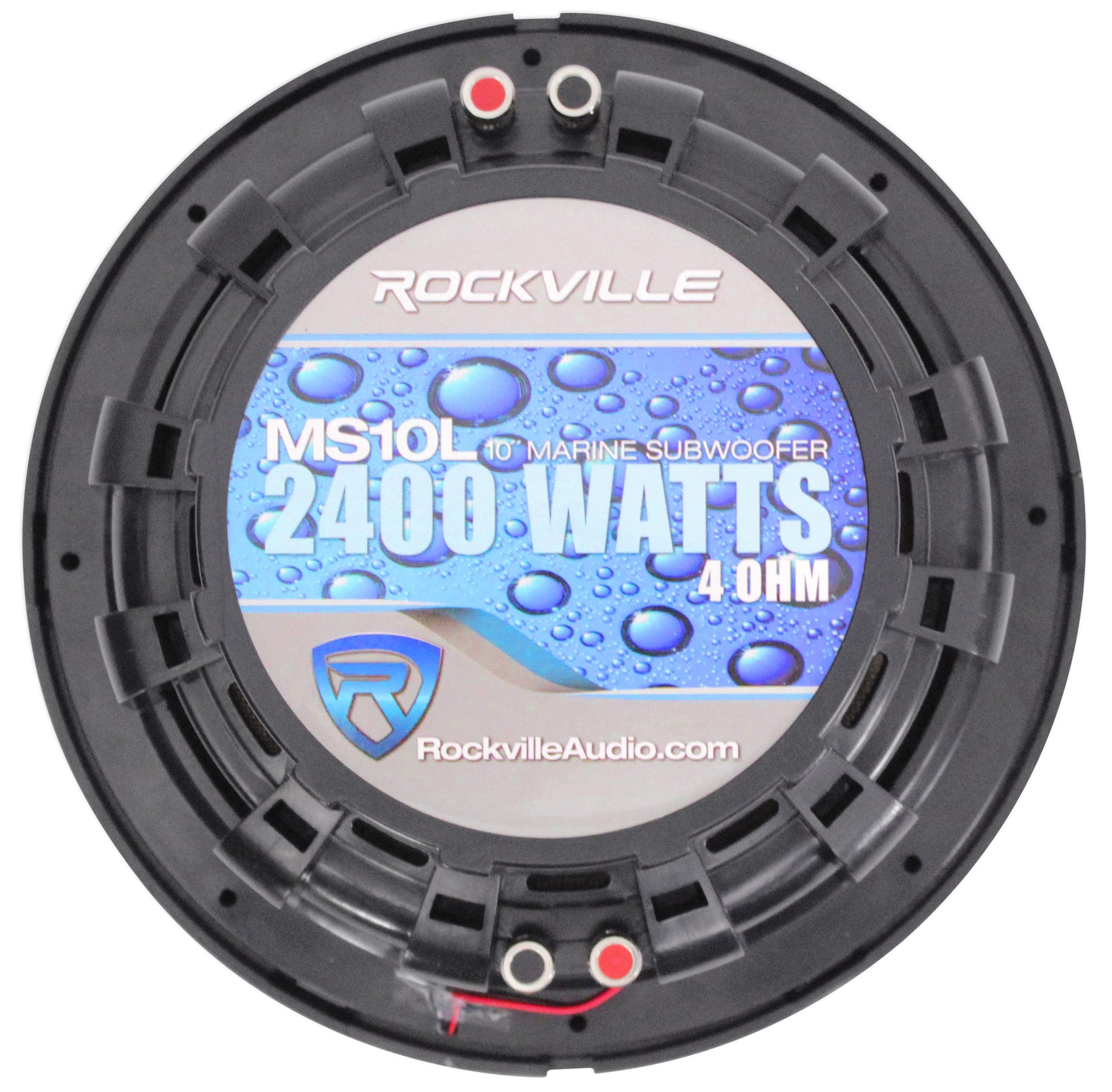

The MS10LB is one of the most powerful marine subwoofers on the market. What really makes this sub stand out is the sound quality and durability. It goes so loud that if you crank it up, boats that are thousands of feet away can feel the bass. The frequency range of these subs are so good that it will make all your songs sound so much better! These play frequencies that normal full range speakers cannot hit, adding depth and richness to all your music.
This subwoofer has a double-stacked 80 Oz magnet! They are twice as large as almost any other marine sub on the market, which is why these can handle so much power. In addition, the MS10LB has a fantastic sensitivity rating at 90dB, which means even if you have a smaller amplifier, the subwoofer is sensitive enough that it will still sound great.
The MS10LB was designed in a molded ABS plastic basket that is made with a special blend that is waterproof and un-breakable. You can literally jump on it and hit it with a sledgehammer without it breaking!
Using only true marine grade components and materials, the Rockville MS10LB subwoofers are fully marinized against salt & fresh water conditions. These subs are completely waterproof and protected from the elements! They are UV treated and have a special waterproof coating to prevent water damage. These subwoofers also come with a 1 year warranty to give you the peace of mind you deserve when purchasing from Rockville!
Features:

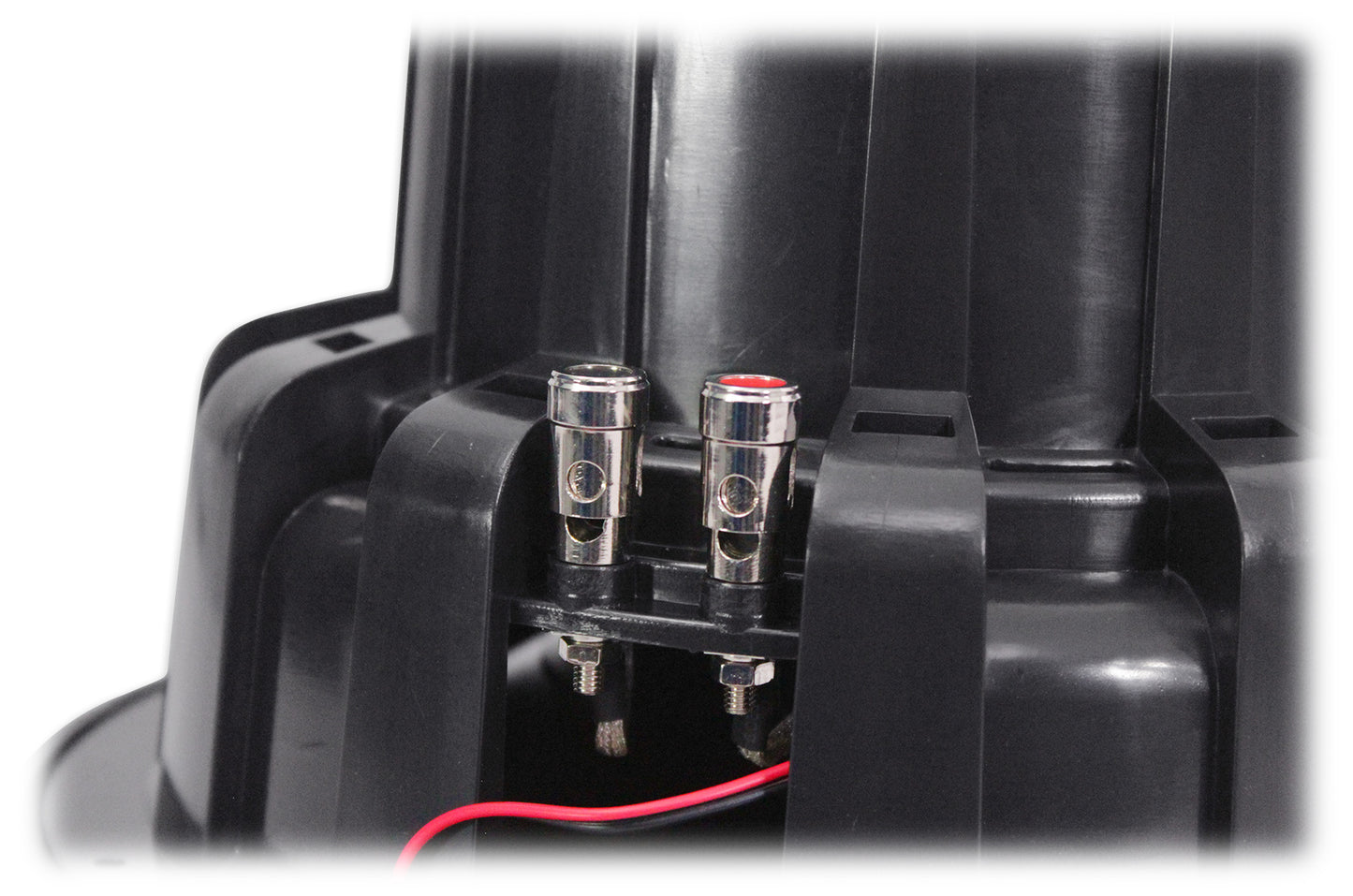

- Rockville MS10LB 10" Marine Free Air Subwoofer with LED (Black)
- Free air subwoofer does not require any enclosure
- Max Power: 2400 Watts
- RMS Power: 600 Watts
- Polypropylene cone with Rubber edge
- 2.0" 4 Layer dual voice coil
- Molded ABS plastic basket made with a special blend that is waterproof and un-breakable (if you literally jump on it, it will not break or bend)
- Magnet 80 Oz double stacked magnet
- Frequency response: 30Hz-4Khz
- Impedance: Dual 4 ohms
- Sensitivity: 90dB
- Total diameter:10.55"
- Cutout diameter:9.0”
- Mounting depth:5.6"
Specifications:
- Free Air Resonance (Fs): 31.05 Hz
- Electrical “Q” (Qes): 0.5577
- Mechanical “Q” (Qms): 2.3313
- Total Speaker “Q” (Qts): 0.45
- Equivalent Compliance (Vas): 1.676 cu ft / 47.4728 L
- One-Way Linear Excursion (Xmax): 0.41 in / 10.5 mm
- Reference Efficiency (No): 0.25%
- Efficiency (1 W / 1 m): 86.7 dB SPL
- Effective Piston Area (Sd): 51.15 sq in / 0.033 sq m
- DC Resistance (Re): 3.4 O
How to install an amplifier in your UTV:
Description:

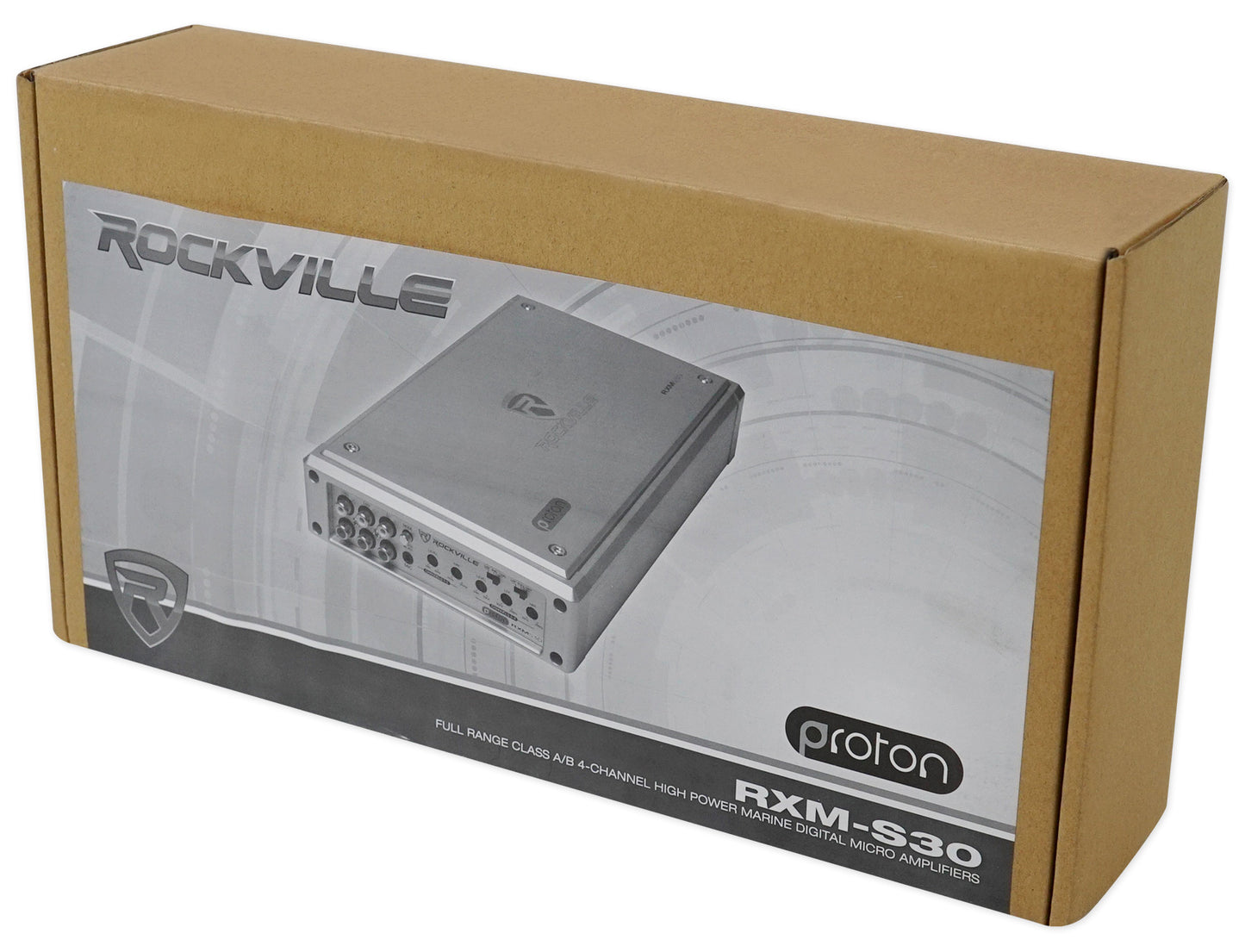

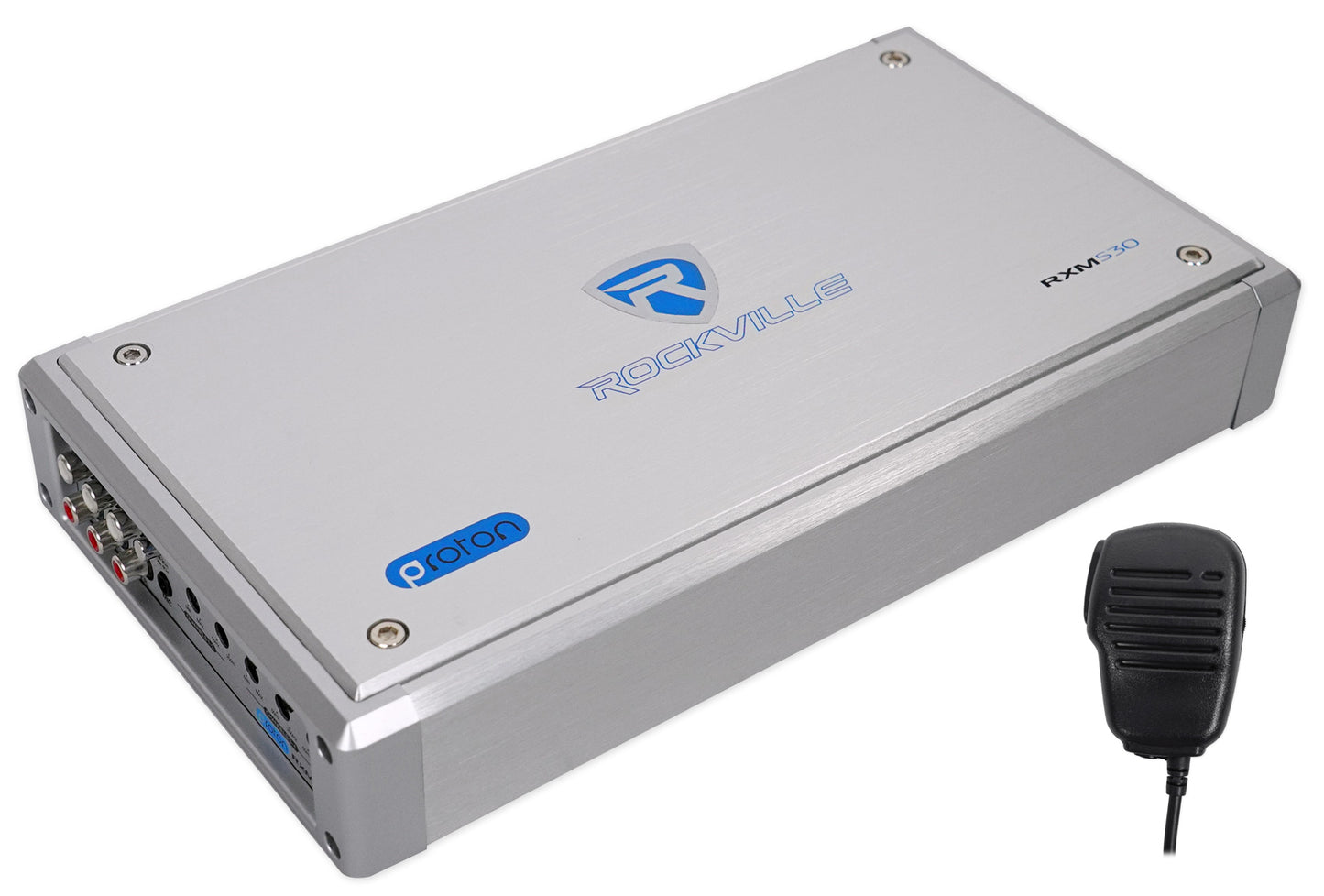

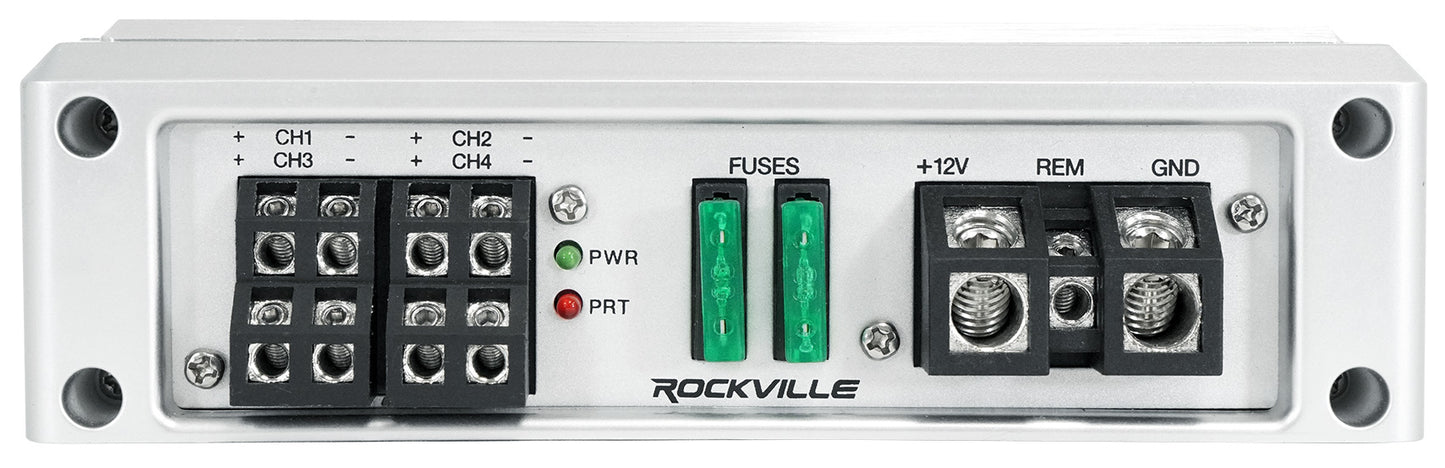

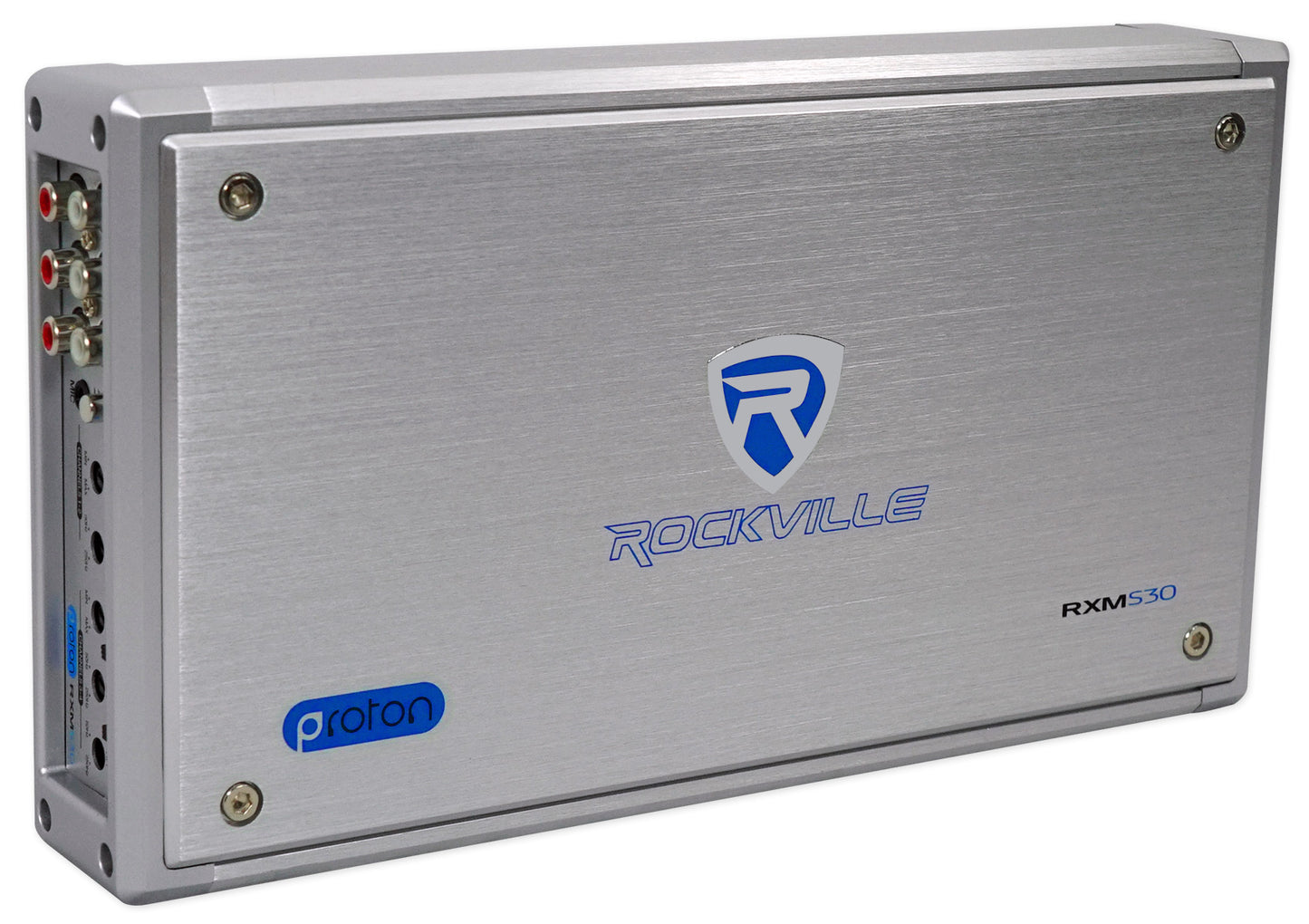

The RXM-S30 is a marine amplifier that is perfect for many applications. This amplifier is water resistant so you can use it in a car or boat or any other application! The micro size of the amplifier also allows for installation in tight spots.
The RSM-S30 is a 4 channel amplifier with 2,400 Watts peak output, 400 Watts Dyno Certified RMS power (4 x 90 @ 4 Ohms). You can also bridge the amplifier and get 2 x 600 Watts RMS @ 4 Ohms. Here at Rockville we offer the best value in car audio. We therefore want to make it easy for you to compare our products to any brands on the market. The peak rating can be used to compare with brands who use peak ratings such as Boss and Power Acoustik while the Dyno Certified RMS rating can be used to compare with top brands such as Kicker, Rockford, Alpine, etc.
We put our newest technology into this amp! It is a class A/B full range micro amplifier and runs very efficiently. Full size class A/B generally run at about 50% efficiency depending on the quality of the particular amp. This one is able to run at around 70% efficiency due to the high quality of the parts we use to build these. What 70% efficiency means is that the amplifier will draw less current from the battery and will play louder! The PCB layout of this amplifier is really clean.
The fuse rating is 60A (2 x 30A fuses). If you multiply this number by about 10 you can get a good estimate of the true RMS power output. This amplifier is also more efficient than others on the market, so it will put out more power than most amplifiers that have the same fuse rating.
I want to take a second and talk to you about the inside of the amplifier which is the most important part. This amplifier uses a double sided PCB board. As the name implies when using both sides we double the surface area allowing us to make an amplifier that is twice as good! With all this surface area, it allows us to separate the channels more so you get less crosstalk interference between channels. The grounding path has more space so you will get less unwanted distortion. This is a high power amplifier that needs large amounts of copper to carry all the current. The extra layer on the PCB allows us to use as much copper as we need without worrying about space on the PCB! The material of our PCB is called FR4. It is made of fiberglass which is resistant to heat or fire. We pride ourselves in making the best quality components both in the inside and outside! This PCB board also uses SMD technology. SMD means surface mounted devices. This type of PCB arrangement does not require holes to be punched in the PCB to run a connection to the other side of it. This SMD technology is a more reliable way of manufacturing. Lots of high end brands use this method. The model # of the transistor is 718 688. The model # of the MOSFET supply is SW50N06. The transformer size is 1.41” inches. We also use a sealed type of potentiometer. The potentiometer is a measuring instrument. It is a voltage divider used for measuring electric potential (voltage). There is a carbon track inside where the wiper comes into contact with the track to determine the resistance of the potentiometer. Our sealed type have these mechanisms insulated so no dust can get inside. Only higher end amplifiers use these sealed types. You can see below. The one on the left is what we use. The one on the right is the average one used by most brands. The sealed one will make your amplifier last longer!
We also use Elna RA3 capacitors that are built in Japan. 99% of amplifiers on the market use China-built capacitors, which are cheaper but they do not sound as good. These types of capacitors increase the sound quality relative to the ones commonly found in most amps on the market. With our ELNA capacitors you can hear the difference. You will get rich quality-grade sound.
Most brands do not even know what is in the inside of their products. We work hard to ensure we build amps we are proud of and we want to supply you the information about what makes our products sound so good!
I wanted to take a second and talk about the waterproofing process we use on this amplifier. We use a chemical compound which includes Acrylate Acid, Silicone, Polyurethane, and a few other substances. When these chemicals solidify, it becomes a protective on the PCB. This is what we call a conformal coating. This makes the amplifier water resistant. It also prevents oxidization and protects the amplifier from moisture. There are 3 ways manufacturers can conformally coat a PCB board. Soak, paint, or spray. Once we finish building the PCB board we paint it with our conformal coating.
We would like to offer anyone a 90 day money back guarantee. We are so confident you will love this amp! If you don't then we will send you a label to return it for all your money back!
Features:

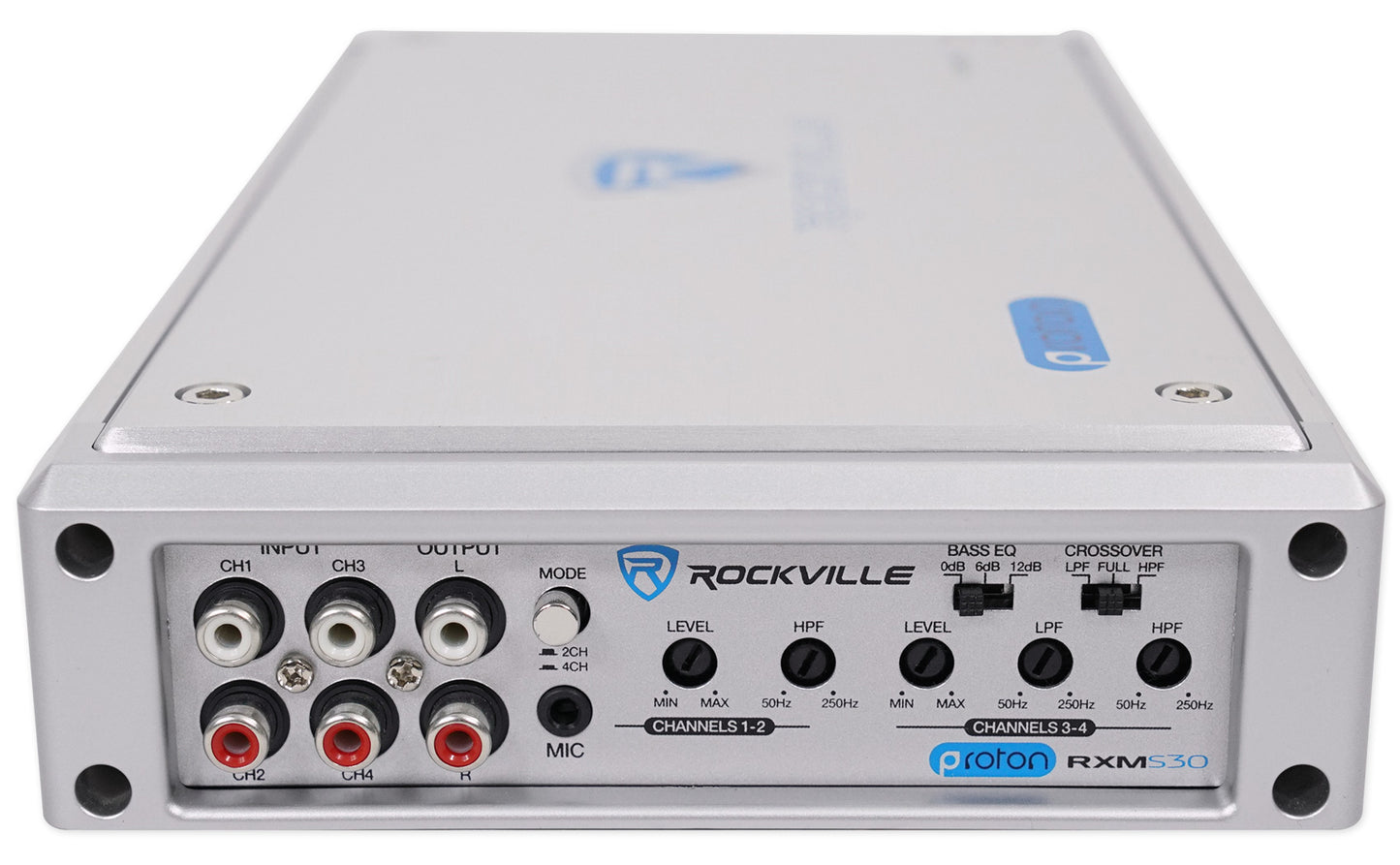

- Rockville RXM-S30 2400w / 600w Dyno-Certified RMS 4 Channel Proton Micro Marine Car Amplifier
- Dyno Certified RMS Power Ratings: (Certified Dyno Test / Less than 1 % THD) (Use these ratings when comparing with top brands such as Kicker, Rockford Fosgate, etc)
- 400 Watts (4 x 90 Watts) at 4 ohms and 1% THD+N
- 600 Watts (4 x 150 Watts) at 2 ohms < 1% THD
- 600 Watts (2 x 300 Watts) bridged @ 4 Ohms < 1% THD
- Peak: (Use these ratings when comparing with the top budget brands such as Boss, Power Acoustik, etc):
- 2400 Watts (2 x 1200 @ 2 ohms or 1 x 2400 @ 4 Ohms)
- Marine amplifier with conformal coated PCB board
- High-Speed MOSFET Power Supply
- Studio-Grade Bipolar Output Stage Transistors
- Double Sided Surface Mount (SMD) PCB Design
- Selectable +6dB/+12dB Bass Equalizer @ 45hz
- Channel Separation: 50 dB
- Current drawn @ MAX RMS output: 27A @ 4ohm, 40A @ 2ohm
- Efficiency @ MAX RMS output: 65% @ 4ohm, 60% @ 2ohm
- 2-Ohm Stable Stereo
- 4-Ohm Mono Bridgeable
- 3 Channel Mixed-Mono Capable
- Input sensitivity: 20mV-6V
- Mute and Delay Soft Start System
- Full IC-Controlled Protection Circuitry
- 2 CH / 4 CH Input Mode Switch
- RCA Preamp Line Output
- 8 Volt Preamp Circuitry
- Status Mode LED Indicator
- 4 Gauge Lucite Encapsulated Power/Ground Terminals
- 12 Gauge Lucite Encapsulated Speaker Terminals
- THD+A: 0.01%
- Frequency Response: 15Hz - 20KHz
- Continuously Fully Adjustable 12dB / Octave Crossover with Differential Circuitry
- Continuously Fully Adjustable High Pass Crossover: 50HZ – 250HZ
- CH1 & CH2 High Pass 50Hz - 250Hz
- CH3 & CH4 Low Pass 50Hz - 250Hz
- CH3 & CH4 High Pass 50Hz - 250Hz
- Full Adjustable Crossover Controls: low pass, high pass, and full pass
- Sensitivity: 100dB @ 1w / 1m
- S/N Ratio: >90dB
- Damping Factor: > 200 @ 100Hz
- 2 x 30A Fuses
- 7 LBS
- Dimensions: (W x H x L) 6.7" x 1.98" x 12.28"
