Package Includes:

• (2) Rockville STAGE PANEL 864 LED RGB Pro Stage Wash Light + Strobe + Matrix Combo
• (2) Rockville RLB30 Bag for 4 Slim Par Chauvet/ADJ Lights+Controller+Accessories
• (1) Rockville ROCKFORCE 192-Channel Light/Fog DMX Lighting Controller
• (2) Rockville RDX3M25 25 Foot 3 Pin DMX Lighting Cable 100% OFC Copper Female 2 Male

---

All About Your STAGE PANEL 864:

How To Set Up Your STAGE PANEL 864:

How To Set Up Master / Salve Mode on Your STAGE PANEL 864:

How To Set up a DMX Controller to Your STAGE PANEL 864:

Includes:

• Light
• Hanging bracket for truss mounting

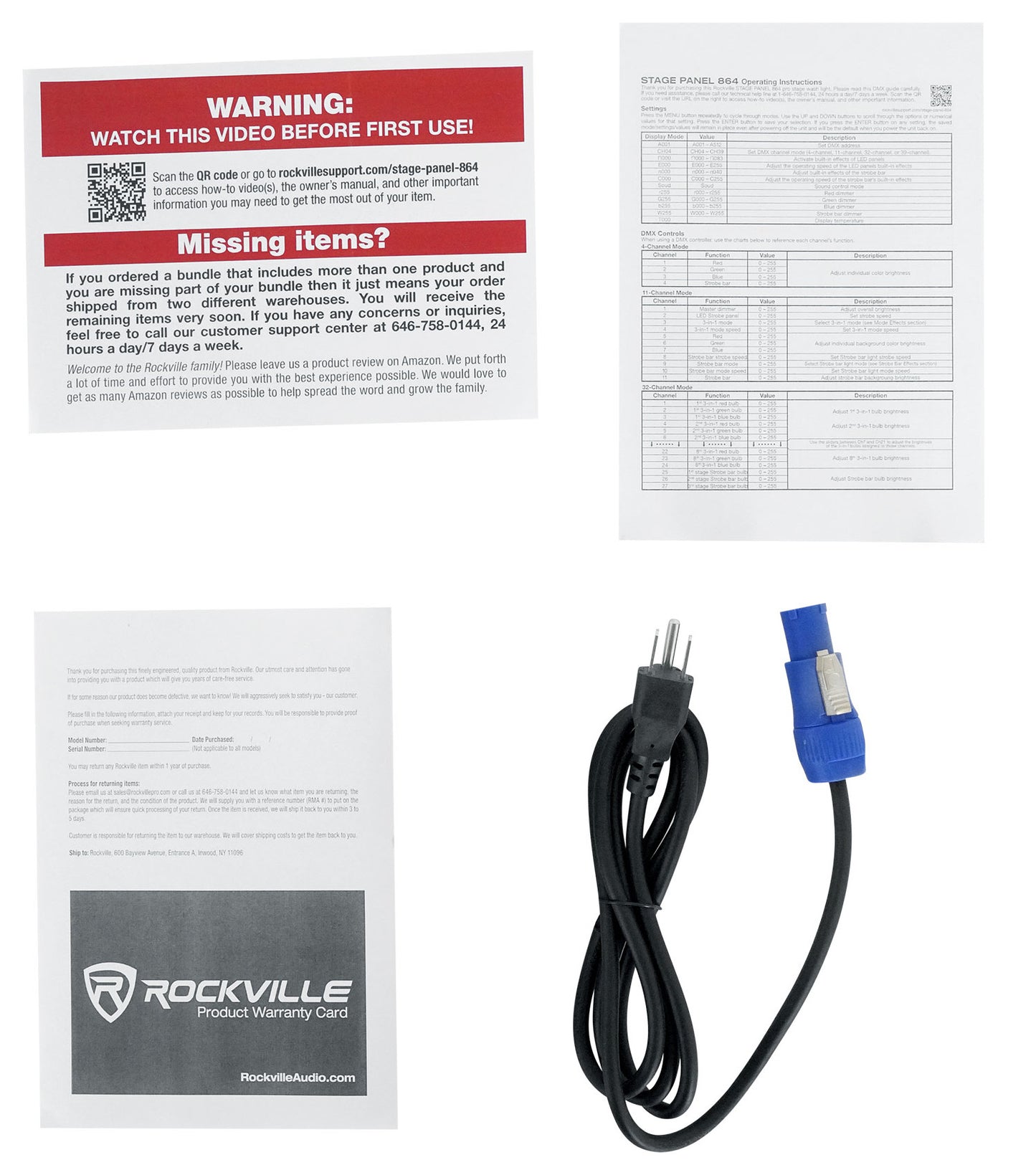

• Power cable
• Owner manual
• How-to training video for beginners or experts

Description:

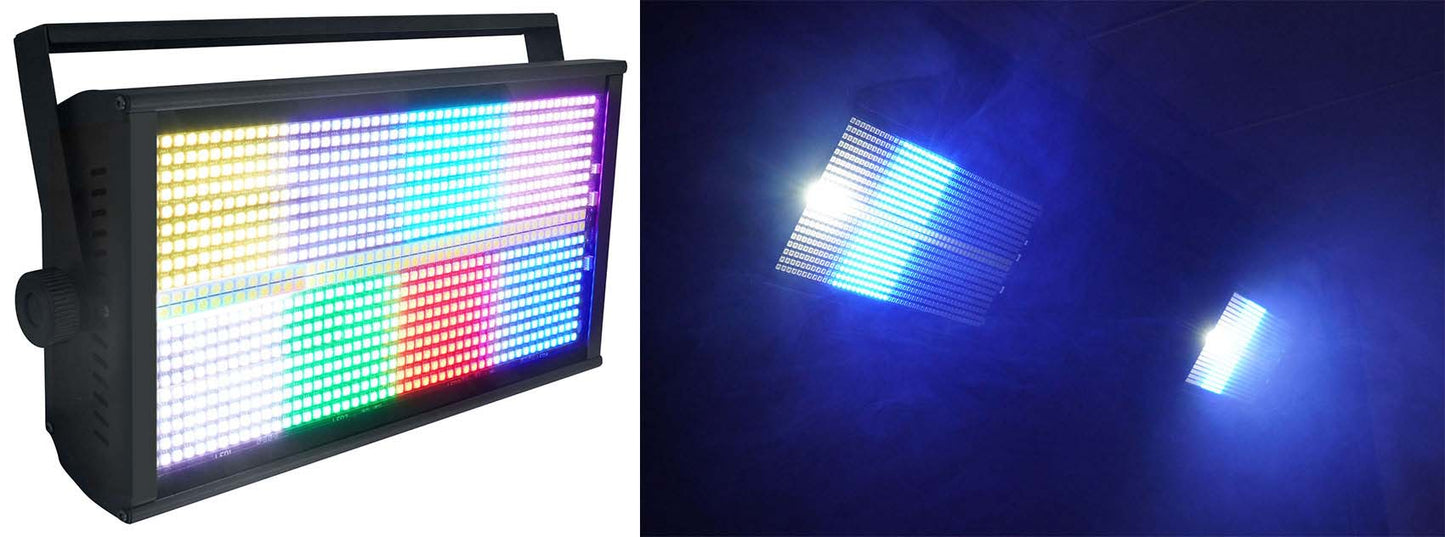

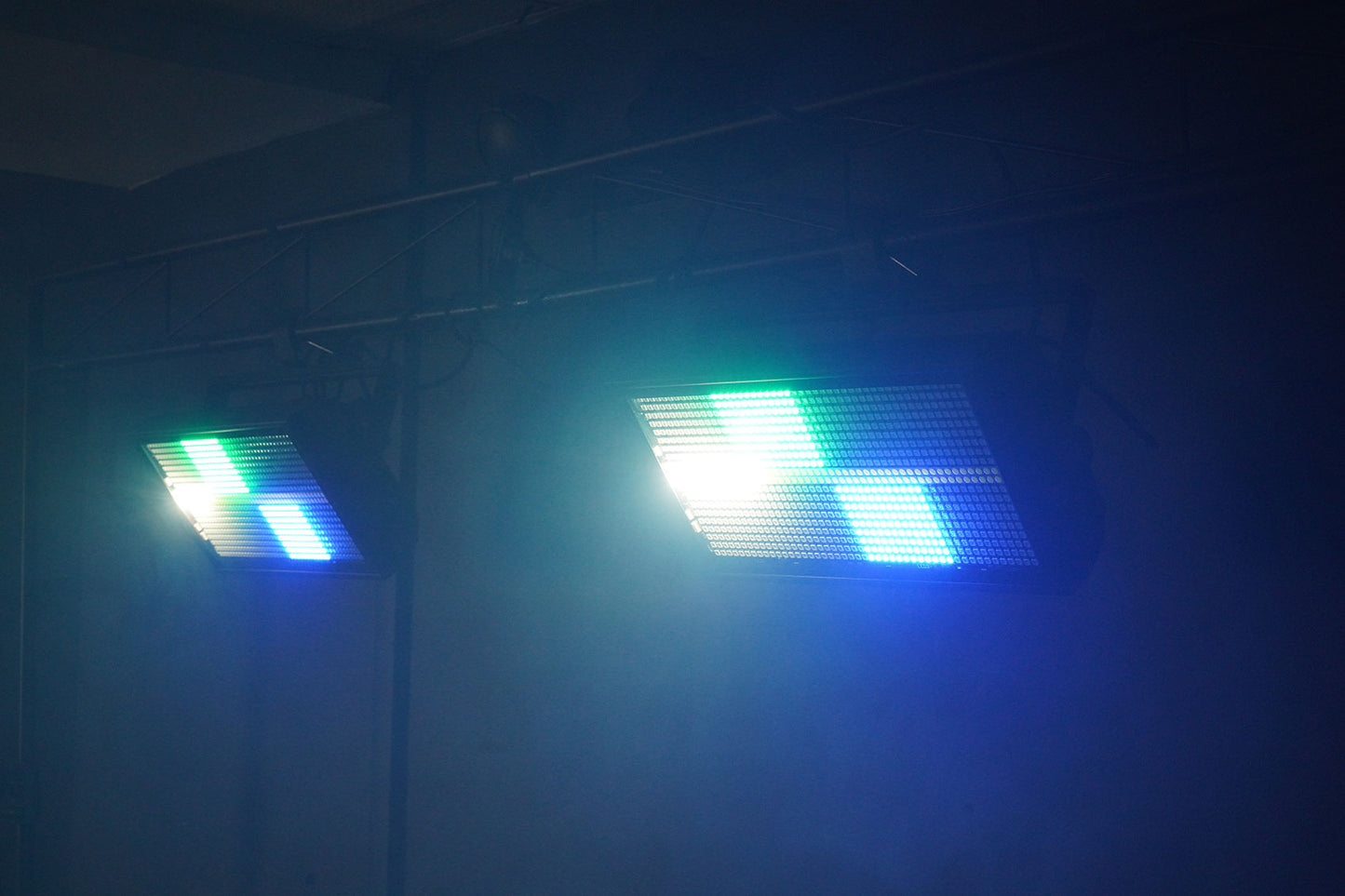

The Stage Panel 864 is a beast of a stage light. This one light can do more work than multiple other lights. It has 864 bright LED's built in. The central LED's are dedicated to the strobe effect while the rest of the LED's are RGBW and are meant for a stage wash effect or a stage matrix effect. You can use all these effects in combination with each other to create a really cool stage environment for a live band or DJ.

Use one light for smaller stages and venues, and 2 or more for larger set-ups. This light is extremely bright and powerful so you can feel confident using this for medium and larger venues.

Lets talk about each effect:

The matrix effect

Allows you to control 16 blocks of LED's independently with your DMX controller or with the built in programs. So for example, you can have a combination of red, white and blue flowing and stacking up on top of each other, which will create a really cool looking pattern. You can also create a snake-like effect where the light blocks progressively add up together and create a nice dynamic pattern. This can be combined with the strobe effect as well. If you buy 2 or more of these you can make that matrix effect even more impressive. Watch our video to see what this is capable of.

Stage washing

The idea of stage washing is to light the stage into a single stationary color such as red, blue or white which is great for atmospheric effects and for setting visual moods. Throughout your performance you can also have the color change. What is great about this light is that the LED's are super bright and the panel will project the colors to a large surface area.

Strobe effect

First off, let me warn you not to look into this light from close distances. The strobe is extremely bright and covers long distances. There are 3 ways to use this strobe. You can have the center strobe in sync with the rest of the LED panel if you want to use the entire light as a strobe light. The more common way to use the strobe would be in combination with the stage washing effect. For instance, you can wash the stage with red color, and then, you can use the center strobe on top of it. Combining both the stationary red color along with the strobe gives a really cool effect that will take your stage visuals to the next level. The third option is commonly used during the climax of a song where you have the 16 matrix panels strobing in different colors along with the white center strobe light, making the crowd just go crazy.

Controls:

This has up to 39 channels of DMX controls to give you lots of control options. We have 4 dedicated channels to the strobe effect while the other 35 channels are dedicated to the color changing LED's.

Applications:

• Stage wash light (RGBW color changing)
• Stage strobe light
• Stage matrix light (16 individually controlled blocks of lights that can stack-up or rotate to different colors)
• Any combination of the above effects to make your stage stand out

Features:

• Rockville STAGE PANEL 864 LED Multi Purpose RGB Stage Wash Light + Strobe Combo
• Just one light can enhance your entire stage or use 2 or more for larger stages
• Perfect for stage washing, strobing, and visual matrix effects

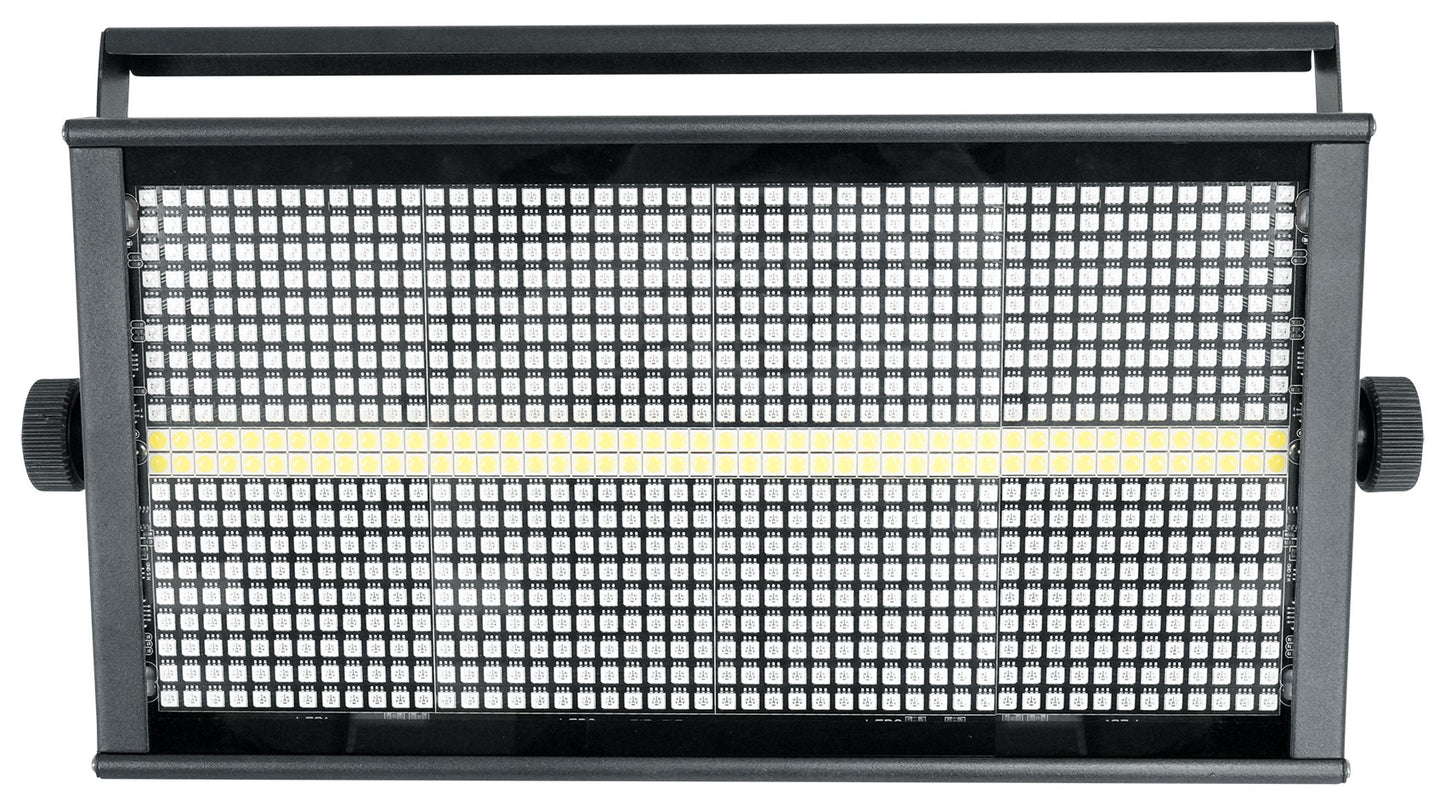

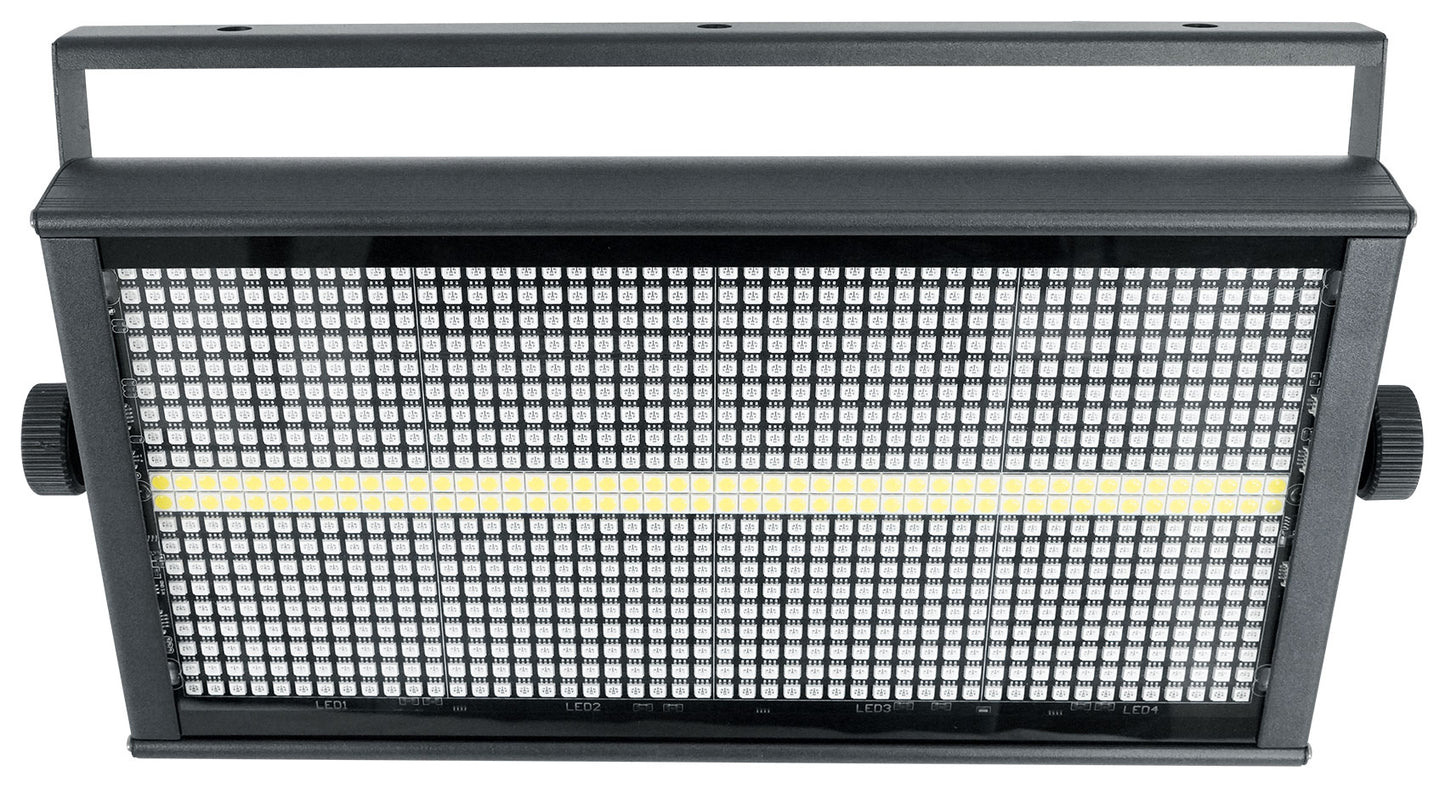

• Light source: 864 tri color LEDs (5050) +96 white strobe LEDs
• 16 DMX controllable RGB sections + DMX controllable strobe section
• Power: 38V / 280W

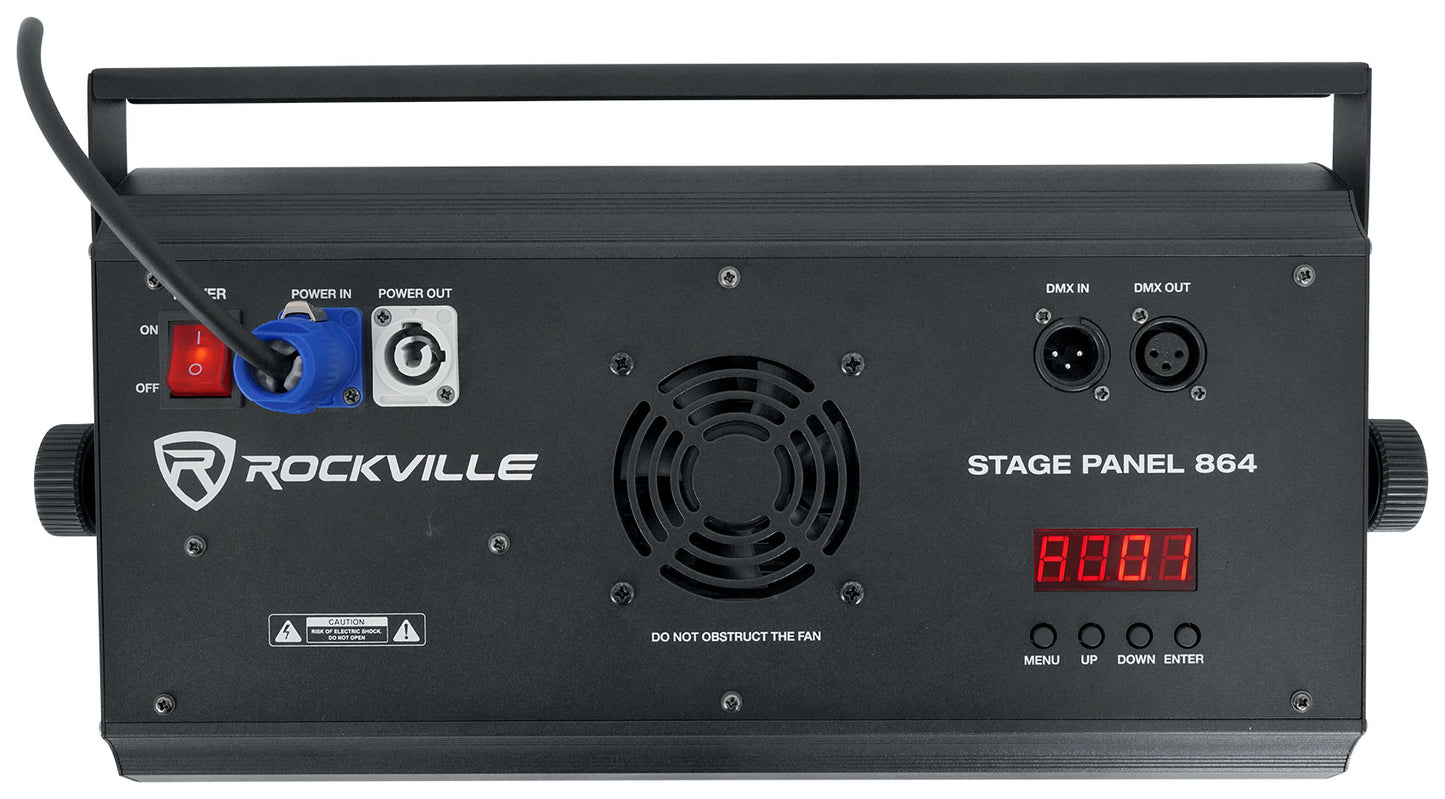

• Control: DMX512, automated programs, master/slave, sound activated mode, RDM (remote device management)
• DMX Channel Modes: 4, 11, 32, 39
• Dimmer: 32 bit 0 - 100% linear dimmer
• strobe frequency: 1 - 30HZ
• IP grade: IP20
• Weight: 7.94 lbs.
• Dimensions: 9.45" x 17.72" x 2.95"

---

All About Your RLB30:

How To Set Up Your RLB30:

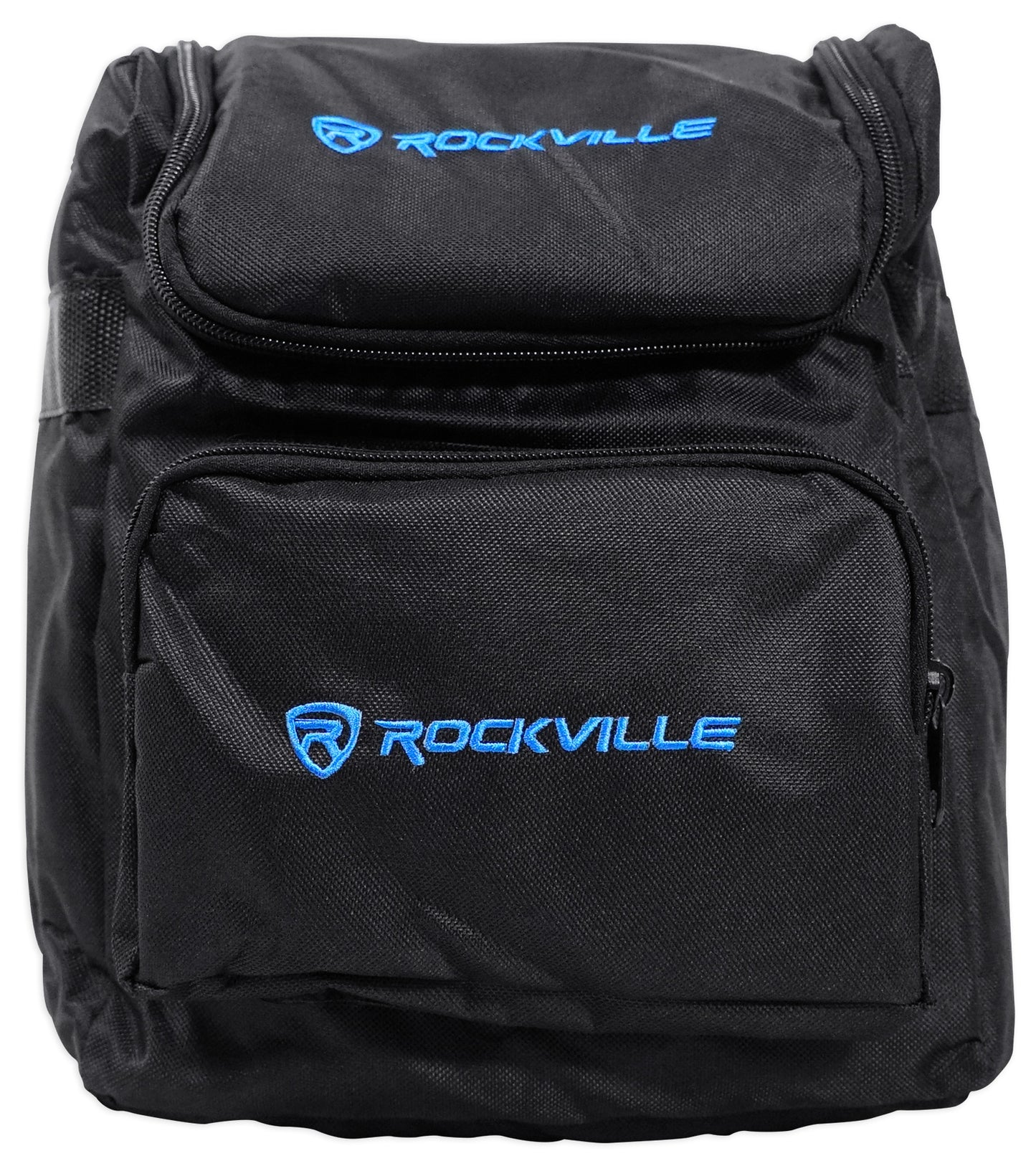

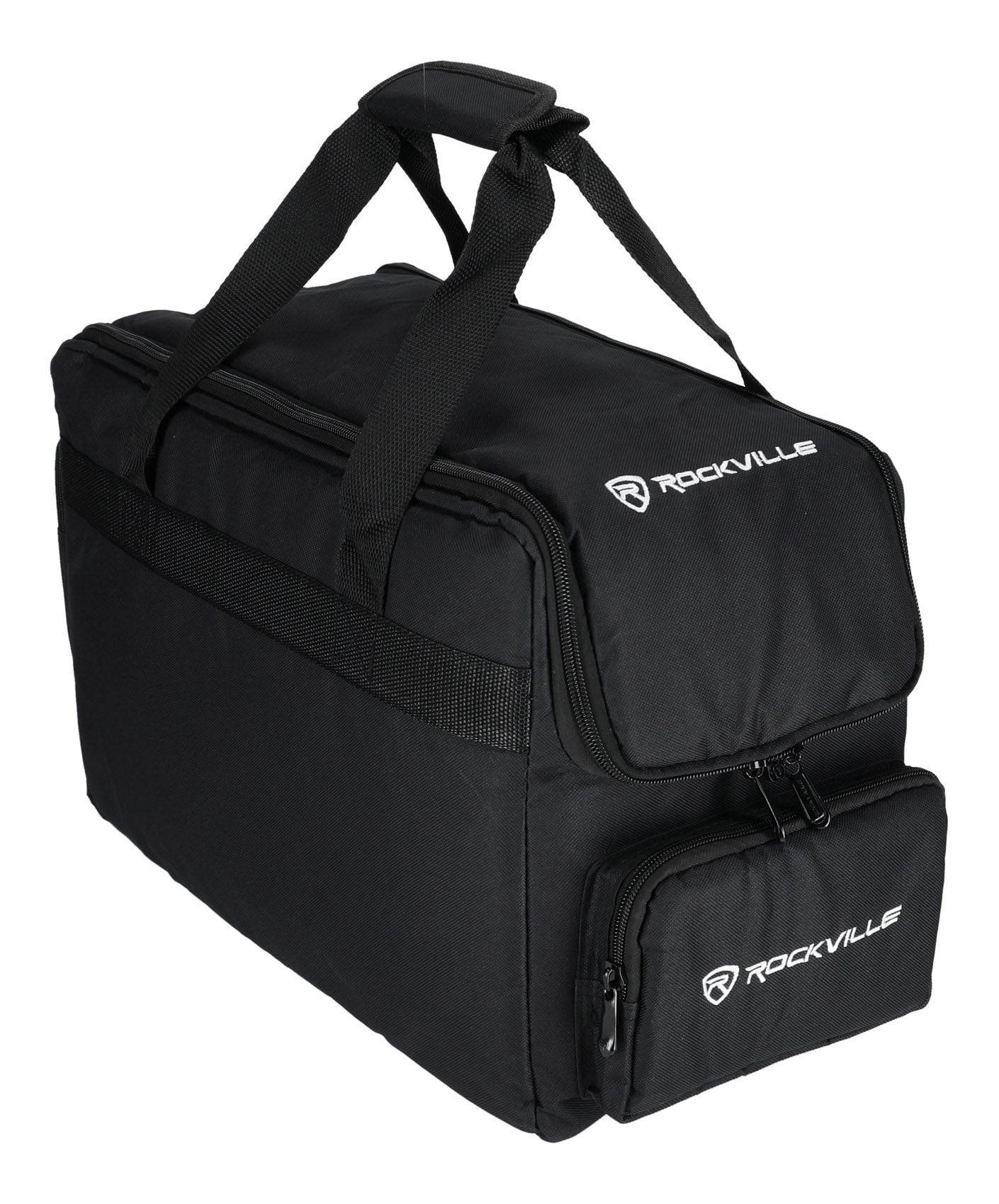

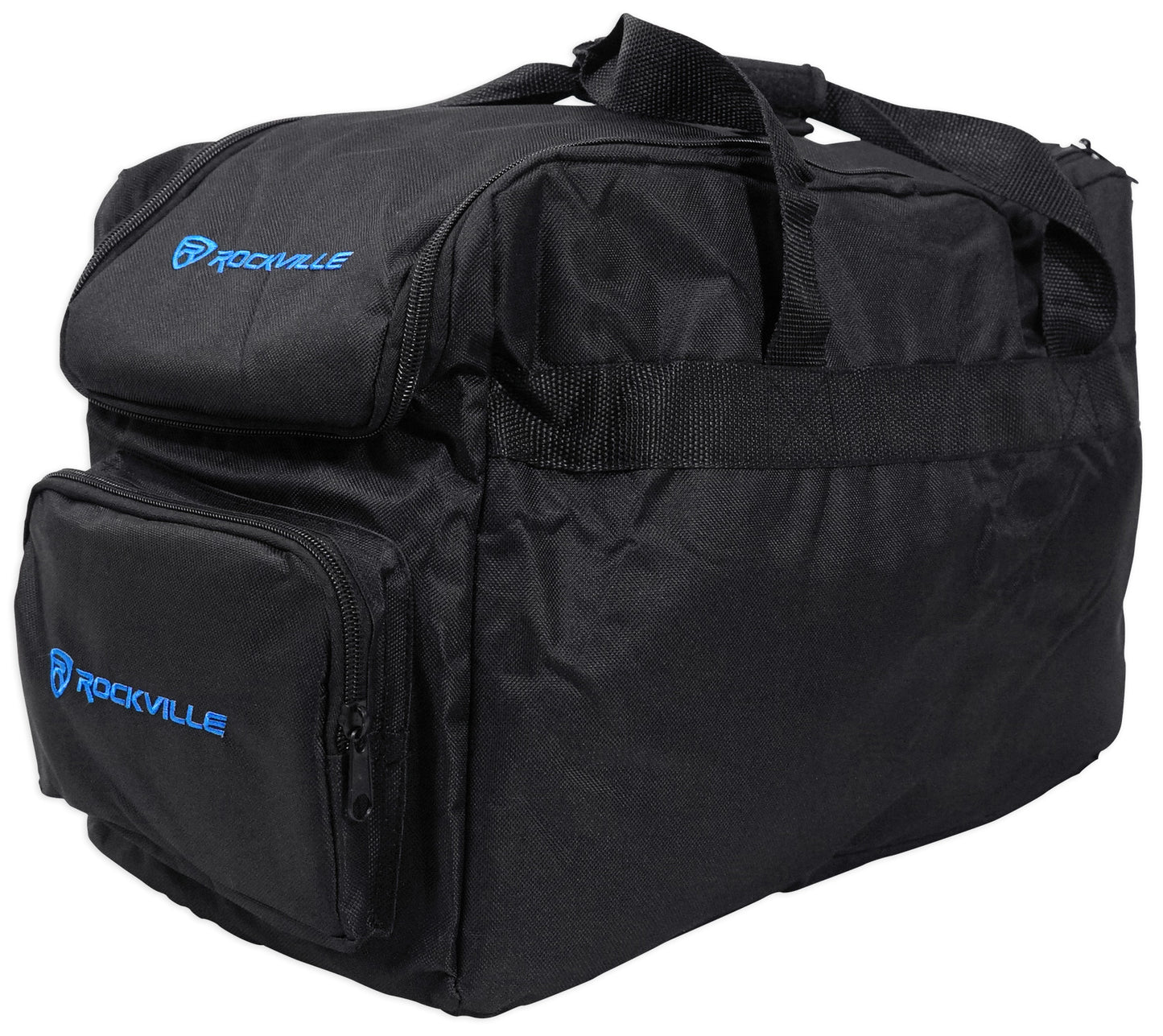

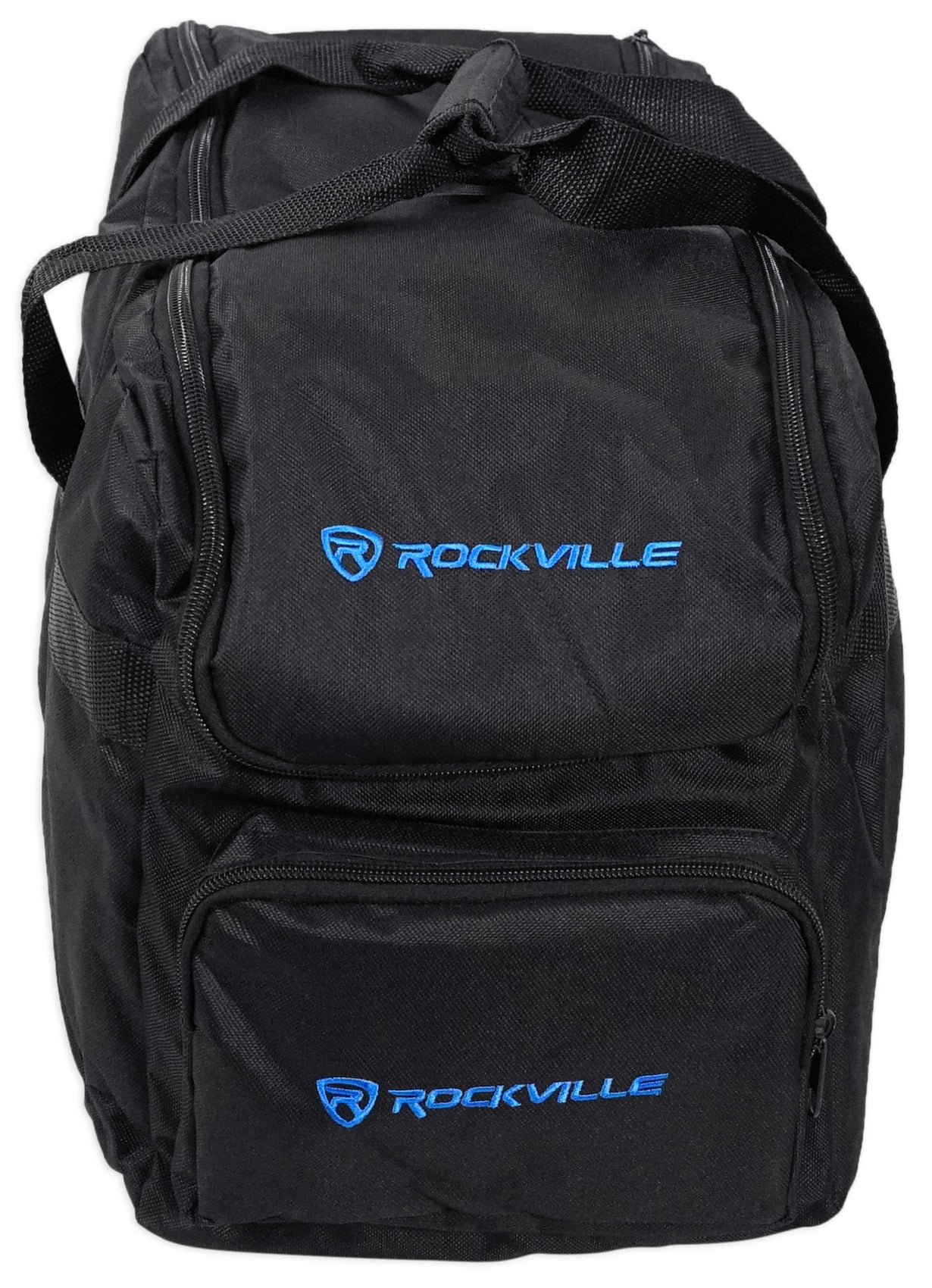

Description:

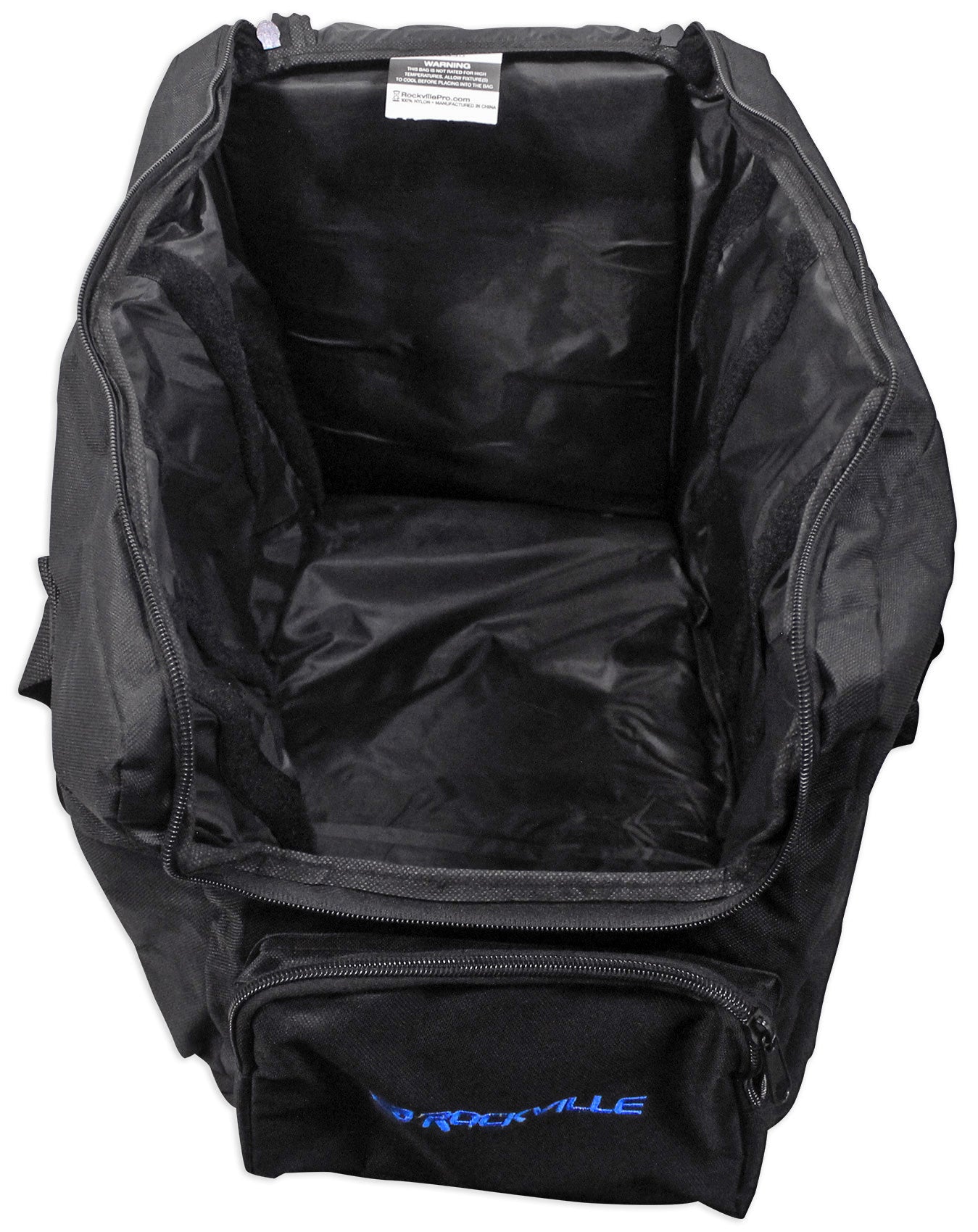

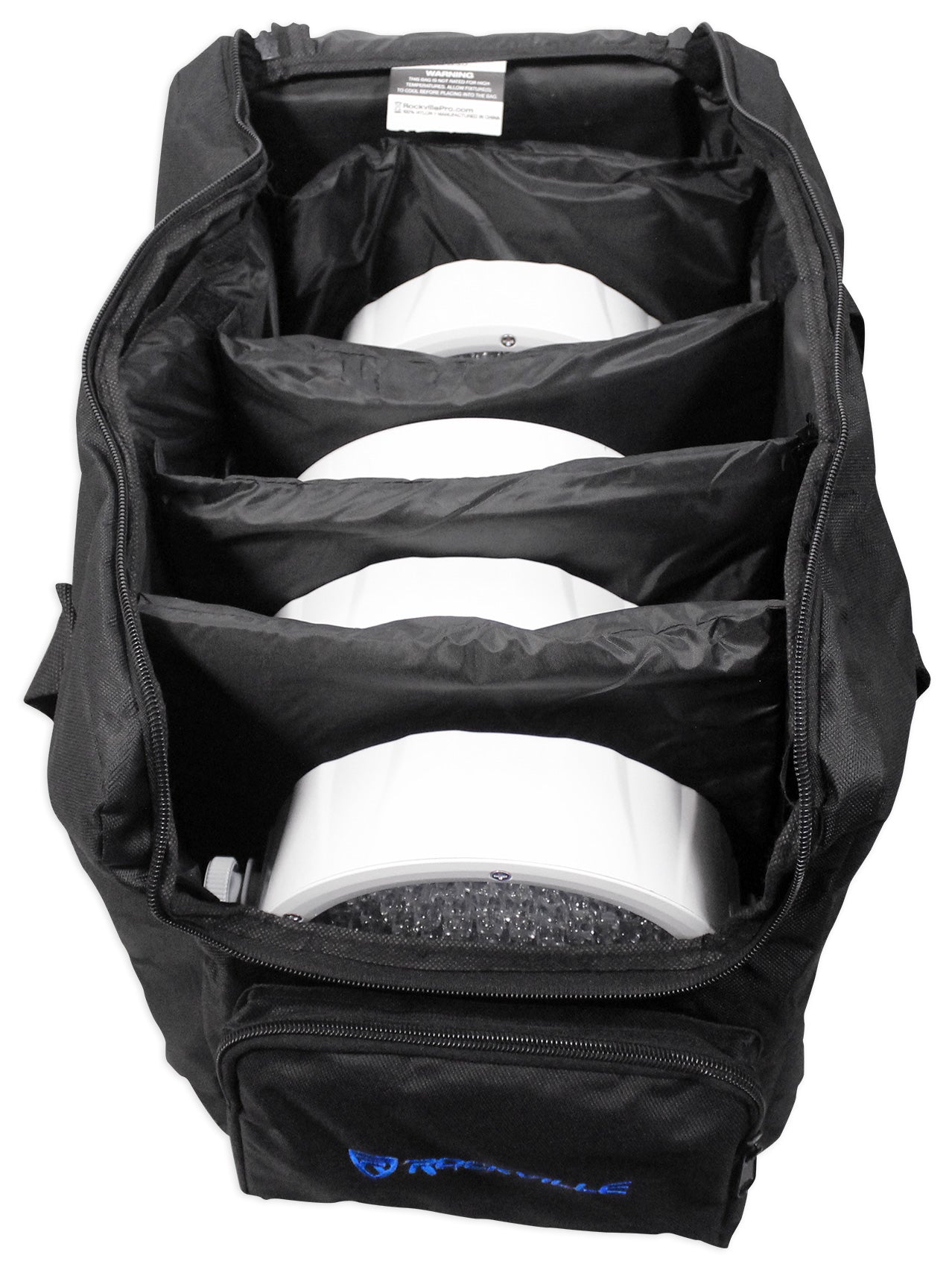

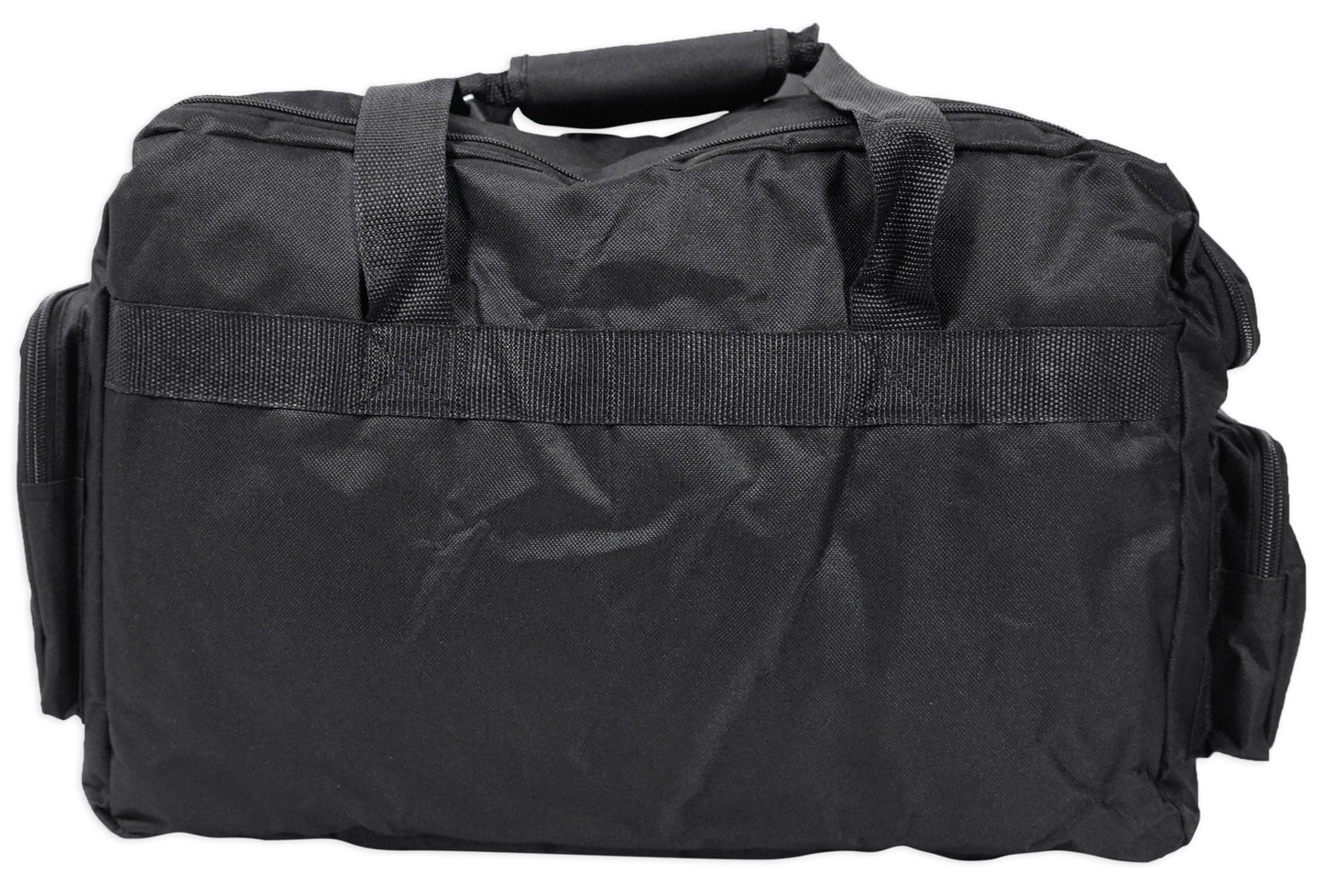

The RLB30 by Rockville is the perfect bag for carrying some of the most popular lights made by Chauvet and American DJ. These are perfect for carrying (4) SlimPAR™ Tri and/or Quad IRC fixtures along with controller and cables. These also accommodate a huge list of other lights such as slimpar56, slimpar pro series, pixpar, and many other par can lights. Each bag has padded internal compartments that are removable. So you can use this for 4 lights, or you can remove one or more compartments to accommodate larger lights.

This bag will protect your lighting from bumps and scratches during transportation.

To check if this bag will hold your light(s), simply measure your lights. The dimensions of this bag are below:

• Size (internal): 18.1 x 10 x 11 in (460 x 254x 280 mm)
• Size (per compartment): 3.5 x 10 x 11 in (90 x 254 x 280 mm)

Compartment dividers are all removable so you can fit lights of many sizes.

Features:

• Rockville RLB30 par can lighting bag accommodated (4) lights, controller, and cables
• Protect and transport LED Par fixtures from show to show
• Custom-designed bag carries up to 4 lights, connecting cables, and a controller
• Compatible with Chauvet, American DJ, and other top brands
• 5 internal and 2 external compartments (4 for lights, 1 for controller, and 2 for cables and other accessories)
• Accommodates various-sized gear with removable dividers
• Designed to fit different types of fixtures including the SlimPAR™ IRC series, slimpar pro series, pixpar, slimpar quad, and much more!
• Padded, internal compartments
• Save time during set up and tear down with easy access to each compartment
• Padded handles for easy transport
• External compartments use top quality zippers that stand the test of time
• Fits
• Mini Kinta™ IRC
• JAM Pack™ Silver
• Obey 40 D-Fi
• Freedom Par™ Quad 5 (two of these fit perfectly inside this bag)
• SlimPAR™ QUAD 3 IRC
• SlimPAR™ HEX 3 IRC
• SlimPAR™ HEX 6 IRC
• SlimPAR™ Pro RGBA
• SlimPAR™ Pro Tri
• SlimPAR™ Pro VW 3.4 x 10.1 x 11.2in
• SlimPAR™ Quad 6 IRC 8.8 x 8.3 x 4.2in
• SlimPAR™ Quad 12 IRC 10.7 x 10.6 x 4.2in
• SlimPAR™ Tri 7 IRC 8.5 x 7.7 x 4.6in
• SlimPAR™ Tri 12 IRC 11.5 x 9.3 x 4.6in
• SlimPAR™ Pro VW
• SlimPAR™ Quad 6 IRC
• SlimPAR™ Quad 12 IRC>
• SlimPAR™ Tri 7 IRC
• SlimPAR™ Tri 12 IRC
• PiXPar™ 12

Specifications:

• Compartments: 7 (5 internal, 2 external)
• Compartments are removable if you want to accommodate 2 larger lights
• Weight: 2 lb (0.9 kg)
• Size: (Internal): 18.1 x 10 x 11 in (460 x 254x 280 mm)
• Size (external): 18.5 x 11.8 x 9.4 in (470 x 300 x 240 mm)
• Size (per compartment): 3.5 x 10 x 11 in (90 x 254 x 280 mm)

---

About Rockville Quality Control Procedures:

The Rockville brand stands for Quality, Innovation and Value. All Rockville products go through the most rigorous quality control standards in the industry. Products go through months of extensive testing before they reach your hands. All user functions are tested and all internal components are tested for quality. Rockville makes products that are virtually un-breakable! Rockville is one of the only brands in its class to test every concept model for weeks or months before starting production. Once production begins, Rockville sends product engineers to their factory to quality control every line of production. During production every product is tested and on top of that Rockville goes the extra mile and has their high level product engineers do an additional quality control. They test a certain percentage of all products from the production line a second time to ensure that the quality meets their vigorous standards, and to make sure that there is never a batch of products with even a slight problem. All Rockville products are backed with a hassle free warranty.

---

Video of ROCKFORCE 192:

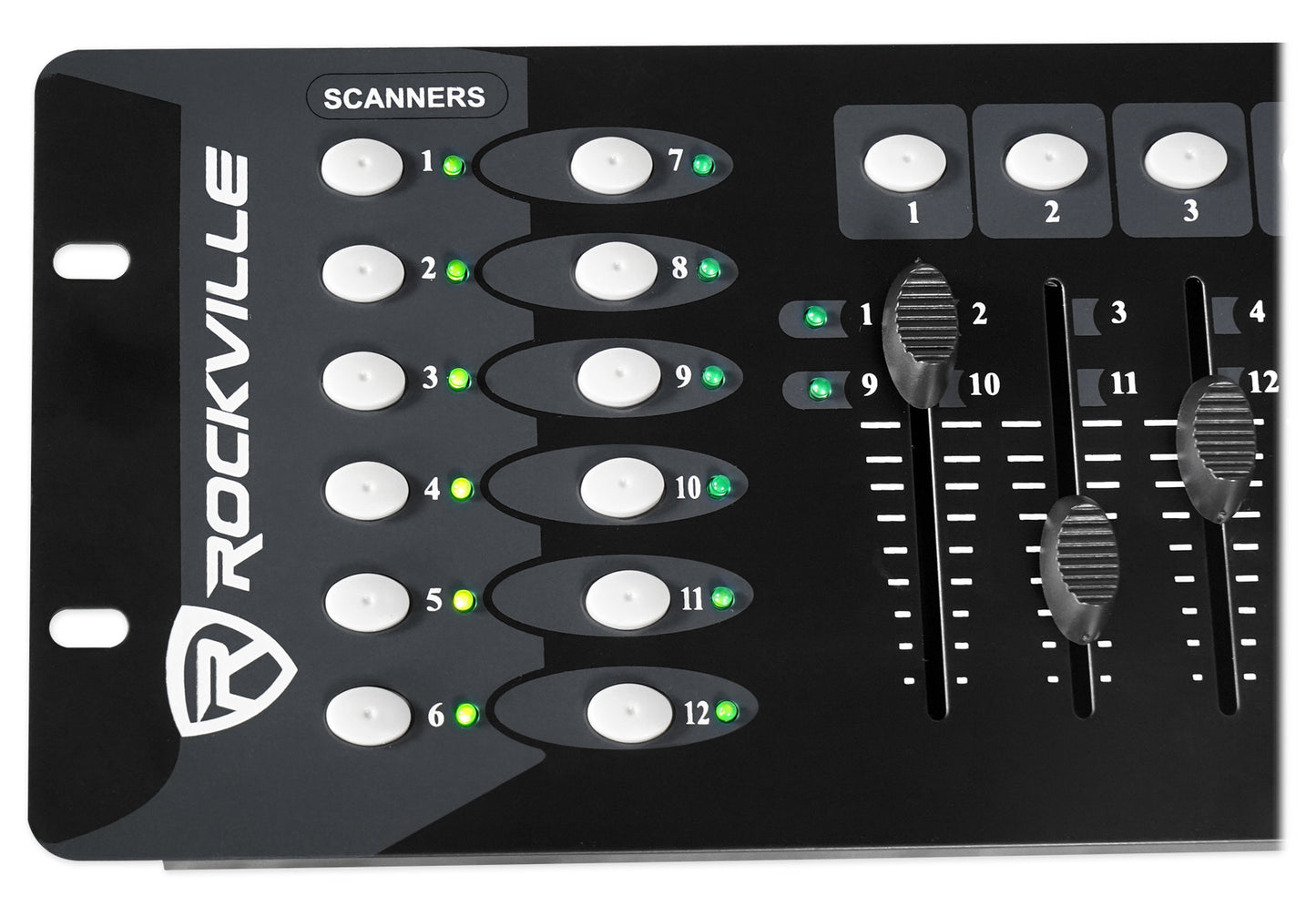

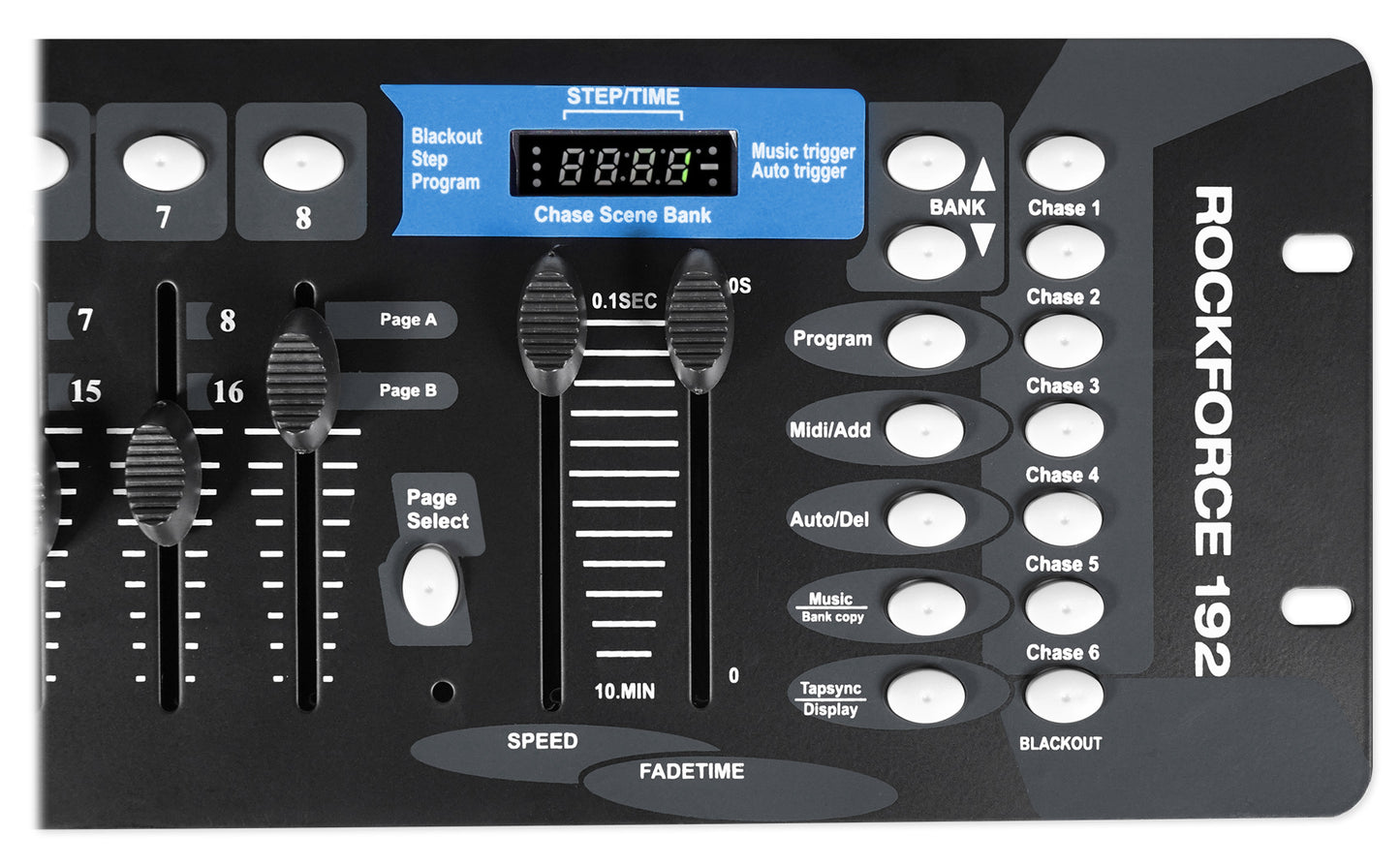

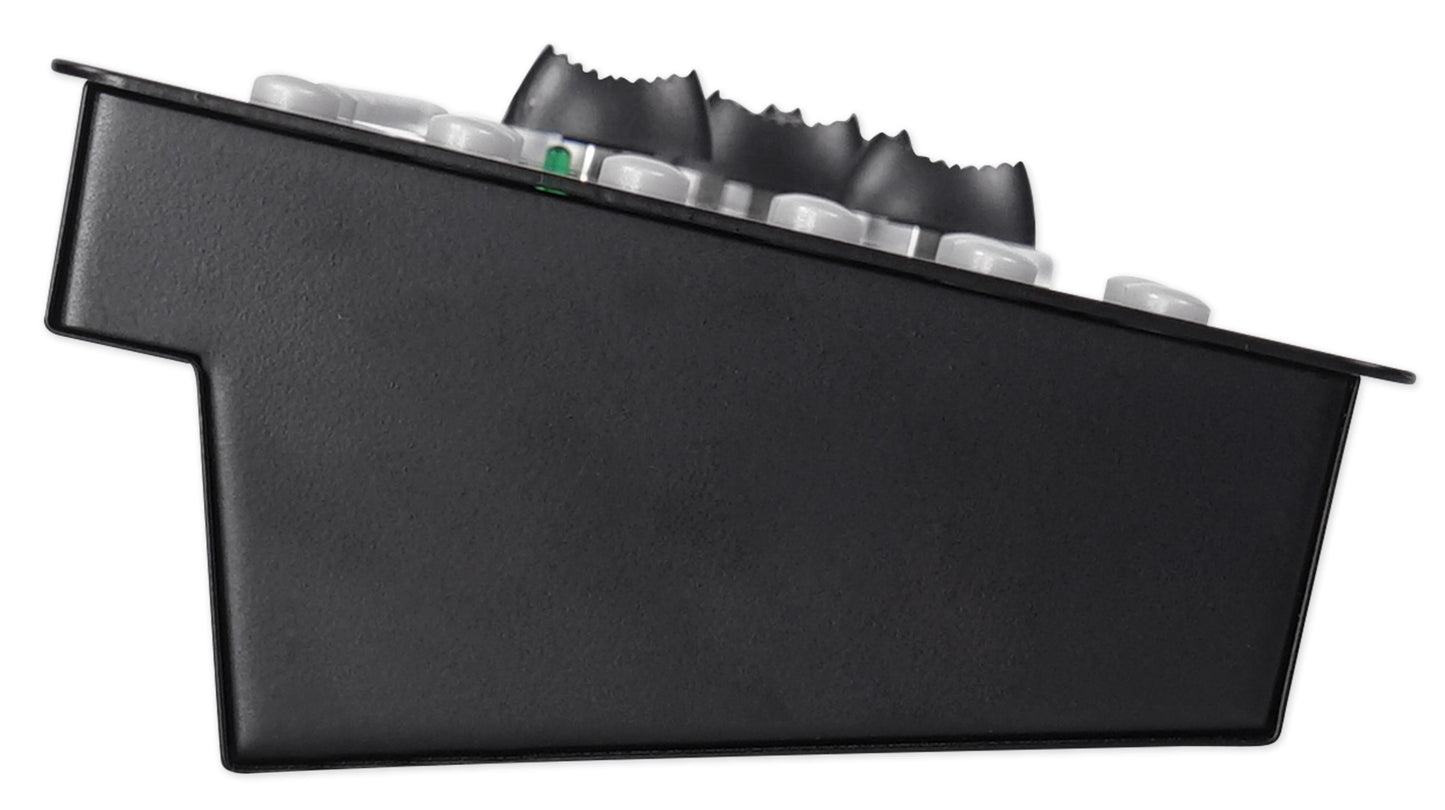

Description:

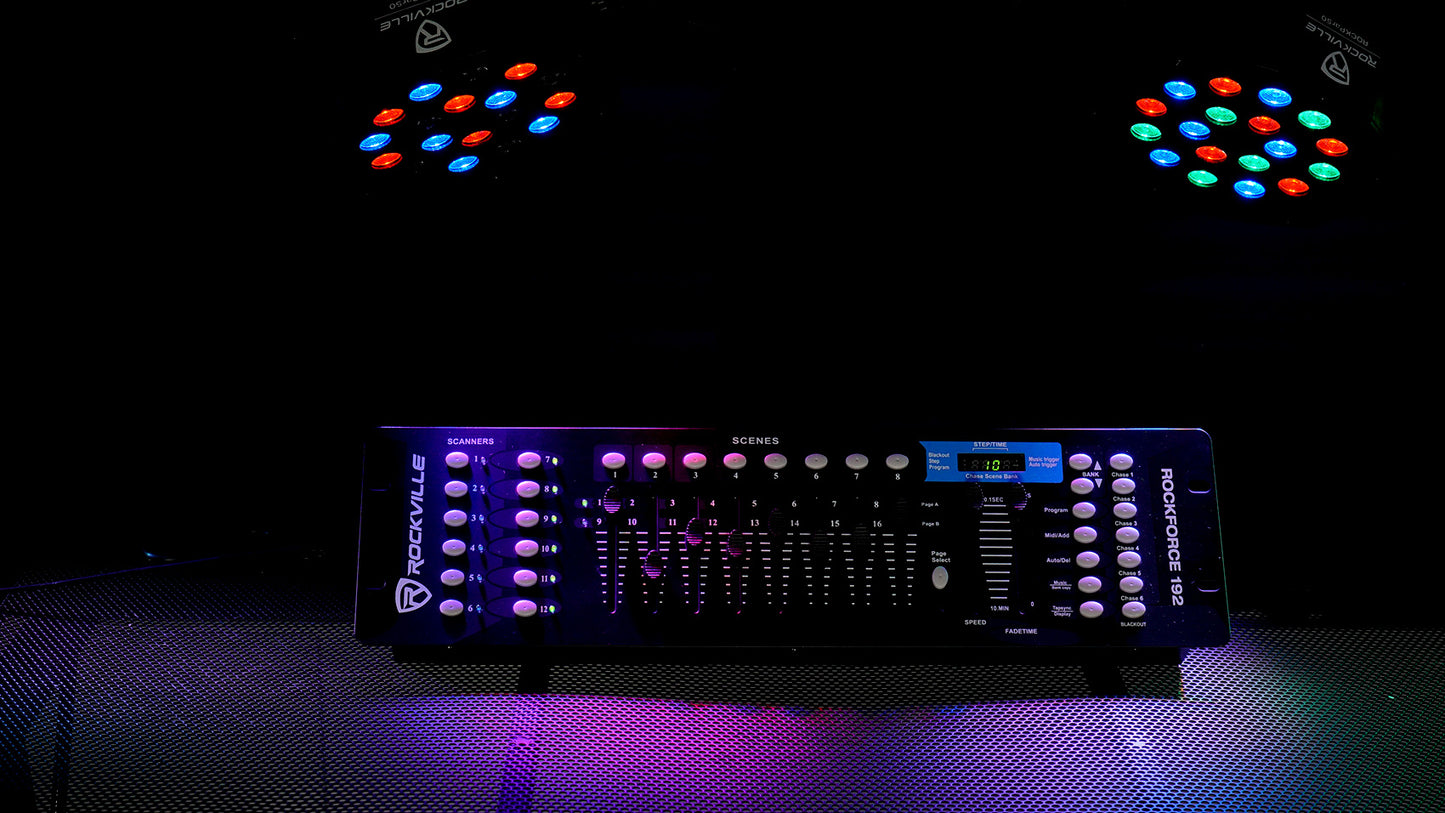

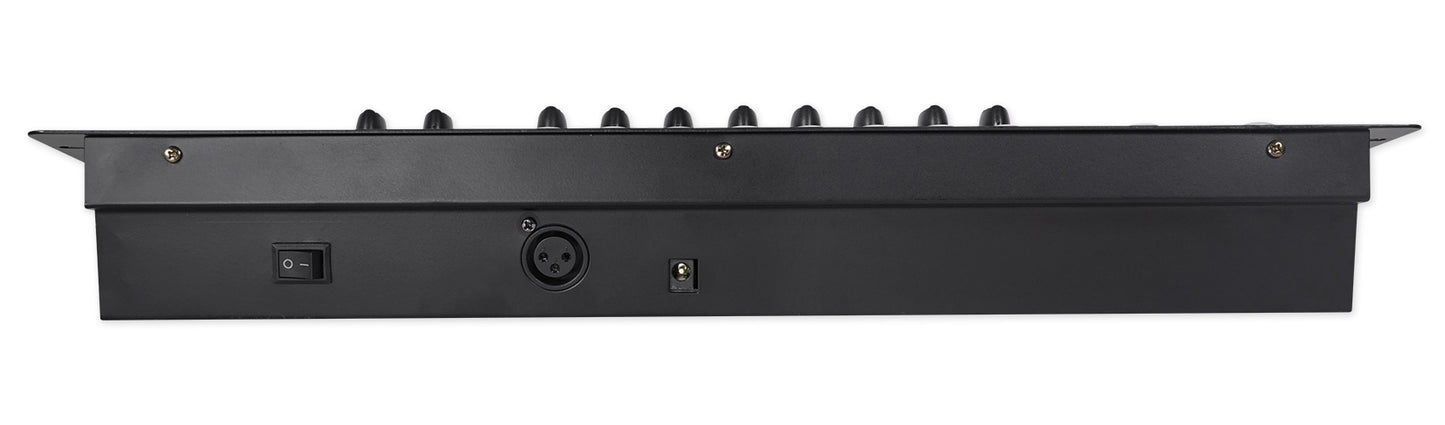

Rockville is proud to introduce the all new ROCKFORCE 192 universal DMX Controller with 192 DMX channels. This controller is easy to use and is designed to work seamlessly with lights from the leading brands such as Chauvet, American DJ and more! Our DMX controller is top quality and includes easy to understand instructions. This controller functions the same as the other leading brand controllers.

With the Rockforce 192 you can control 12 lights with up to 16 channels per light. In addition there is a 4 bit LED display and built in microphone which can be used to set up automatic modes. A great function we would like to mention is that you can take the program from any light and easily assign it to another light. This added feature provides flexibility and will saves you a ton of time at your next gig!

Although this controller has complex features we were able to design it with users of all experience levels in mind. This controller is so user friendly we gave it to some people who had little to no experience using lighting controllers and they were able to get the hang of it in no time.

We tested this against controllers from the leading and most famous lighting manufacturers and our controller performed as good or better at a fraction of the price! We are so confident in the reliability, build quality, and your satisfaction with this product that we will give you a 90 day money back guarantee. You can use the item and if you don't love it, then we will cover return shipping costs and give you all your money back upon receiving the return.

Features:

• Rockville ROCKFORCE 192 Channel Light/Fog DMX Lighting Controller
• 12 Scanners of 16 channels each
• 23 Banks of 8 programmable scenes
• 192 DMX channels of control
• 6 Programmable chases of 240 scenes
• 8 Sliders for manual control of channels
• Automatic mode program controlled by speed and fade time sliders Fade time /speed
• Blackout master button
• Reversible DMX channels allows fixture to react opposite to others in a chase
• Manual override allows you to grab any fixture on the fly
• Built-in microphone for music triggering
• DMX polarity selector
• Power failure memory
• 4 bit LED display
• 3U Rack mountable
• Power Supply: 110-240Vac,50-60Hz(DC9V-12V)
• Electric current: No less than 300mA
• Power Consumption: 10W
• Control Signal: DMX512
• Control Channels: 192CH
• Product Dimensions (L x W x H): 19" x 5.24" x 2.76" inches
• Product Weight: 3.75 lbs

---

Video of RDX SERIES:

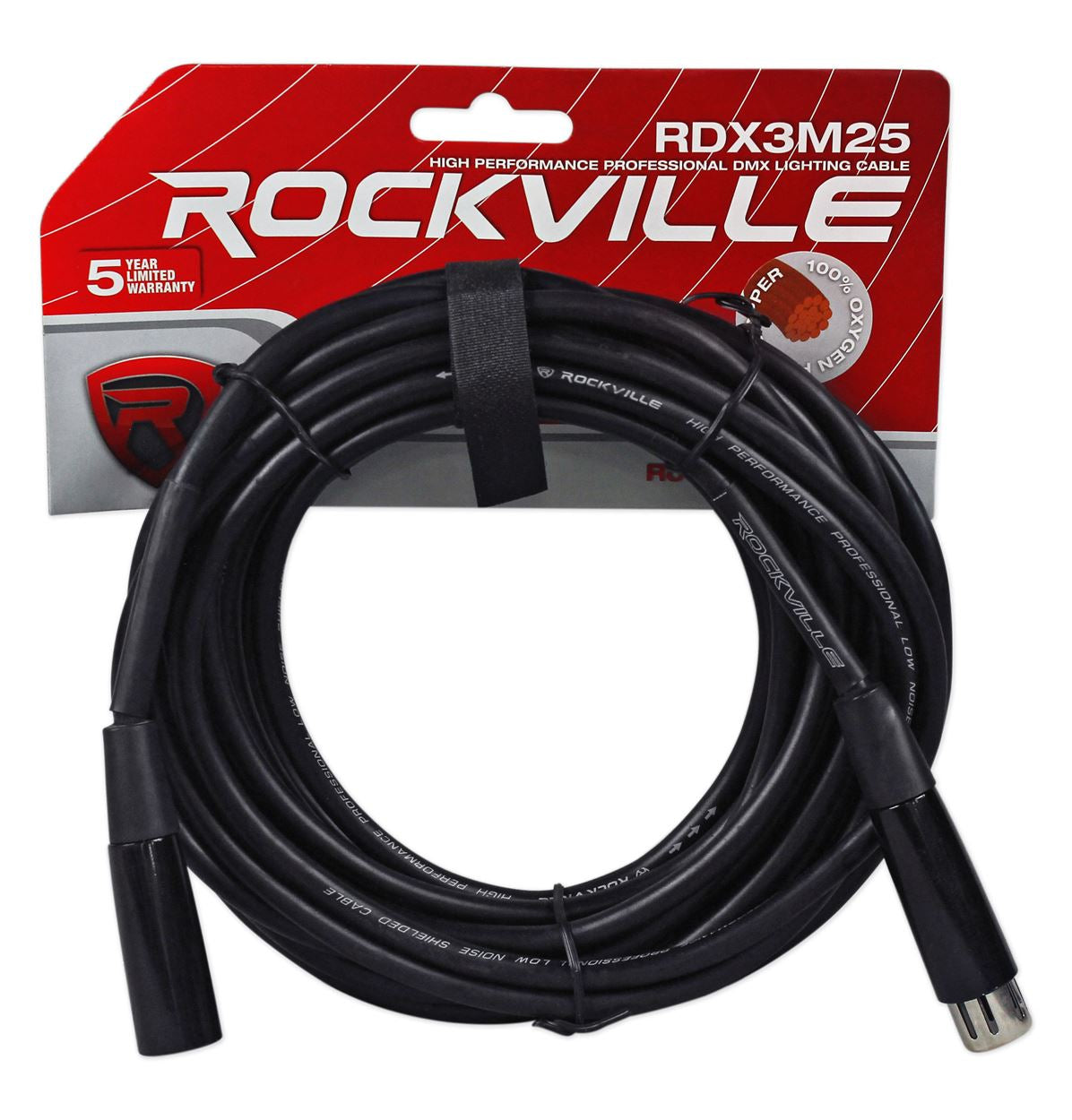

Description:

Rockville High Performance Cables are designed to provide efficient signal transfer for every application. Our Nickel-Plated, OFC (Oxygen-free copper) conductors assure that you have enhanced signal clarity with every use. Shielded for Superior EMI and RFI rejection, Rockville High Performance Cables are an ideal choice for all your lighting connection needs.

True, real DMX cables must be 120 ohms. Rockville DMX cables meets this specification.
Microphone cables are a lower impedance (ohms), and the difference in capacitance and twisting ratio makes it terrible for DMX signals.

Be sure to buy true 120 ohm DMX cables from reputable brands such as Rockville, Chauvet, American DJ.

Features:

• Rockville RDX3M25 Black Nickel Plated 3-Pin Male-Female DMX Cable
• OFC Conductors for Enhanced Signal Clarity
• XLR Connectors with Internal Strain Relief for Rugged Reliability
• Hi-density OFC Braided Shield for Superior EMI and RFI Rejection
• Impedance: 120 Ohm
• Length: 25 Ft
