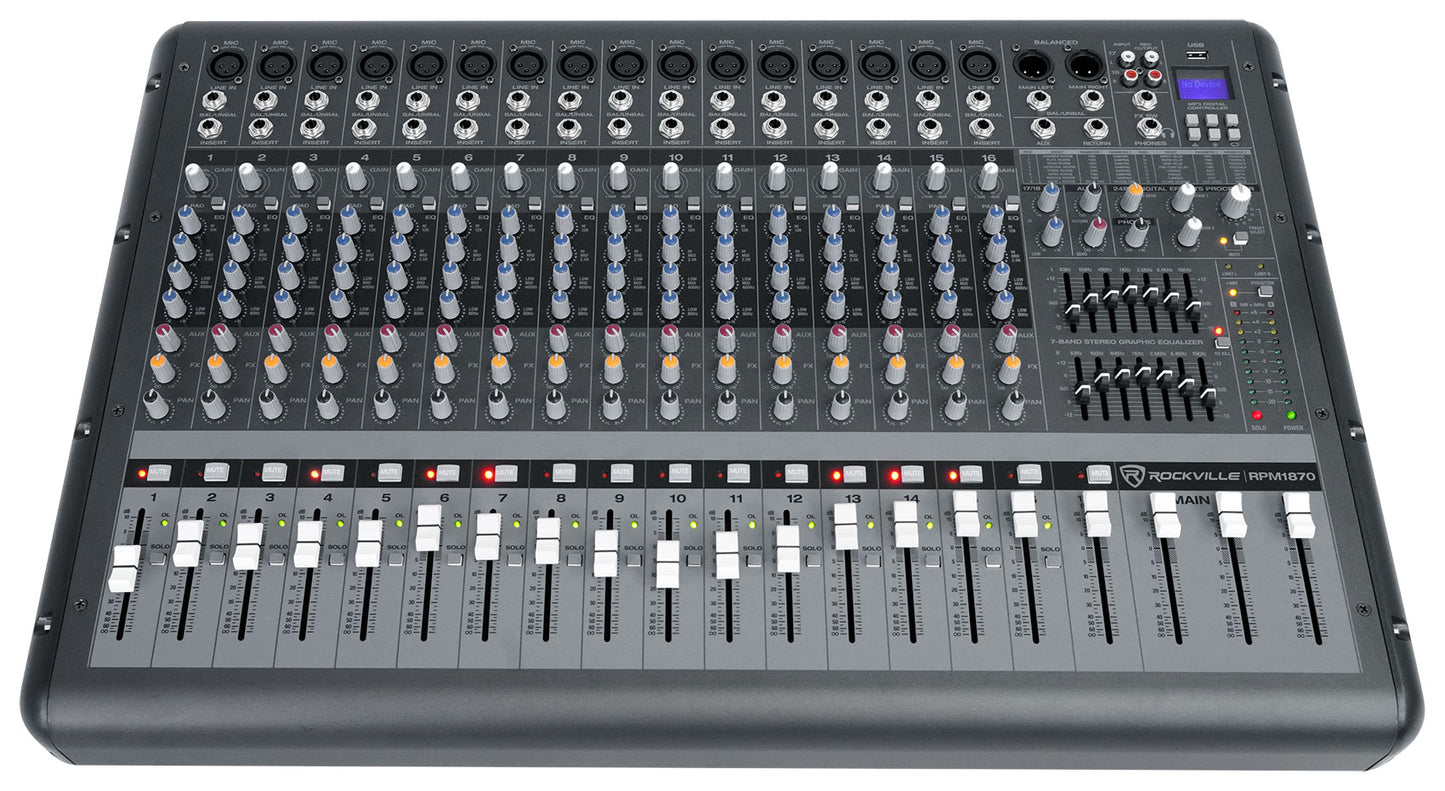

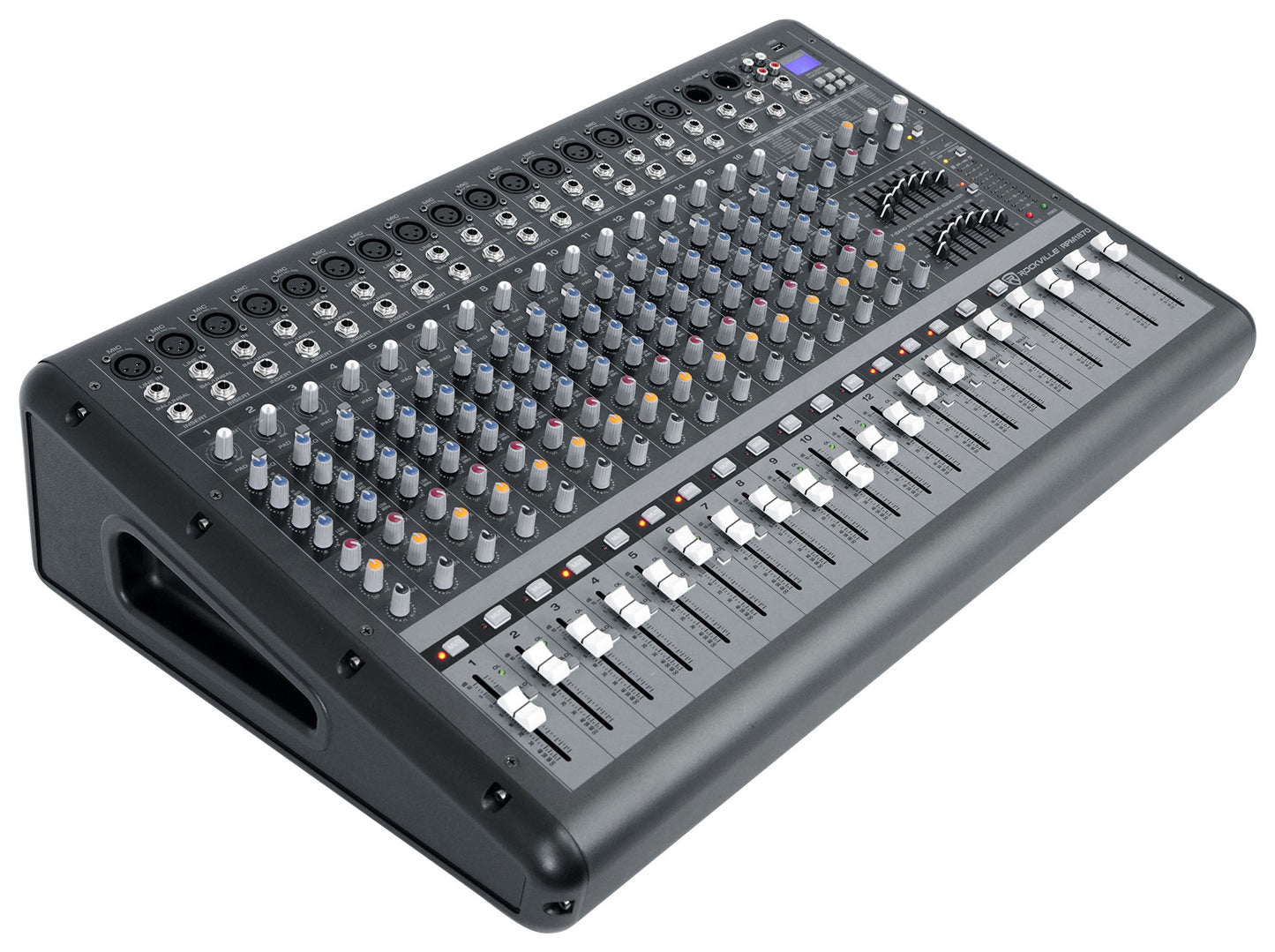

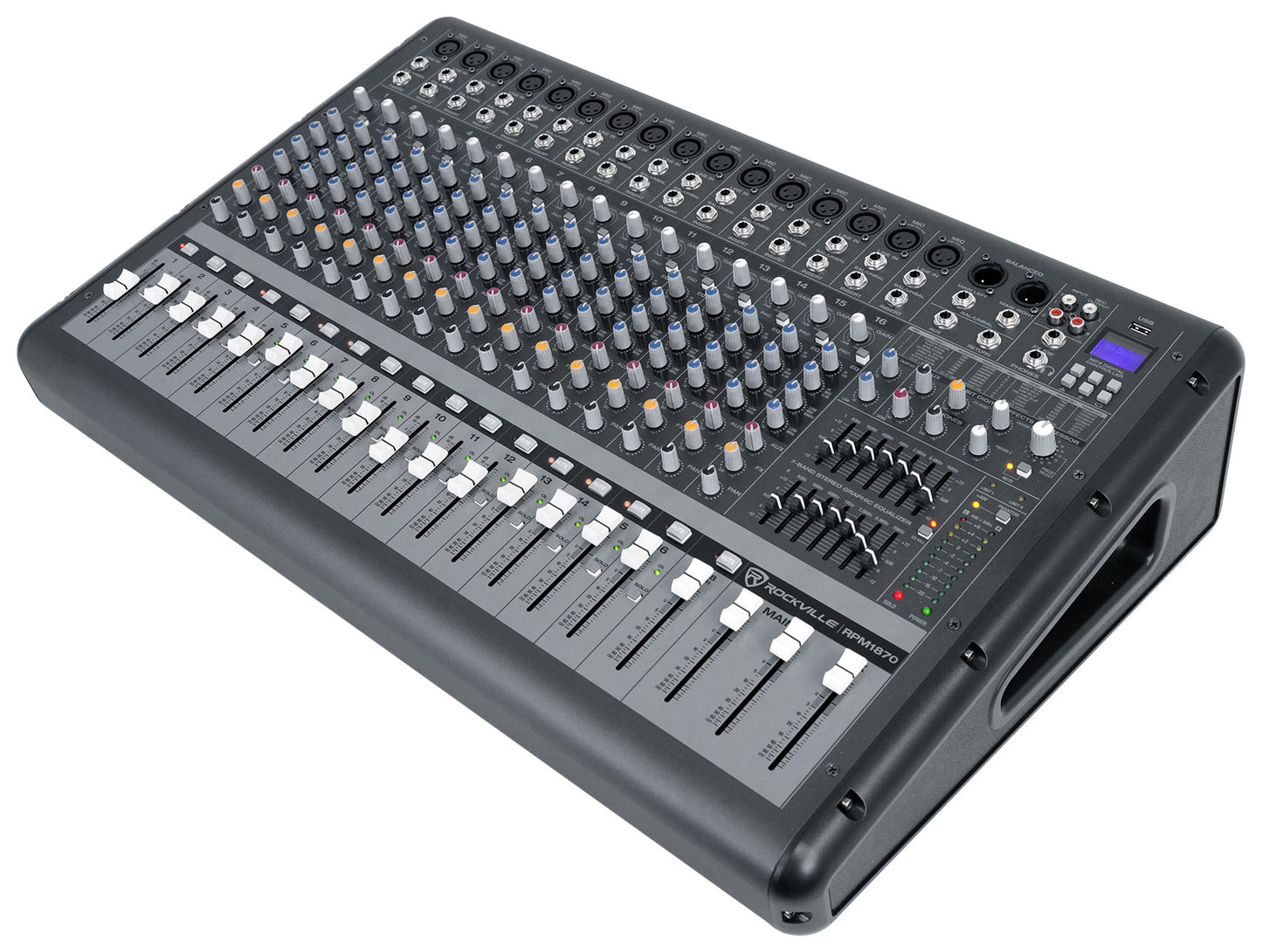

The Rockville RPM1870 is an 18-channel powered console mixer with a USB input and Bluetooth. There were a few goals we had when designing this mixer. The first one was it had to have the clearest sound quality with the best quality mic preamps. We manufactured this mixer with XDR2 low noise mic preamps. These are some of the best sounding mic pre’s on the market. They compete in quality with top brands on the market! The next goal we had was versatility.
This mixer has aux sends and returns on each channel so you can route your external effects easily. We also included a built in 24-bit digital effects processor that sounds great! We didn’t include 99 effects which all sound the same. Rather we included 16 solid effects that are each useful. You can customize each effect on the FX control section of the mixer. The last goal was to include a built-in amplifier that is powerful enough for your main speakers so that you can use this mixer for large venues with over 500 guests.
We tested and ran the mixer to (2) Mackie C300Z speakers, and even with the volume turned up half way these were filling an extremely large room with sound! We also tested these with dual 15” DJ speakers and really cranked them up and the sound of the highs and lows were crisp and clean. The great thing about this is the amp does not overheat even when cranking it up for hours straight. The power amp built into this mixer is 500 x 2 RMS @ 8 ohms and 750 x 2 RMS @ 4 ohms. We rate the RMS very strictly the way famous brands like Mackie rate their items. We also supply you with program and peak ratings, but RMS is the true continuous output power you should look at.
Other great features we included are a dual 7-band master EQ, a 4-band EQ on each channel, an EQ kill switch, as well as pad and solo buttons on each channel. Rounding things out, we added a USB input that has 2 functions. It can play back your audio tracks. But in addition can also record your main mix onto a USB drive! We also added Bluetooth to this mixer to give you all the most up to date options.
90 Day Money Back Guarantee
The price point we are selling this mixer at is about a third of what any other brand would charge. On top of this, we are offering a 90-day money back guarantee including return shipping. If you don’t love this mixer, you can send it back and get all your money back. We will even cover the cost of return shipping. Just be sure to send it back including the original packaging.
- Rockville RPM1870 6000 watt Powered Mixer, 7 Band EQ, 24-Bit Effects, USB, Bluetooth, and 48V Phantom Power
RMS Power Output:
- 750 Watts x 2 @ 4 Ohm
- 500 Watts x 2 @ 8 Ohm
Program Power Output:
- 1500 Watts x 2 @ 4 Ohm
- 1000 Watts x 2 @ 8 Ohm
Peak Power Output:
- 3000 Watts x 2 @ 4 Ohm
- 2000 Watts x 2 @ 8 Ohm

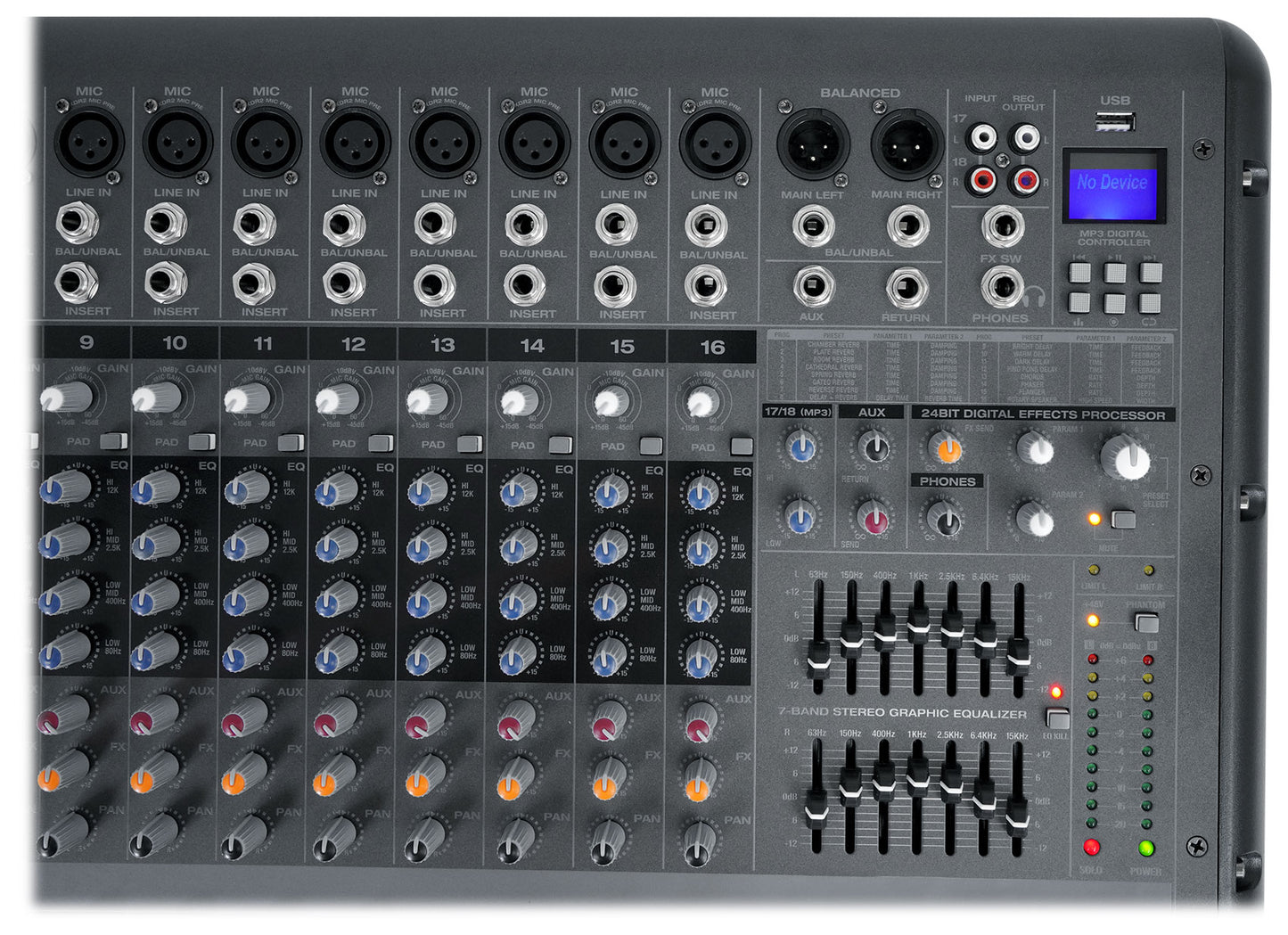

- 18 Channel mixer section: 16 mono channels, 1 stereo channel

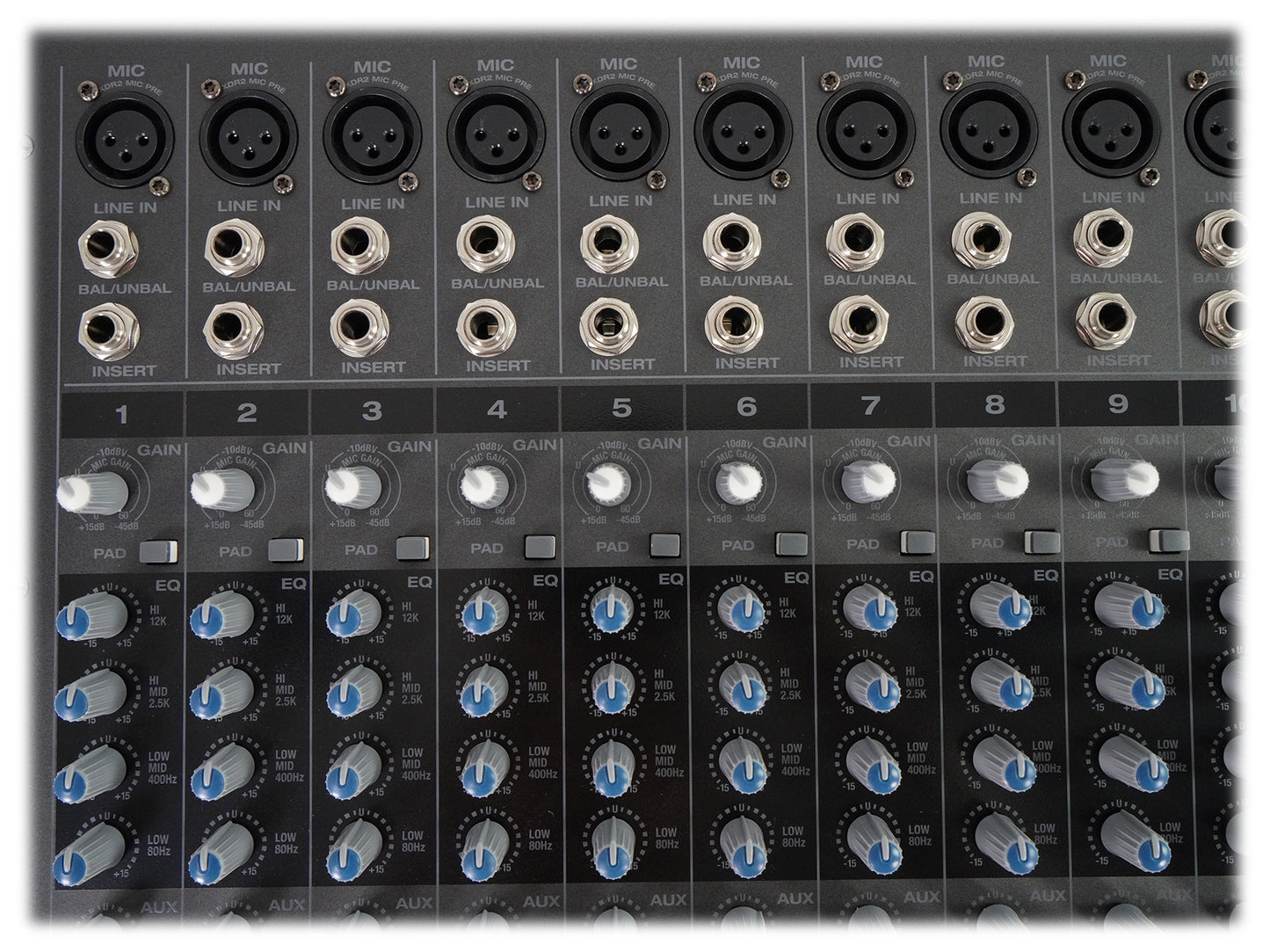

- 18 high-quality XDR2 mic preamps with switchable +48 V phantom power for condenser microphones
- XDR2 mic preamps are low-noise and low distortion. These are some of the best sounding mic pre’s on the market
- Built in USB allows you to play songs from your computer or a thumb drives
- Built in recording - allows you to record your main mix on to a USB drive
- USB supported formats are MP3, WAV, WMA
- Built in advanced bluetooth wireless audio streaming with the most reliable Bluetooth chip on the market
- 24 BIT digital effects processor with 16 preset digital effects including (reverb, chorus,, delay, chorus, phaser, flanger and various multi-effects)
- Effects level control can adjust signal level of each effect
- Effects mute button
- FX footswitch input lets you turn your effects on or off

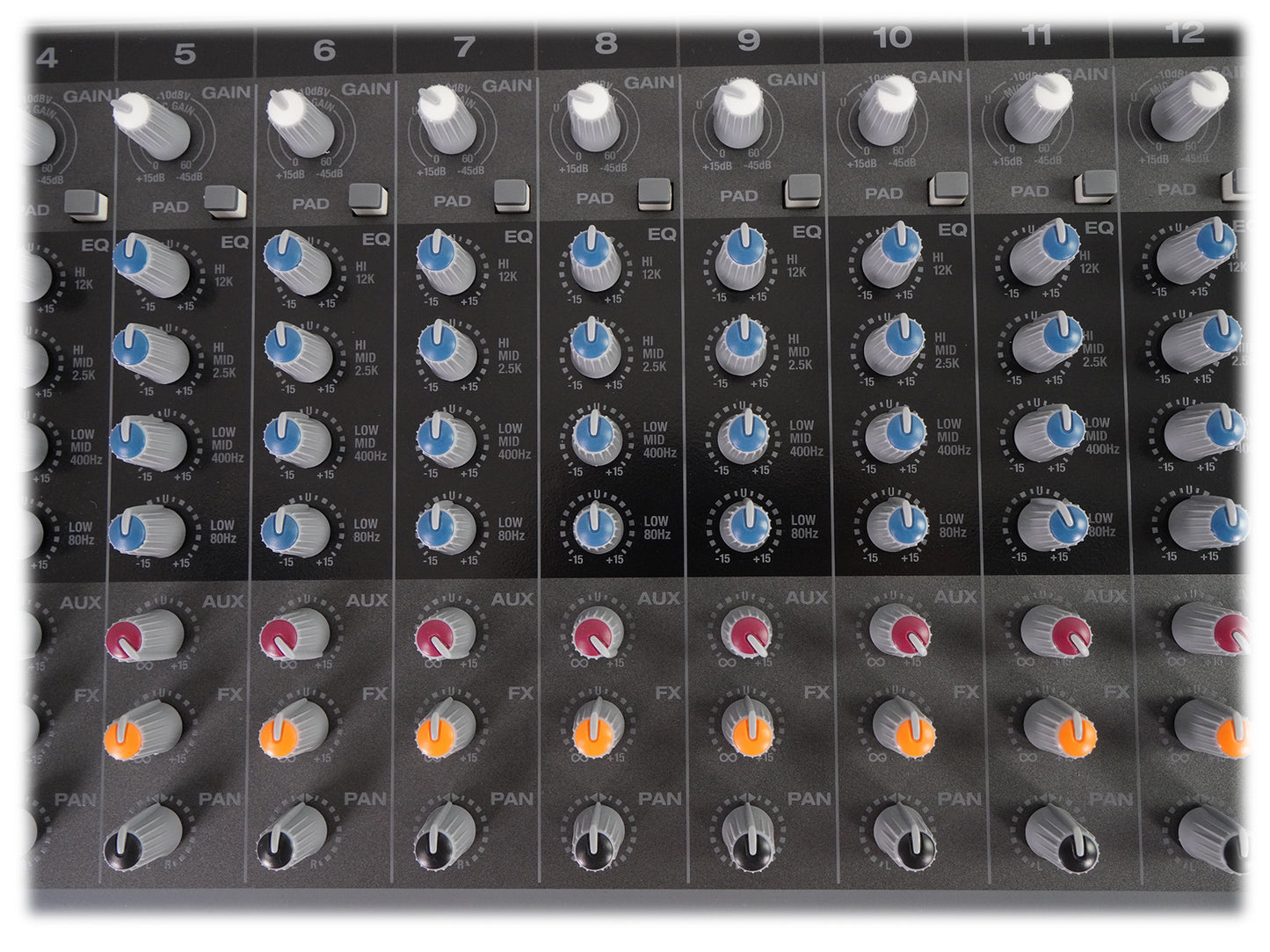

- 4-Band EQ (high, high-mid, low-mid, low) per channel

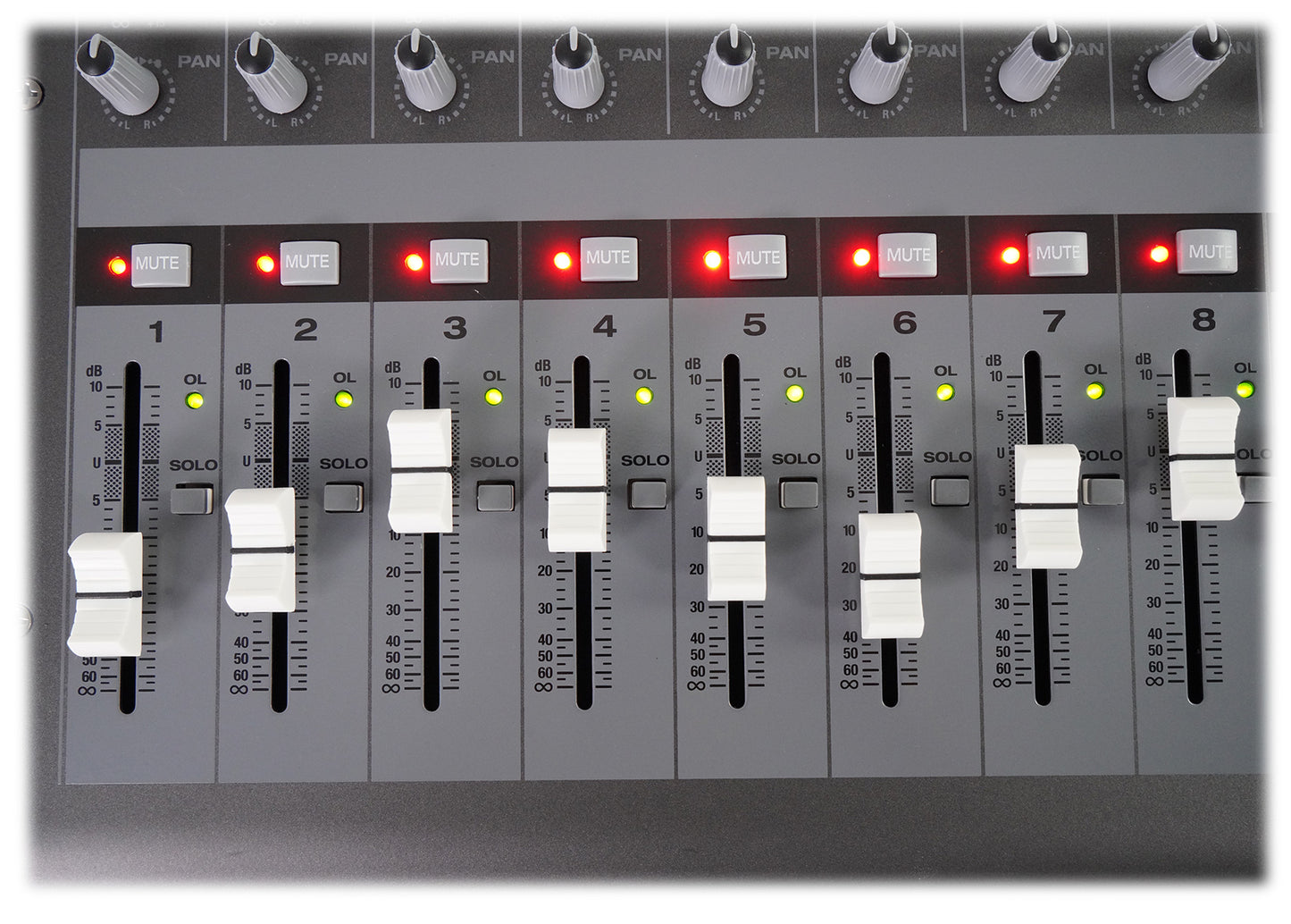

- Each channel is equipped with pad, mute, and solo buttons with LED’s
- Each channel has gain, aux control, FX control, Pan control, Volume control
- Peak LED indicator has a red LED that indicates a signal level that is 5dB below clipping

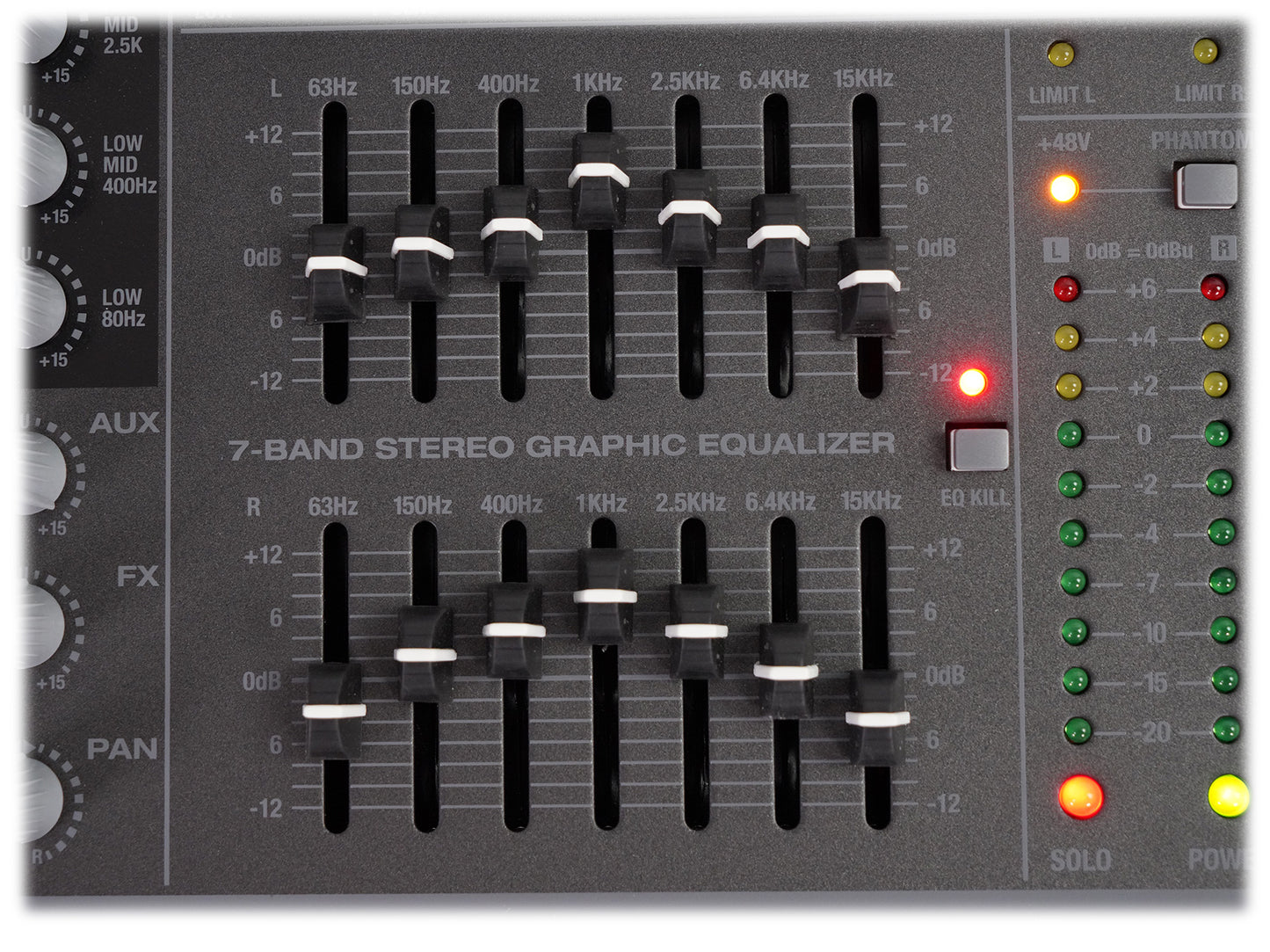

- Dual Stereo 7-band Graphic EQ allows for precise frequency correction of monitor and main outputs (with EQ kill switch)
- Aux send and Aux returns on every channel to connect all types of external effects and processors
- You can control your monitor mix and check levels through your headphones
- Limit L and Limit R LED indicators. These limiters are designed to go brighter as clipping gets stronger and will remain lit up until the channels stop clipping. We recommend lowering the gain if you see these LED’s lit up
- Power and Output level LED indicators
- Main output fader allows you to fade the sound between the left and right channel

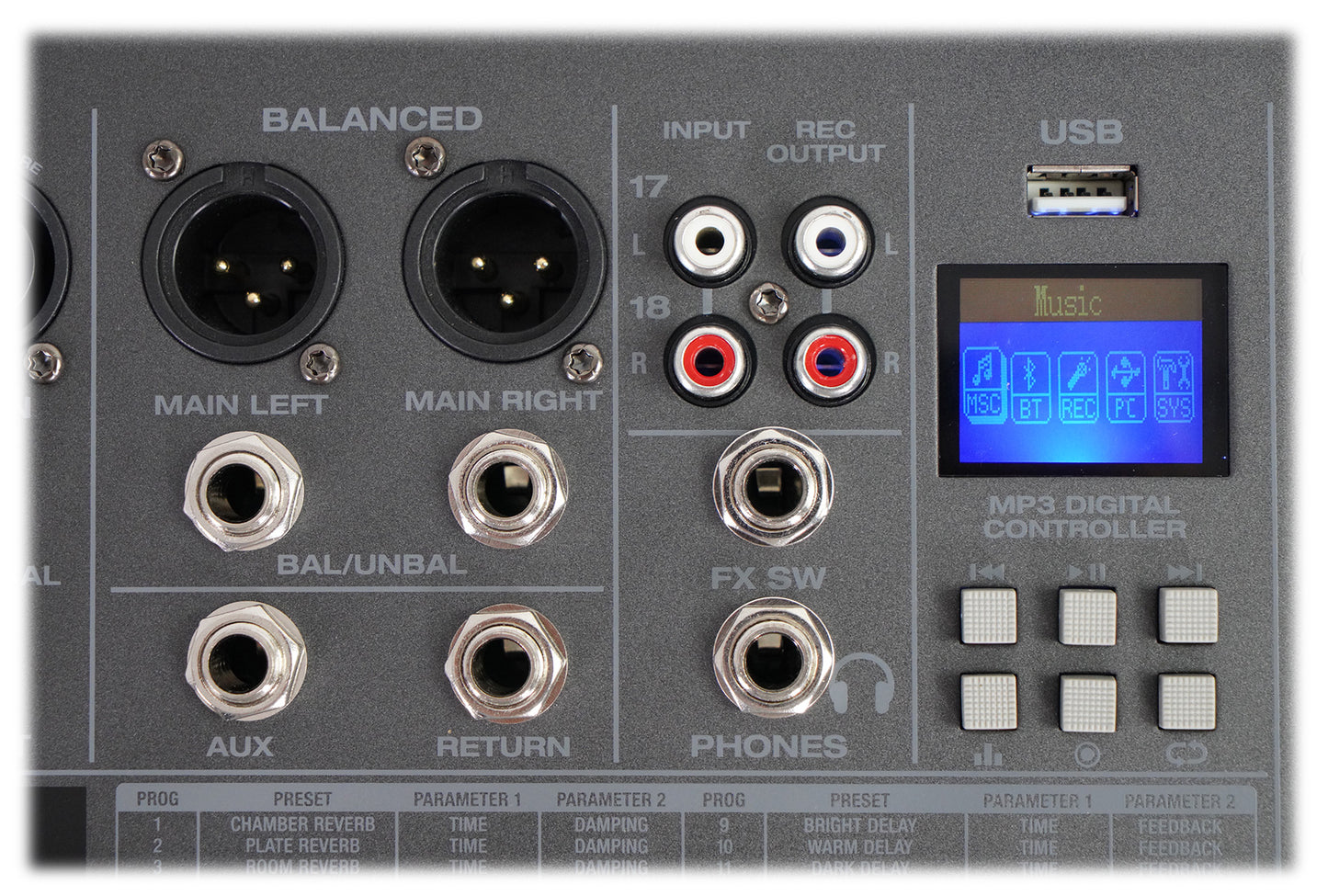

- RCA input, RCA output, and USB player
- Headphone jack for monitoring the master signal and individually monitoring each channel with PFL, L/R
- Gain control adjusts he sensitivity from -60dB to -20dB when the pad button is in the out position.
- When the pad button is pressed in the gain will adjust from 240dB to 0dB
- Solo button allows you to hear the signals through your headphones or to the control room without having to route them to the main mix. This works even with the fader turned down. You can use this to preview channels before they are let into the mix or just to check out a channel during a live performance. You can solo as many channels at a time as you want

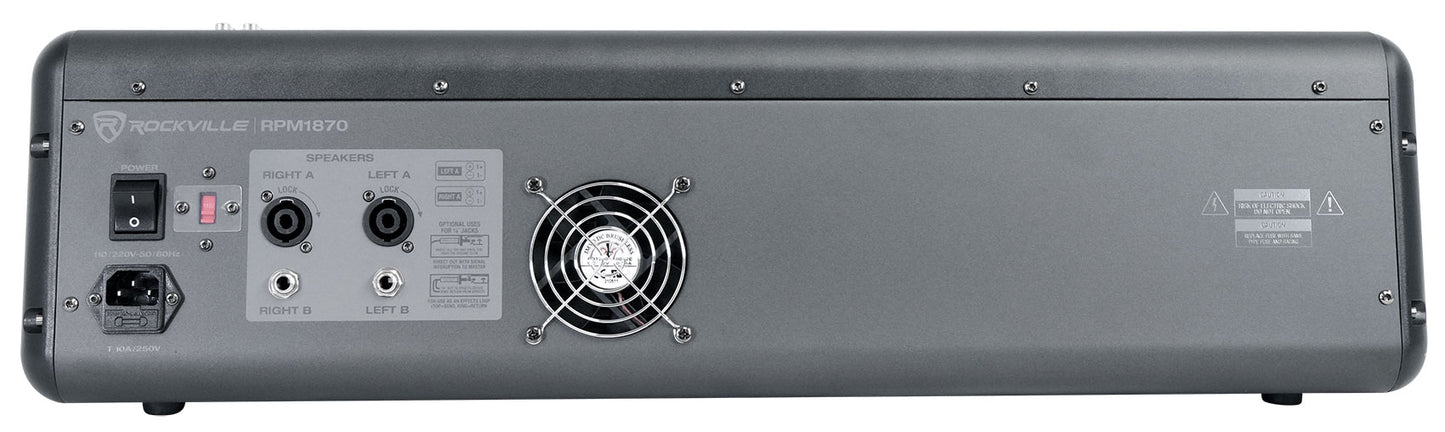

- Built in cooling fan and ventilation system
- USB input supports unlimited capacity (as many GB as you want)
- 110/220V switchable power supply
- Product Dimensions (L x W x H): 26.97” x 18.11” x 7.28” inches
- Weight: 33.07 Lbs.(15KG)
