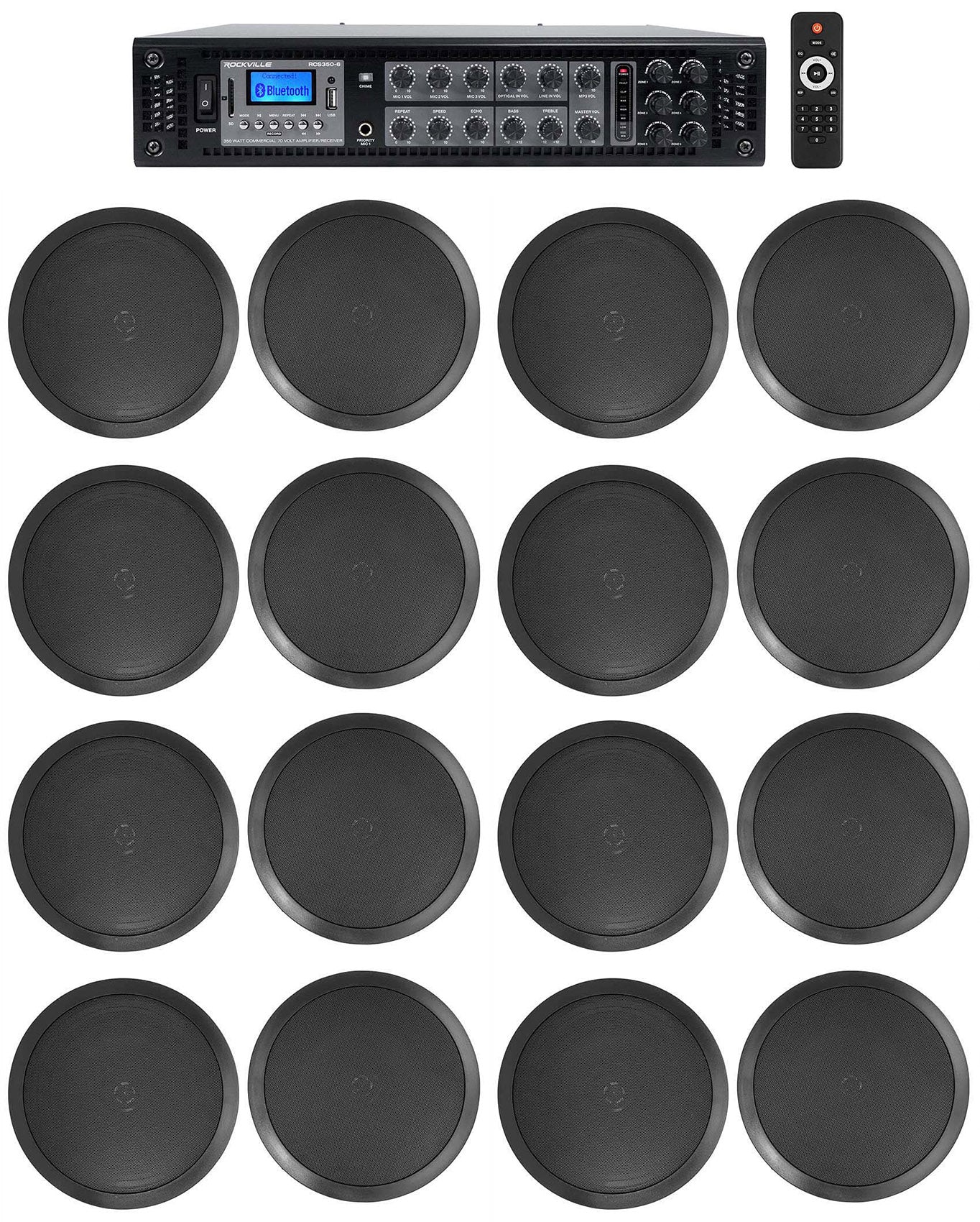

Rockville 6-Zone Amplifier+(16) 8" 2-Way Black Ceiling Speakers For Restaurant

SKU:
RCS350-6+(8) CC80T Black
$1,798.92 $839.55
(You save $959.37)
Enter your email address to be notified when this item is back in stock.
Condition:
New
Bundle:
Yes
KITCOMPONENTS:
24292, 14544
Custom_Condition:
BRAND NEW IN ORIGINAL PACKAGING

Warranty Information:

1 YEAR

New orders ship within 1 business day

Call for Expert Advice
Call now: 1-646-758-0144

Items included in this bundle

Package Includes:
  • (1) Rockville RCS350-6 350 Watt 6 Zone 70v Commercial/Restaurant Amplifier/Bluetooth
  • (8) Pairs of Rockville CC80T Black 8" Commercial 70v Ceiling Speakers For Restaurant/Bar

How to Set up Your RCS Series of Amplifiers:


Video of RCS350-6:

Includes:

  • Amplifier
  • Remote
  • Rack mount ears
  • Power Cable
  • FM Radio antenna
  • Owner’s manual
  • Warranty

Description:

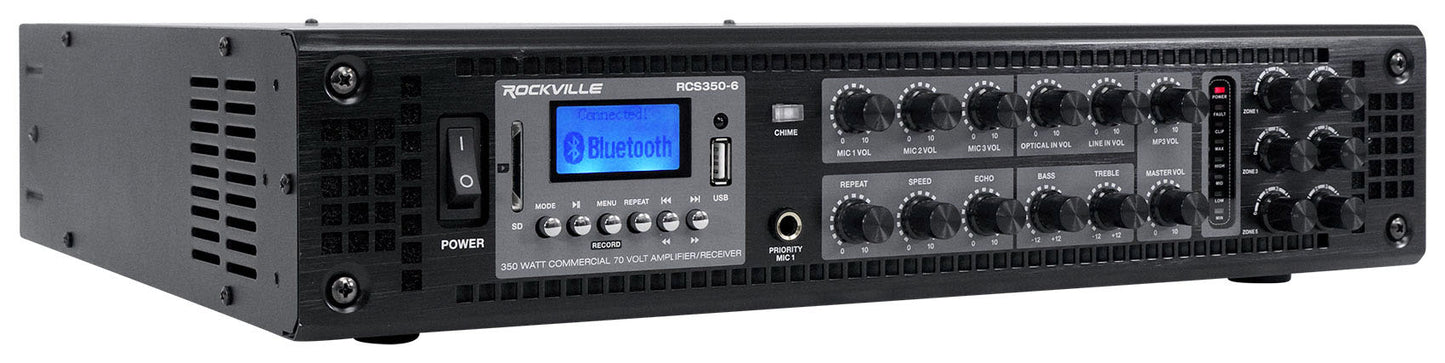

Rockville is proud to introduce our new RCS series of products. The RCS350-6 is a 350 Watt 6-zone rack mountable digital hybrid amplifier/receiver. This amplifier is capable of 70 volt, 100 volt, 8-ohm, and 4-ohm applications. This makes it perfect for use in a Restaurant/Bar/Café/Lounge/School/Conference room or any other setting where many speakers are needed.

This model offers 350 watts at 70 volt or 100 volt and the power can be split up into 6 zones. (Most professionals recommend you not exceed 80% of the amp power, so we recommend your speakers watt not to be more than 300 in total on the taps). Each zone can have the power split as your please. For example you can put all 300 watts into one zone with one volume control. Or you can have zone 1 with 100 watts, zone 2 with 100 watts and the rest of the zones with 25 watts each. Just add the total watts up to be under 350 and you are OK. No complex wiring required like with 8 ohm systems.

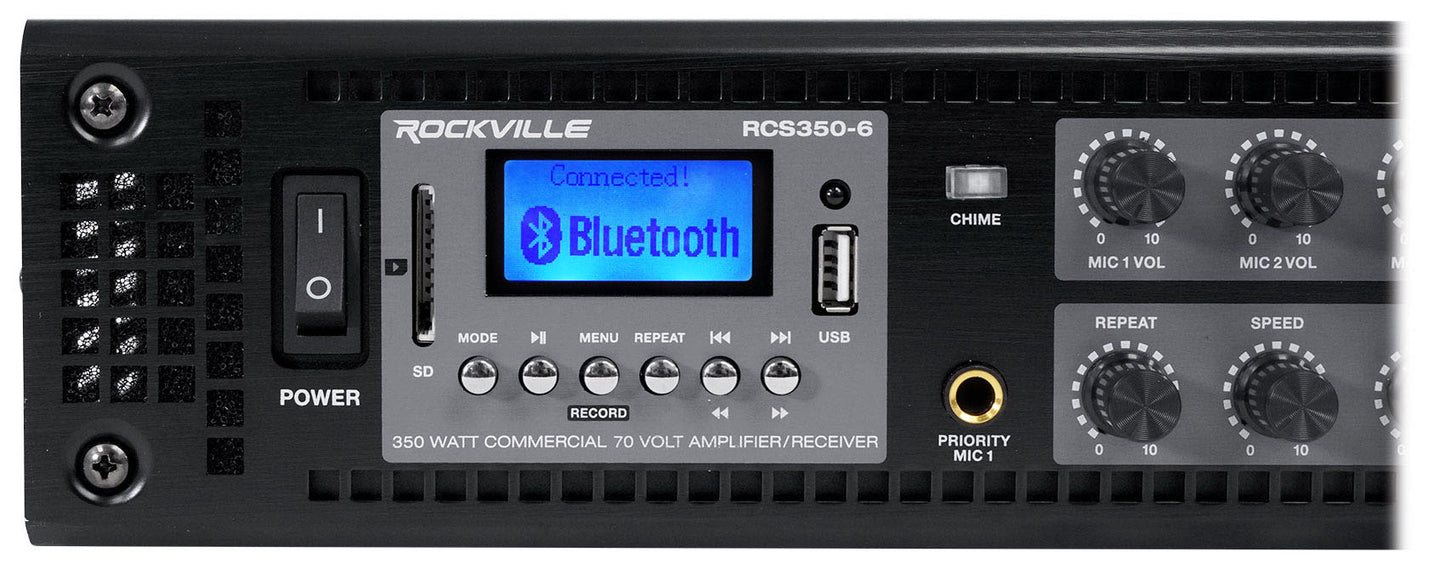

With 3 mic inputs; each with echo control, you can use this amplifier for announcements, speeches or even Karaoke night! This model also includes a chime button so you can create a chime sound before making announcements. The RCS series features Bluetooth audio streaming so you can play your favorite music or access a playlist right from your phone! This amp also features both USB and SD inputs allowing you to play audio stored on a USB thumb drive or SD Card. There are also 2-line inputs that allow you to plug in another audio device such as an MP3 player, CD player, TV, etc. This is our new and improved version that now has optical input so you can connect this to a digital source like a television or projector.

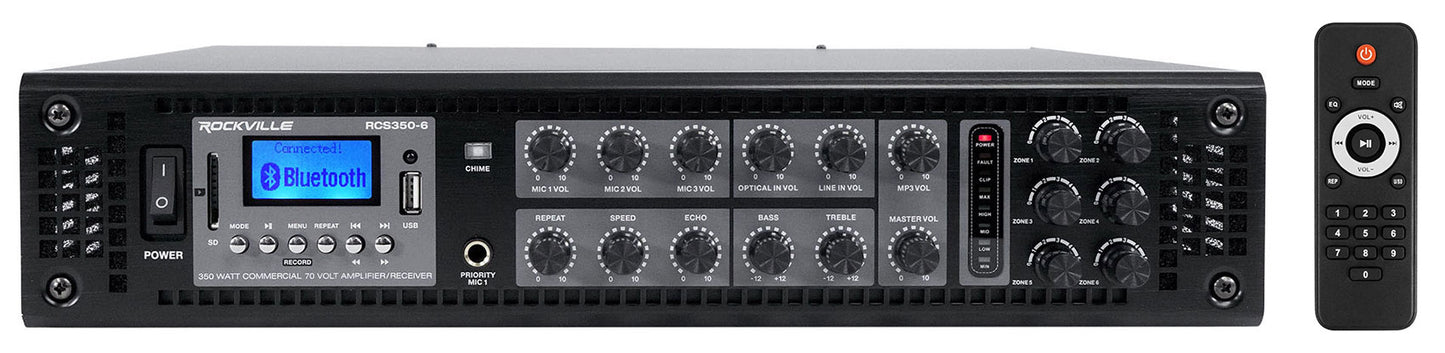

Individual volume knobs for each of the 6 zones and volume knobs for each of the 3 mic inputs gives you full control over your system.

The built-in clipping limiter function protects your speakers and the amp from overheating. For further protection there is also a cooling system in this amplifier that will keep the components running cool making the amplifier durable and reliable.

This is our new and improved version with euro-block speaker terminals that make it super easy to install the wires even if the receiver is hidden in a corner. The terminals are detachable and once you connect your speaker wire to the terminal it just clicks into the receiver.

Our goal with the RCS series was to make it possible for anyone to install 70 volt systems on their own without spending thousands of dollars on a contractor. This model makes it a breeze to connect many speakers and multiple external sources. We intentionally use common plugs like RCA and 1/4" on our model to make this more universal and user friendly. With our unique design you can feel confident in your DIY ability when installing our commercial system!

What is 70 volt ?

70 volt systems are the number one choice for any application where you want to install multiple speakers. With 70 volt there are a lot of advantages over 8-ohm systems. One of the main advantages is the simplicity of the wiring as well as how easy it is to match up speakers with the amplifier. For example, with this 350 watt / 70 volt amplifier, you can install speakers that total close to 300 watts. It does not matter if it is 20 speakers that are 15 watts each or 40 speakers that are tapped at 7.5 watts each. You always want your 70 volt amp to have at least 15 or 20% more power than the combined watts your speakers are tapped at. When we say the word tap, what we are referring to are the selectors that many speakers in 70 volt have on them. For example, some speakers might have selectable options of 1.5w, 3w, 5w, 10w. What this does is limit how many watts the built-in transformer on the speaker will allow the speaker to get from the amplifier. What this allows for is full customization of your sound for your space. In a restaurant for example you can tap your dining room speakers at 5 watts, the speakers by the bar area at 10 watts, the ones in the hallway at 3 watts and the speakers in the bathrooms at 1.5 watts. Another great feature with 70 volt is you can mix and match any 70 volt speakers whether they are ceiling speakers, wall mounted speakers, subwoofers, etc.

70 volt systems allow you to run very long lines of speaker wire without signal loss. This makes it ideal when running long speaker leads.

The wiring is simple. You just wire all the positive terminals of the speakers to the positive 70 volt terminals of the amplifier. The negative terminals on the speaker simply get wired to the negative terminals on the amp. You do not have to worry about impedance. The power is constant.

If you want an easy to use feature-rich 70 volt amplifier with a ton of power and 6 zones the Rockville RCS350-6 is your best choice!

Applications:

  • Restaurant
  • Bar
  • Café
  • School
  • Lounge
  • Home (Multi-zone, Multi-room)
  • Office
  • Warehouse

Features:

  • Rockville RCS350-6 350 Watt commercial/restaurant amplifier 19" rack mountable (removable rack brackets) digital hybrid amplifier/receiver
  • Capable of 70 volt, 100 volt, 8 ohm, and 4 ohm
  • 70/100 volt RMS Power: 355 Watts
  • 6-Zones – each zone has a separate volume control
  • Built in Bluetooth audio streaming
  • FM radio tuner
  • USB input to play audio stored on a thumb drive (32gb max)
  • SD card slot to play music stored on an SD Card (32gb max)
  • Separate volume control for MIC1, MIC2, MIC3, MP3, LINE1, LINE 2, and MP3
  • Echo control for the mic inputs with speed and repeat adjustments
  • Built in clipping limiter to protect the amp and speakers
  • BASS and Treble control
  • Detachable euro-block speaker output terminals for easy installation
  • Chime button for making announcements
  • Top quality aluminum panel with industrial grade knobs
  • 5 segments signal level indication
  • Built in cooling system keeps component cool at all times

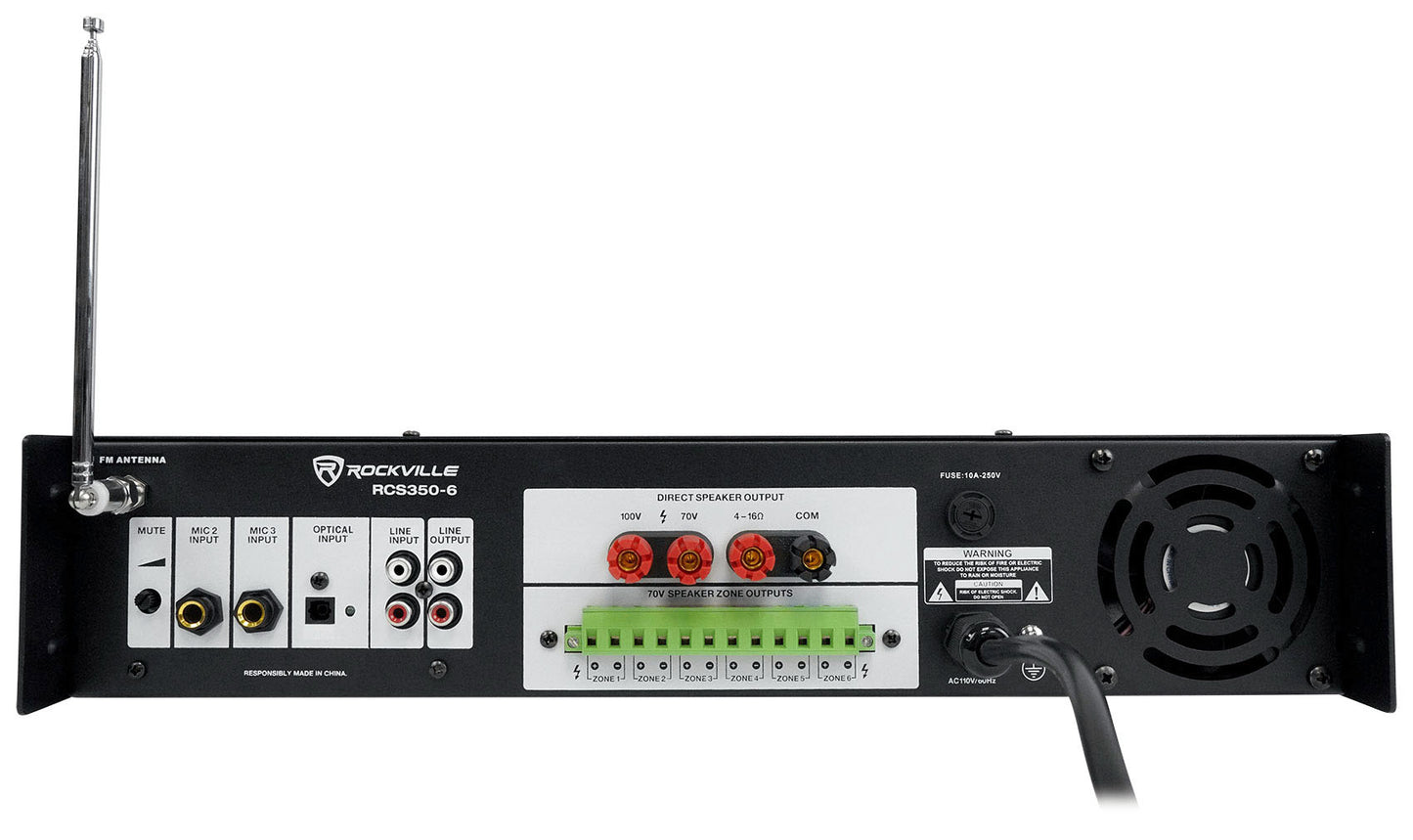

Inputs and Outputs:

  • (2) Sets RCA AUX inputs
  • (3) Mic inputs
  • RCA Line output
  • Optical input
  • Detachable euro-block speaker output terminals for easy installation
  • 100V speaker red positive speaker output terminal
  • 70V speaker red positive speaker output terminal
  • 8 Ohm red positive speaker output terminal
  • Shared negative speaker output terminal

Specifications:

  • Power Requirements: 120V / 50-60Hz
  • A Weighted Signal to Noise (@ 1W) -68.1dBA
  • A Weighted Signal to Noise (referenced to full 4 ohm power) -89.2dBA
  • Frequency response: 49Hz to 14.9 Khz
  • Frequency Response VS THD+M (worst case across normal bandwidth 1W @ 8 Ohms: 0.89%
  • Weight: 22.7lbs
  • Dimensions: 19” x 16” x 4” inches

Owner’s Manual


How to Set up Your CC65T and CC80T:
Video of CC80T:



Description:

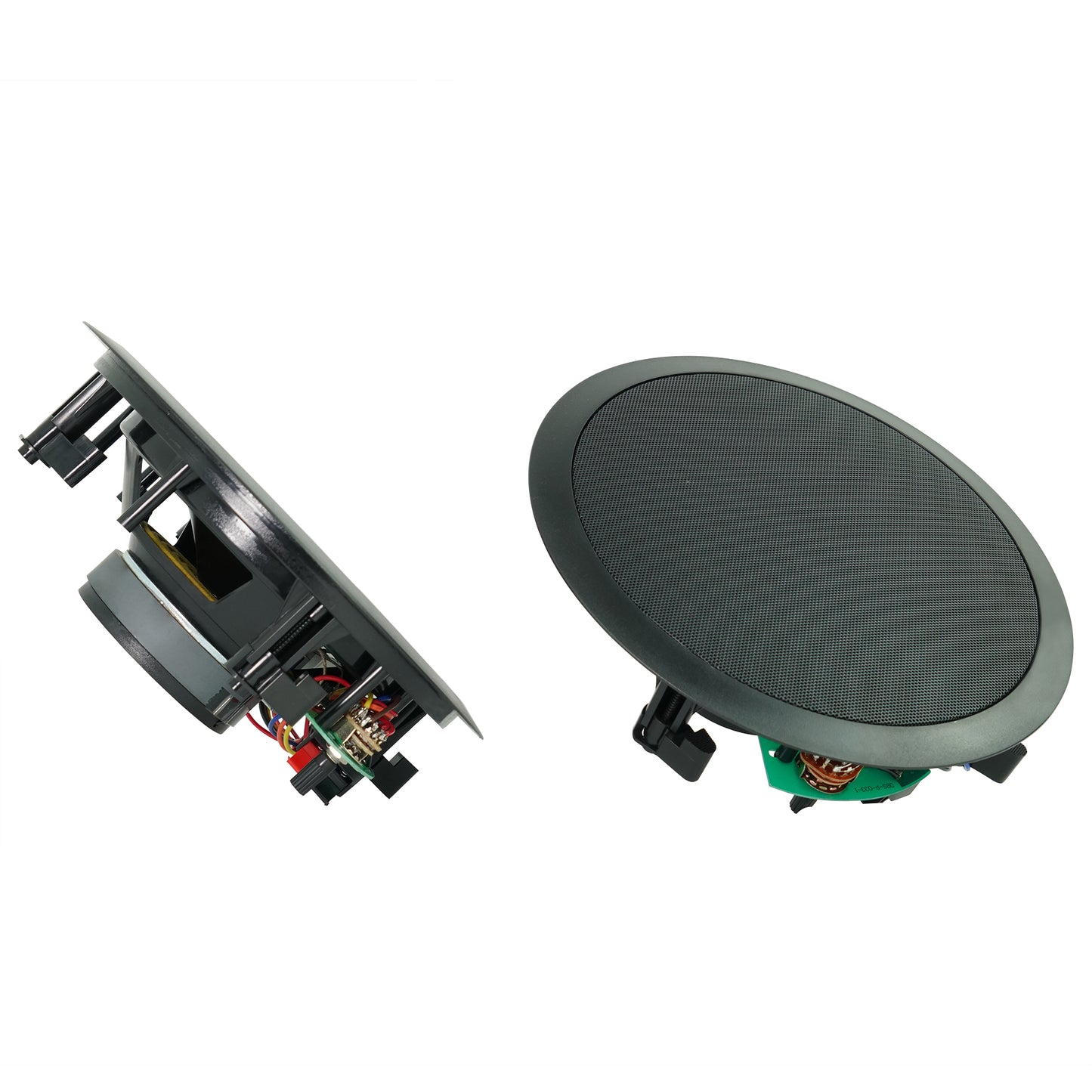

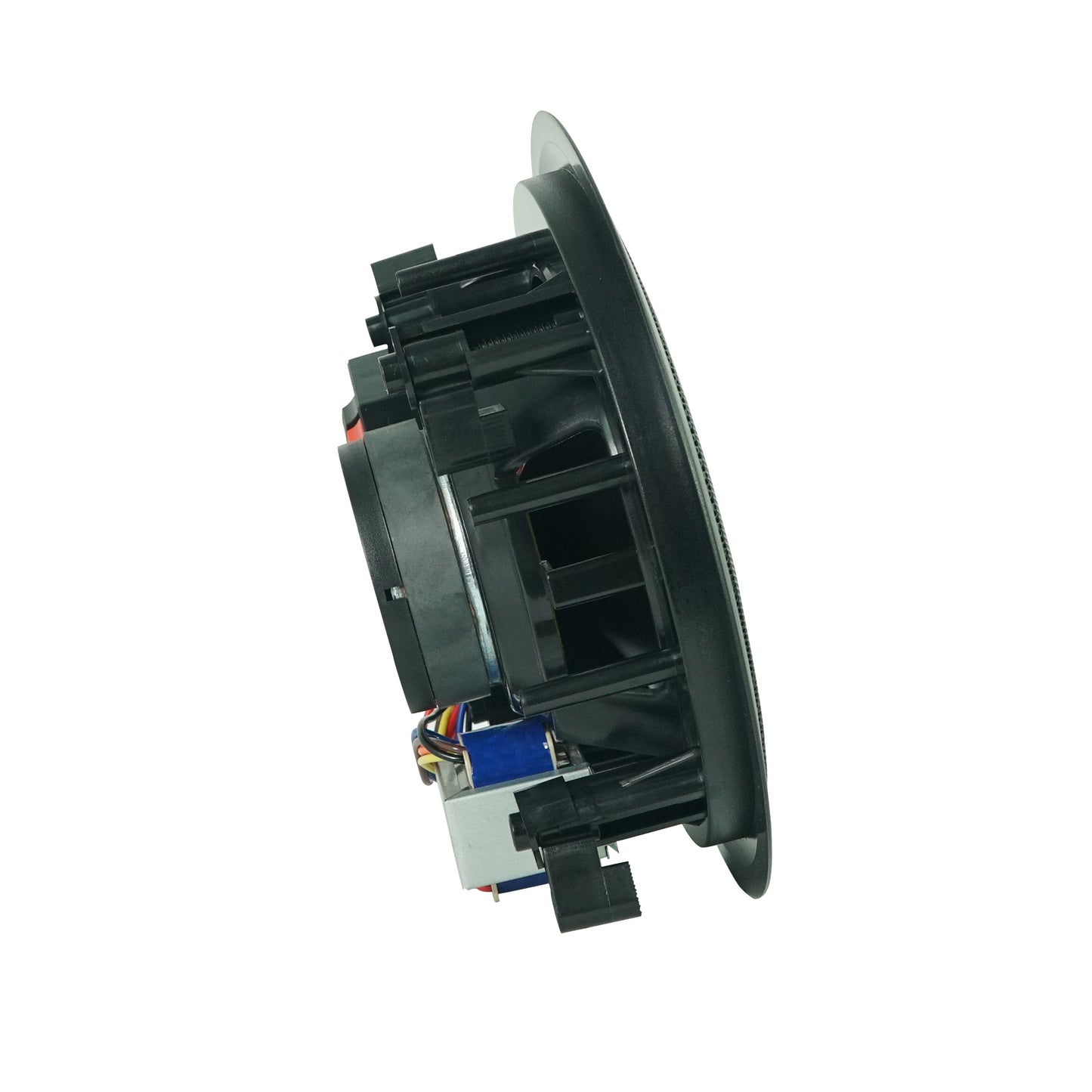

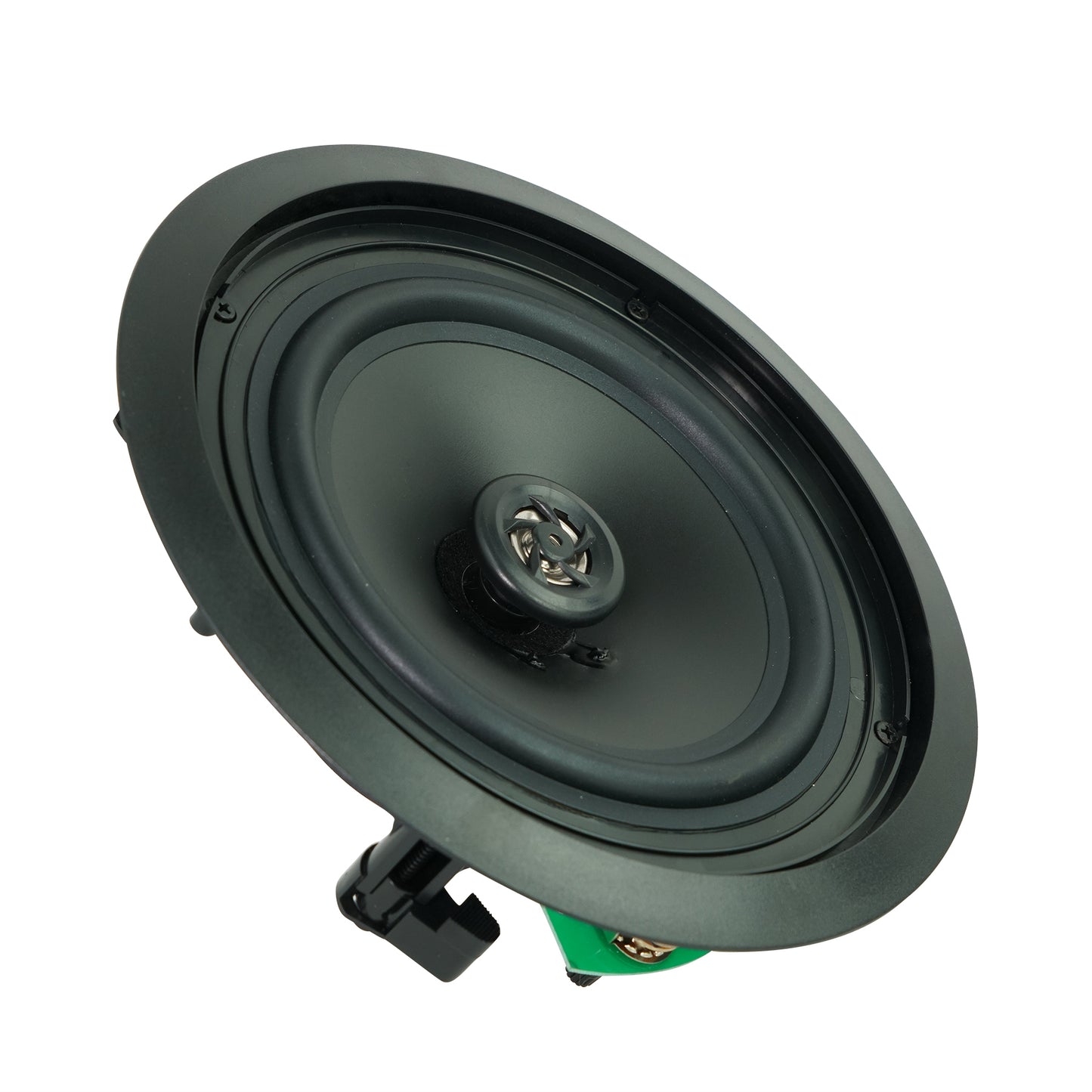

The CC80T are perfect for any commercial application where you want to get amazing sound quality out of your music and have the ability to crank the volume really loud. It will obviously still handle your PA announcements and chimes, etc. We took a high quality home theater speaker and added 70 volt technology to it to give you the best of both worlds. With a selectable tap wattage that ranges from 2.5w all the way to 20w these speakers are great for any commercial application.

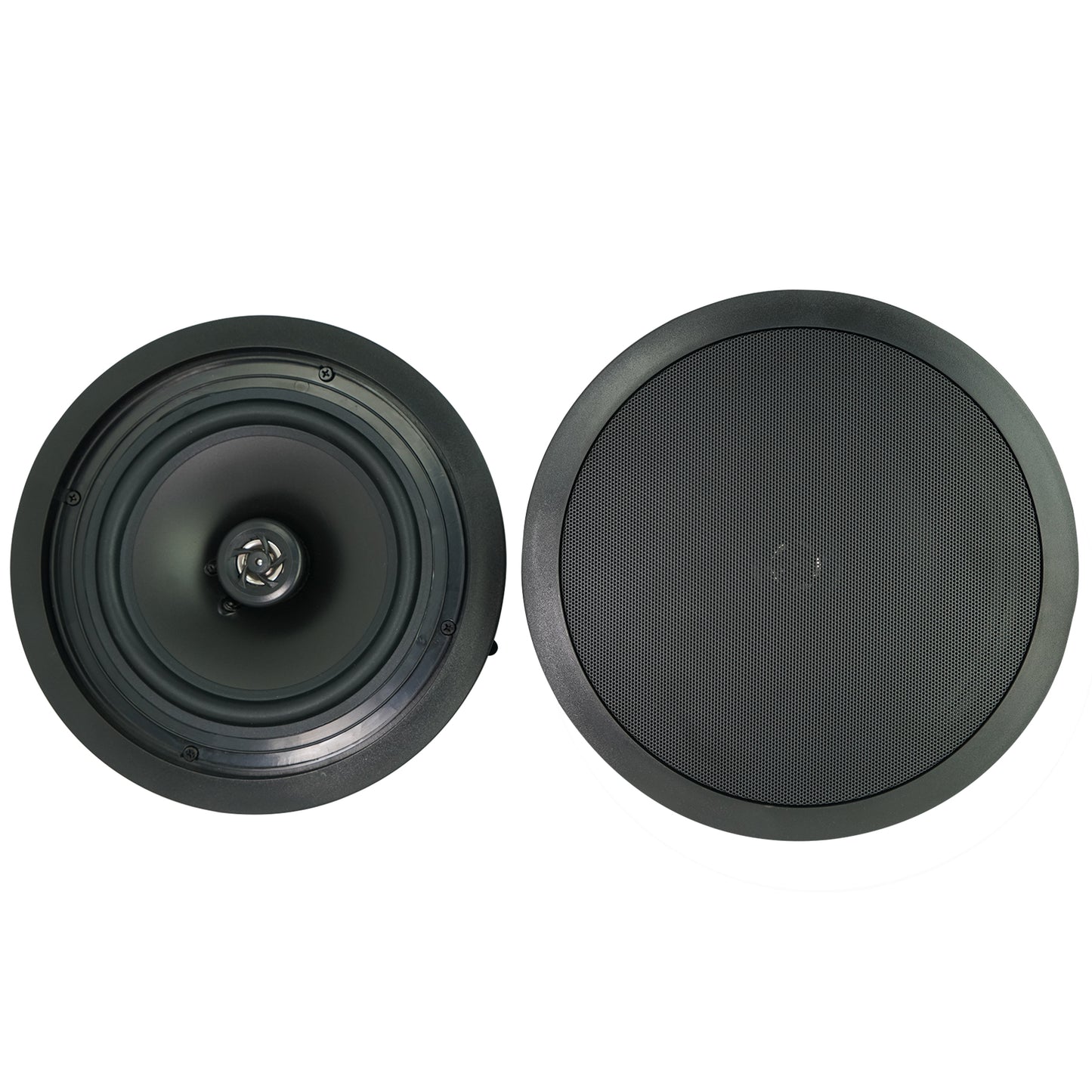

These ceiling speakers are precision tuned for excellent audio response at high and low volumes. If you want good musical sound you really need a 2-way speaker with a dedicated tweeter for highs and a dedicated woofer for lows. These in-ceiling speakers feature a 8” polypropylene woofer cone for clear, rich mids and deep bass. Our mylar dome tweeter provides clean, crisp highs. The included sheer grill enables flush installation and can be painted to match any décor. Our high quality spring loaded push terminals make your wiring very secure.

Features:

  • Pair of Rockville CC80T Black 8” Commercial 70v In-Ceiling Speakers for Restaurant/Bar/Cafe
  • 70V Power Options:
  • 20w
  • 15w
  • 10w
  • 5w
  • 2.5w
  • Polypropylene Cone
  • Rubber Surround
  • 8” Woofer
  • 1” Aluminum Voice Coil
  • ½” Mylar Dome Tweeter
  • 20 oz. Ferrite Magnet
  • High Quality Spring Loaded Push Terminals
  • Aim-able Swivel Tweeter
  • Paintable Flush Mount Grills
  • Frequency Response: 40Hz – 20KHz
  • Sensitivity: 90dB @ 1w / 1m
  • Impedance: 8 Ohms
  • Mounting Depth: 3.03”
  • Cut-out Diameter: 9.3”
  • Color: Black (paintable)

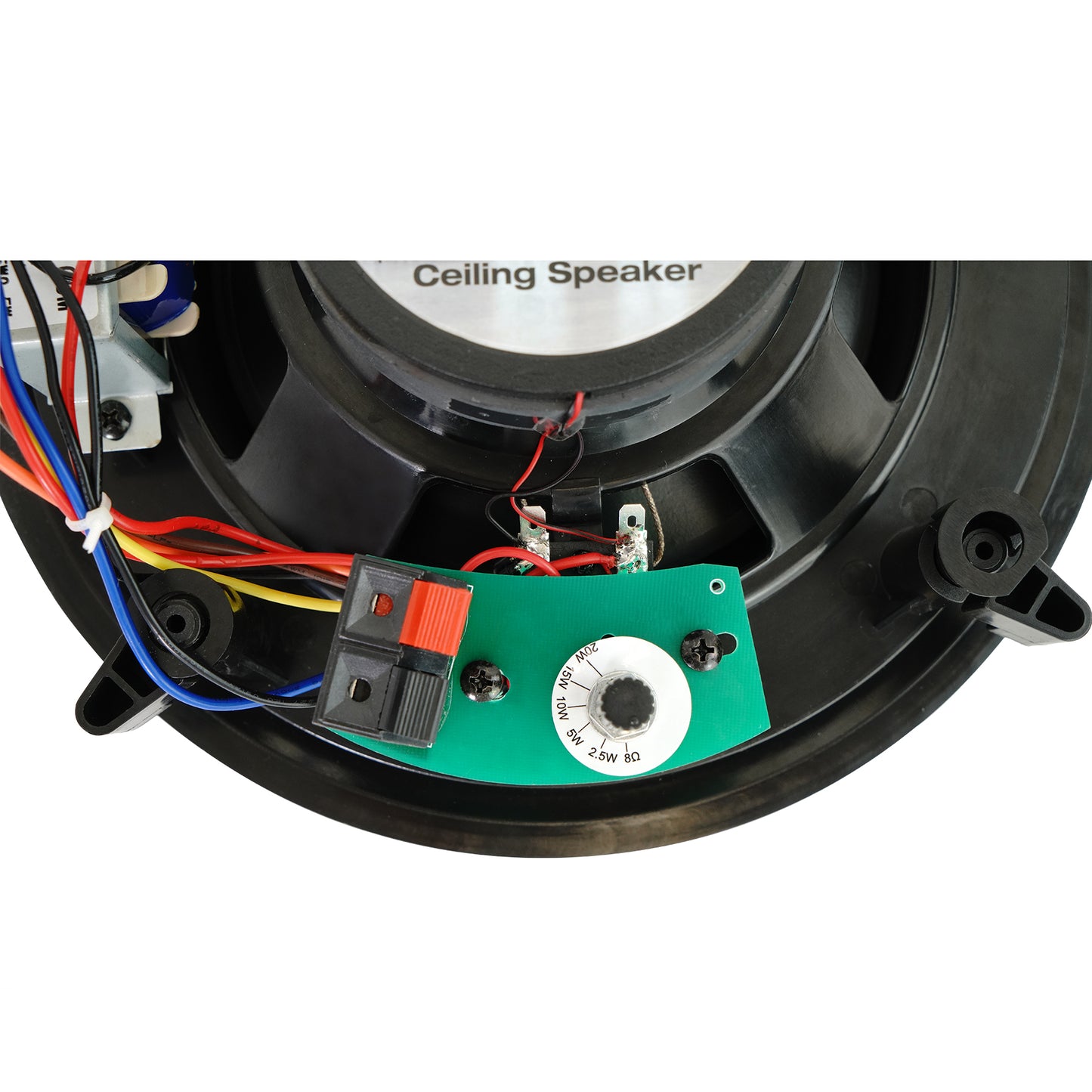

There is a tap switch on the speaker syou can easily select how many watts you want the speaker tget from the amp.



70V Power Options:

  • 20w
  • 15w
  • 10w
  • 5w
  • 2.5w
8 Ohm power handling:
  • 50w

What is 70 volt ?

70 volt systems are the number one choice for applications where you want t install many speakers. With 70 volt there are a lot of advantages over 8-ohm systems. One of the main advantages is the simplicity of the wiring as well as how easy it is to match up speakers with the amplifier. For example, you can buy one 70V amplifier with 150 watts and you can install speakers that total around 120 watts. It does not matter if it is 12 speakers that are 10 watts each or 24 speakers that are tapped at 5 watts each. You always want your 70 volt amp t have at least 15 to 20% more power than the combined watts your speakers are tapped at.

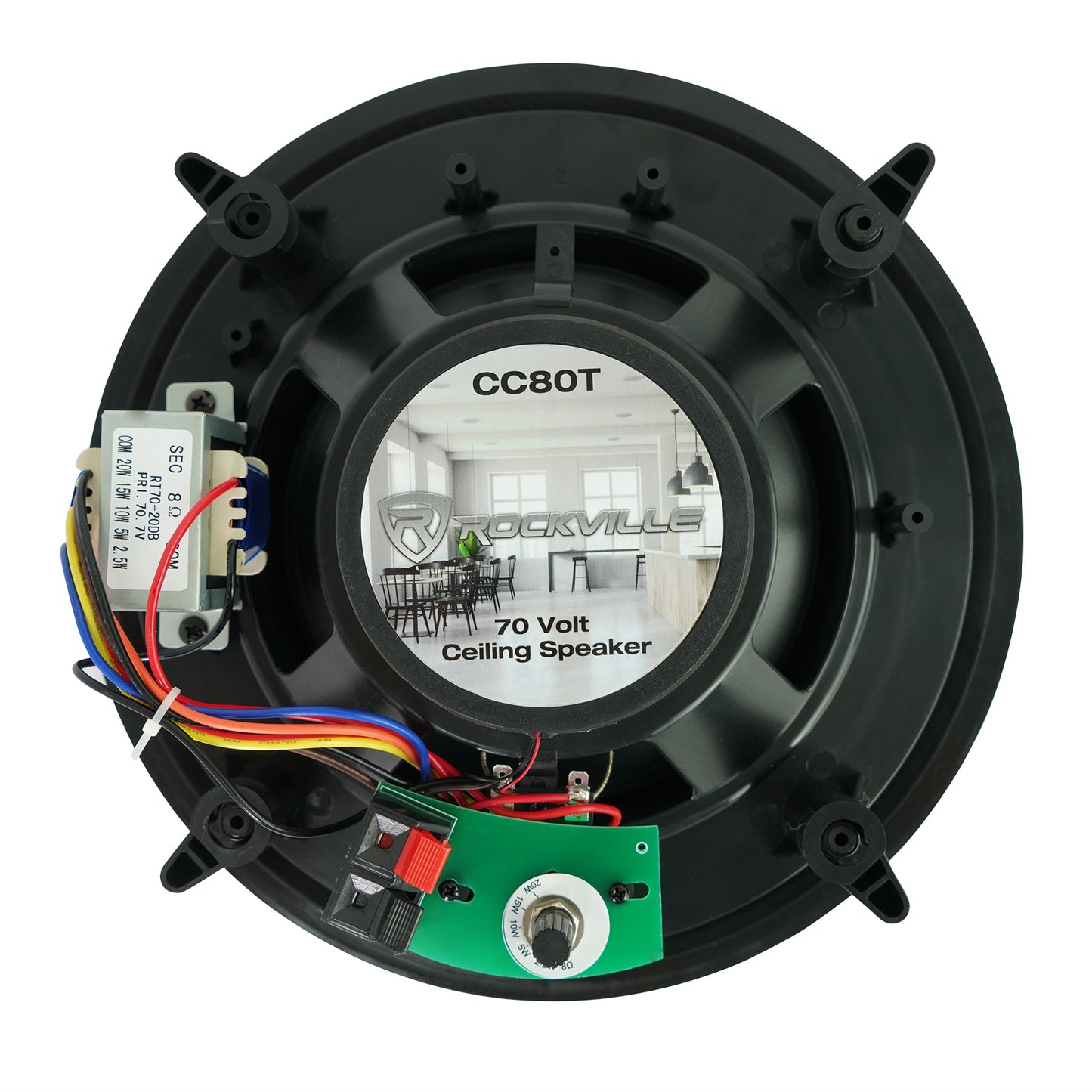

When we say the word tap, we are referring to the switch that is located on the rear of these speakers where you can select how many watts you want the speaker to play. What this does is limit how many watts the built-in transformer on the speaker will allow the speaker to get from the amplifier. This gives you full customization over the sound for your space. In a restaurant for example you can tap your dining room speakers at 6 watts, and the hallway or bathroom speakers at 3 watts.

Another great feature with 70 volt is you can mix and match any 70 volt speakers whether they are ceiling speakers, wall mounted speakers, subwoofers, etc. 70 volt systems allow you to run very long lines of speaker wire without signal loss. This is ideal when running long speaker leads.

The wiring is simple. You just wire all the positive terminals of the speakers tthe positive 70 volt terminals of the amplifier. The negative terminals on the speaker simply get wired to the negative terminals on the amp. You do not have to worry about impedance. The power is constant.

Owner’s Manual
