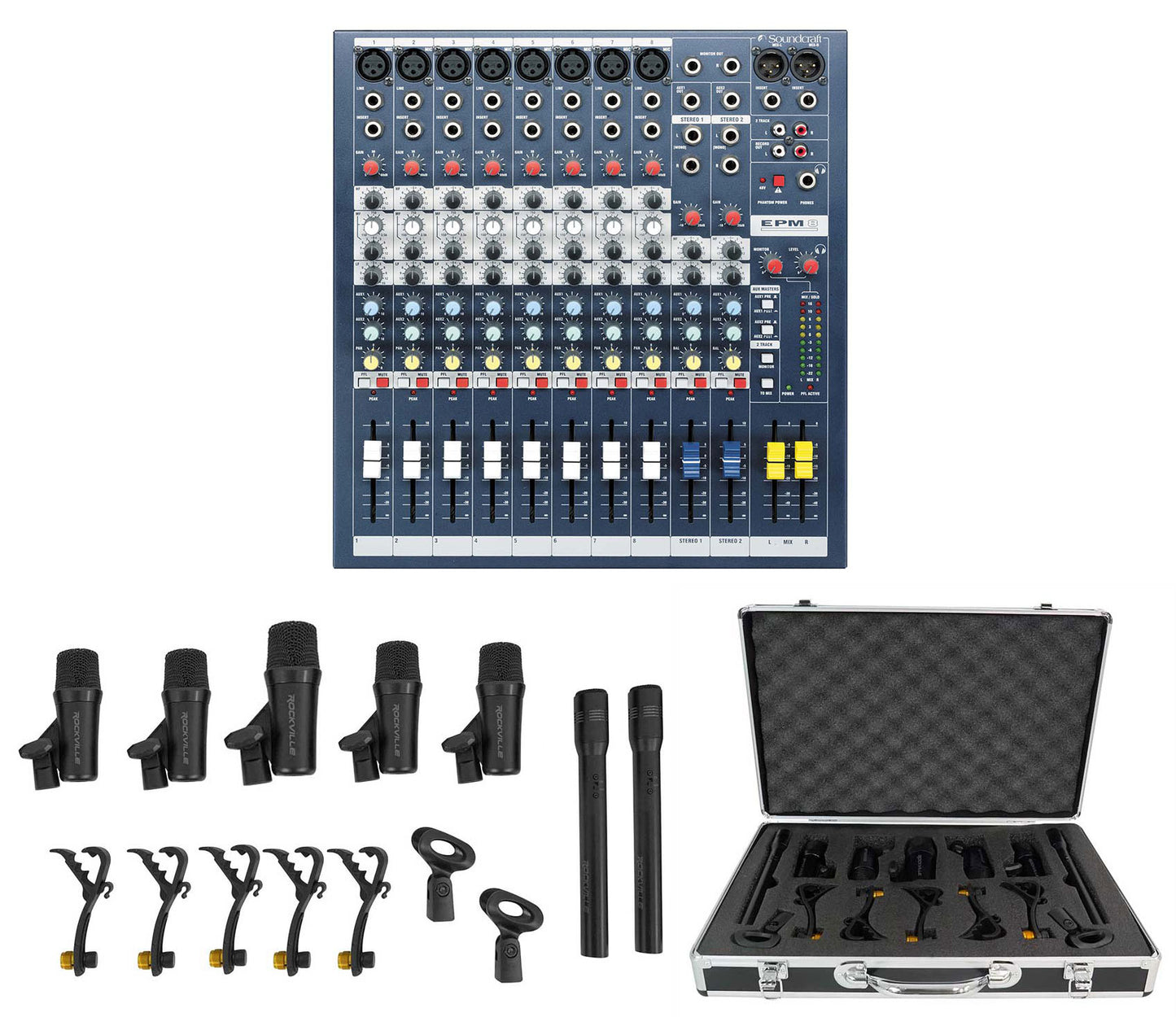

Package Includes:

• (1) Soundcraft EPM8 8 Mono+2 Stereo Channel 2 Bus Recording/Live Mixer Console EPM 8
• (1) Rockville PRO-D7 KIT 7 Mic Drum Kit w/Bass+Snare+Condenser Overhead Microphones

---

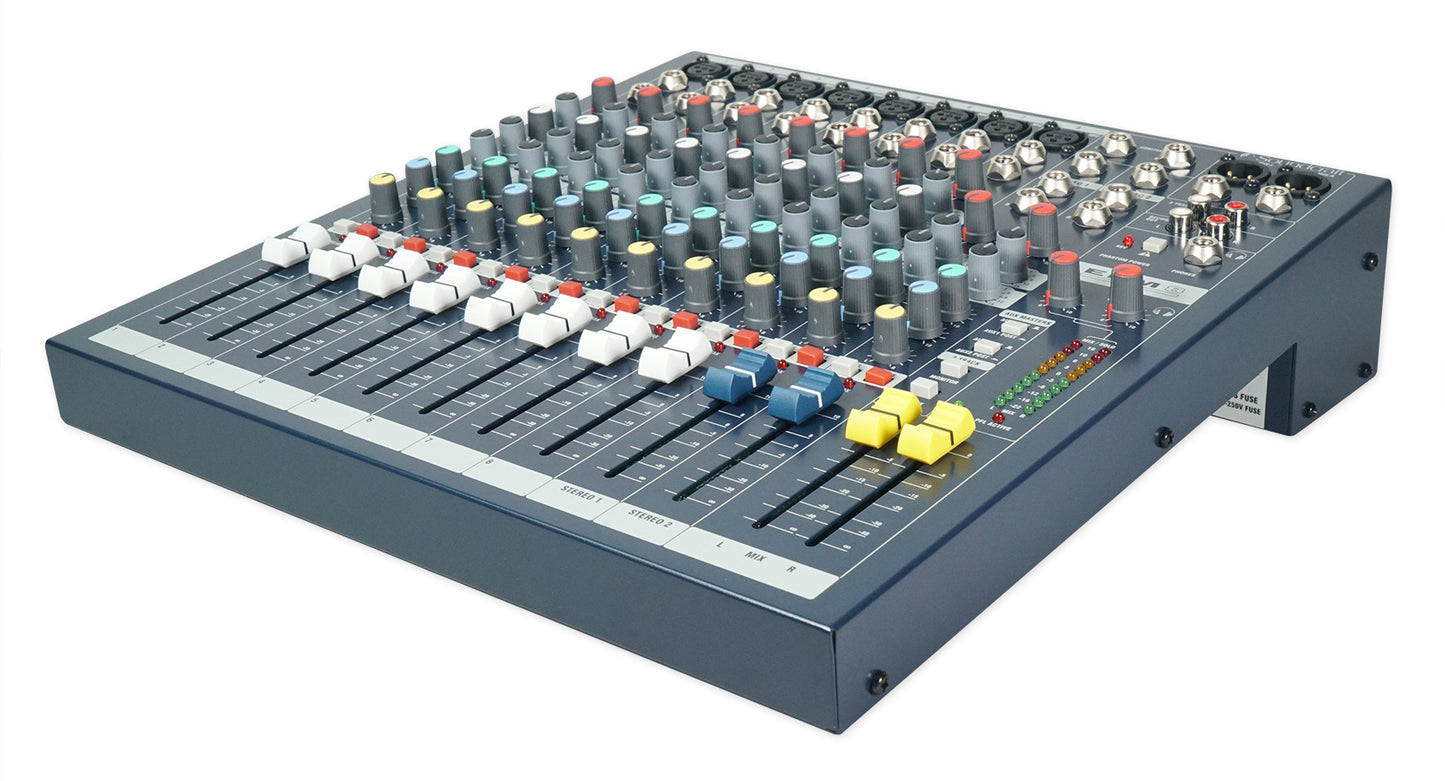

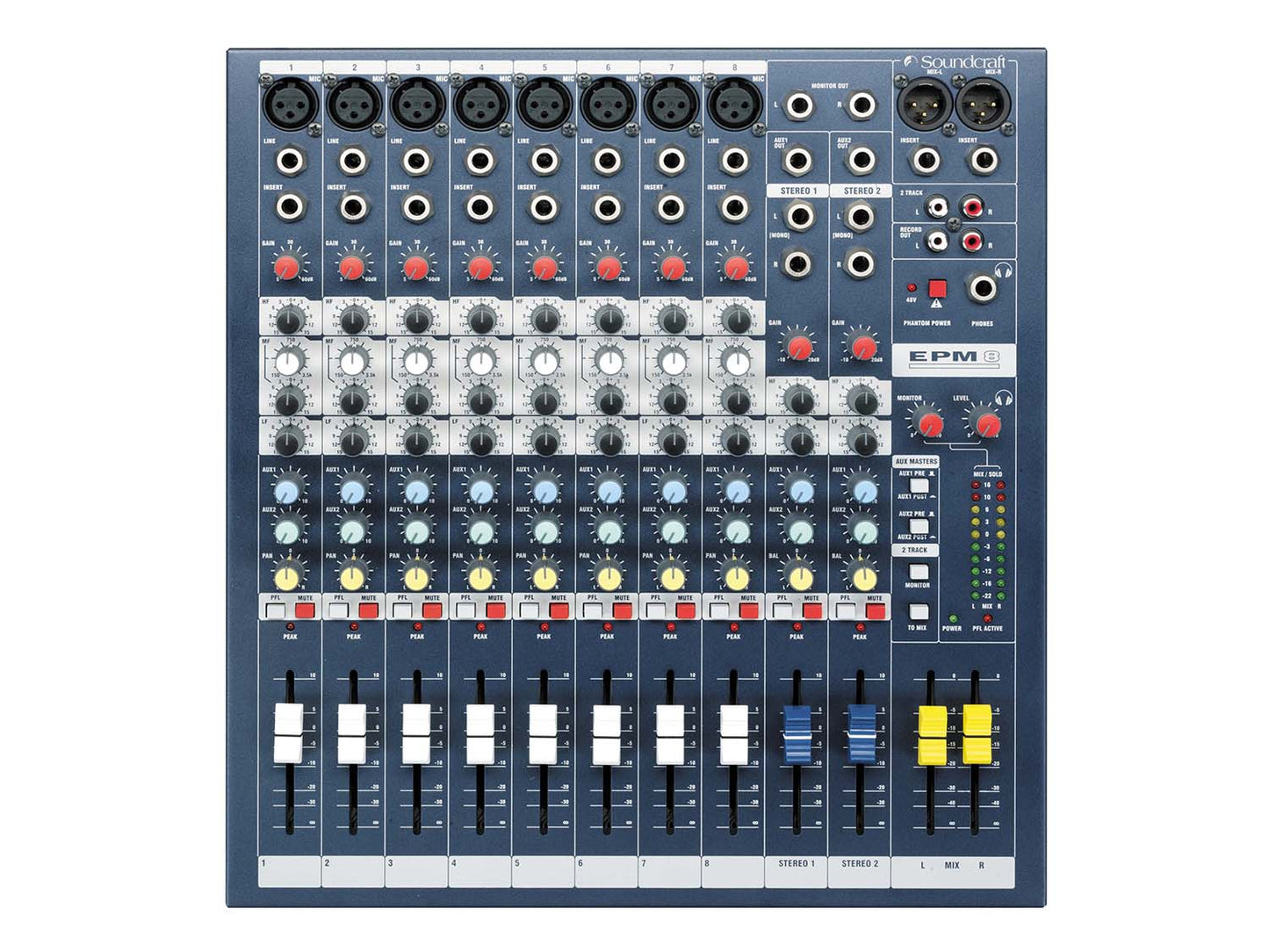

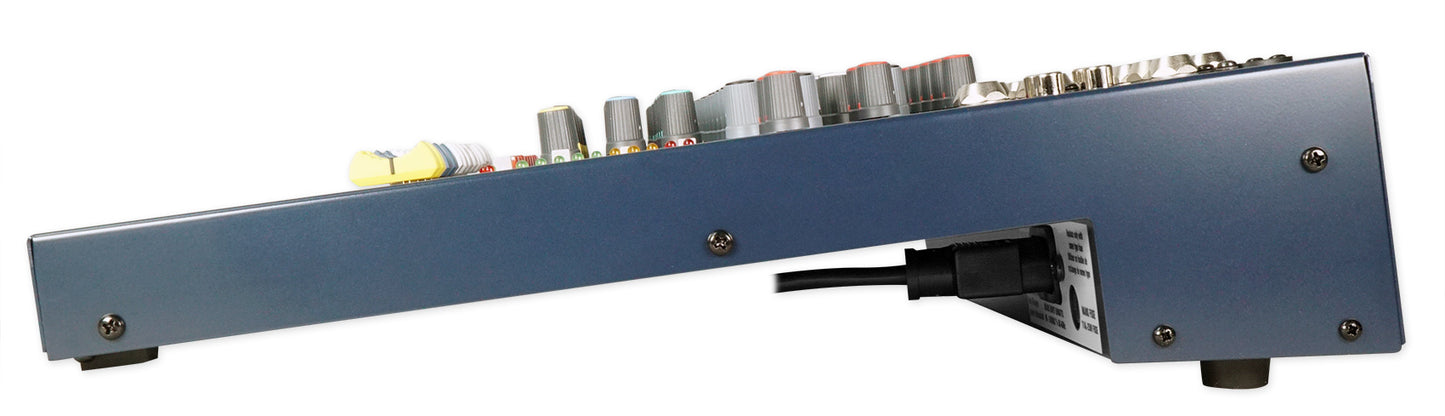

Description of EPM8:

The emphasis with the Soundcraft EPM is very firmly on quality build and audio performance, with an easy to understand control surface uncluttered by unnecessary facilities, and Soundcraft have brought new technologies and ideas to this very cost-effective range. Surface mount technology is used throughout, using close-tolerance components for high accuracy and repeatable settings for EQ and gain controls.

The highly-transparent GB30 Mic amp (designed by Graham Blyth for the company’s 30th anniversary, and also used on the larger LX7ii and GB Series consoles) features high-resolution adjustment over a wide gain range of 55dB, and provides a stunning +22dB headroom through the console. True professional 48-volt phantom power caters for condenser microphones of all types.

A unique feature of the signal monitoring is the PEAK led. This uses multipoint signal take-offs to watch for overload in several parts of the channel strip, and the led lights more brightly as the signal approaches the peak point. For smooth and accurate channel control, the EPM has 60mm high quality faders as used on other Soundcraft desks. The monitor output and headphone output work in parallel so that performers can still listen on phones while an engineer is listening on studio monitors.

Features:

• Soundcraft EPM8 8 Mono+2 Stereo Channel 2 Bus Recording/Live Mixer Console EPM 8
• 2 configurable auxiliary buses

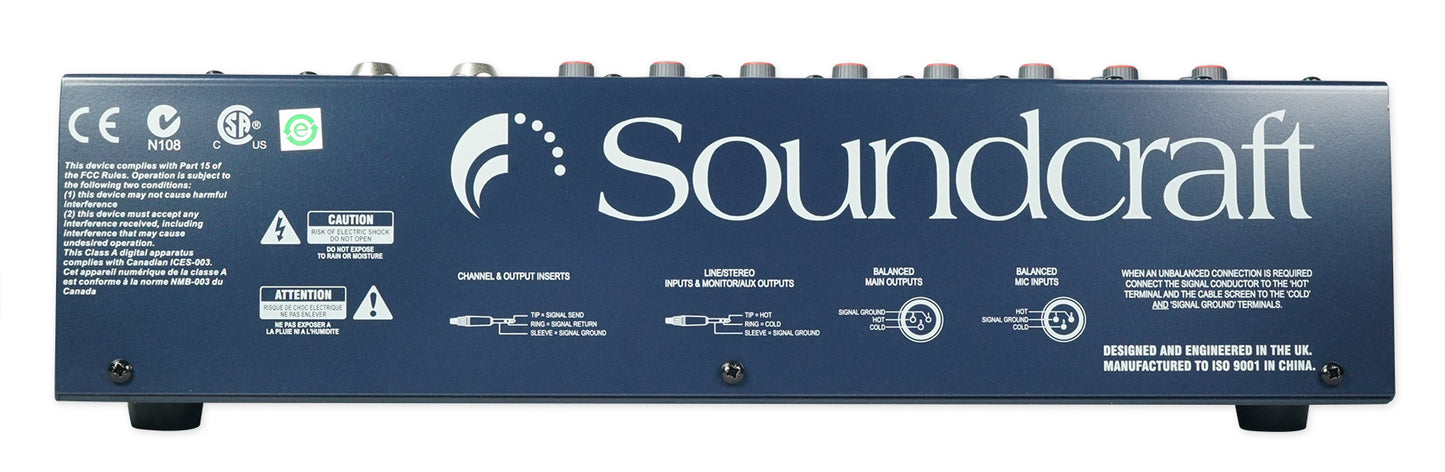

• XLR-type and ¼” metal jack connector sockets
• RCA phono stereo playback inputs and record outputs
• 3-band EQ with a swept mid on mono inputs
• 2-band EQ on stereo inputs
• TRS insert sockets and inserts on all mono inputs and mix output
• Ten-segment LED output metering
• Intuitive and comprehensive solo system
• Headphone output
• Easily rack mountable
• The Soundcraft EPM will find itself in many applications including live music, recording, houses of worship and multi-speaker installations.

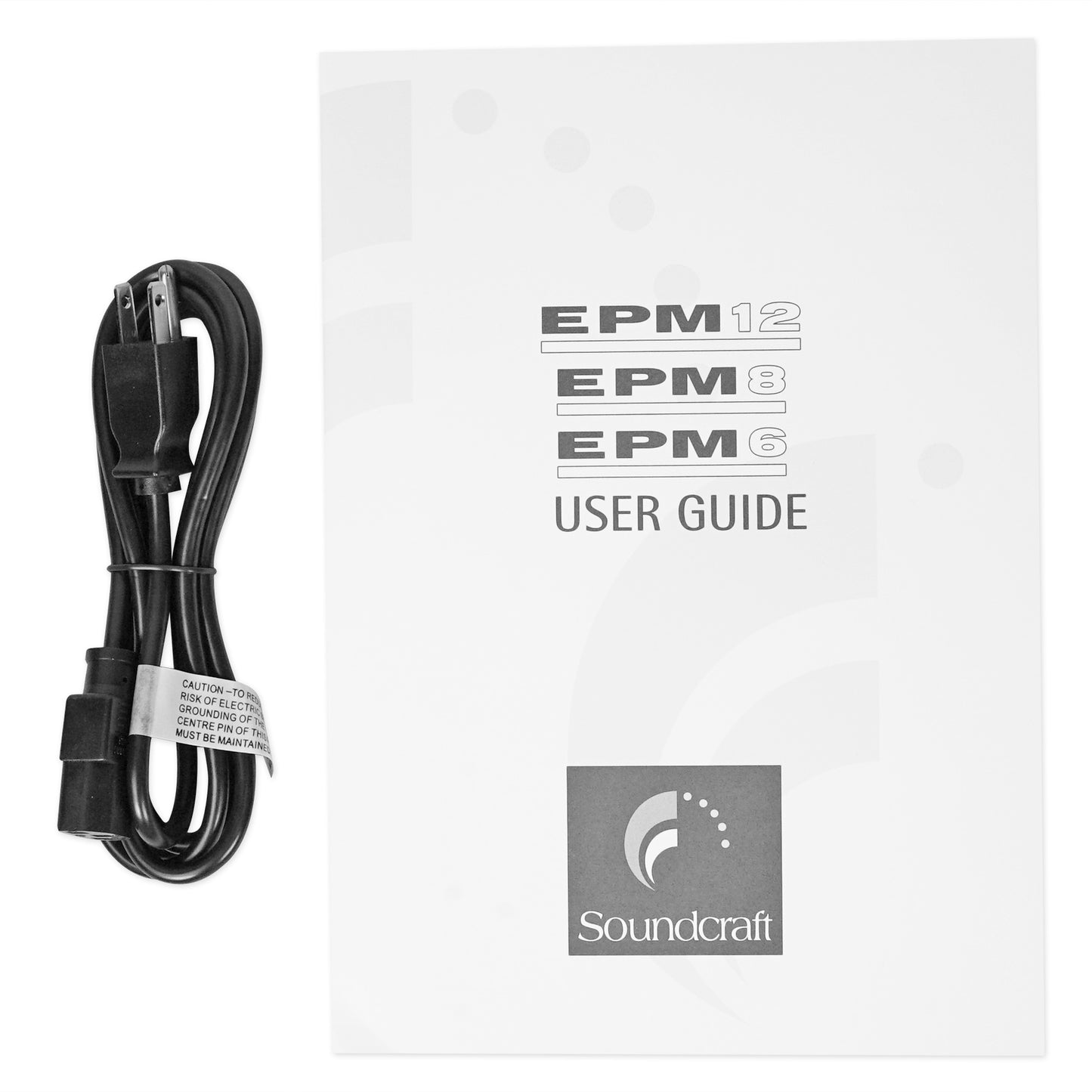

Owner's Manual

---

HOW To Set Up Your PRO-D7 KIT:

Video of PRO SERIES DRUM Microphones:

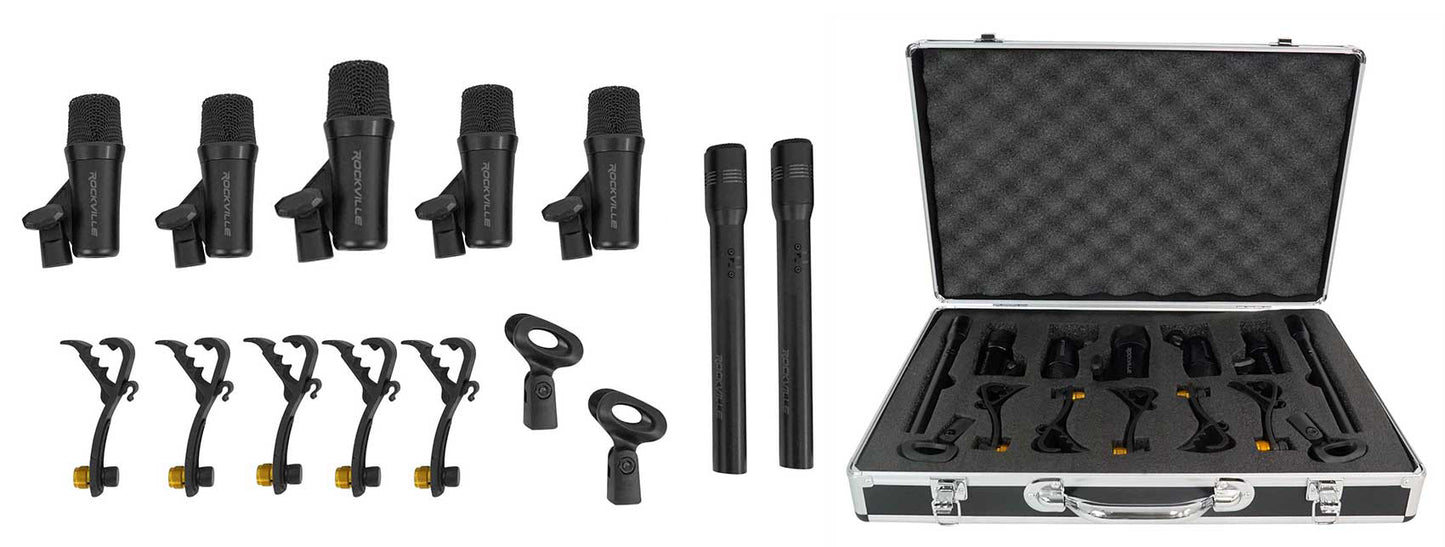

What’s Included:

• (1) Bass drum mic
• (4) Snare drum mics
• (2) Overhead condenser mics

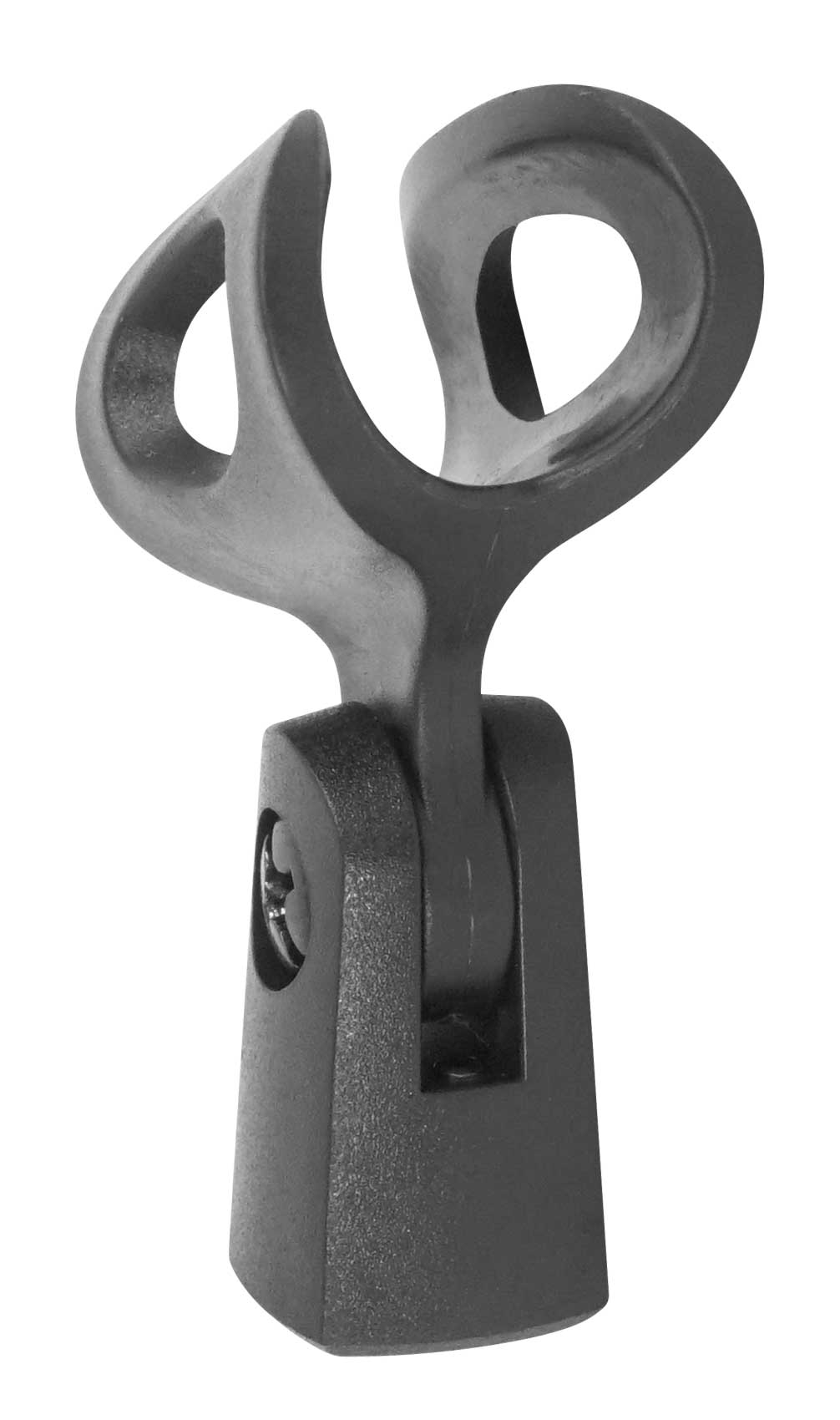

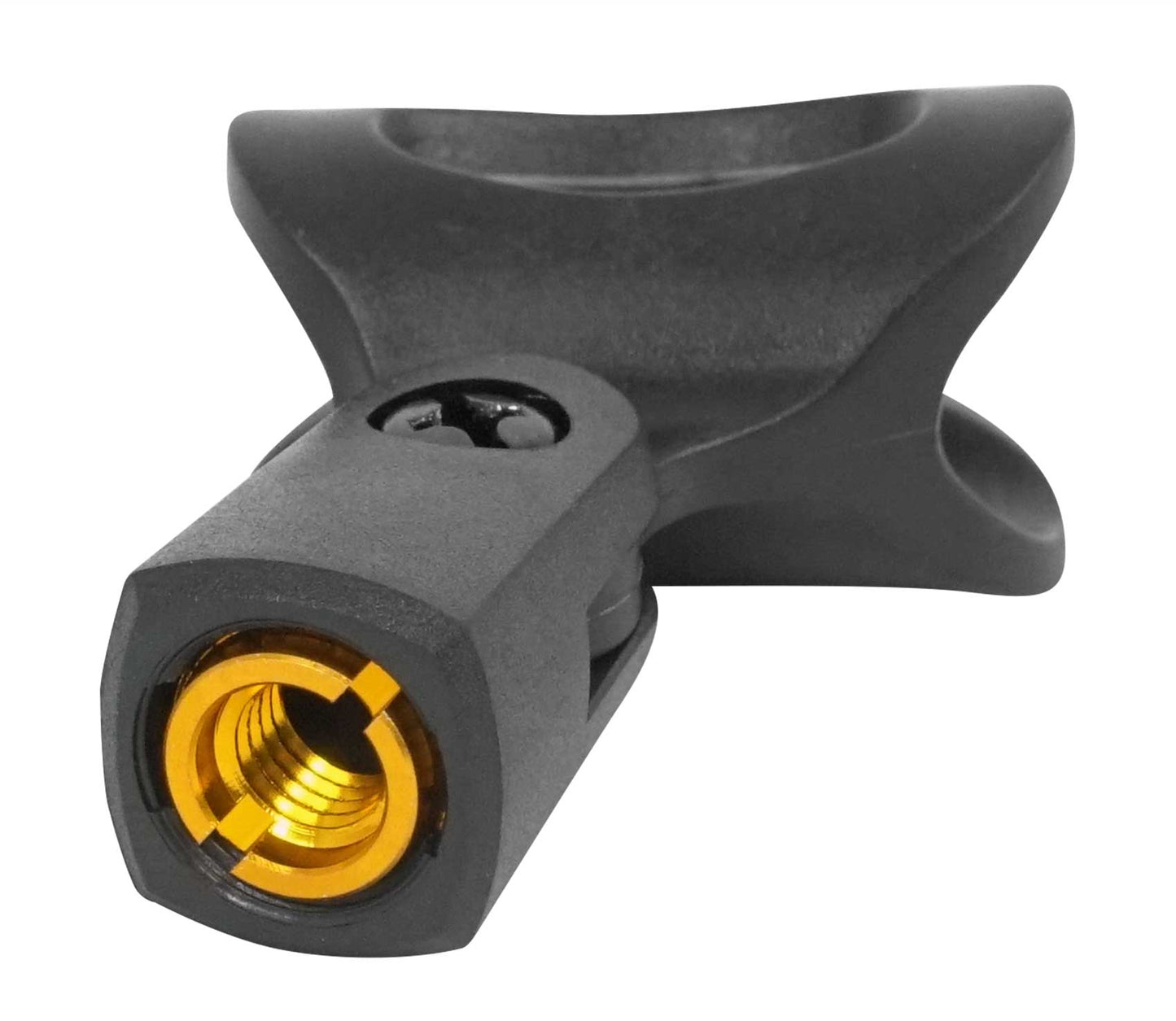

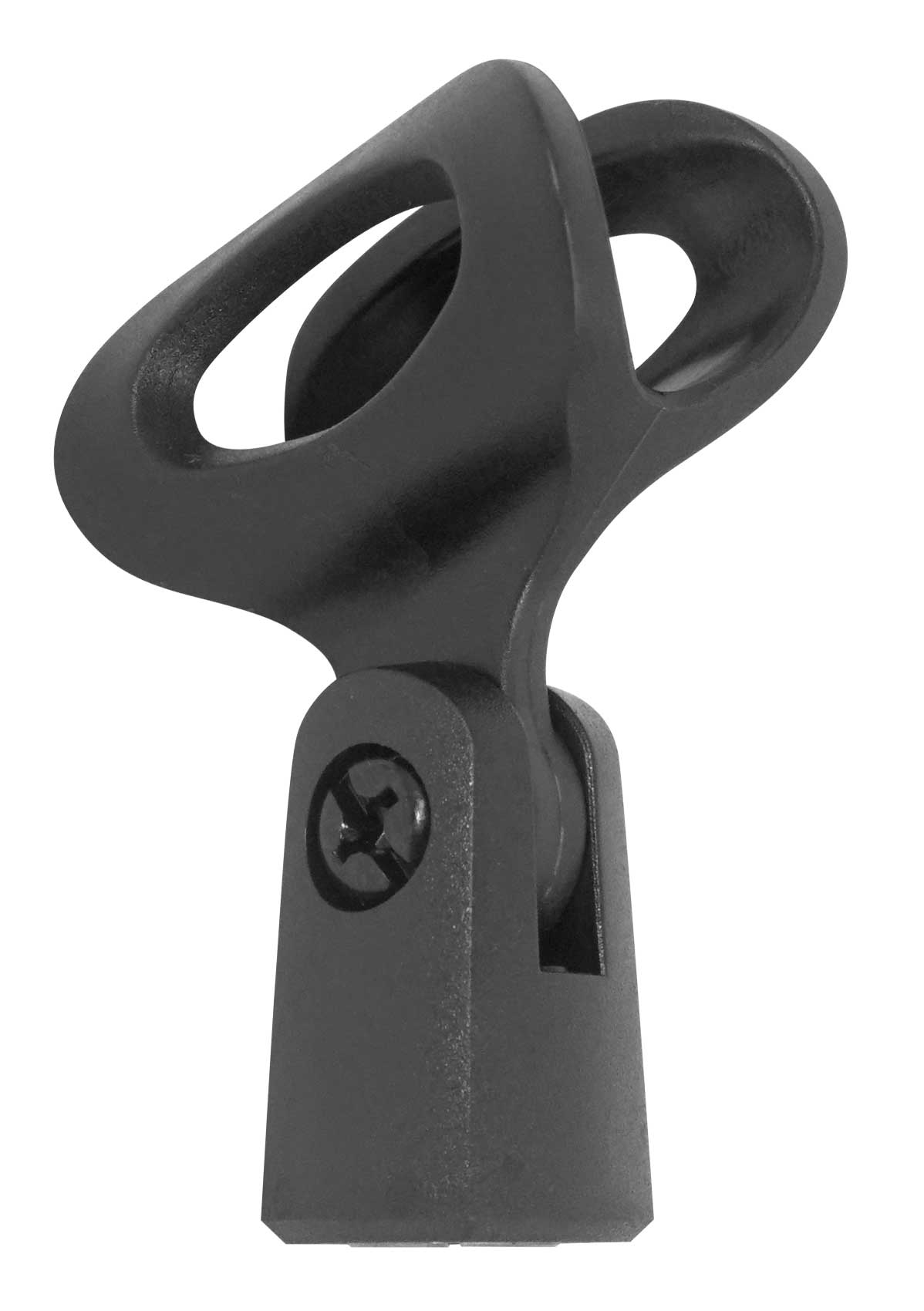

• (7) Mic clips
• (1) Aluminum travel/protective case with foam
• Manual
• Warranty card

Features of PRO-D7 KIT:

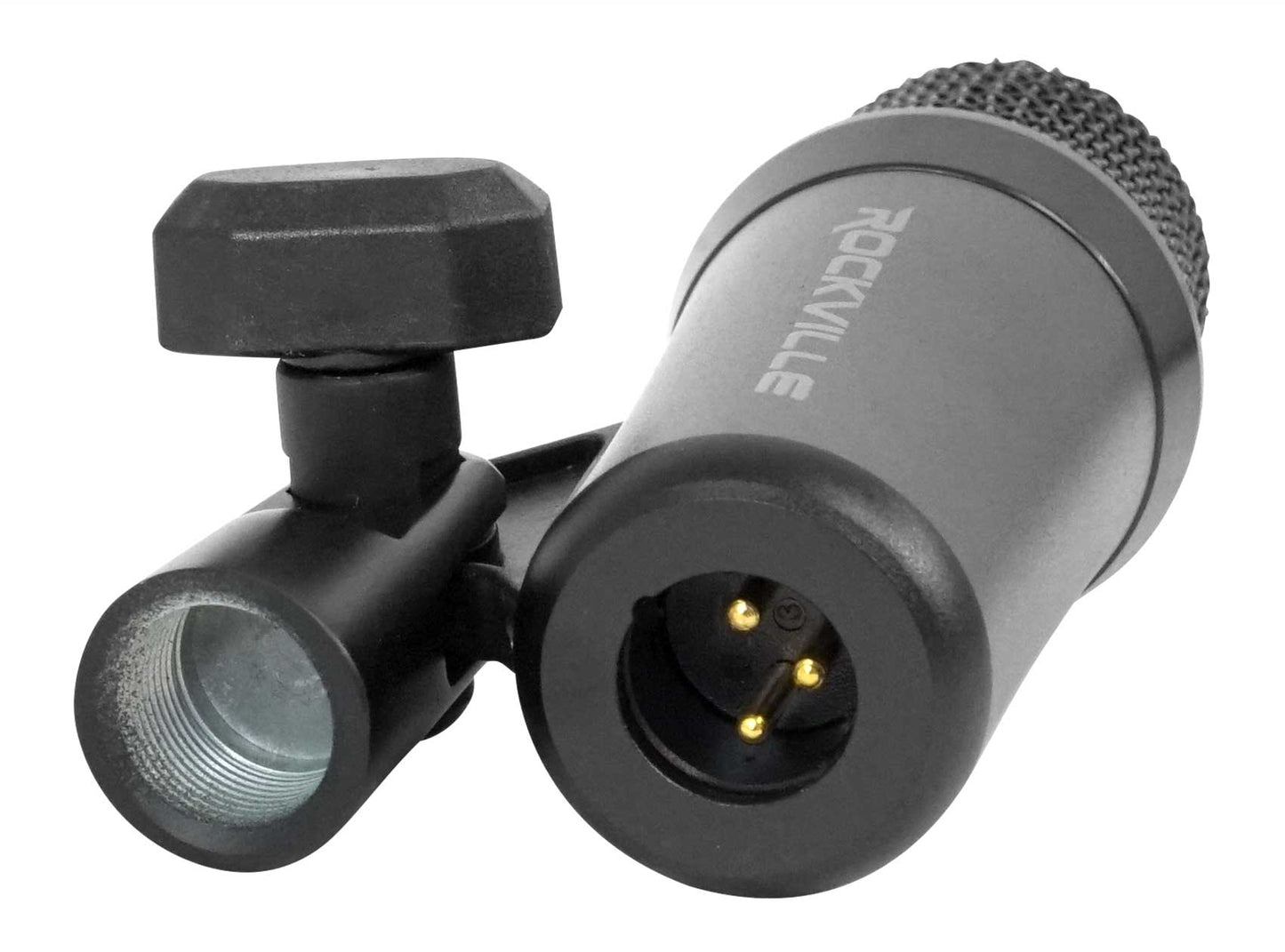

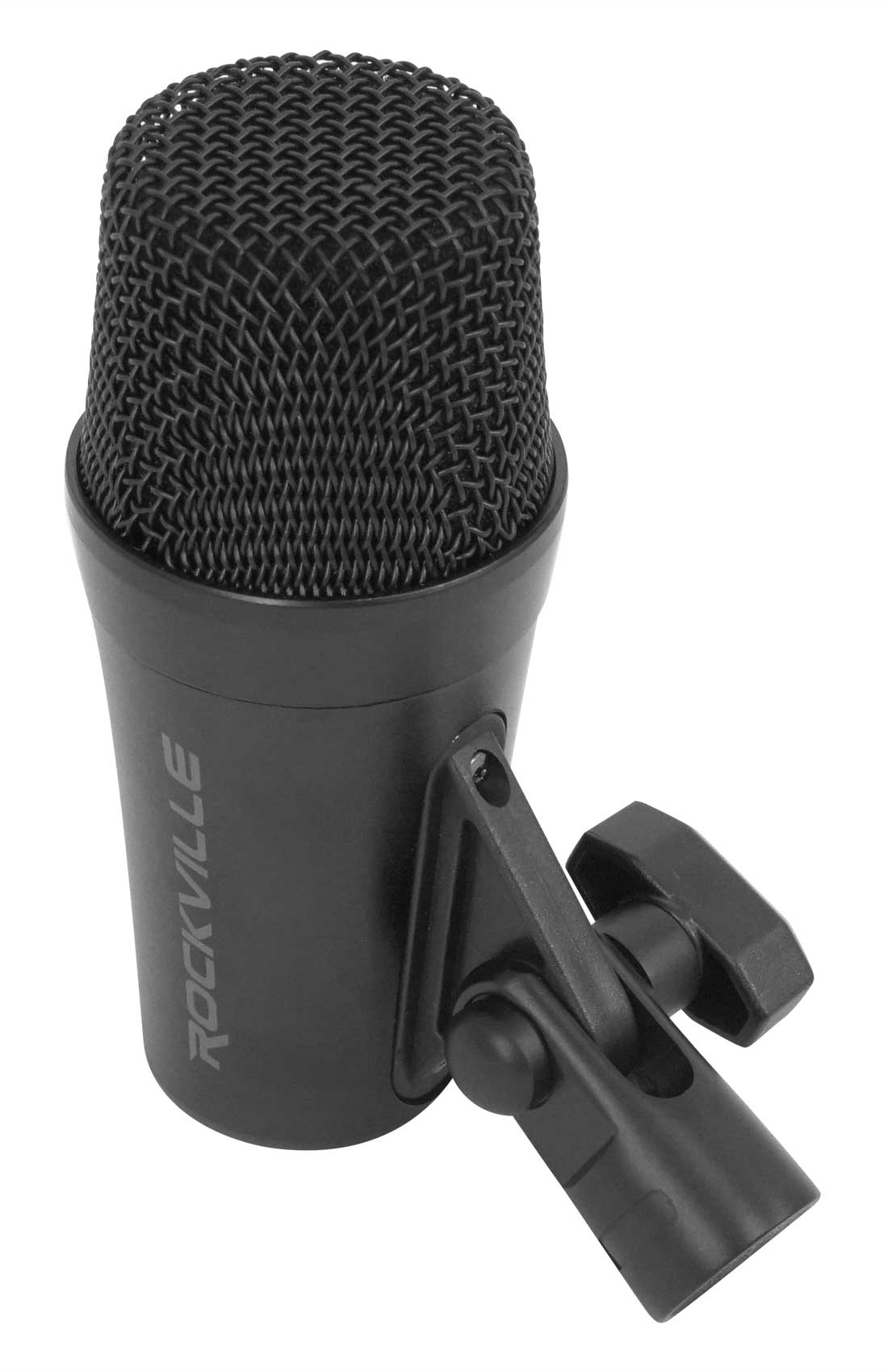

Bass Drum Microphone:

• Steel grill
• Aluminum body
• Zinc alloy hardware
• Fits any mic stands
• Anti-wind filter inside the grill
• Element: Dynamic
• Polar Pattern: Cardioid
• Frequency response is engineered to be perfect for kick drums
• Studio quality performance make these perfect for recording or live shows
• Sounds great even at high SPL levels
• Rejection of unwanted noises
• XLR Output
• Integrated flexible mounting hardware
• Large diaphragm delivers accurate low frequencies
• Frequency Response: 30Hz - 12KHz
• Sensitivity: -58dB±5dB(0dB=1V/Pa at 1KHz)
• Output Impendence: 600Ω±30%(at 1kHz)
• Microphone Length: 4.72 inches
• Microphone Max. Diameter: 2.01 inches
• Microphone Weight: 0.77 Lbs

Snare Drum Microphone:

• Steel grill
• Aluminum body
• Zinc alloy hardware
• Fits any mic stands
• Anti-wind filter inside the grill
• Element: Dynamic
• Polar Pattern: Cardioid
• Large diaphragm delivers accurate frequency response
• Frequency response is engineered to be perfect for tom-toms and snare drums
• Studio quality performance make these perfect for recording or live shows
• Sounds great even at high SPL levels
• Rejection of unwanted noises
• XLR Output

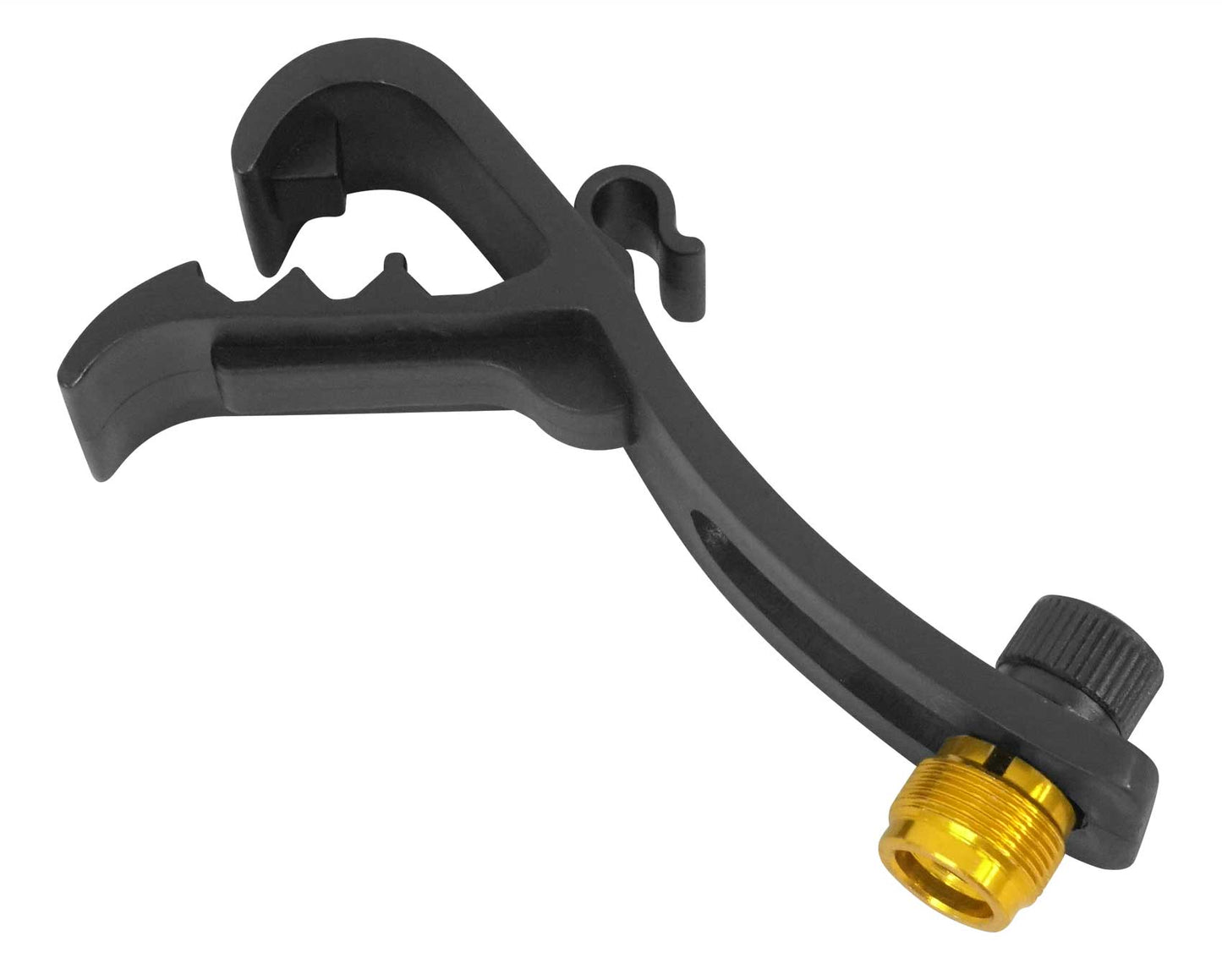

• Mounting hardware has a swivel joint with quick release latch for easy and flexible positioning
• Frequency Response: 60Hz-13KHz
• Sensitivity: -54dB±3dB (0dB=1V/Pa at 1KHz)
• Output Impendence: 600Ω ±30% (at 1kHz)
• Microphone Length: 4.53 inches
• Microphone Max. Diameter: 1.61 inches
• Microphone Weight: 0.44 Lbs

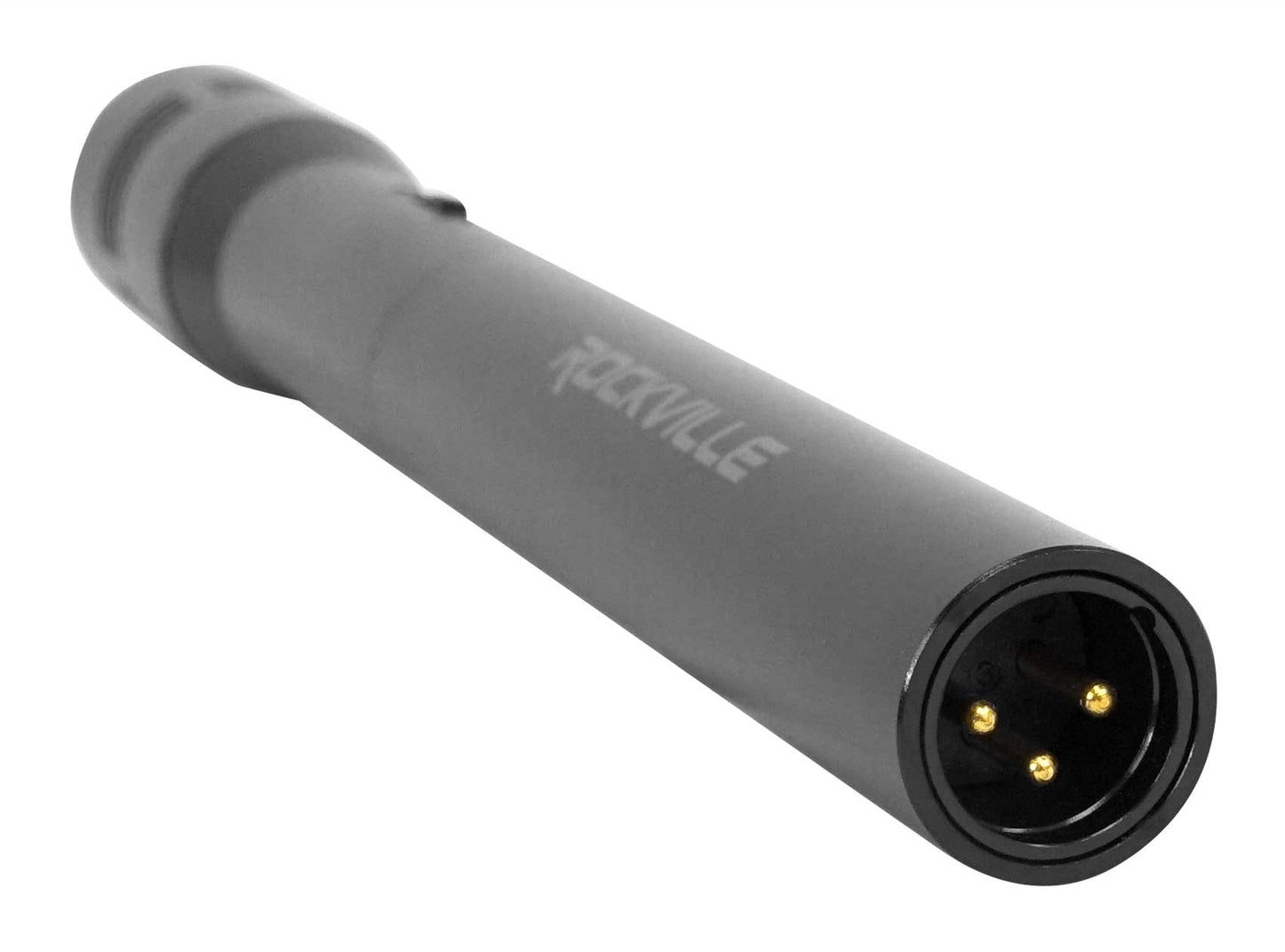

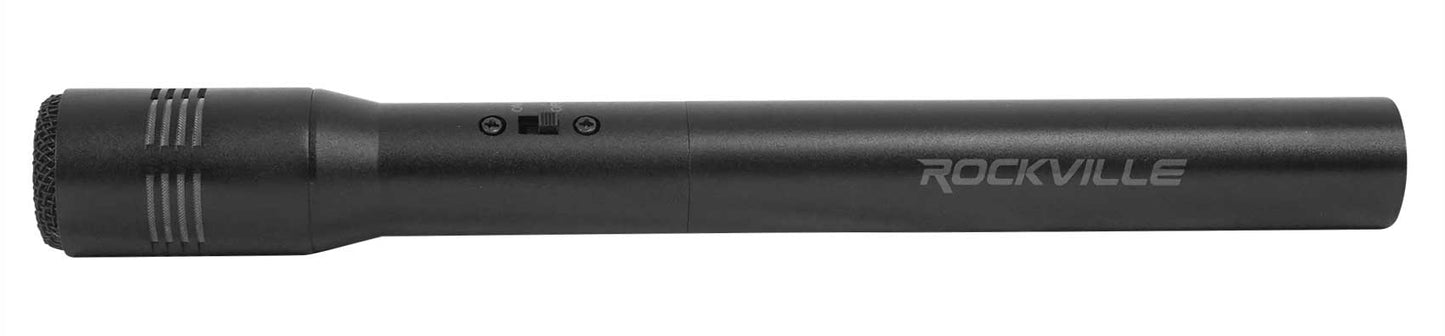

Overhead Condenser Microphones:

• Overhead cardioid condenser microphone
• Steel grill
• Aluminum body
• Anti-wind filter inside the grill
• Element: condenser
• 16 MM large diameter cartridge has amazing sound
• Polar Pattern: Cardioid
• Large diaphragm delivers accurate frequency response
• Frequency response is extremely flat and engineered to be perfect for cymbals and other drums
• Studio quality performance make these perfect for recording or live shows
• Sounds great even at high SPL levels
• Rejection of unwanted noises
• XLR Output
• Mounting hardware has a swivel joint with quick release latch for easy and flexible positioning
• Low mass diaphragm
• Frequency Response: 70Hz-20KHz
• Sensitivity: 13mV/Pa
• Output Impendence: 2000 Ohms (at 1kHz)
• Max SPL: 127dB(at 1kHz=1% T.H.D)
• S/N ratio: 96dB
• Power Supply: Phantom 48V or DC1.5V
• Microphone Length: 8.46 inches
• Microphone Max. Diameter: 1.06 inches
• Microphone Weight: 0.22 Lbs

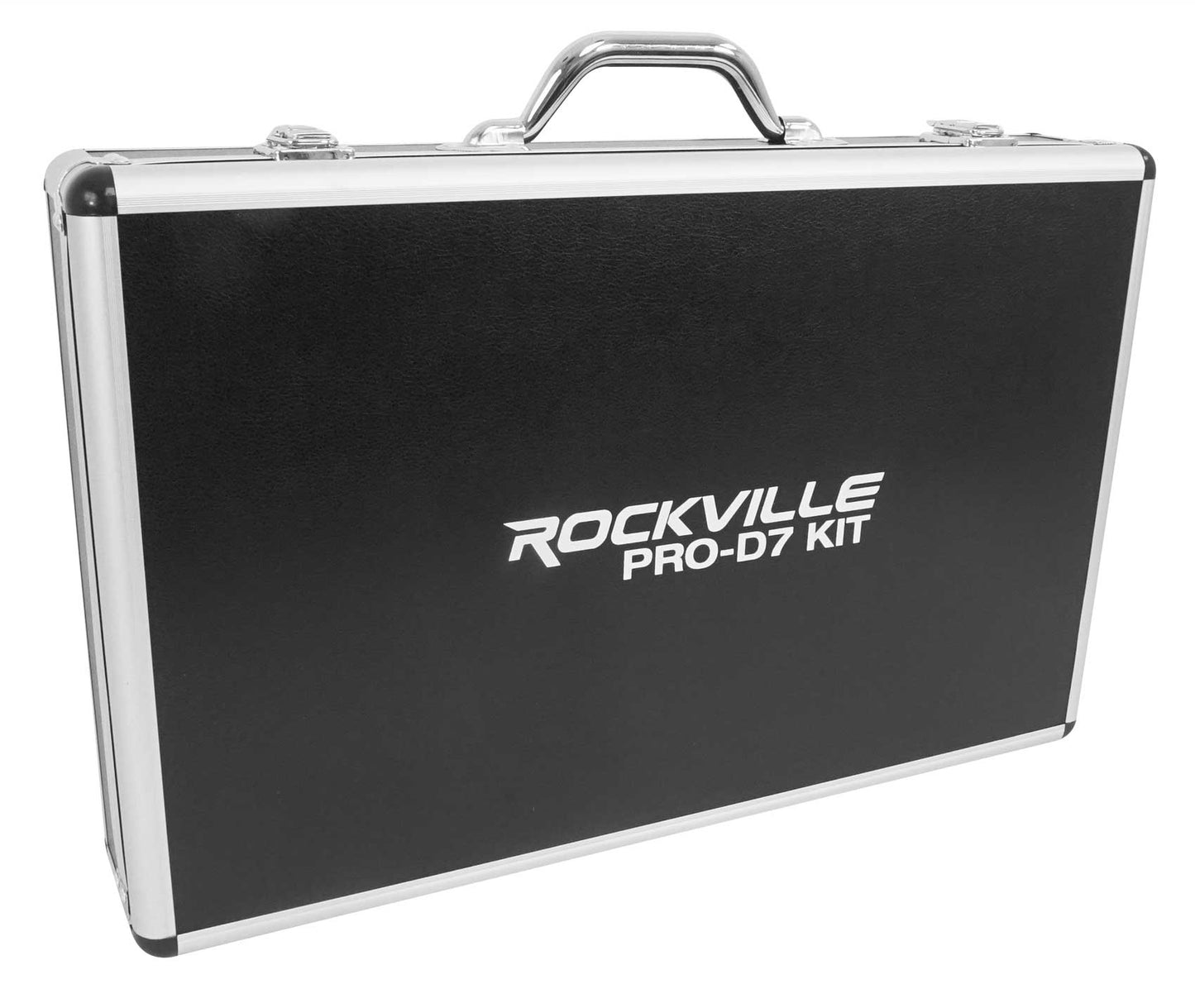

Features for Case:

• Aluminum case holds all the microphones and mounts
• Protective foam makes sure your mics stay in perfect condition when you travel
• Carry handle makes it easy to carry the case from gig to gig
• High quality case with good looking design
• Buckle latch secures the case closed
• Protective foam is molded for each microphone and clip
• Dimensions of case: 19.1” x 13.4” x 3.94” inches
