DBM50

DBM50

5-Channel Marine Amplifier, 4000W Peak/980W RMS, PA Microphone, Bass Remote, Conformal Coated PCB, Stainless Steel Hardware

Free Shipping

$229.95
$229.95 $0.00
Features
    • Five channels deliver 4000W peak power
    • Marine-grade conformal coated PCB and stainless steel hardware
    • Advanced crossover controls with low pass, high pass, and subsonic filtering.

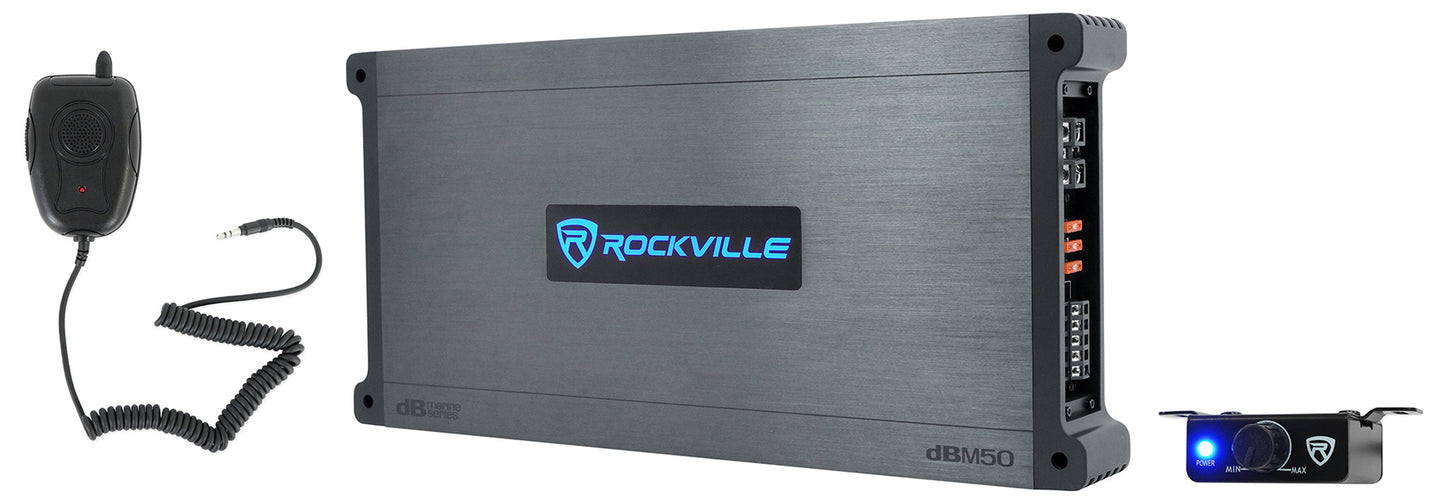

    • Includes PA microphone for onboard communication
    • Bass remote provides dashboard control over subwoofer levels
    • Amplifier
    • PA Microphone
    • Bass Remote
    • Birth Sheet with Tested Power
    • Owner's Manual

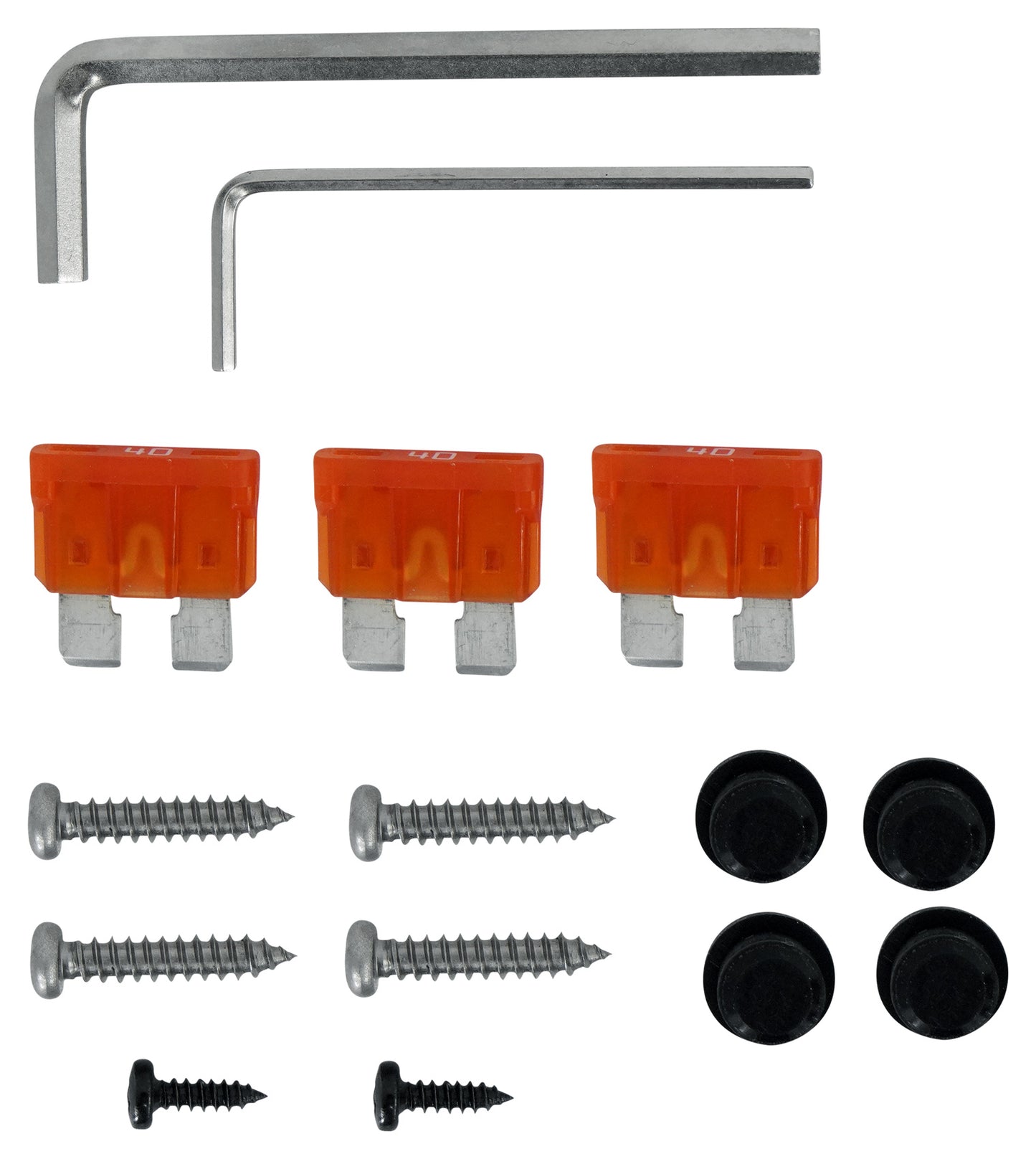

    • Mounting Screws
    • Warranty Card

SKU: DBM50

View full details

Product Description

The DBM50 marine amplifier delivers audio control across your entire system with its 5-channel configuration and 4,000 watts of peak power. This sophisticated amplifier powers four full-range channels plus a dedicated subwoofer channel, featuring advanced crossover technology that adapts to any speaker configuration. Built with marine-grade components including conformal coated PCB boards and stainless steel hardware, it withstands harsh conditions while maintaining audio quality. Complete with PA microphone and bass remote control, this amplifier excels on boats, yachts, and marine vessels where space efficiency meets sound performance for every onboard scenario.
Comprehensive Marine Audio Architecture

Comprehensive Marine Audio Architecture

The DBM50 combines five distinct channels of power delivery with 4,000 watts of peak output and 980 watts of Dyno-Certified RMS power. This amplifier features four full-range channels operating in Class AB topology alongside a dedicated Class D subwoofer channel, creating a complete audio ecosystem that powers your marine sound system.
Superior Marine Protection Technology

Superior Marine Protection Technology

Built to withstand demanding marine environments, this amplifier incorporates multiple layers of protection including conformal coated PCB boards sealed with waterproof adhesive and waterproof silicone terminal covers. The rustproof aluminum heat sink, stainless steel end panels, and corrosion-resistant mounting hardware maintain integrity through saltwater exposure, humidity, and temperature.
Advanced Audio Customization and Control

Advanced Audio Customization and Control

The crossover system supports low pass, high pass, bandpass, and subsonic filtering with adjustable 12dB/octave slopes, allowing for precise tuning for subwoofers, full-range speakers, and midrange drivers. The bass remote provides dashboard control over subwoofer levels, while the PA microphone adds communication for announcements and safety instructions.
Intelligent Protection and Performance Features

Intelligent Protection and Performance Features

Advanced circuitry includes under-voltage protection at 10V, over-voltage protection at 16V, and full IC-controlled protection systems that protect both amplifier and speakers. The high-speed MOSFET power supply delivers clean, consistent power while the mute and delay soft start system prevents speaker damage during power transitions.
Complete Marine Audio Solution

Complete Marine Audio Solution

Transform your vessel into a sophisticated entertainment and communication system with this all-in-one amplifier. The DBM50 combines powerful audio, marine-grade durability, and intelligent control features in a compact design that maximizes performance while minimizing installation complexity.

Features

    • Complete System Power

      Five channels deliver 4,000W peak power with dedicated subwoofer control, providing amplification from one compact unit.

    • Marine-Grade Construction

      Conformal coated PCB boards with waterproof silicone covers and stainless steel hardware resist saltwater corrosion for years of operation.

    • Advanced Crossover Control

      Adjustable 12dB/octave crossover with low pass, high pass, bandpass, and subsonic filtering allow for precise tuning with any speaker configuration.

    • Built-In PA Communication

      PA microphone provides onboard communication for announcements, safety instructions, and vessel-to-vessel communication.

    • Intelligent Protection Systems

      Under/over voltage protection with IC-controlled circuitry and soft start technology protects amplifier and speakers from damage during operation.

Technical Specifications

  • Marine Audio Amplifier DBM50
  • Peak Power Output 4000 Watts
  • RMS Power Output (4 Ohm) 80W x 4 + 300W x 1
  • RMS Power Output (2 Ohm) 120W x 4 + 500W x 1
  • Channel Configuration 5 Channel (4 Full Range + 1 Subwoofer)
  • Amplifier Class AB (CH1-4), D (CH5)
  • Crossover Type 12dB/Octave Adjustable
