Description:

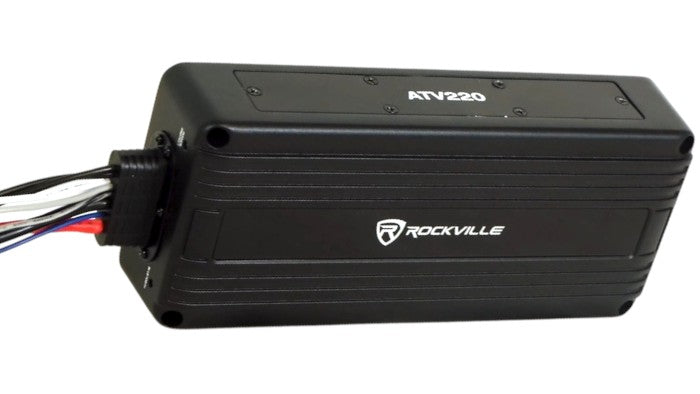

The Rockville ATV220 is a 2 channel amplifier for your ATV. It will deliver 180 x 2 @ 2 ohms RMS. We dyno-test the amp to make sure you get the power we promise.

This amp is IP65 which means even if you submerged it in water for a few seconds it would still function fine. This means you do not need to worry about your amp breaking when you spray down your vehicle.

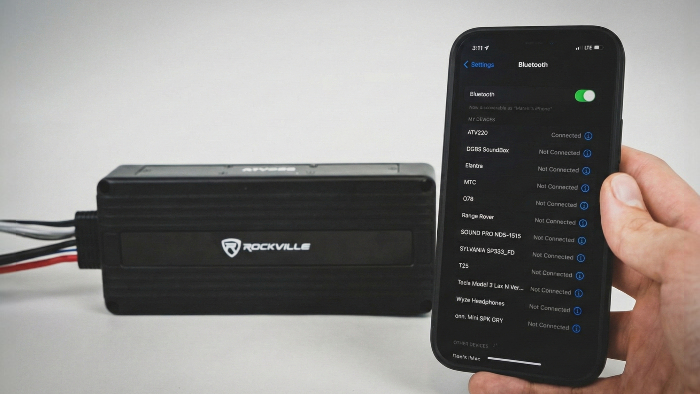

The built in Bluetooth is great because you do not even need a head unit or controller. You can just install this amp and wire it to your speakers and Bluetooth your phone to the amp.

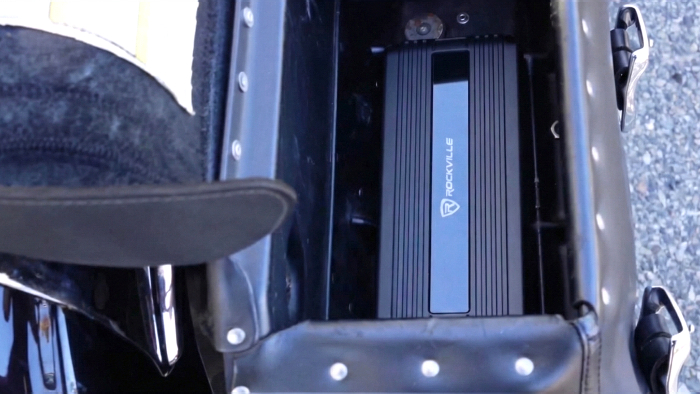

This amp is super compact making it easy to install in tight spaces.

If you want the most waterproof and high performing ATV amplifier on the market then this is a great option for you.

Features:

• Rockville ATV220 2 Channel UTV/Motorcycle Bluetooth Amplifier IP65 Waterproof Micro Amp
• Dyno Certified RMS Power Ratings: (Certified Dyno Test / Less than 1 % THD) (Use these ratings when comparing with top brands such as Kicker, Rockford Fosgate, etc)
• 2 Ohms: 400 Watts (2 x 200 Watts)
• 4 Ohms: 250 Watts (2 x 125 Watts)
• Peak: (Use these ratings when comparing with the top budget brands such as Boss, Power Acoustik, etc):
• Peak 2 Ohms: 1600 Watts (800 x 2 Watts)
• Bridged Power Rating: 4 Ohms Bridged: 400 Watts
• Built in Bluetooth Wireless with Auto Pairing (You can run this amp without any receiver)
• IP65 waterproof rating
• All inputs and wire wiring is sealed and covered
• Conformal coated circuit board
• Anti rust materials
• This is one of the only amps on the market that is IP65. That means even if you submerged it for a couple of seconds it would work fine
• Efficiency at Full Power 4 Ohm (1kHz) 84.8%
• Efficiency at Full Power 2 Ohm (1kHz) 77.8%
• Micro Size amplifier can easily fit in tight spaces
• Digital Class D Audio Topology
• Distortion(THD): =0.5%

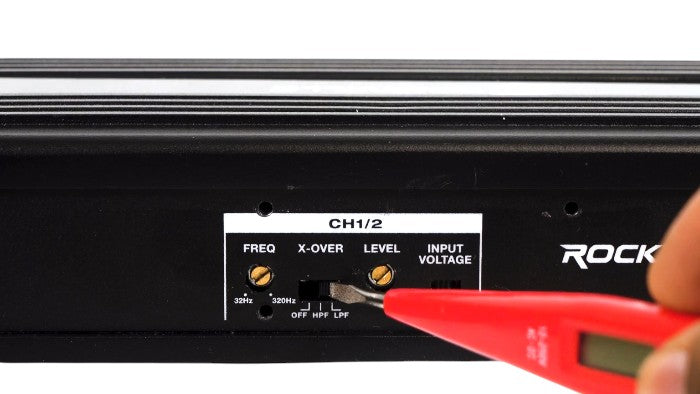

• Full Range/Low Pass/High Pass Configurable
• High Input (Speaker level Input)
• Low Pass Crossover: 32Hz-320Hz
• High Pass Crossover: 32Hz-320Hz
• Waterproof sheath RCA Input
• Frequency Response: 20Hz-22KHz
• Signal to Noise Ratio:  (1 Watt into 4 Ohms) =80dB
• Input Sensitivity: 0.2V-6V
• Speaker level Input Sensitivity: 0.5V-15.5V
• Stereo Separation: =50dB
• Fuse Rating: 35A
• Dimensions (Inches): 8.66" L x 3.74" W x 1.73" H
• High-Speed MOSFET Power supply
• Status Mode LED Indicator
• Waterproof Grade: IP65
