Rockville RX230 2 Way Stereo / 3 Way Mono Crossover with XLR Input and Output

SKU:
RX230
$180.00 $94.95
(You save $85.05)
Enter your email address to be notified when this item is back in stock.
Condition:
New
Bundle:
No
KITPARENTS:
5095, , 3154, 2353
Custom_Condition:
BRAND NEW IN ORIGINAL PACKAGING

Warranty Information:

1 YEAR

New orders ship within 1 business day

Call for Expert Advice
Call now: 1-646-758-0144

Bundles That Include This Item

How to set up your RX230:

Video of RX230:

Features:

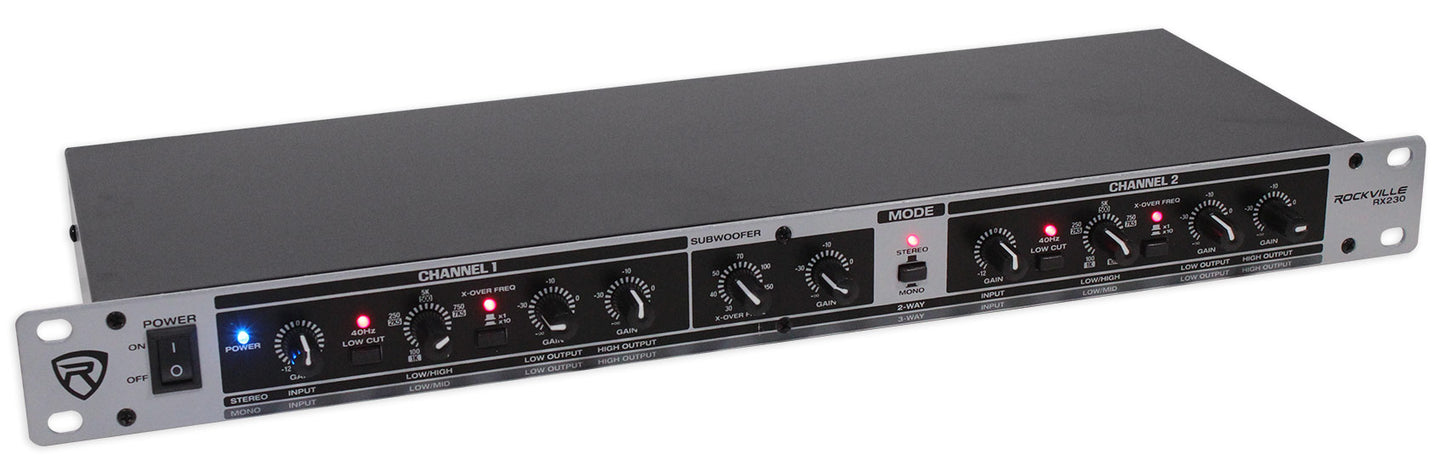

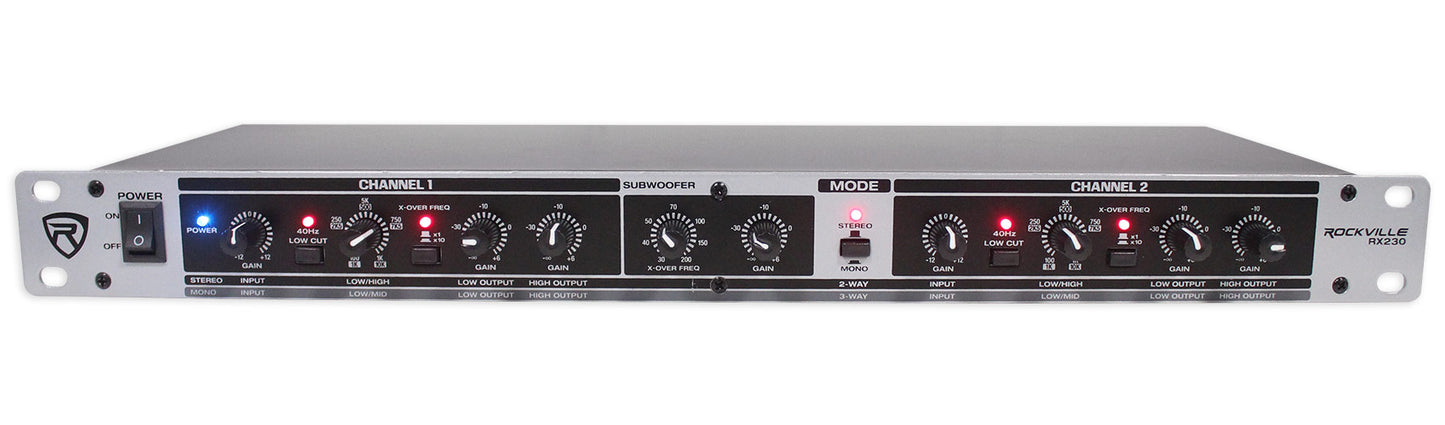

  • Rockville RX230 2-way Stereo / 3-way Mono rack mountable crossover
  • Ability to mix 2 channels output
  • 24dB/Octave filters
  • Mute switches

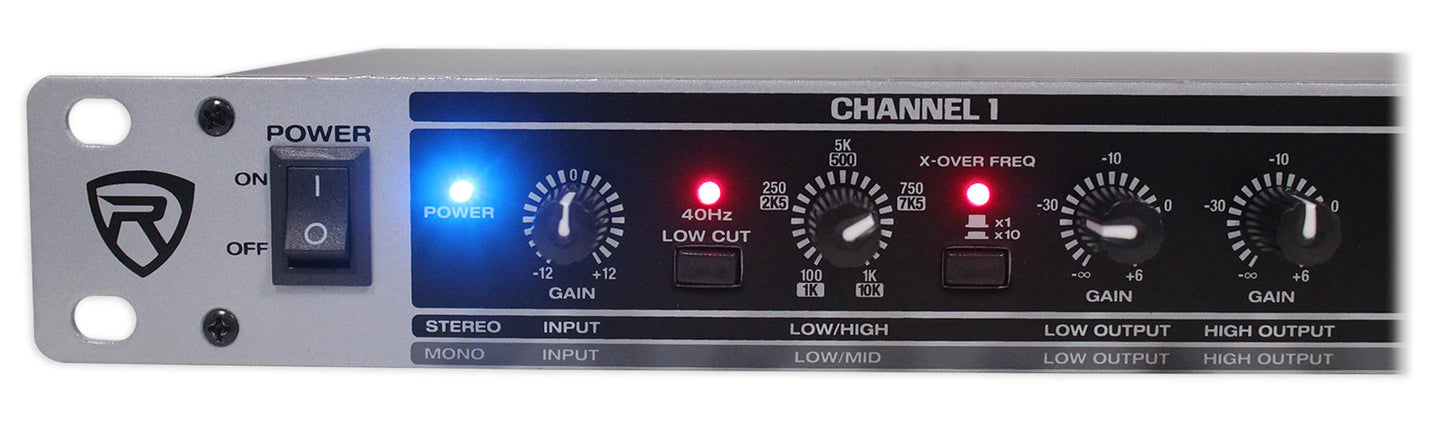

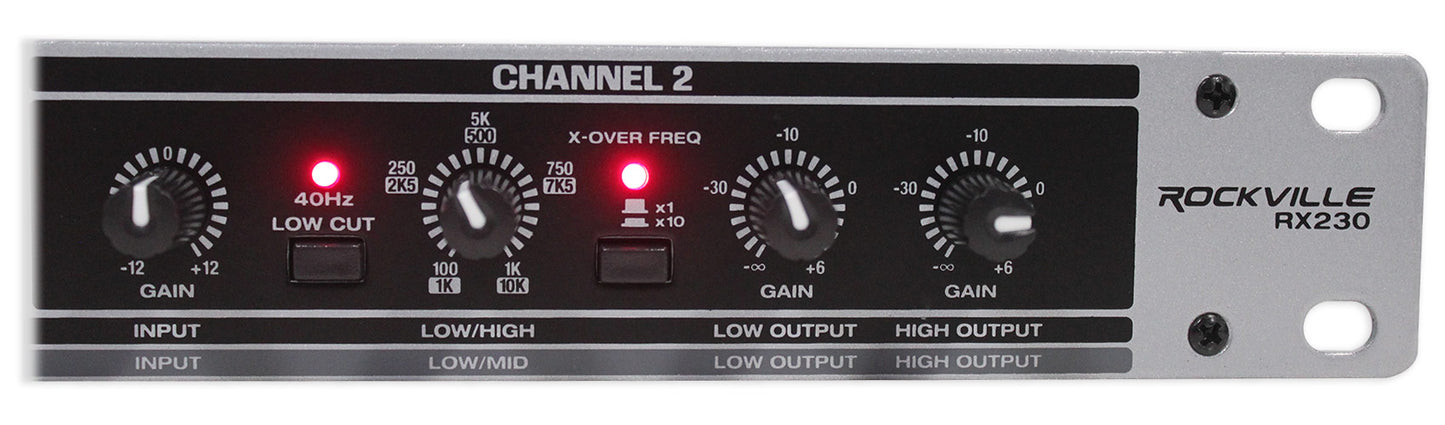

  • Channel Gain Control: 0 to +12 dB
  • Low Frequency Level Control: -8 to +6 dB
  • High Frequency Level Control: -8 to +6 dB
  • Low Frequency to High Frequency crossover: 100Hz to 1 Khz x10 range: Changes •
  • Low Frequency to Mid Frequency from (100 Hz to 1 kHz) to (1kHz to 10 kHz)
  • Switchable 2-way stereo or 3-way mono operation
  • Subwoofer out

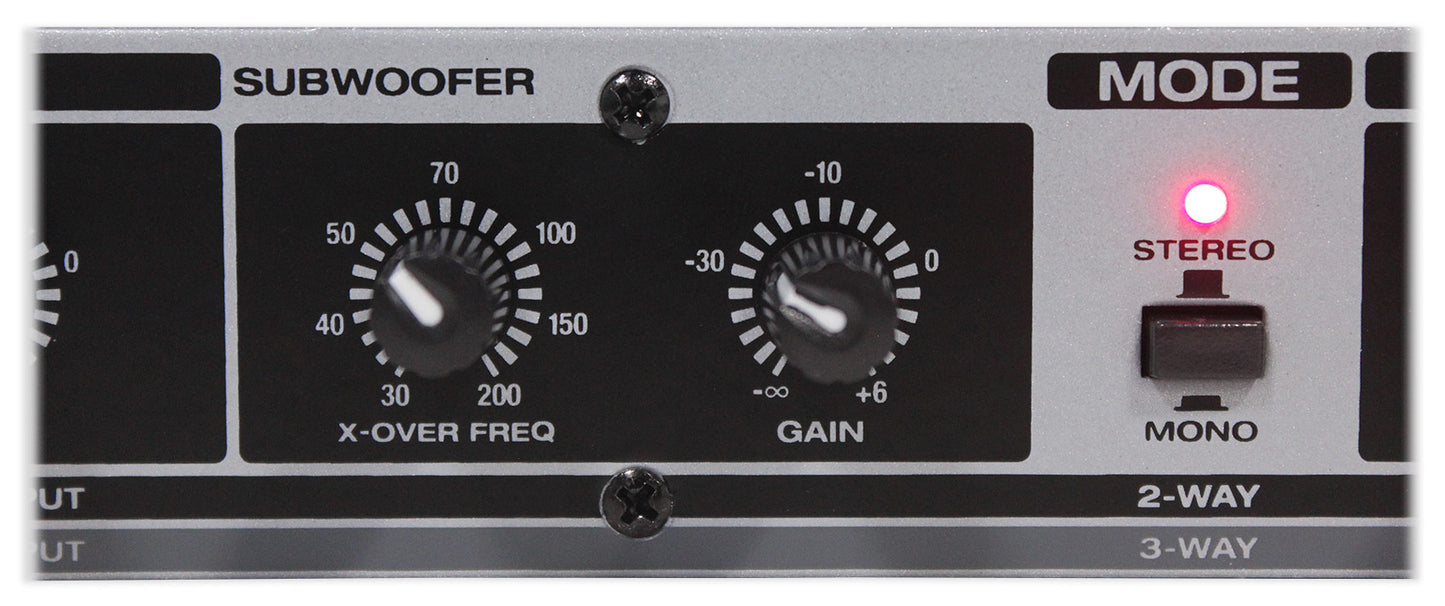

  • Subwoofer X-Over Freq ( 30Hz – 200Hz ) adjustable
  • Subwoofer Gain -6 to +6 dB

Specifications:

  • Each output is -3 dB at the selected crossover frequency value. Outputs are essentially flat within their relative passbands.
  • Distortion: Less than 0.02% THD @ +4 dBu,@ 1 kHz
  • Hum and Noise: Crossover controls set @ 1 kHz, all level controls set at 0 dB; 22 Hz to 22 kHz, unweighted gain @ 0dB(ref +4dBu) - 90dB
  • Low Frequency Output: -86 dBu below 80 dB
  • High Frequency Output: -84 dBu below -78 dB
  • Maximum Input Level: +14 dBu, (channel gain @ 0 dB input level controls set at 0 dB) +22 dBu
  • Maximum Output Level: +22 dBu, unbalanced +28 dBu, balanced
  • Input Impedance: 10k ohms unbalanced
  • Dimensions: 19 x 4.85 x 1.8 inches
  • Gross weight: 4.18 Lbs

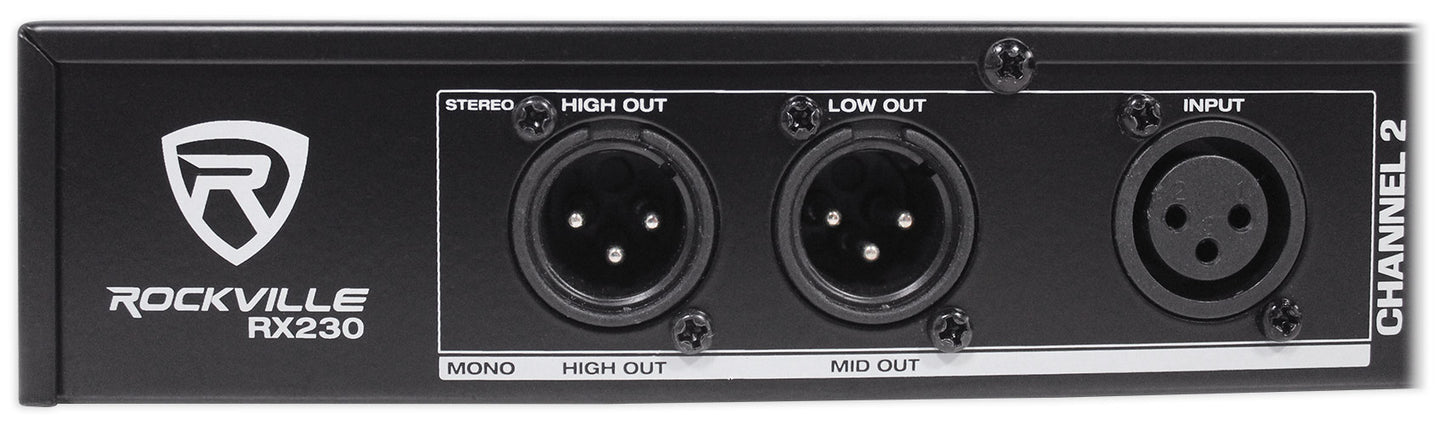

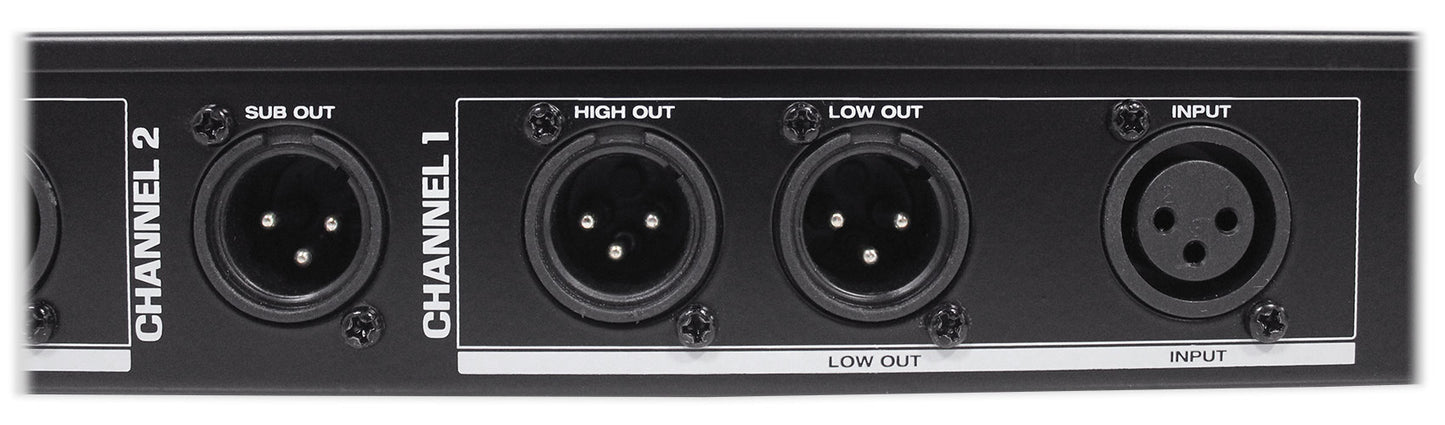

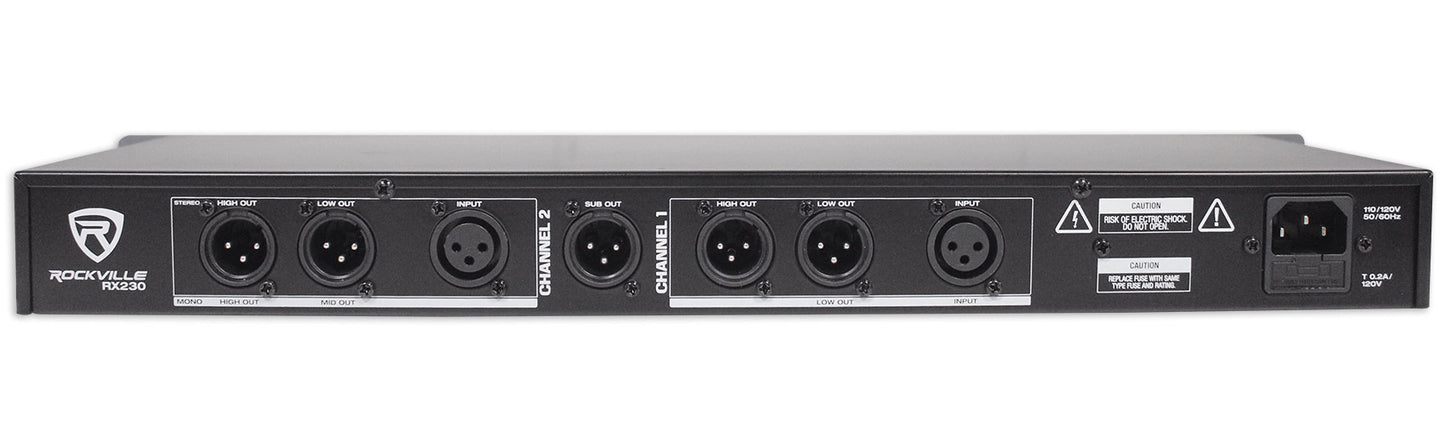

  • Connectors:
  • Inputs: XLR Balanced
  • Outputs: XLR Balanced

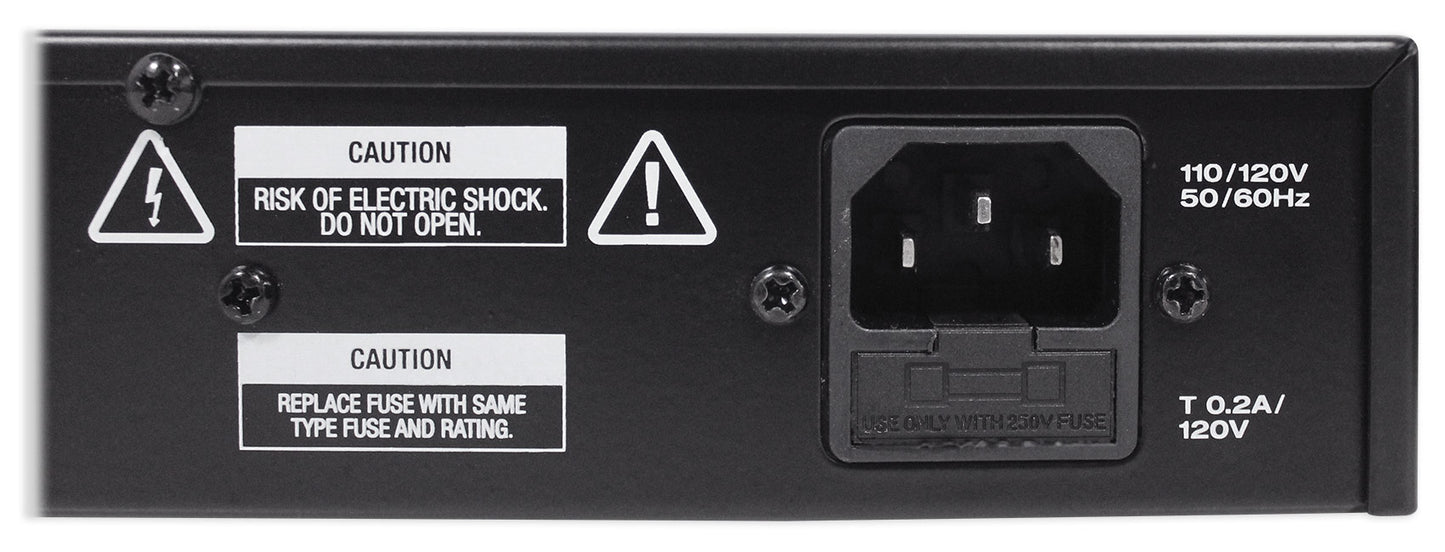

  • Power Requirements: 120V AC, 50/60 Hz, 20 watts
  • 110-120V voltage

1 YEAR
  • UPC:
  • 811080027159
