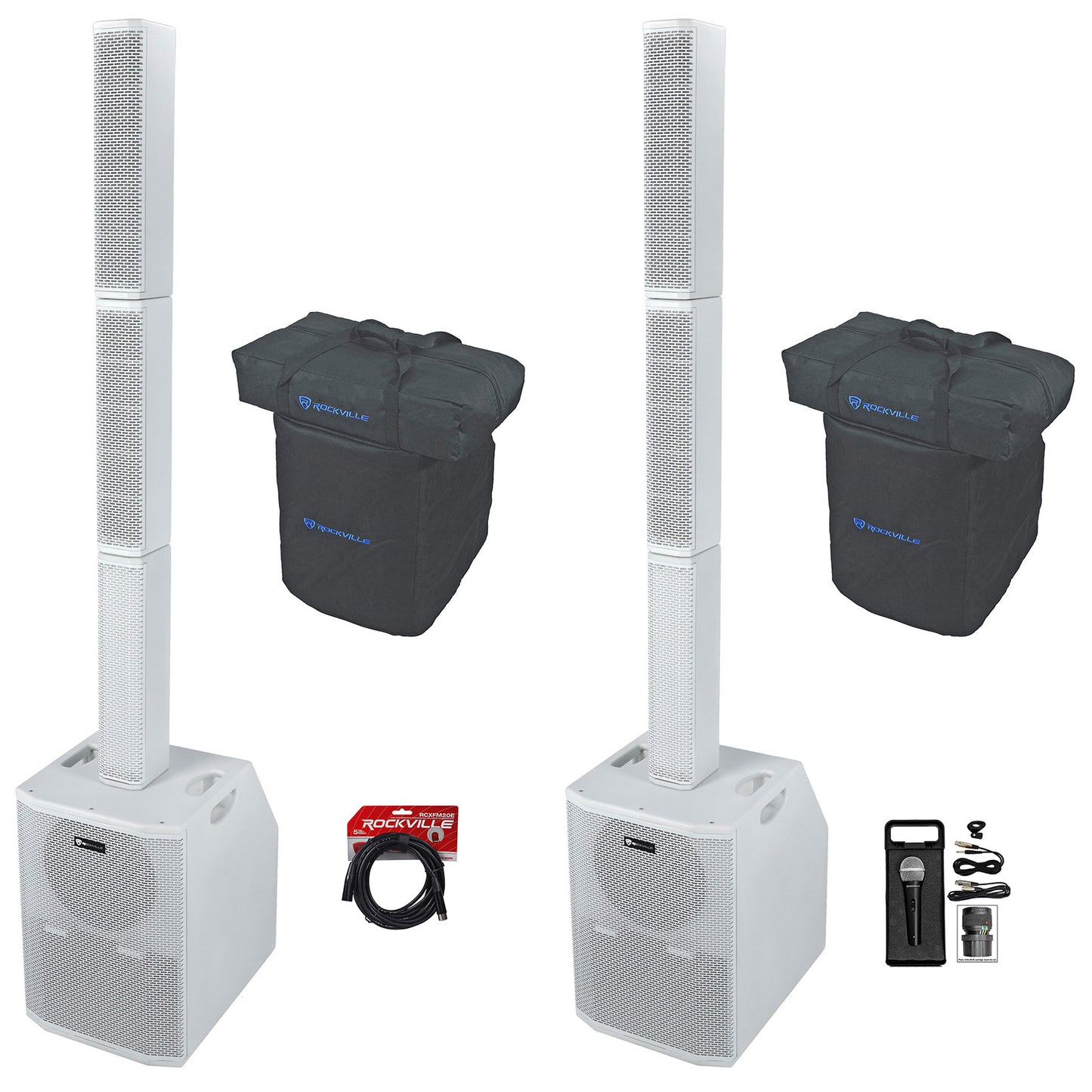

Package Includes:

• (2) Rockville TITAN ARRAY SYSTEM WHITE Pro Powered Column Array Speaker Dual 10" Sub
• (1) Rockville RCXFM20E-B 20 Foot Female to Male XLR Mic Cable Black 100% Copper
• (1) Rockville RMC-XLR High-End Metal DJ Handheld Wired Microphone Mic w (2) Cables

---

All About Your TITAN ARRAY SYSTEM:

How To Set Up Your TITAN ARRAY SYSTEM:

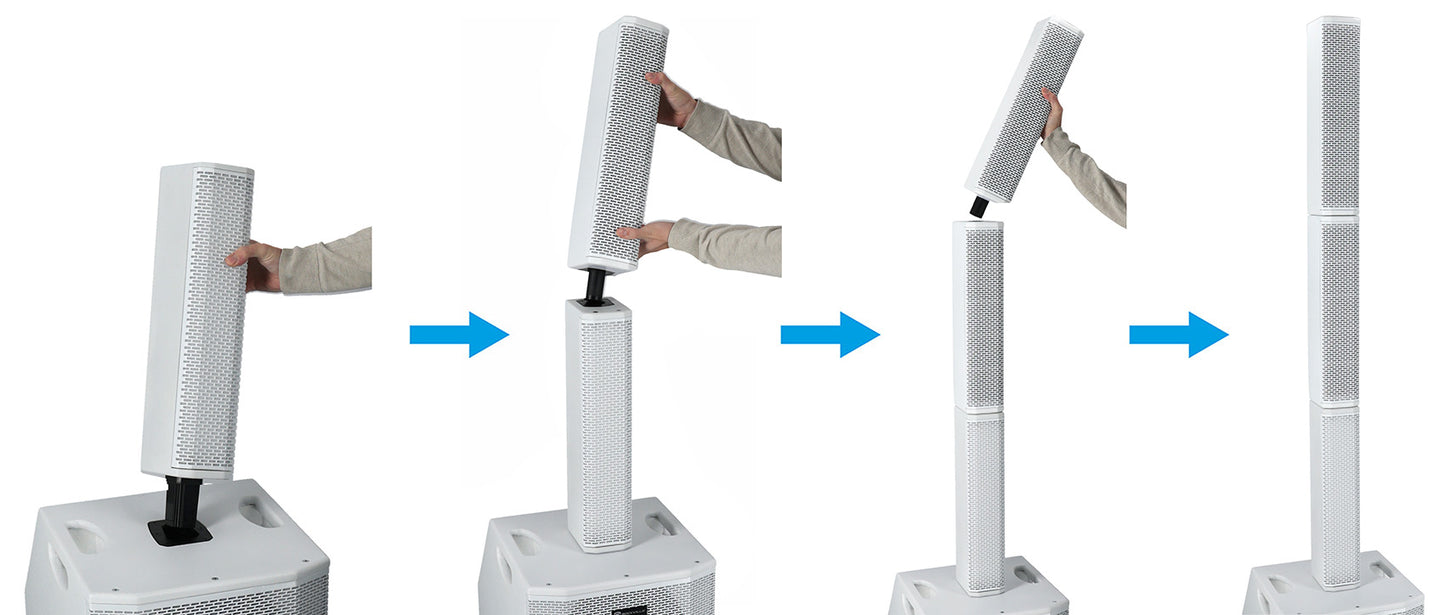

How To Assemble and Pack TITAN ARRAY SYSTEM:

How To Set Up an INSTRUMENT TITAN ARRAY SYSTEM:

How To Set Up Karaoke on Your TITAN ARRAY SYSTEM:

How To Set UP TWS on your TITAN ARRAY SYSTEM:

Description:

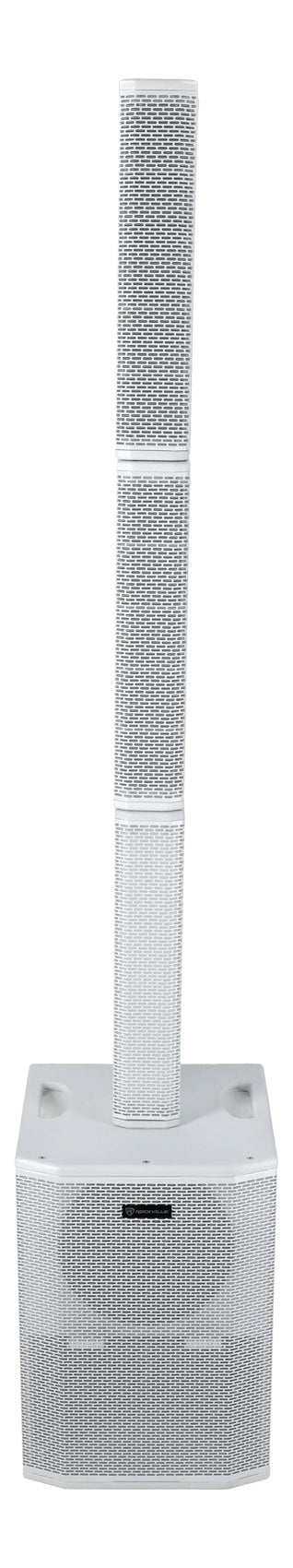

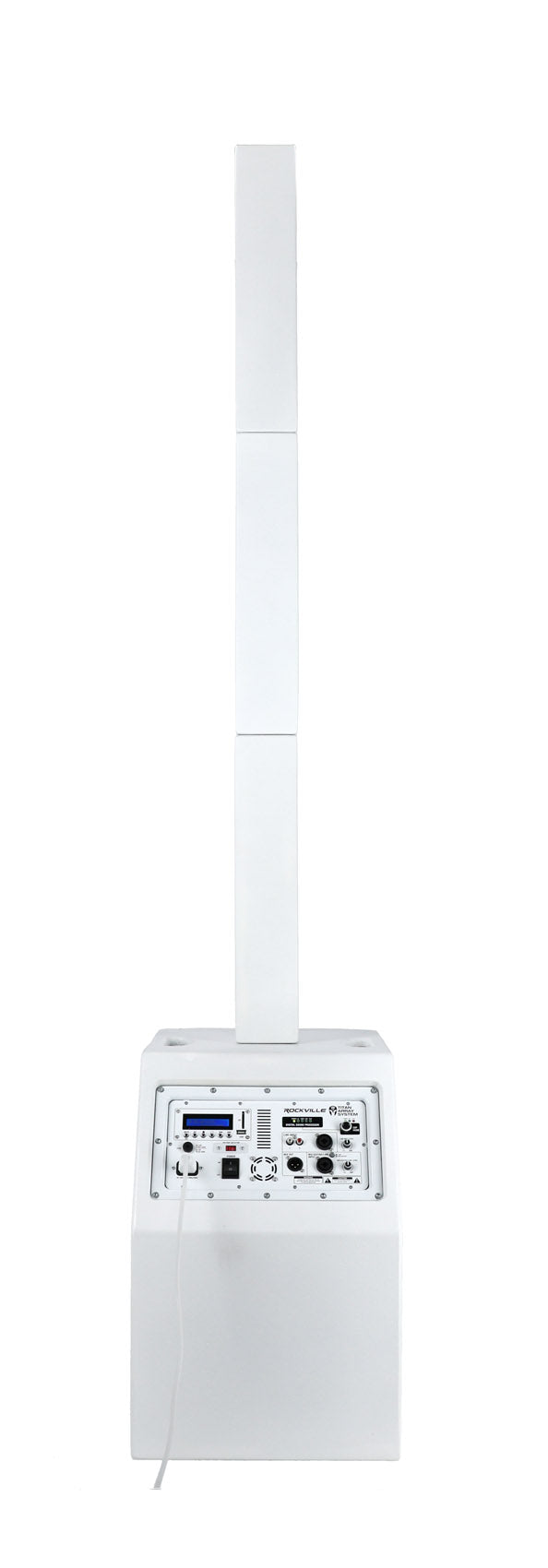

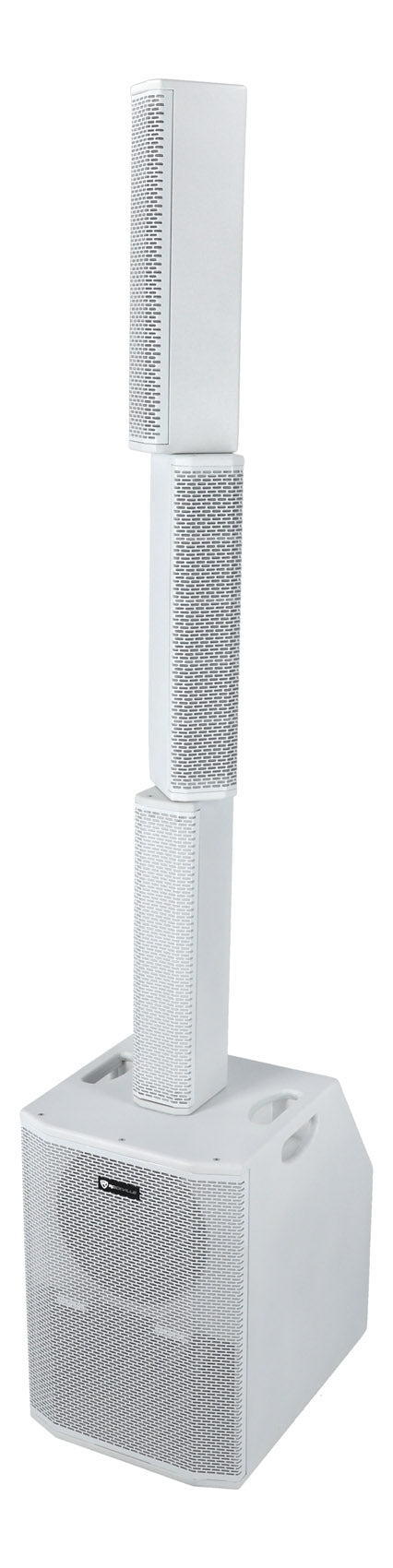

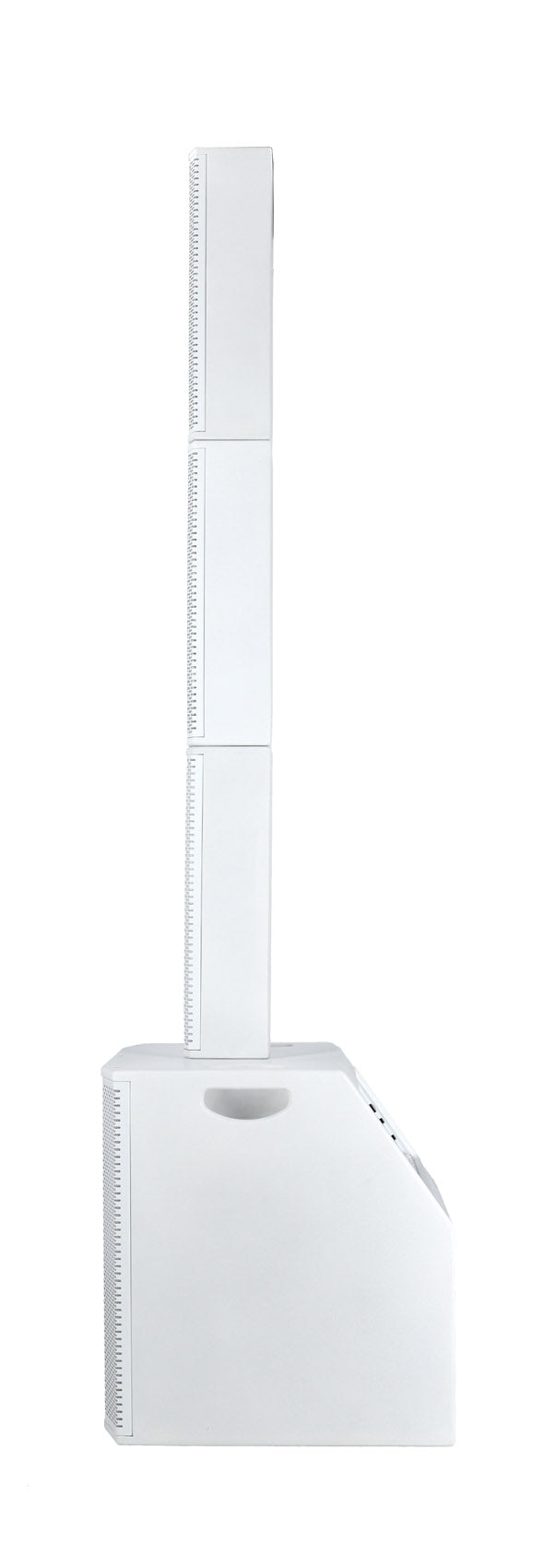

The TITAN ARRAY SYSTEM White by Rockville is a game changer for the entire pro audio industry. This system is more powerful than systems that sell for twice the price! Our system utilizes (2) 10” subwoofers in a wood enclosure to deliver chest thumping bass that will destroy other systems in its class.

The highs and mids are tuned to perfection. You will love the sound of this! This system is extremely loud. You can use this for venues with 300 people and up easily. You can pair 2 of them together wirelessly in stereo or using a cable and fill a huge hall with incredible sound.

When we developed this array system we had a few requirements and goals. We needed it to go way louder then the other ones on the market because we wanted to give you guys a solution that you can just take one speaker to your gig and have enough volume to fill up a large hall. The second requirement was that we wanted it to sound like you had a real sub with extremely deep bass. The third requirement was that we have enough inputs and playback options where you can do most gigs without the need to bring a separate mixer.

The value you get out of this system is incredible because it will replace a high powered PA speaker and a high powered subwoofer.

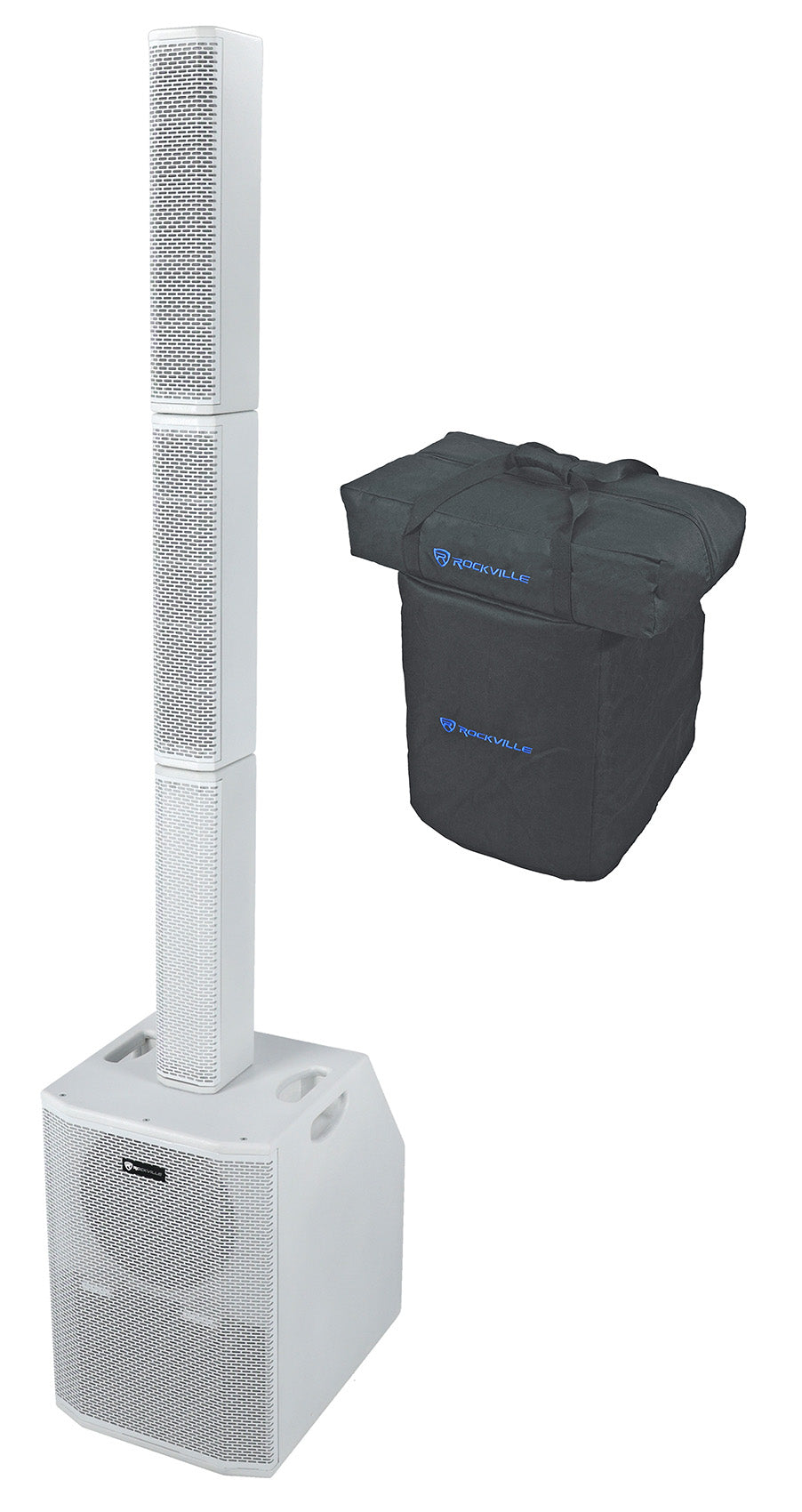

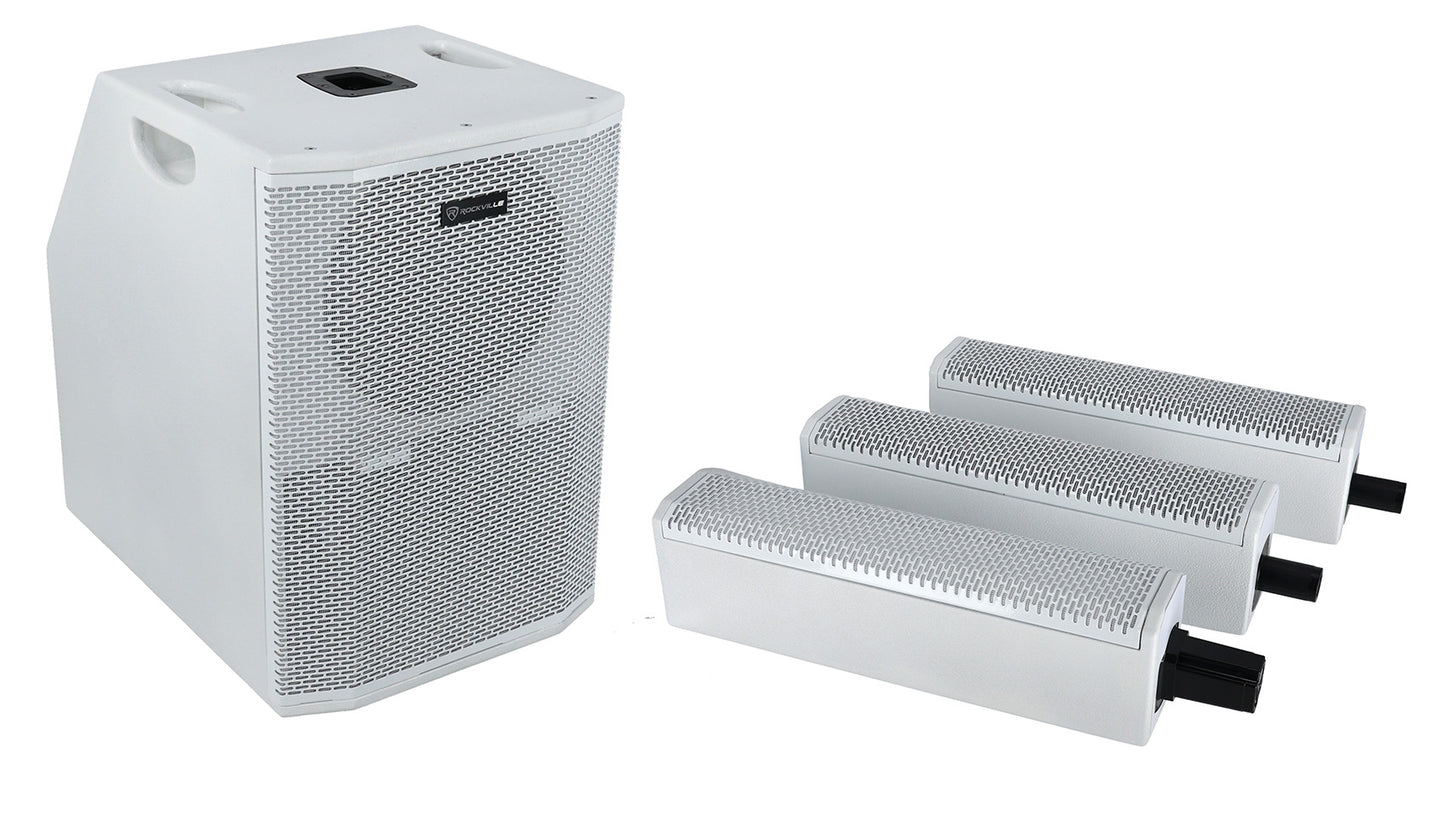

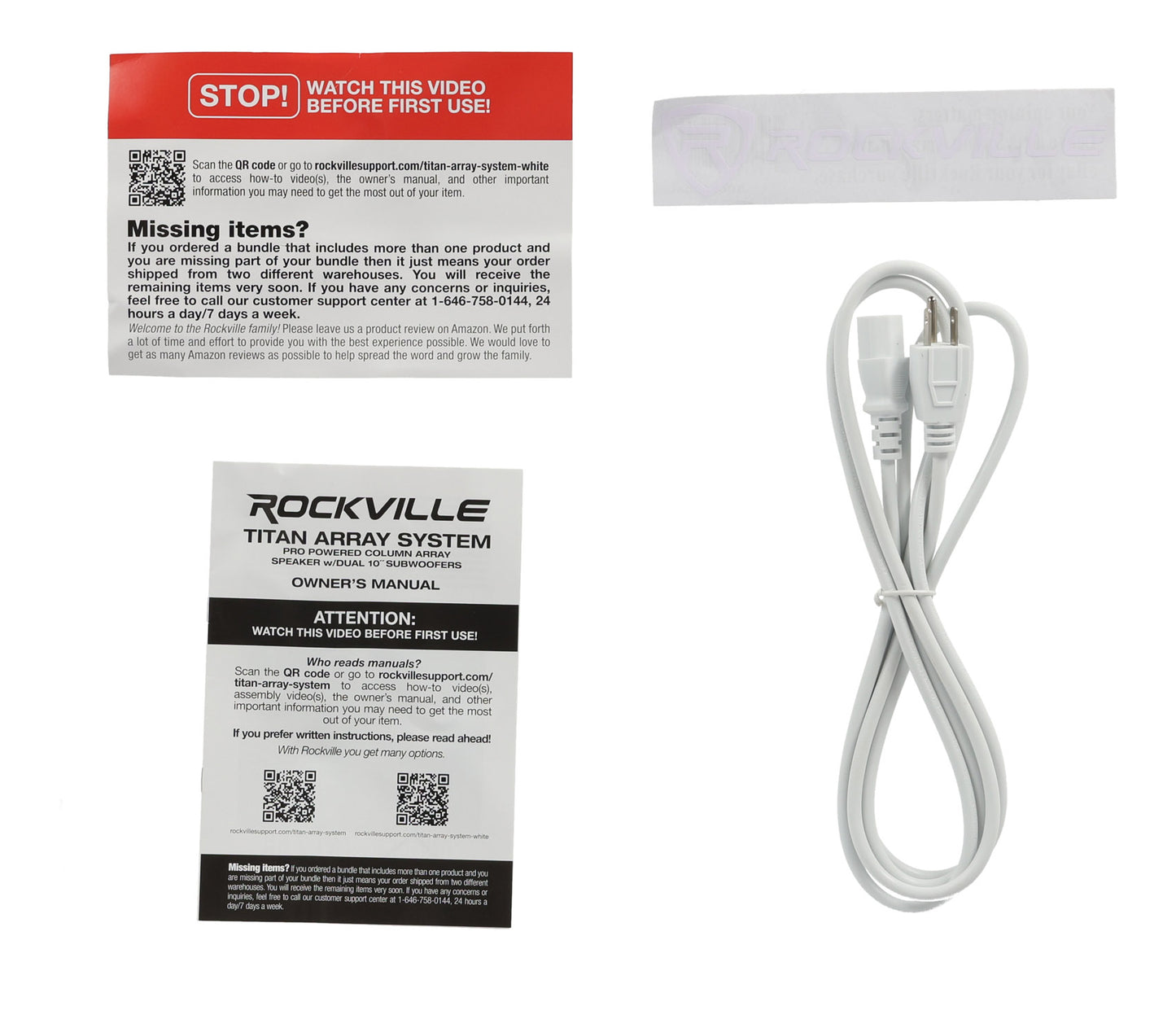

What's In The Box:

• Dual 10” Powered subwoofer with built in mixer and DSP
• (3) Column Speakers – One has no drivers in it and the other 2 each have (5) drivers in them

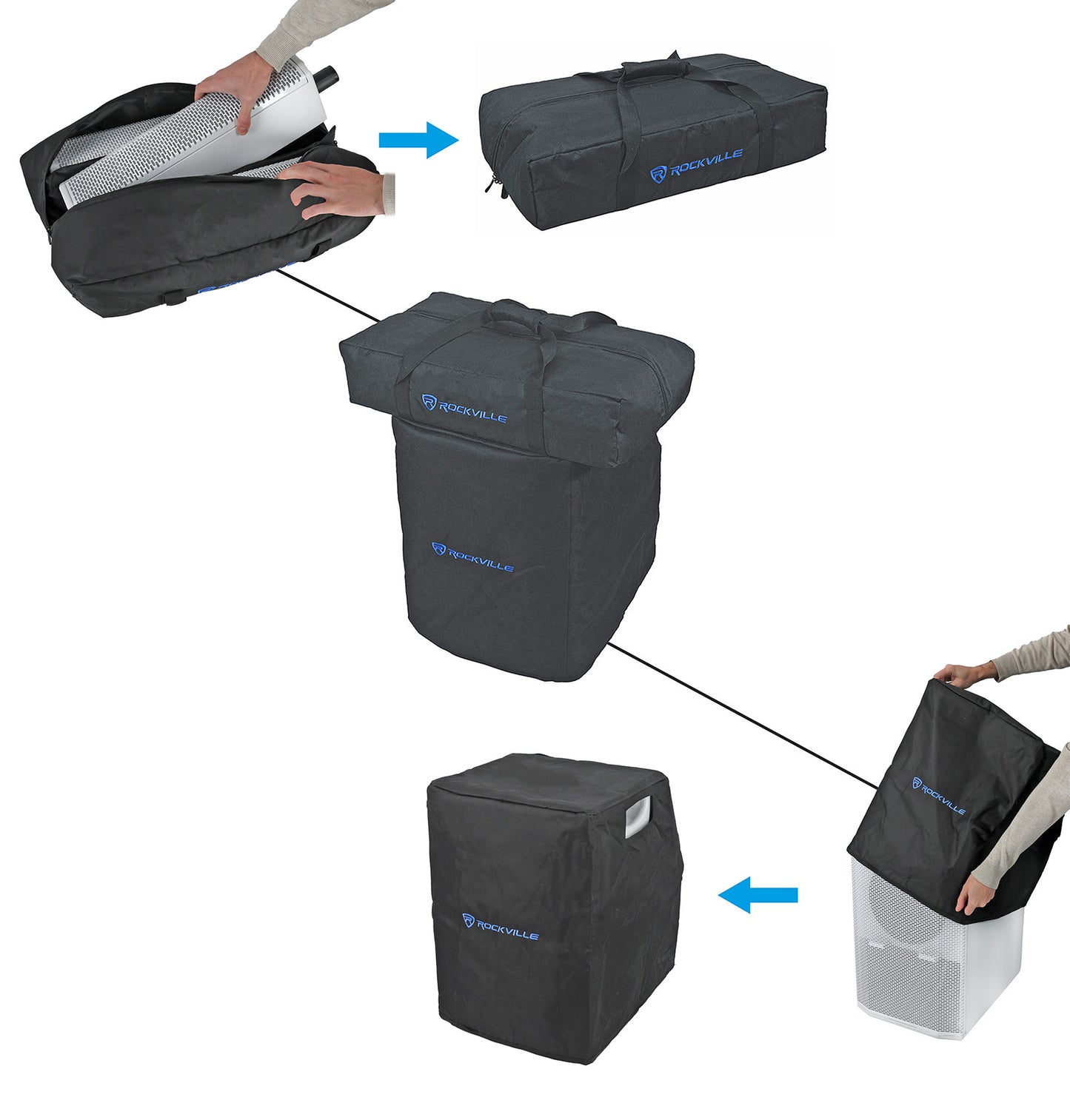

• Travel Bag for the column speakers
• Protective Cover for subwoofer
• Bag for (3) column speakers with carry handles
• 8 Foot Power Cable
• Owners Manual
• Warranty Card

System Features:

• Rockville TITAN ARRAY SYSTEM White PRO Powered Column Speaker with Dual 10" Subwoofer
• 3200W Peak Power / 1600W Program Power / 800W Continuous RMS
• One system is loud enough for 300 people in a 10K square foot space
• Wireless stereo linking of 2 systems
• Bluetooth 5.0 chip allows crystal clear music streaming with 65 foot max range
• LOWS: Dual 10” Subwoofers deliver extremely loud and deep bass (500w RMS to the lows)
• Each sub has a large 80 Oz magnet and 2” Voice coils wound with OFC wire
• Highs/Mids: (10) 3.5" drivers with neodymium magnets deliver crystal clean highs and mids (2 x 150w RMS to the highs)
• All components are in wooden enclosures with a protective water resistant polyurethane coating delivering crystal clear sound quality even at max volume levels
• DSP tuned by Rockville musicians for extremely balanced sound with clear vocals, deep heart thumping bass, and crystal clear instruments and highs
• 0.6” Thick MDF sub enclosure with sandblasted paint (sandblasted paint is very scratch resistant)

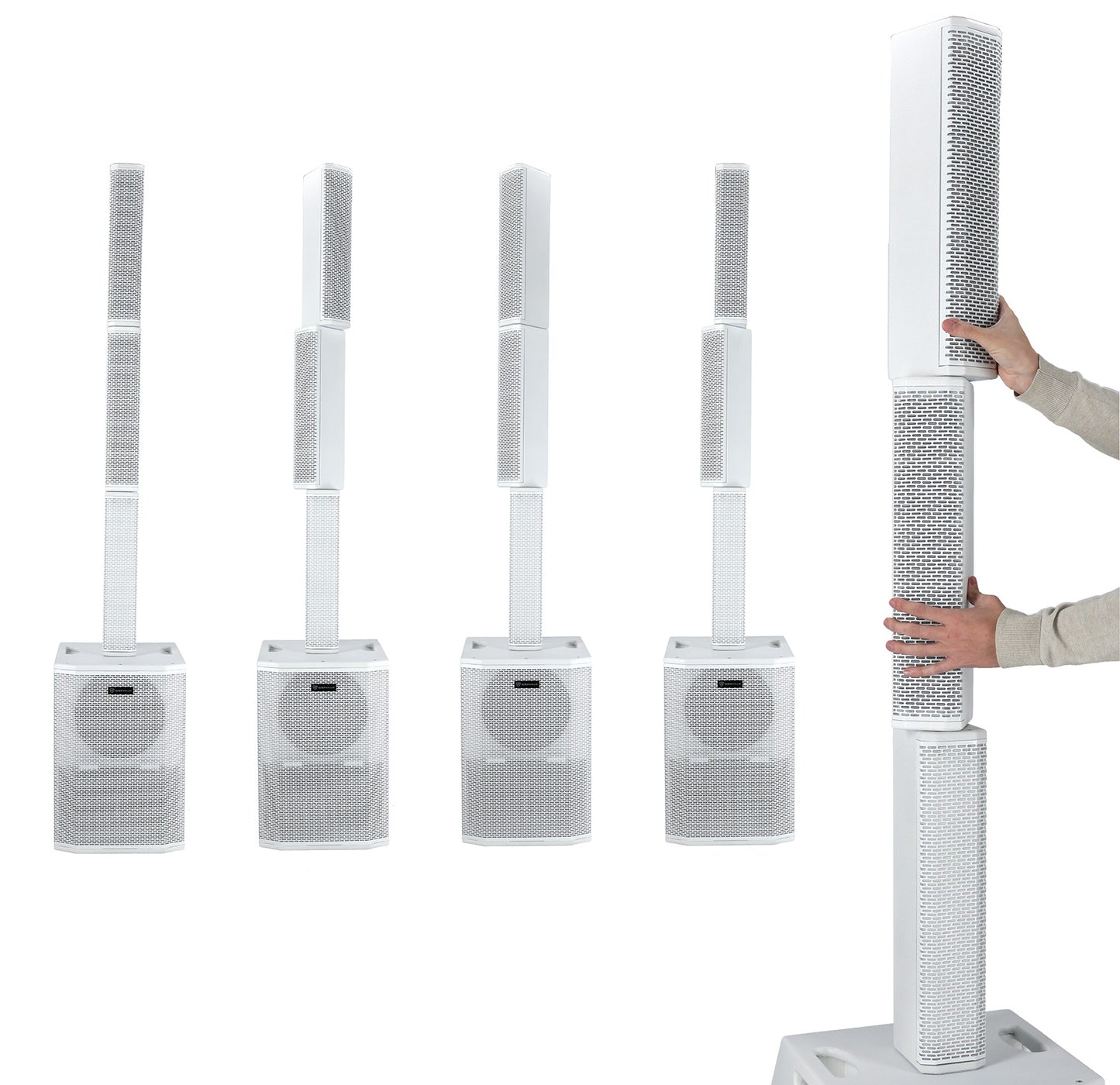

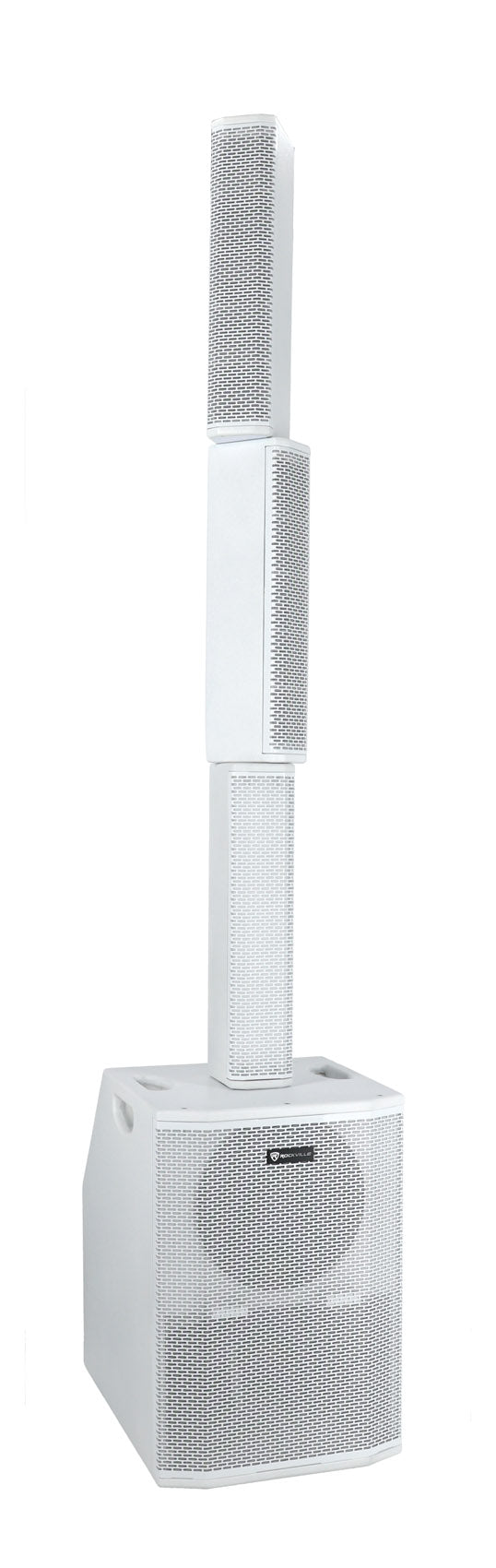

• Each column speaker can rotate 360 degrees allowing you to disperse the sound efficiently in any room
• Build in user adjustable DSP modes (Normal, DJ, Voice, Live, Flat)
• Wide angle sound dispersion fills a room with sound
• Maximum SPL: 127dB
• Frequency response: 41Hz-23Khz (-10dB) and 44Hz-19.8Khz (-3dB)

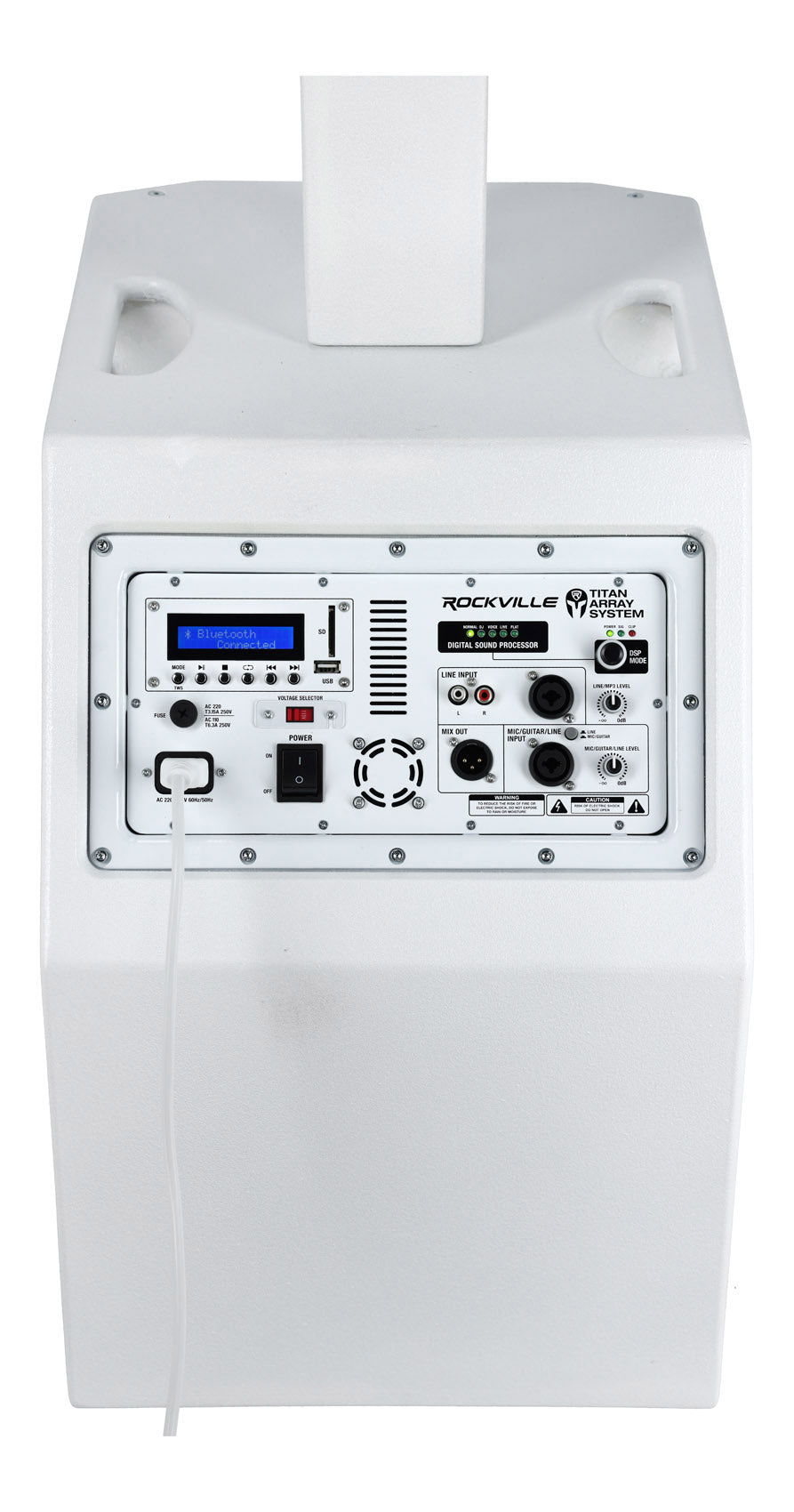

Mixer Features:

• Built in Bluetooth (latest 5.0 chipset) allows you to play music from any Bluetooth device (30 foot range)
• Built in TWS allows you to link 2 systems together in stereo
• USB playback (32gb max)
• SD playback (32gb max)
• Input 1: Mic / Line Level XLR / ¼” Combo jack
• Input 2: Line level input XLR / ¼” Combo jack
• RCA input
• XLR Mix output allows you to connect another speaker or amplifier
• Columns for highs can rotate 360 degrees
• Class D amplifier is extremely efficient with a low current draw and approximately 90% of energy is turned into clean amplifier power
• Limiter allows the speaker to play at extremely high volumes while limiting the frequencies causing clipping
• Built in dual carry handles on the subwoofer unit

Details:

• Weight of Sub: 61.73 lbs.
• Dimensions of Sub (Inches): 20.68” x 14.9” x 21.8”
• Weight of each column: 5.78 lbs.
• Dimensions of each column: 5.32” x 3.94” x 19”
• Voltage:110/220V voltage switcher for worldwide use

Owner's Manual

---

All About Your RCXFM20E-B:

All About Your RCX Series Cables:

Description:

All Rockville pro audio cables are made with 100% copper which boosts the efficiency of the cable. There is nothing better than 100% copper. Most of the cheaper cables on the market do not use 100% copper, instead they make their cables with CCA (Copper Clad Aluminum). CCA cables do not perform on the level that 100% copper cables perform at. CCA will not conduct signals efficiently. A 12 gauge CCA cable will not even perform as well as a 14 gauge 100% pure copper cable, which will in turn, affect the performance and longevity of your equipment. If you find cables on the market that do not mention the copper content, there is a good chance that they are selling you a cheaper cable that is CCA and not 100% copper. Rockville pays an inspection company to oversee the manufacturing of the product to ensure that we provide a 100% Oxygen Free Copper Cable (OFC). Our OFC cables are less prone to oxidation, and will provide maximum signal transfer.

The other important factor of a cable is the shielding. Most of the good brands on the market have about 85% shielding coverage, so we decided to take our shielding a step further. Rockville cables are shielded with a tight copper mesh, covering 90% of the cable! The high percentage of coverage increases the ability to absorb the Electromagnetic Interference (EMI) and Radio Frequency Interference (RFI) that suppresses signal and degrades the performance of equipment. Rockville Cable's copper shielding provides great flexibility, maintains a durable structural integrity, while decreasing signal interference ensuring enhanced signal clarity with every use.

Features:

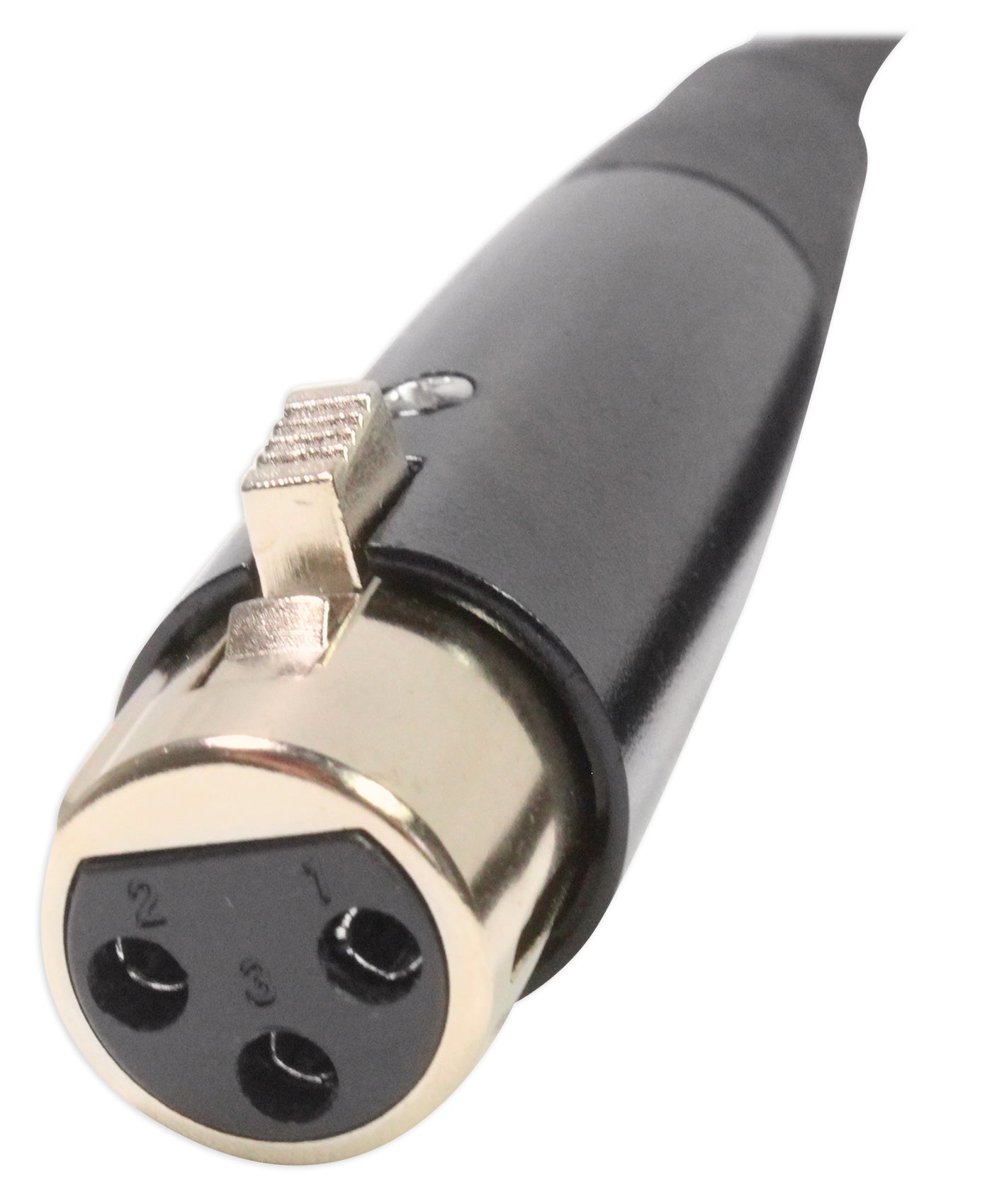

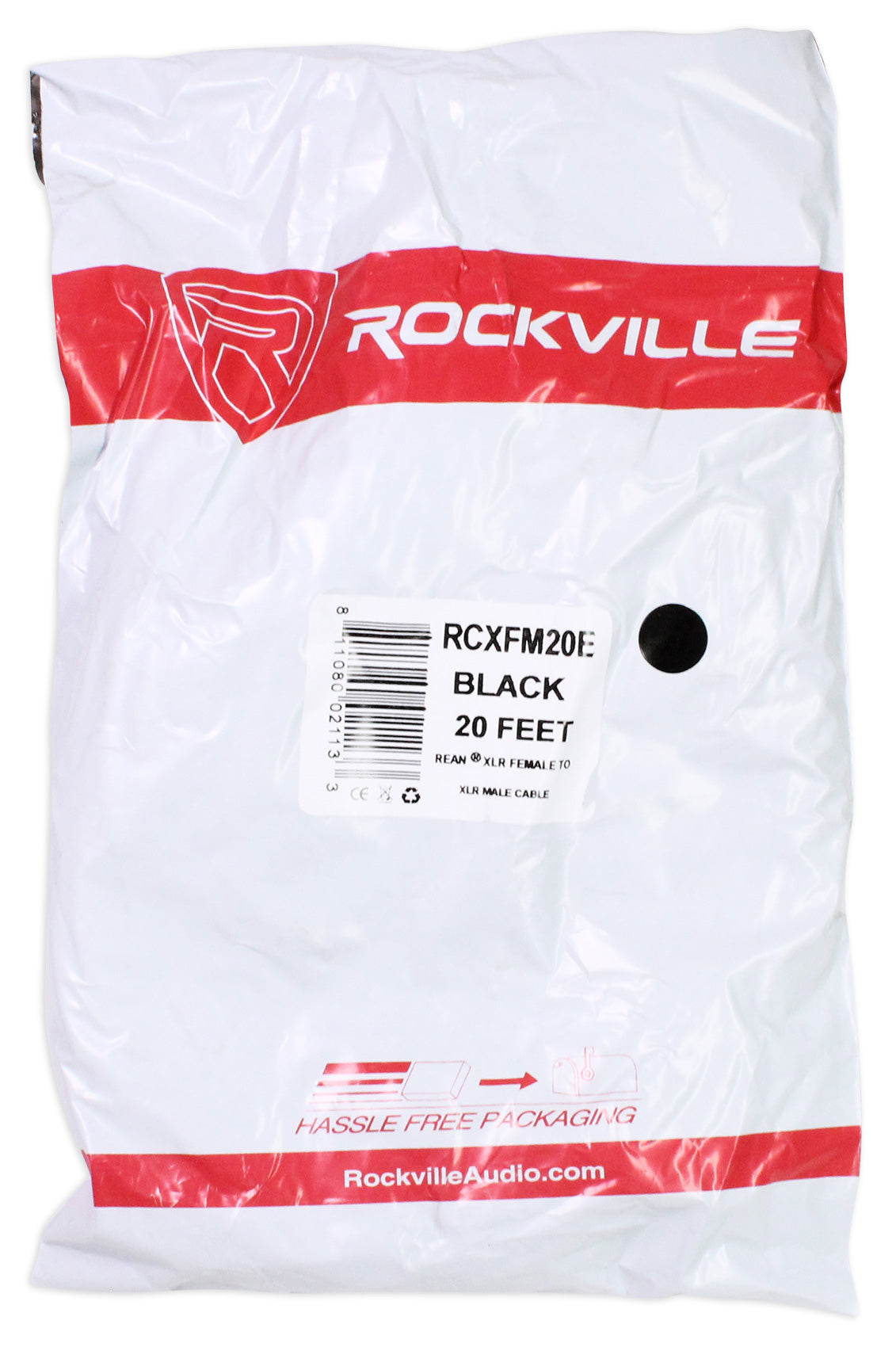

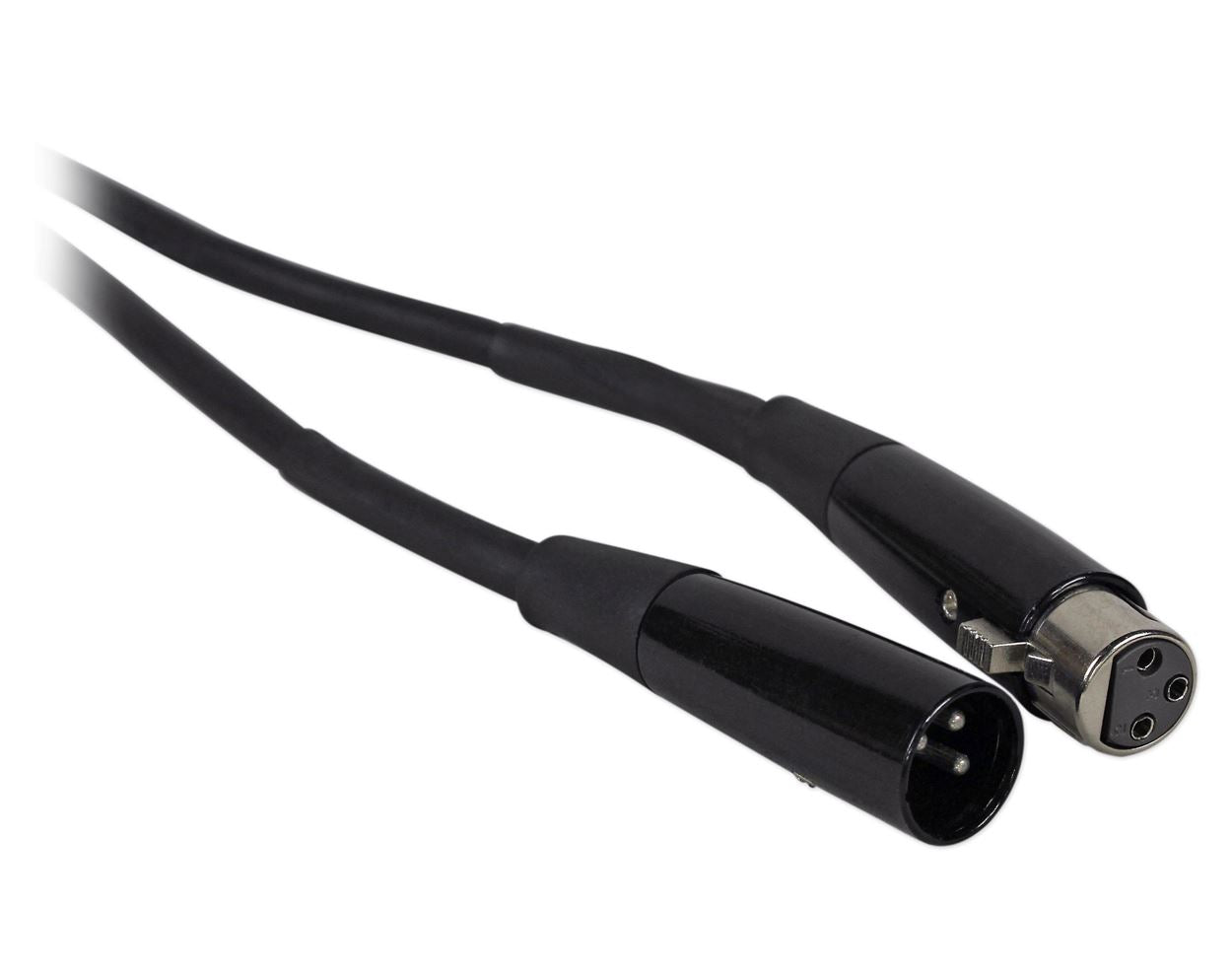

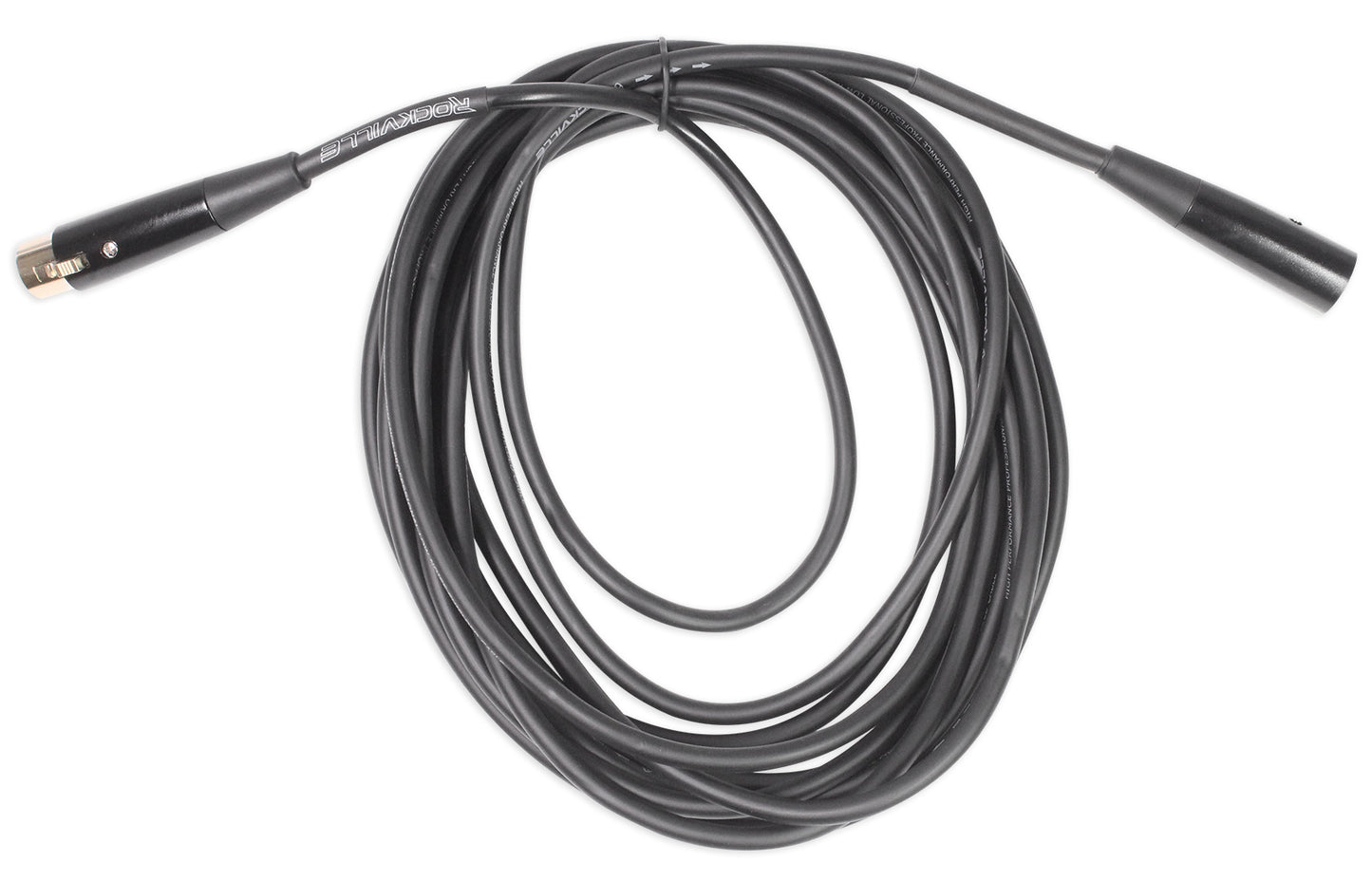

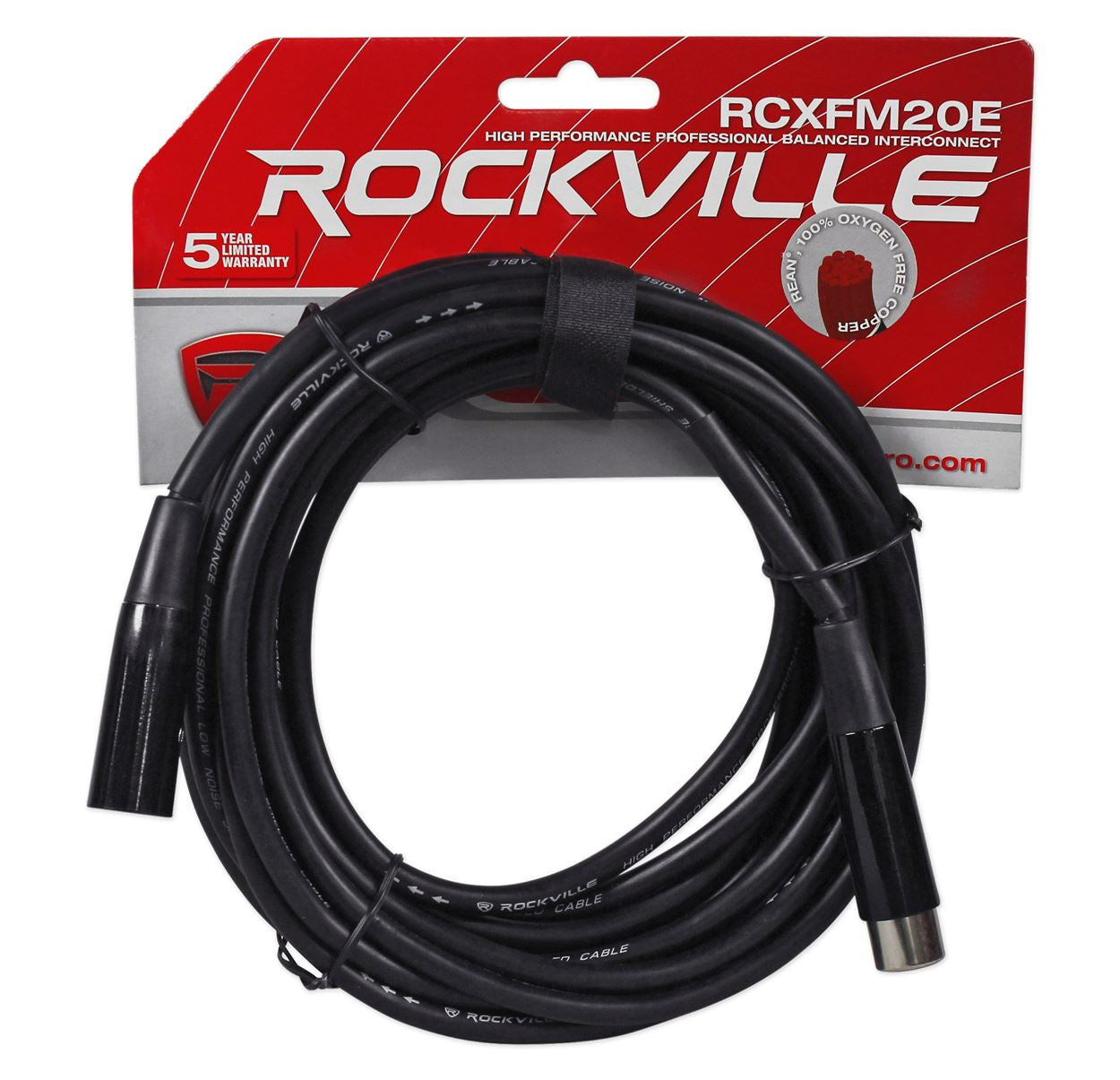

• Rockville RCXFM20E-B Black 20 Foot Nickel Plated Female to Male XLR Microphone Cable

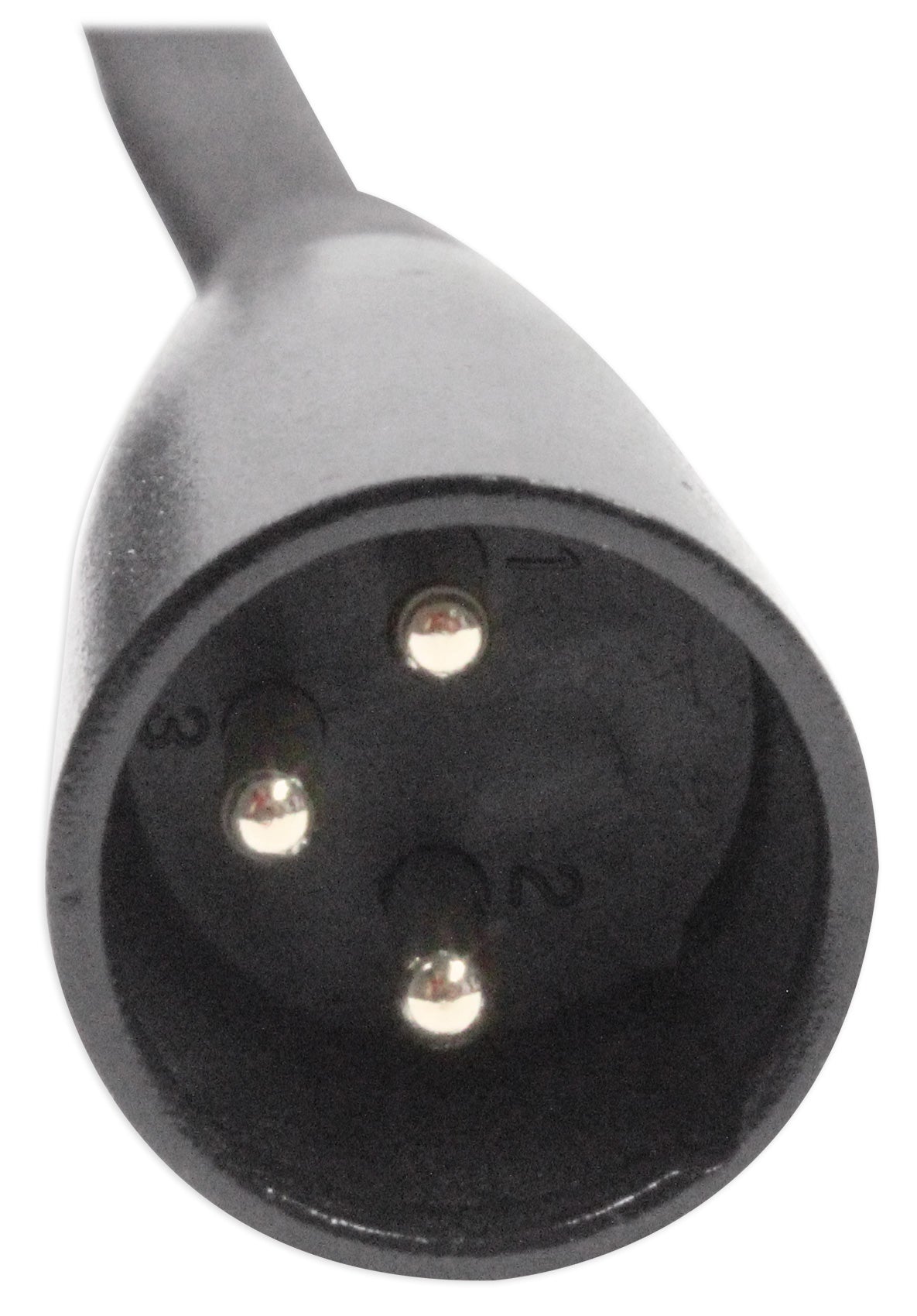

• XLR Connectors with Internal Strain Relief for Rugged Reliability
• 100% Copper Conductors for Enhanced Signal Clarity
• 90% OFC Spiral Shield for Effective EMI and RFI Rejection and Flexibility
• Length: 20 Ft
• Color: Black

---

All About Your RMC-XLR:

How To Set Up RMC-XLR:

Unboxing of RMC-XLR:

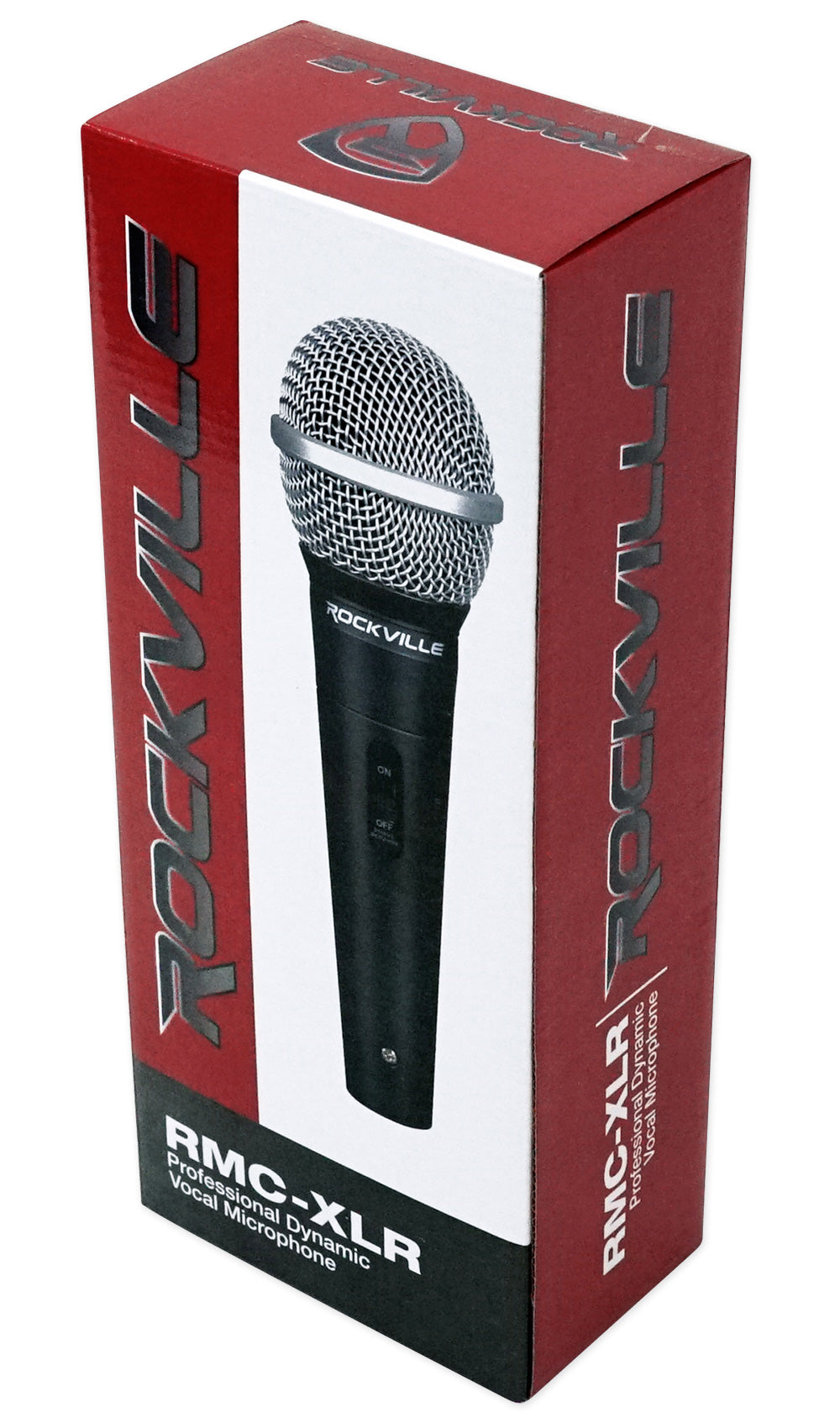

Description:

The Rockville RMC-XLR is the same exact microphone we use in our Pro Mic Kit 1 microphone/stand bundle. This mic was created because we saw a need in the market for a high quality microphone at an affordable price. We found there were a lot of good mics around from reputable brands that sound great, but are very expensive. When we looked at the cheaper mics on the market from both reputable and entry level brands; we were not impressed at all. As a result we sent our very own product developers on a mic testing journey. A lot of our employees here at Rockville love to do karaoke, so it was not long before we found a mic that we all loved.

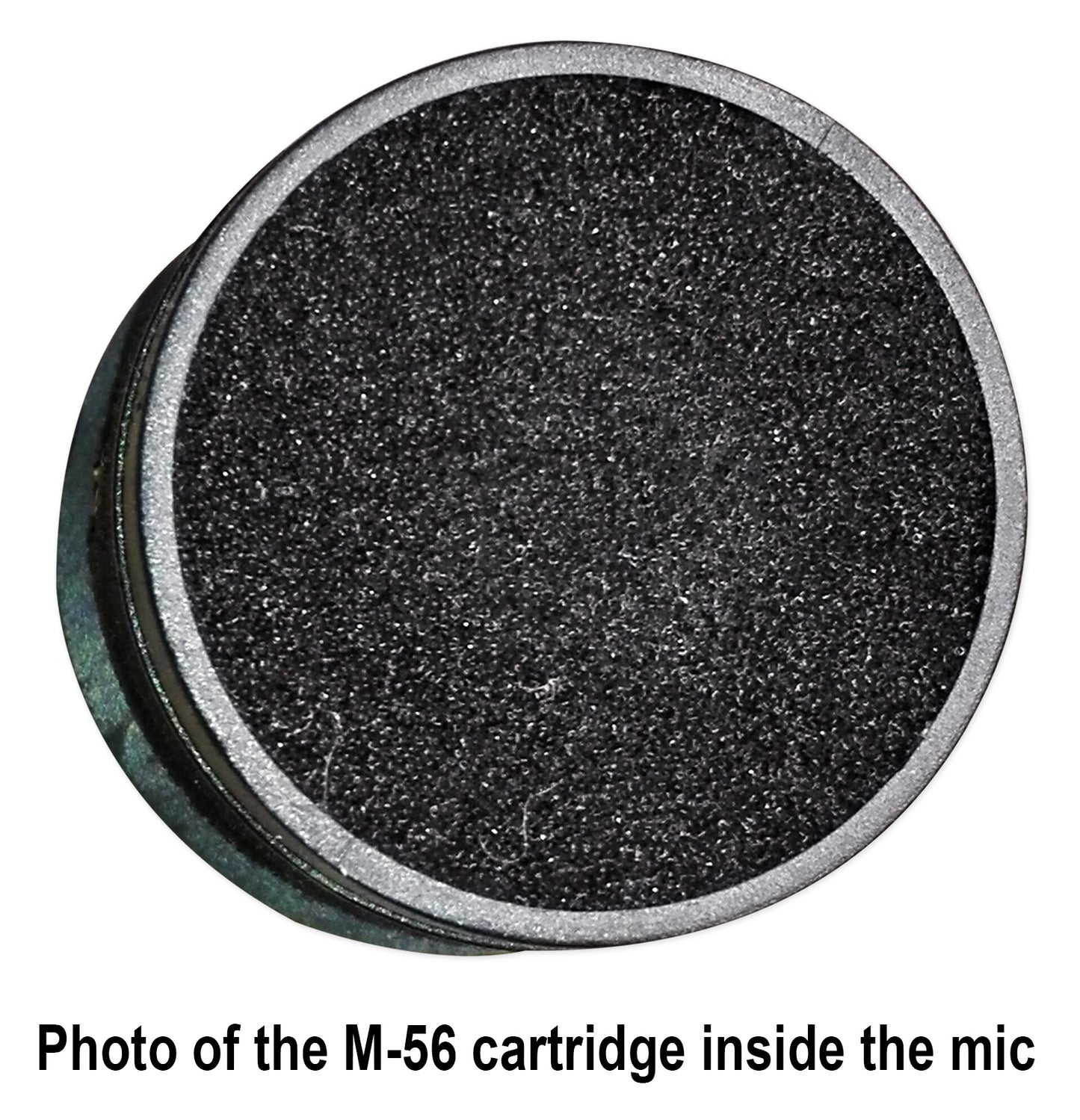

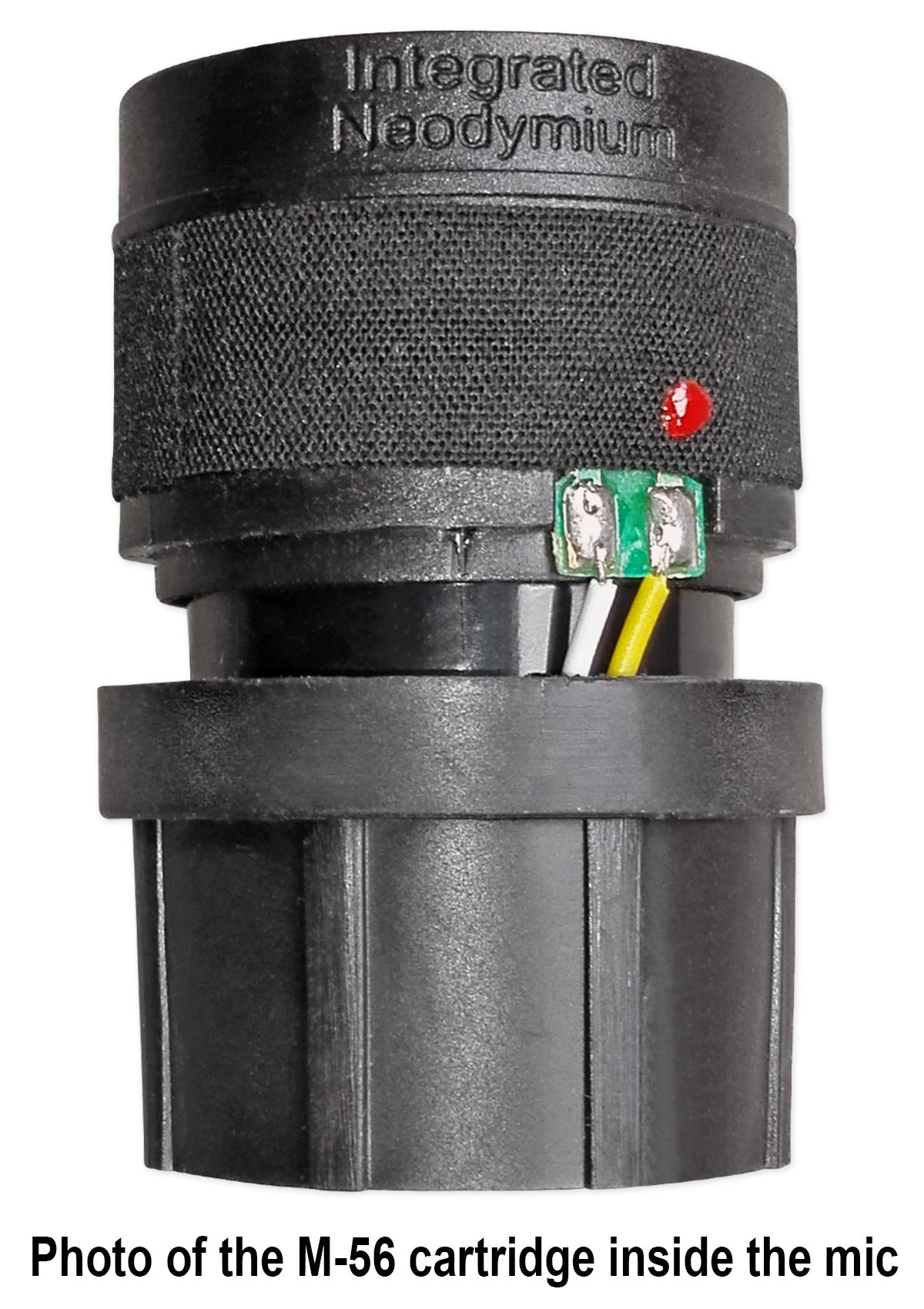

You may be asking yourselves, so what makes this mic sound so good? There are 3 main components that make a mic sound the way it does. The cartridge, the magnet, and the mic cable. Our mic uses an M-56 cartridge which has a neodymium magnet. This combination of components supplies better sensitivity; which means your mouth will not have to be on the mic for it to pick up the sound. Our components supply more than a great pickup pattern. They have very little background noise, and great tone.

We pay a lot of attention to detail. We could have saved a lot of money and got our cost down by including a cheap cable, but we know how important the cable is. We are very passionate about our products and we really have a lot of respect for our customers. For this reason alone we included 100 % OFC copper cables. There is no aluminum in this cable! It is Pure oxygen free copper. What this means is that the cable will last longer and will sound a lot better. You will get a distortion free signal. We use a true gauge mic cable with proper thickness.

The body of the microphone is also something we paid a lot of attention too. We did not want it to be too light and feel cheap. We made a nice solid metal microphone. It has a great feel to it. We could have gone with plastic or cheaper metal, but we wanted to go with a mic that we ourselves would want to use.

90 Day Money Back Guarantee including return shipping!

If within the first 90 days you are not 100 % satisfied for any reason, contact us and we will send you a return label and give you all your money back! (Item must be returned complete with all accessories and the original box please.

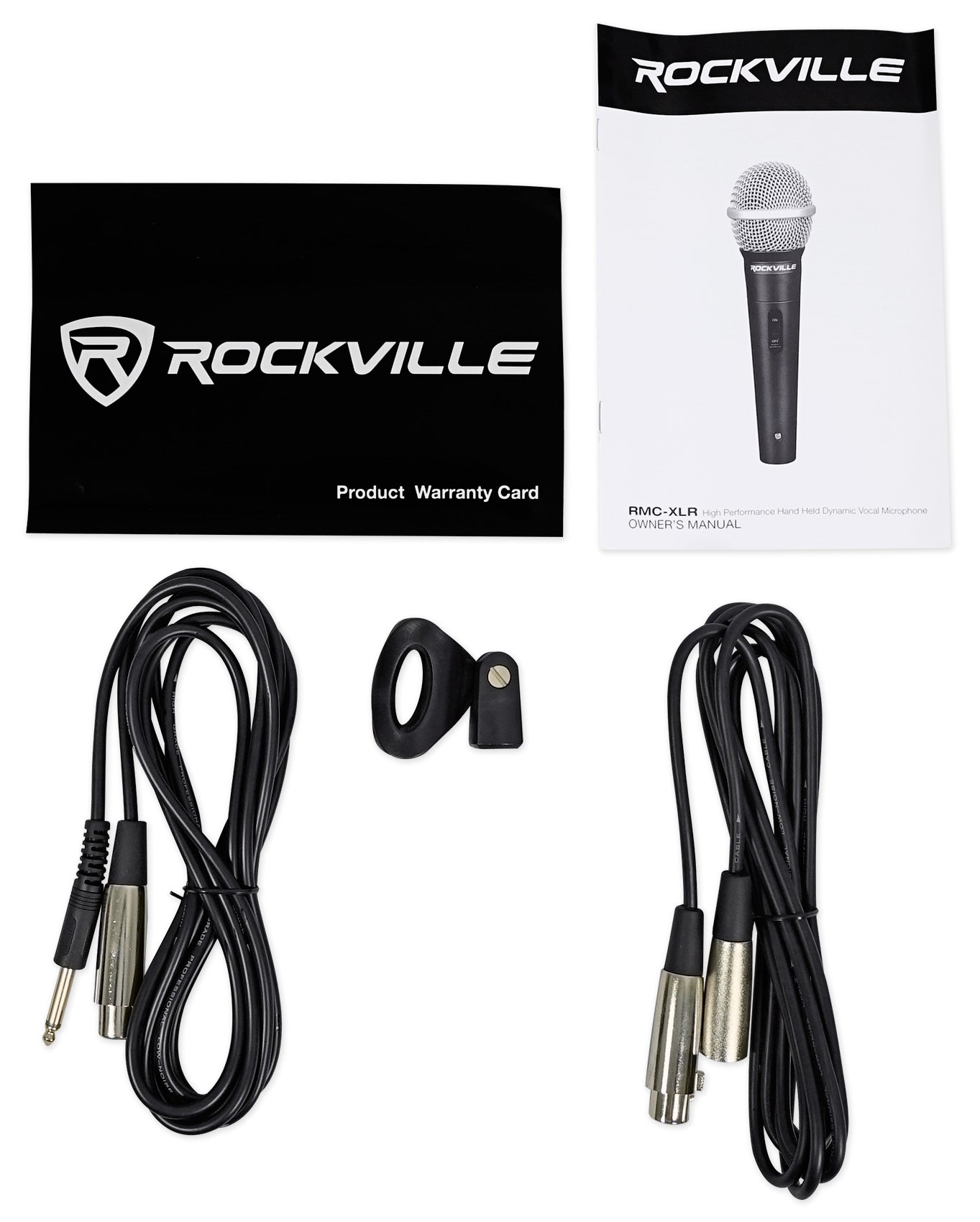

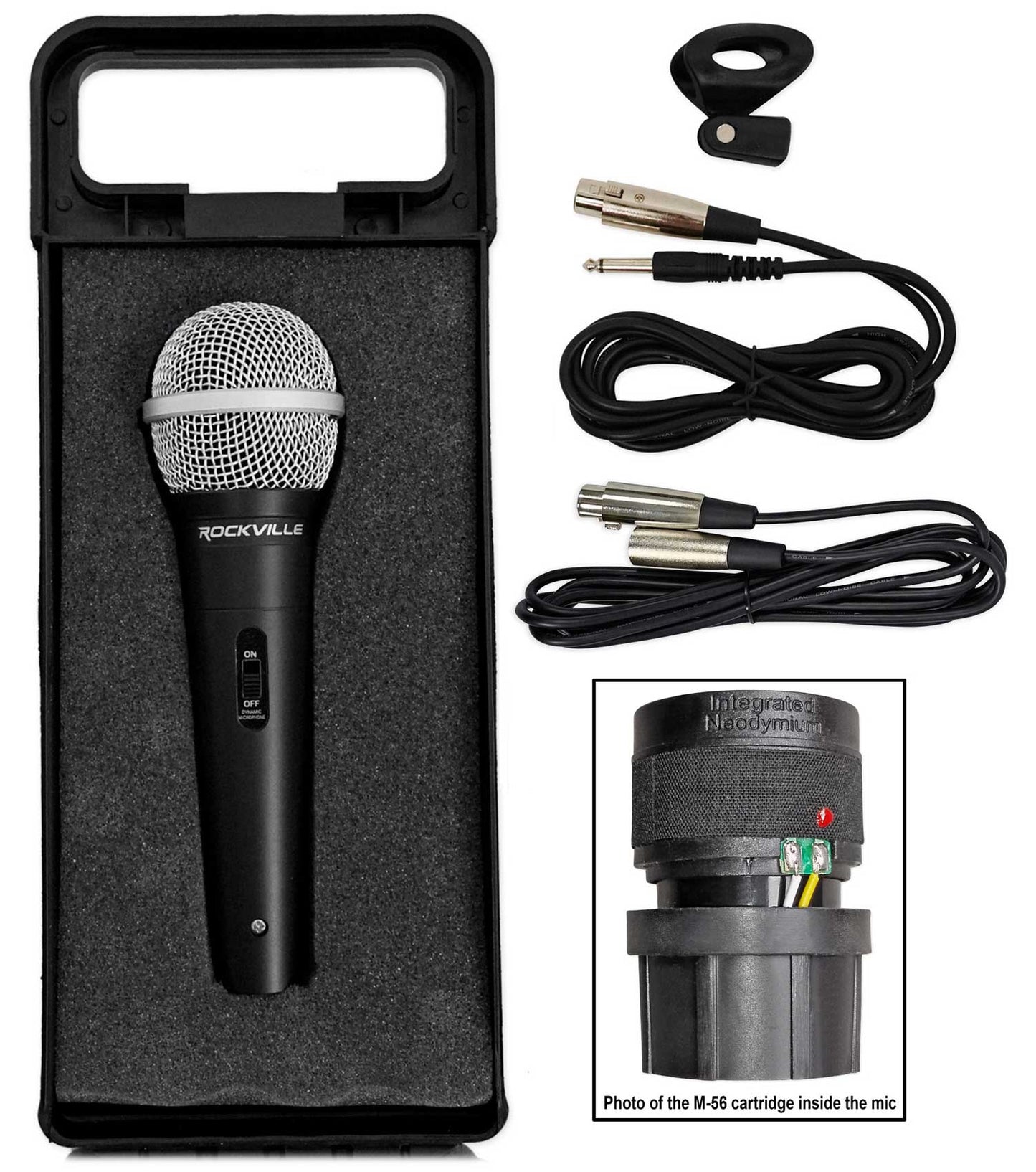

What's Included:

• Fully metal wired mic
• (2) 100% OFC copper mic cables (XLR to ¼" + XLR to XLR )
• Mic Clip
• Plastic Carry Case
• Owner's Manual
• Warranty

Features:

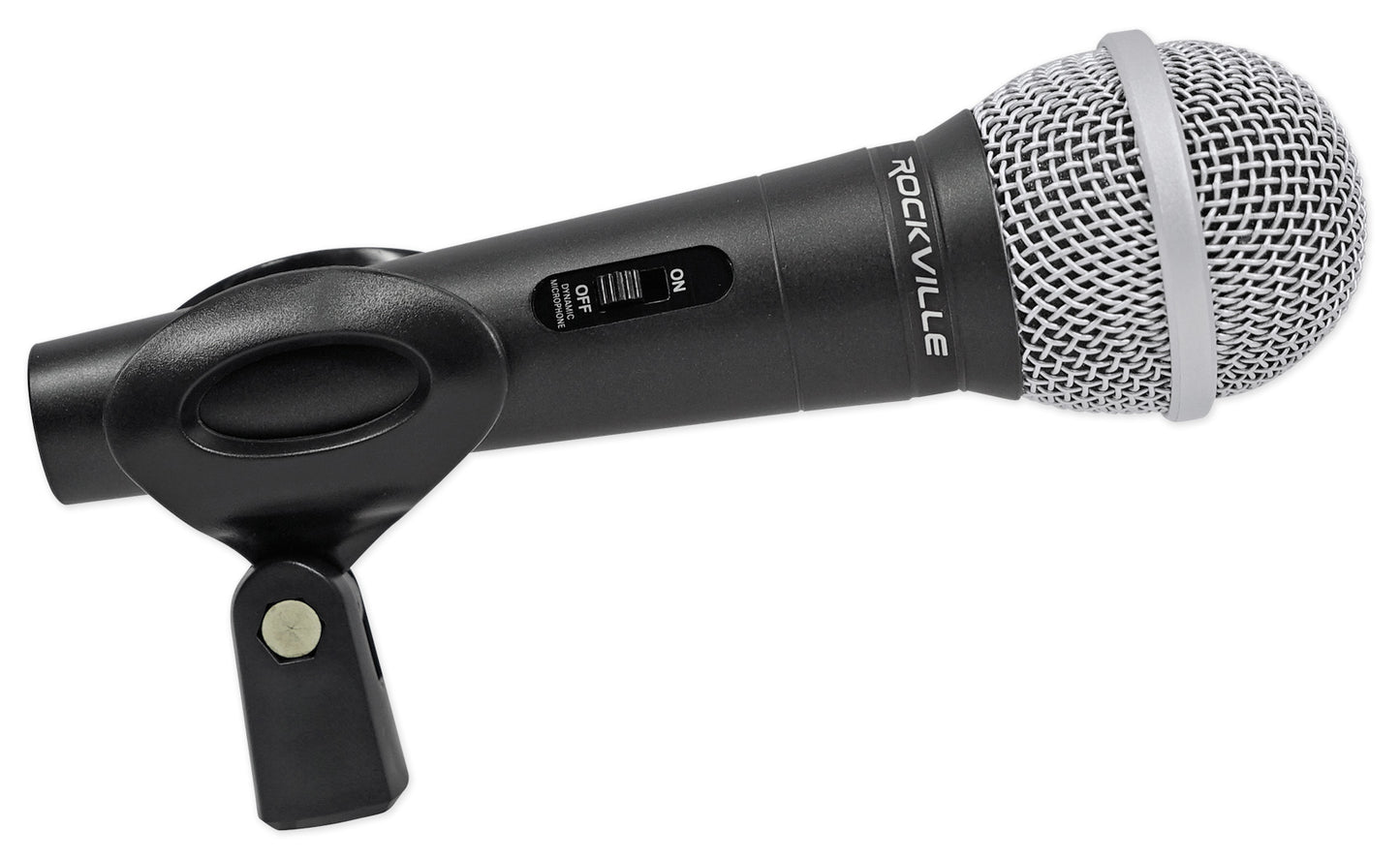

• Rockville RMC-XLR High-End Metal Handheld Wired Microphone Mic Amazing Sound!

Mic Features:

• M-56 Cartridge
• Full metal mic body
• Type: Dynamic
• Neodymium magnet
• Polar Pattern: uni-directional
• Frequency Response: 80 - 13Khz
• Impedance: 600 Ohms ± 30%
• Sensitivity: -72 ± 3dB

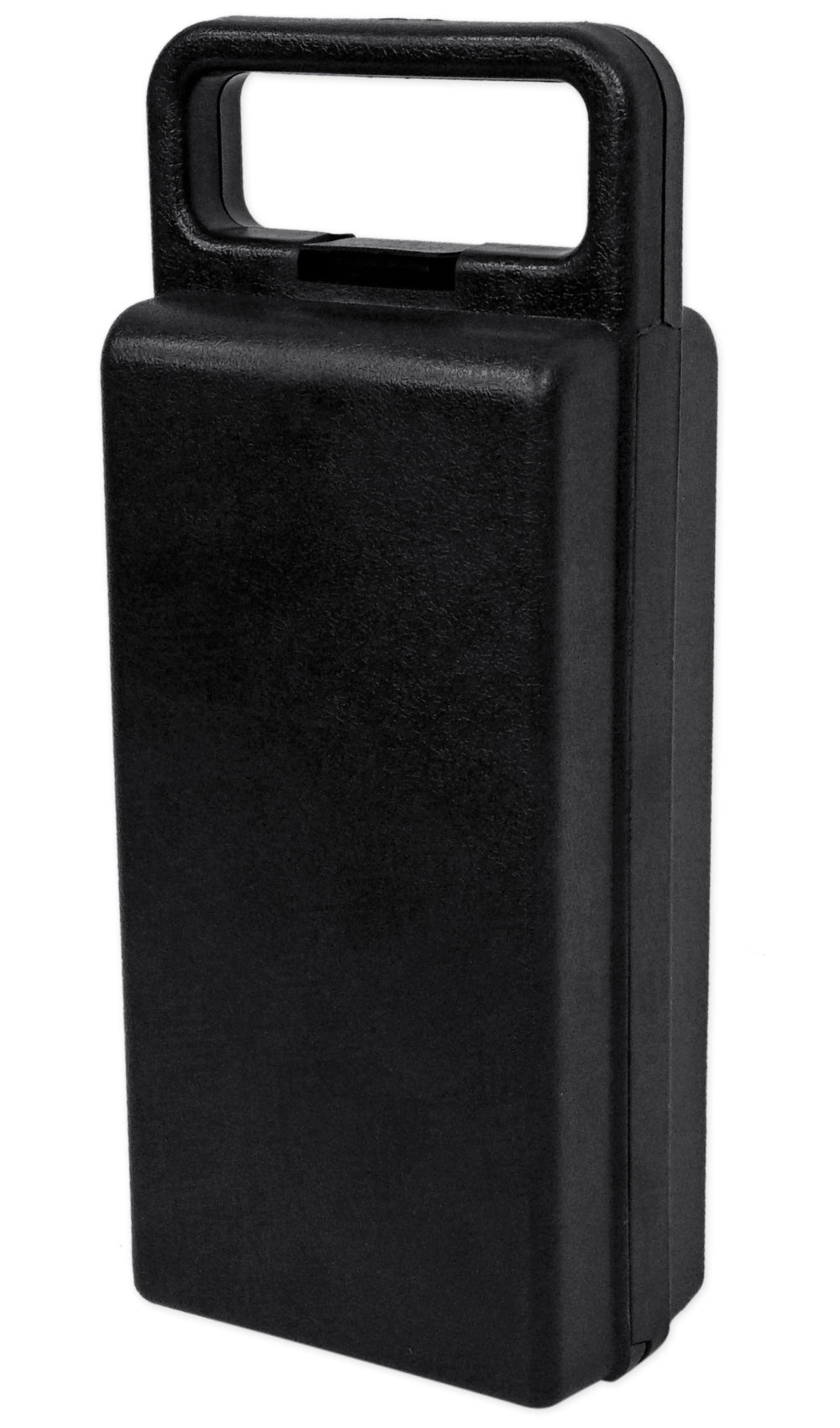

Case Features:

• High quality plastic carry case protects the mic during transportation
• Comfortably holds microphone and mic cable

Cable Features:

• XLR to ¼" Cable
• XLR to XLR Cable
• 10 Feet each
• 100% OFC oxygen free copper
• Cable delivers crystal clear distortion free signal
• Cable is 5 MM thick with cover (22 AWG standard mic cable)
• XLR cable connectors are very solid and durable

Mic clip Features:

• Heavy Duty Standard Size Microphone Clip
• Stand Mountable
• Solid Plastic Construction with copper inside (part that screws to the mic)
• Black Color
